Understanding Frame Machine Types
Frame machines come in several distinct configurations, each designed for different shop layouts and repair workflows:
- Scissor Lift Frame Machines: These compact units combine a lifting mechanism with pulling capability, making them ideal for smaller shops with limited floor space. They typically work well for light-duty vehicles and offer good ergonomic working height.

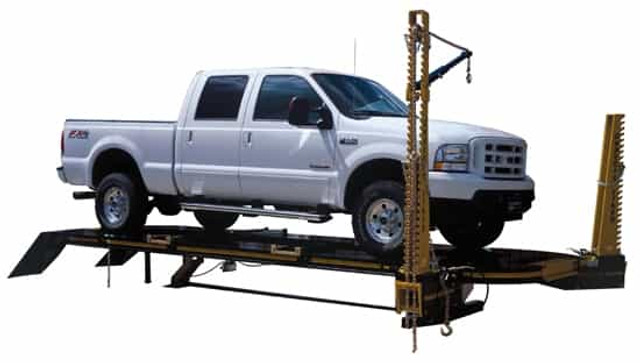

- Drive-On Platform Racks: Full-length platform systems allow vehicles to be driven or rolled onto the deck. These are popular for shops handling higher volumes, as they provide 360-degree access and can accommodate a wider range of vehicle sizes.
- Tilt Deck Systems: These racks allow the platform to tilt for easier vehicle loading and positioning. They're especially useful when working with vehicles that can't be driven under their own power.

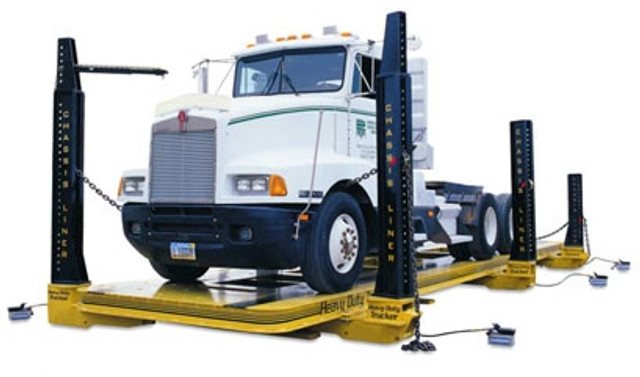

- Heavy-Duty and Medium-Duty Racks: Purpose-built for trucks, buses, and commercial vehicles, these feature reinforced decks, higher weight capacities, and extended bed lengths to handle large-frame vehicles.
Key Components and Terminology
Understanding frame machine components helps when evaluating which system fits your shop's needs:
Pull Towers: The hydraulic towers that provide pulling force. Models may offer multiple pulls per tower, and tower height affects the pulling angles available for complex repairs.
Tie-Down and Anchoring Systems: Critical for securing the vehicle during pulls. Look for adjustable height clamps, multiple tie-down points, and compatibility with both full-frame and unibody vehicles.
Deck Width and Length: Generally range from 9 feet to 40 feet in length depending on vehicle types served. Wider decks provide better access and stability for larger vehicles.
Working Height: The distance from the floor to the top of the deck. Lower working heights reduce the need for additional ramps or lifts, while higher platforms may offer better access to undercarriage components.
Common Applications and Repair Scenarios
Frame machines are essential for a variety of collision and structural repair tasks:
- Front-End Collision Repair: Restoring crumple zones, radiator support structures, and frame rails after frontal impacts
- Side Impact and Sill Damage: Pulling and straightening rocker panels, B-pillars, and door frames on unibody vehicles
- Rear-End Structural Damage: Correcting quarter panel mounts, rear body panel alignment, and trunk floor distortions
- Suspension Mounting Point Repair: Ensuring suspension towers and control arm mounting points return to factory specifications for proper wheel alignment
- Unibody vs. Body-on-Frame: Modern unibody construction requires precise measurement and multi-directional pulling that frame machines are specifically designed to handle
Safety and Training Considerations
Frame machines involve high-tonnage hydraulic forces and require proper training for safe operation. Technicians should be familiar with:
- Proper vehicle anchoring techniques to prevent slippage during pulls
- Safe hydraulic pressure limits and monitoring procedures
- Heat and structural integrity assessment before applying pulling forces
- Personal protective equipment requirements during frame straightening operations
- Manufacturer-specific setup procedures and safety features unique to each system
Always follow manufacturer guidelines and I-CAR or ASE collision repair best practices when operating frame equipment.
Installation and Shop Requirements
Before purchasing a frame machine, consider these facility requirements:
Floor Space: Measure your bay dimensions carefully. Include clearance for tower extensions, which can add several feet to the machine's footprint. Typical installations range from 12' × 20' stalls for compact units to much larger areas for full-size truck systems.
Ceiling Height: Pull towers can extend 7 to 9 feet or higher. Verify your shop has adequate overhead clearance, including allowance for overhead pulling accessories.
Floor Condition: Most frame machines require a level concrete floor with adequate thickness and structural integrity to handle pulling forces and vehicle weight. Consult installation specifications for exact requirements.
Air Supply: Many modern systems use air-hydraulic pumps and require a reliable compressed air source with adequate CFM and pressure ratings.
Power Requirements: If your machine includes electric lifts or powered components, ensure proper electrical service is available.
Measuring Systems and Accuracy
A frame machine is only as good as your ability to measure the damage and verify repairs. Many shops pair their frame machine with:
- Mechanical Measuring Systems: Tram gauges and mechanical measuring fixtures that reference fixed points on the vehicle
- Laser Measuring Systems: For precise three-dimensional measurement and real-time monitoring during pulls
- Electronic Measuring Systems (EMS): Computer-aided systems with extensive vehicle databases for comparing measurements to OEM specifications
Accurate measurement is critical for ensuring repaired vehicles meet safety standards and maintain proper handling characteristics. Investing in quality measuring equipment complements your frame machine and improves repair outcomes.
Accessories and Complementary Equipment
Frame machines typically work best when paired with supporting tools and accessories:
- Additional Chains and Hooks: Various lengths and ratings for different pulling scenarios
- Universal Adapters: Allow attachment to different vehicle mounting points and frame configurations
- Wheel Stands and Dollies: For positioning vehicles and supporting wheels during repairs
- Down-Pull Attachments: Enable downward pulling forces for specific types of frame damage
- Overhead Pulling Accessories: Tower extensions and boom attachments for pulling from elevated angles
- Power Pushers: For applying controlled pushing forces from inside the frame structure
Building Your Collision Repair Business
Adding frame straightening capability can significantly expand your shop's revenue potential. Insurance companies and dealerships actively seek qualified collision repair facilities with proper frame equipment, and the investment often pays for itself through:
- Higher average repair order values on collision jobs
- Ability to accept direct repair program (DRP) contracts that require frame repair capability
- Reduced sublet costs from sending frame work to other shops
- Improved customer retention by offering complete collision repair services in-house
Specifications vary by model. Always check individual product listings and manufacturer documentation for exact details.
Frame Machines
If your shop handles collision repair, structural straightening, or bodywork on modern vehicles, a quality frame machine is a must. These systems let you pull, measure, and realign vehicle frames back to manufacturer specs — safely and efficiently.
Why You Need a Frame Machine
Frame damage is more common than most drivers realize — and without the right machine, those vehicles can’t be safely or cost-effectively repaired. Frame machines let you:
- Restore frame integrity after major collisions
- Improve alignment accuracy by eliminating structural distortions
- Expand your shop’s service offerings to handle insurance jobs and higher-ticket repairs
What to Consider When Choosing a Frame Machine
- Vehicle types: Do you work on light-duty cars, SUVs, or heavy trucks? Make sure your system supports the correct weight and length.
- Pulling power: Some jobs require 10-ton or higher towers — consider how many pulls you'll need simultaneously.
- Setup space: Floor-mounted and scissor-style machines offer different working heights and layouts depending on your shop footprint.
- Clamping system compatibility: You may want universal clamps, quick-lock tools, or OEM-specific attachments for efficiency.
At Best Buy Auto Equipment, we carry proven machines from trusted names like Chassis Liner and Nationwide. Our long-term partnerships let us offer top-tier quality at competitive prices, whether you're opening a new collision bay or upgrading your existing system.
Need help finding the right fit? Contact our frame equipment specialists — we’ll walk you through your options based on vehicle mix, repair volume, and floor layout.
Click on one of the manufacturer logos below to view our inventory by manufacturer:
|
|
|
Our best-selling frame machine from Chassis is the Lift 'N Rak Pro, which is a scissor lift and portable frame rack all in one. It can pull up to 8 tons and features a Tilt 'N Turn Tower, which allows pulling from multiple angles. The Tilt 'N Turn Tower includes a pump, hose, ram, and 10-foot chain with a hook. Additionally, the Dual Ram Scissor Lift includes a hydraulic air pump and can lift up to 6,000 lbs. The Lift 'N Rak Pro comes with 4 lifting pads, a down-pull attachment, and a 4 wheel stand, ensuring that you'll have everything you need for even the toughest jobs.
Nationwide's most popular frame machine is the Frame Straightener Scissor Lift. A unique, high-quality, compact straightening machine with the versatility of an automotive lift, the Frame Straightener Scissor Lift is designed to service full-frame or uni-body vehicles. With a 5,500 lb lifting capacity, it features a 10 ton, multi-angle, adjustable height pull tower with a 360 degree turning capability. Along with adjustable height clamping assemblies and universal positioning swivel arms/lift pads, the FR-55 also includes a pull chain with a hook and wheel stands.
Having the right equipment on hand makes taking on the trickiest jobs that much easier. Finding the right product for you can take some time and effort, but we have years of experience in the auto industry, and our experts are always ready and waiting to assist you in finding the equipment that will best suit your needs.
