Professional-Grade Tire Changer with Left Hand Assist

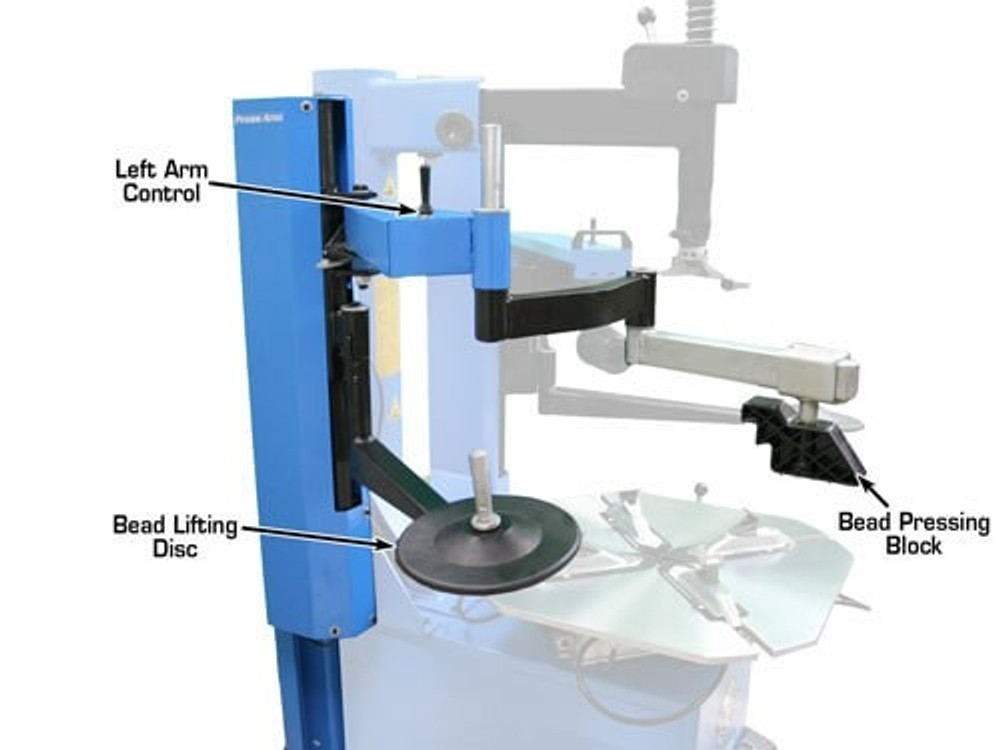

The Atlas® TC289LH rim clamp, swing arm tire changer is the perfect machine for most general automotive service departments, medium-sized tire stores, farm operations, and serious home enthusiasts who need to handle large tires. This version of the TC289 comes equipped with the exclusive Atlas® LHA (Left Hand Assist) arm, a valuable tool specifically designed for changing stiff sidewall and low-profile tires. The LHA acts as an extra set of hands, saving single-user operations valuable time and effort while significantly improving safety and efficiency.
Built to tackle the toughest jobs, the TC289LH features the largest turntable and most clearance in its class to handle the biggest diameter tires. It's perfect for changing tires on large SUVs, one-ton trucks, and other heavy-duty vehicles up to 47" tire diameter. With its powerful 110V electric turntable delivering 885 ft/lbs of rotating torque and a robust pneumatic bead breaker with 5,500 lbs of force, this machine handles even the most stubborn, rusted beads without damaging the rim.
The TC289LH is engineered to service steel, aluminum, and alloy wheels with precision and care. The 4-jaw internal/external clamping system features adjustable jaws in three mounting positions to accommodate the widest variety of tire and wheel combinations. Large plastic jaw covers and rim protectors are included to ensure premium wheels remain scratch-free throughout the tire changing process.
Built-In Bead Blaster for Difficult Tires
The TC289LH features a built-in "Beadblaster" system that makes inflating stiff sidewall tires or other "hard to inflate" tires simple and fast. This inflation assist system delivers a powerful blast of air to quickly seat stubborn beads, eliminating frustration and reducing tire mounting time. Whether you're working with modern low-profile performance tires or older, stiff-sidewall truck tires, the Beadblaster ensures reliable, consistent results every time.
The machine's adjustable bead breaker plate is strategically mounted on the side of the unit for maximum leverage and accessibility. Its adjustable design allows operators to dial in the perfect positioning for different wheel widths (up to 14¾" in position 1 and 18" in position 2), ensuring efficient bead breaking without risk of wheel damage. A plastic cover for the bead breaker shovel is included to protect delicate alloy finishes.
Versatile Clamping for Every Application
One of the standout features of the TC289LH is its exceptional clamping versatility. The turntable jaws can be repositioned to three different mounting locations along the turntable slide, dramatically expanding the range of wheels you can service:
Outside Clamping Range: From 11⅞" to 27⅞" across three positions
Inside Clamping Range: From 13⅞" to 29⅞" across three positions
ATV Configuration (with flip adapters): Down to 5" wheels
Motorcycle Configuration (with flip adapters): Up to 31" wheels
This flexibility makes the TC289LH ideal for shops that service a diverse mix of vehicles, from compact cars and motorcycles to ATVs, full-size trucks, and everything in between. The included flip adapters allow quick reconfiguration for specialty applications without the need for additional equipment.
Complete Professional Package
The Atlas® TC289LH comes fully equipped with everything you need to start changing tires right out of the crate. This complete package includes:
Left Hand Assist Arm (pressing block/disk) for low-profile and stiff sidewall tires
Metal mount/demount head with metal roller and replaceable plastic inserts
Multiple replacement plastic inserts for the mount/demount head
Column-mounted inflator box with gauge
Filter, regulator, and lubricator for optimal air system performance
Soap reservoir with integrated brush
20" tire tool for manual assistance
Set of large plastic jaw covers for wheel protection
4 black plastic rim protectors
Plastic cover for bead breaker shovel
The machine operates on 110V single-phase power for the turntable motor and requires an external air supply at 90-110 psi (maximum inlet pressure 140 PSI). The combination of electric turntable rotation and pneumatic clamping and bead breaking provides the ideal balance of power, control, and reliability.
Key Highlights
Extra-Large Turntable: Handles tires up to 47" diameter with superior clearance for large SUV and truck wheels
Left Hand Assist Arm Included: Makes quick work of stiff sidewall and low-profile tires, saving time and reducing operator fatigue
Built-In Beadblaster System: Ensures fast, reliable inflation of even the most stubborn beads
Powerful Performance:885 ft/lbs turntable torque and 5,500 lbs bead breaker force tackle the toughest jobs
Versatile 3-Position Jaws: Adjustable clamping accommodates wheels from 5" to 31" with optional flip adapters
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
The Atlas® TC289LH requires some assembly after purchase. Installation manuals and assembly guides are provided above.
