Maximum Space Efficiency Meets Professional Performance

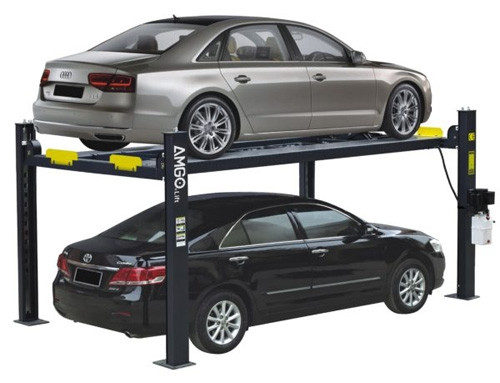

The AMGO® Hydraulics 408-P is a true space-saving powerhouse designed for professionals and enthusiasts who demand commercial-grade performance without sacrificing valuable floor space. With an 8,000 lbs capacity, this four-post lift is ideal for light-duty vehicles and provides exceptional versatility for shops, commercial garages, and residential car ports with limited space.
Engineered for maximum efficiency, the 408-P requires no special foundation or complicated installation procedures. Its flexible design allows the power side column to be installed at any corner, adapting perfectly to your workspace layout. The lift's innovative features and robust construction make it one of the best commercial or private use lifts available today, delivering professional results whether you're running a busy service center or managing your personal collection.
What sets the AMGO 408-P apart is its combination of advanced safety features, structural integrity, and operational convenience. The exclusive hidden safety lock system with manual single-point release allows operators to unlock all safety locks from one column simultaneously, streamlining your workflow. The double-S shaped columns provide exceptional strength and stability, while the skid-proof diamond platform ensures tires stay securely in place during lifting operations.
Key Features & Advantages
8,000 lbs lifting capacity – Perfect for cars, light trucks, and SUVs, making it ideal for diverse vehicle service needs
AMGO exclusive hidden safety locks with manual single-point release device – Unlock all safety locks simultaneously from one column for faster, more convenient operation
Double-S shaped column design – Enhanced structural strength and stability for maximum safety and long-term durability
Skid-proof diamond platform – Provides superior traction to keep tires securely positioned throughout the lift cycle
Flexible power column placement – Install the power side column at any corner to perfectly fit your workspace configuration
Advanced Safety & Design Features

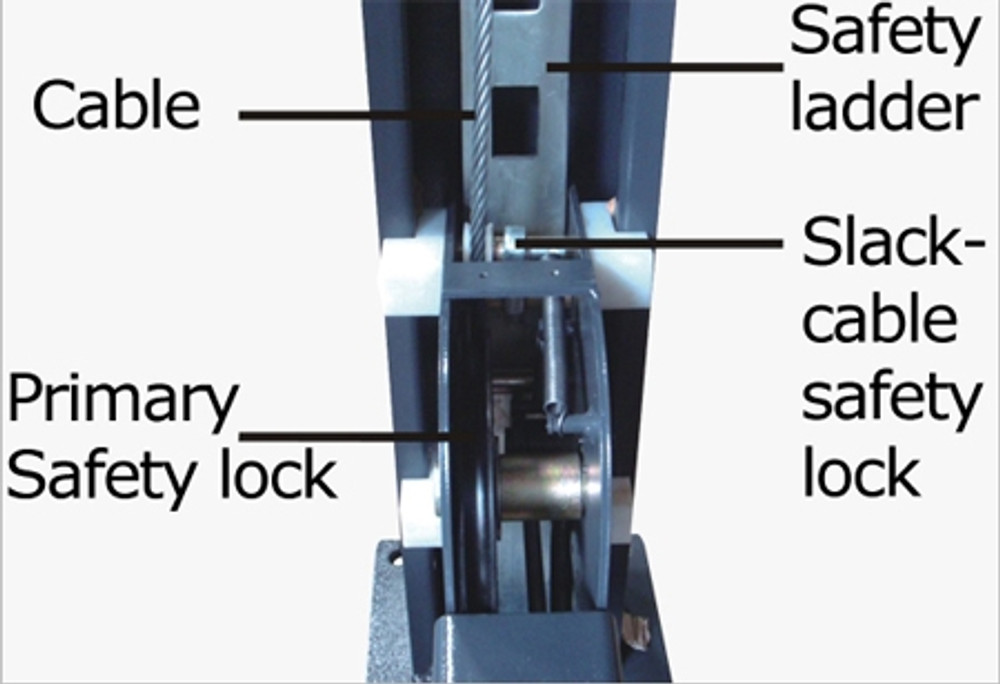

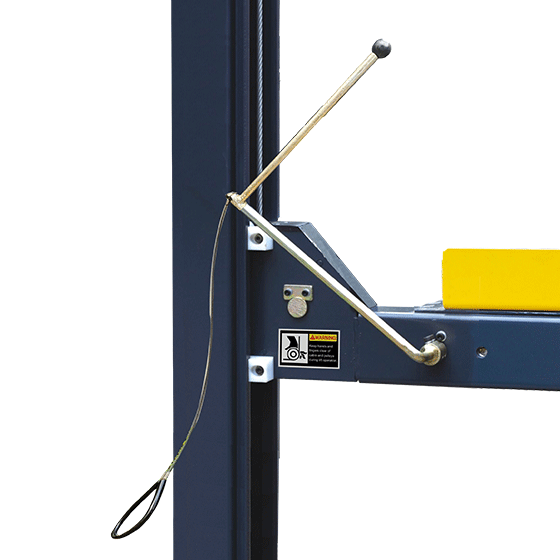

Hidden Lock System The AMGO 408-P features an innovative hidden locking device with a manual single-point safety lock release mechanism. This exclusive design provides superior safety while simplifying operation – operators can release all safety locks from a single location, eliminating the need to walk around the lift and manually unlock each column individually.
Commercial Double Safety Locks Equipped with commercial-grade double safety locks, the 408-P provides additional layers of protection for every lift operation. These robust locks engage automatically at multiple height positions, ensuring the vehicle remains securely elevated even in the unlikely event of hydraulic pressure loss.
Versatile Power Unit Installation The lift includes a 90° installation plate for mounting the power unit at the side of a column (Kit # 40802), offering even more flexibility in configuring the lift to match your specific workspace requirements and workflow preferences.
Portable Design Option Designed with portability in mind, the 408-P can be easily relocated using the optional Caster Kit (# 40801). This feature is particularly valuable for shops that need to reconfigure their workspace or for users who want the flexibility to move the lift between locations.
Compact Dimensions, Full-Size Performance
Despite its space-saving footprint, the AMGO 408-P delivers professional lifting performance. With a maximum lifting height of 73¾" and a minimum height of just 5 11/16", this lift accommodates a wide range of vehicles while providing excellent underneath clearance for comprehensive service work. The 96" width between columns and 81 ⅝" drive-thru clearance ensure compatibility with most vehicles in its weight class.
The overall length with ramp is 207" (173¼" without ramp), making it one of the most compact four-post lifts in its capacity range. The 102 1/2" overall width allows installation in garages and bays where larger lifts simply won't fit, opening up professional lifting capabilities for previously space-constrained locations.
Power & Performance Specifications
The 408-P comes standard with a 1.0HP 110V/60Hz motor (30 amp circuit required) with a lifting time of 98 seconds. For faster operation, an optional 2.0HP 220V/60Hz motor is available, reducing lifting time to just 40 seconds. This flexibility allows you to configure the lift to match your existing electrical infrastructure or upgrade to higher-speed operation as needed.

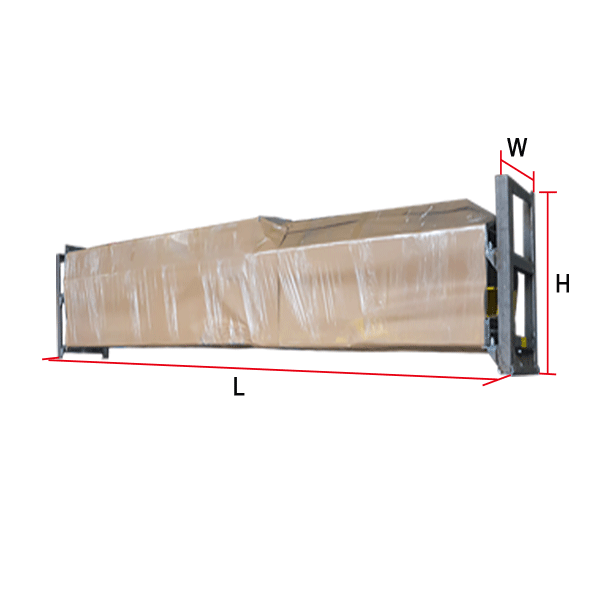

With a shipping weight of 1,560 lbs, the AMGO 408-P is substantial enough to provide rock-solid stability during operation, yet manageable for installation and potential relocation.
Optional Accessories for Enhanced Functionality
Customize your AMGO 408-P with professionally designed accessories to maximize versatility and convenience:
# 40801 Caster Kit – Transform your lift into a portable unit that can be easily repositioned

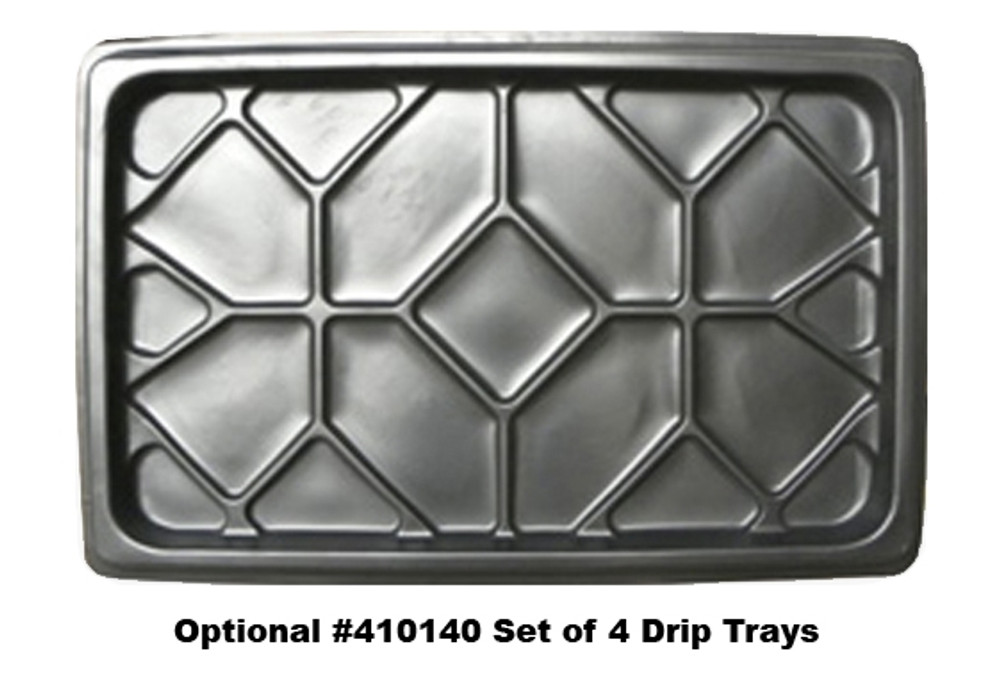

# 40806 Set of 4 Drip Trays – Protect your floor and contain fluids during service operations
# 40808 Jack Tray – Convenient storage for your floor jack and service equipment
Looking for full specifications and features? Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
