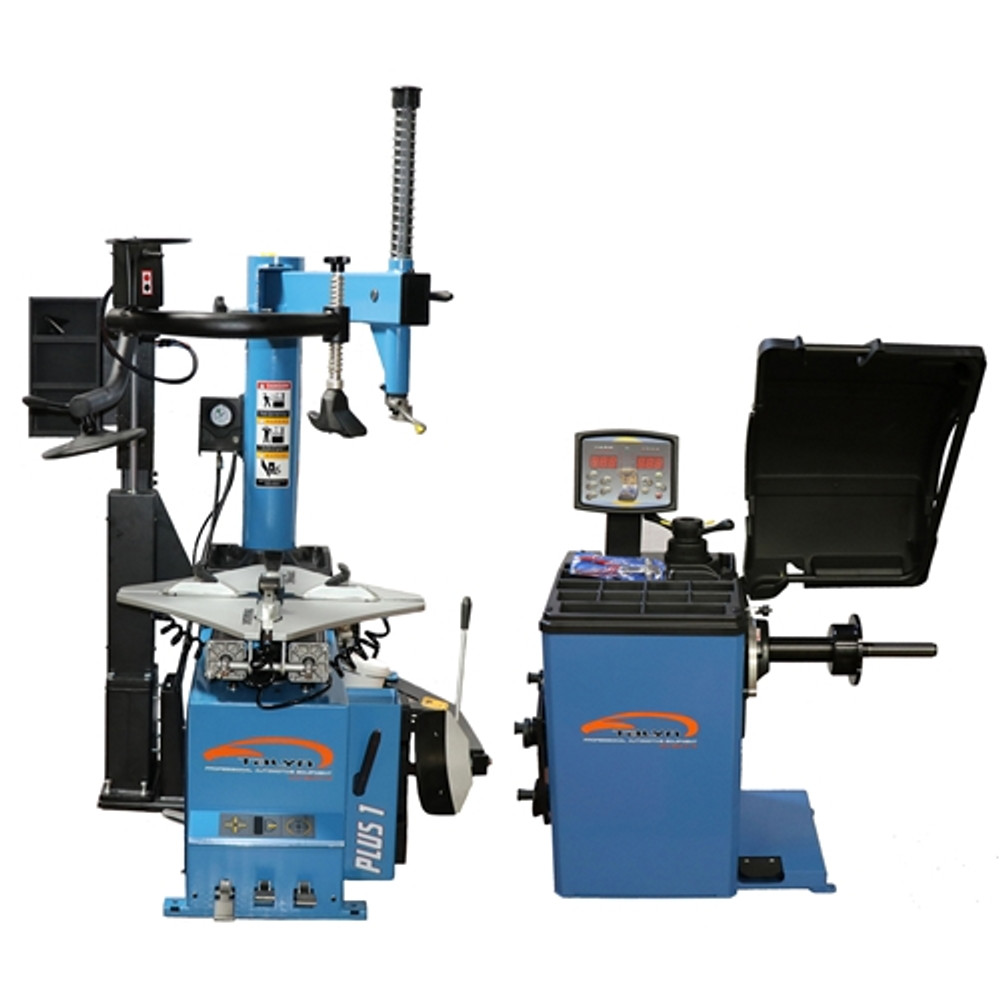

Transform your shop's tire service capabilities with the complete Talyn Plus1-V Professional Tire Service Combo—a comprehensive package combining an advanced variable-speed tire changer, a precision PL330 assist arm for low-profile tires, and the highly accurate CB-67 wheel balancer. This professional-grade tire service station delivers twice the speed of previous models while ensuring damage-free operation on high-end alloy wheels. With a max wheel diameter of 49.25" on the tire changer and 44" on the balancer, plus 1g balancing accuracy and 7-second cycle time, this combo handles everything from motorcycles to SUVs with exceptional precision and efficiency.
Supersedes the original Plus 1 model
The newly upgraded Talyn Plus1-V tire changer represents a significant leap forward in tire service technology. Engineered with a powerful variable-speed motor and .5 HP motor for consistent, powerful operation, this unit delivers twice the speed and efficiency of the original Talyn Plus 1. Designed specifically for high-performance shops that demand both speed and precision, the Plus1-V offers unmatched control, exceptionally smooth operation, and dramatically faster turnaround times that directly impact your bottom line.
Built with an unwavering focus on precision and wheel protection, the Plus1-V ensures damage-free clamping and bead-breaking on even the most delicate high-end alloy wheels. The innovative swing-arm design features a fully adjustable mount/demount head that can be positioned for both height and width, while the upgraded stainless-steel head enables all tire changing tasks to be performed from a single, ergonomic working position—reducing operator fatigue and improving workflow efficiency.
The geometric turntable design provides easy access to the wheel underside for thorough inspection, while the high-volume Jet-Blast bead seating system delivers fast and effective tire inflation. Rugged construction throughout ensures reliable performance in the most demanding shop environments. The durable stainless steel air tank provides long-lasting performance and resistance to corrosion. With a maximum wheel diameter capacity of 49.25", wheel width range of 3" to 12", and impressive 5,000 lbs. bead-breaker force, the Plus1-V handles virtually any passenger vehicle, light truck, or performance tire with ease.
The advanced adjustable jaw clamps feature three-stage clamping positions for maximum versatility. Inside clamping ranges span 13"-26" (Stage 1), 14"-27" (Stage 2), and 15"-28" (Stage 3), while outside clamping accommodates 12"-24" (Stage 1), 13"-25" (Stage 2), and 14"-26" (Stage 3). This exceptional flexibility ensures proper, secure clamping for virtually any wheel configuration.
Whether you're handling standard all-season tires or challenging low-profile performance wheels, the Talyn Plus1-V delivers the speed, precision, and long-term durability your professional shop demands. Operating on 110V plus air at 116-145 PSI, this tire changer integrates seamlessly into any shop's existing infrastructure.
Adjustable Jaw Clamps Feature
Click on Image to Enlarge

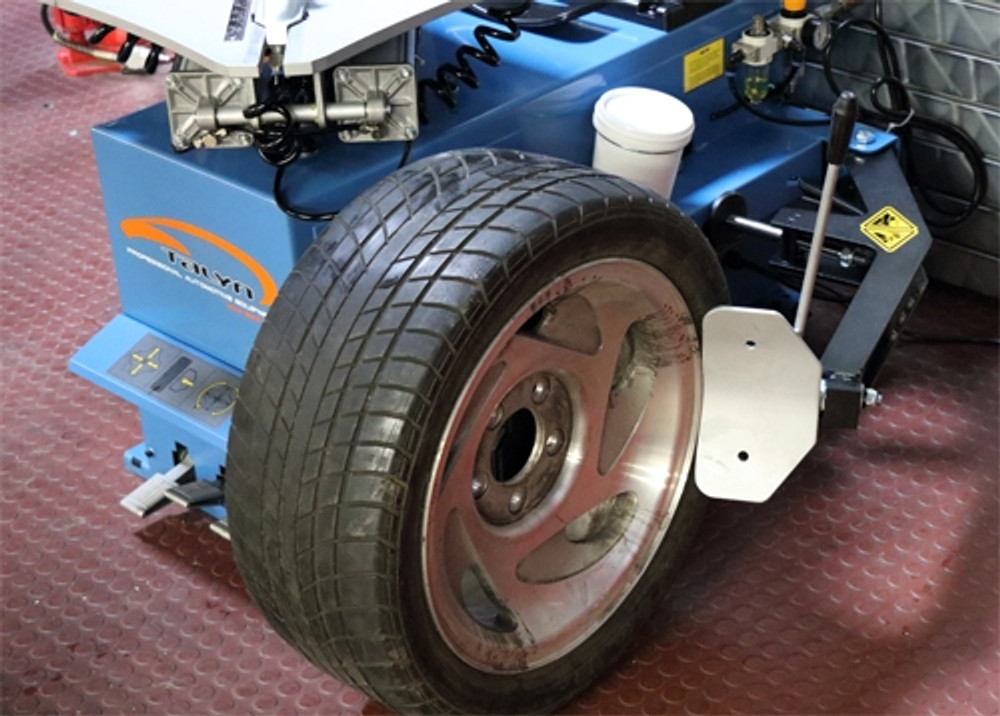

The PL330 Assist Arm is an essential upgrade designed specifically for use with the Talyn Plus 1 and Nationwide 950 tire changers. This professional-grade accessory transforms your ability to handle difficult, stiff, and low-profile tires that would otherwise be extremely challenging or nearly impossible to mount and dismount safely. Operating at 116-145 PSI with a noise level below 75db, the PL330 works quietly and efficiently alongside your tire changer.
The PL330 installs securely on the left side of the machine body at floor level using three fixture bolts inside the cabinet and two additional fixture bolts on the machine's left side at pre-drilled installation holes. The tire pressing block features full height adjustability—simply turn it up or down to precisely position it at the wheel center for effective outside clamping and bead manipulation during difficult tire changes.
Note: When the PL330 helping arm is installed, the maximum comfortable tire size is reduced from 49.25" to 44" to accommodate the assist arm's working range.
The CB-67 wheel balancer represents a revolutionary approach to precision wheel balancing, featuring advanced accelerometer sensor technology that guarantees exceptional accuracy across all three measurement values. This world-class balancer combines European design sophistication with cutting-edge sensor technology to deliver professional results every time.
Energy efficiency is built into the CB-67's DNA. The advanced 90W electric motor includes an intelligent standby function that economizes 64% of electricity compared to conventional balancers—reducing your operating costs while supporting environmental responsibility. Despite its energy-efficient design, the CB-67 operates at a low 140 RPM rotation speed that meets rigorous international standards while completing balance cycles in just 7 seconds with 1g accuracy.
Designed for versatility across vehicle types, the CB-67 handles cars, motorcycles, and SUVs with equal precision. The balancer accommodates wheels up to 44" (1118 mm) in diameter, wheel widths from 1.5" to 20", and rim diameters from 8" to 28", with a robust 165 lbs. (75kg) wheel loading capacity. The longer balancing shaft provides an exceptionally wide application range, enabling you to balance specially shaped wheels that other balancers cannot handle.
Advanced features set the CB-67 apart from the competition. Distance and diameter automatic measurement and input eliminate manual entry errors and speed up your workflow. The convenient foot pedal brake allows hands-free control, while the built-in illuminating lamp ensures clear visibility of weight placement locations.
The CB-67 offers seven ALU balance functions and six sophisticated balancing modes: STA, DYN, ALU1, ALU5, ALS1, and ALS2. The innovative Weight Split (Hidden Weight) function is specifically designed for aluminum rims—it positions external weights behind two spokes for aesthetic purposes, keeping high-end wheels looking their best. The OPT (Optimization) function minimizes the amount of balancing weights required by opposing the rim's imbalance to that of the tire, resulting in cleaner installations and reduced weight usage.
Operating on standard 110V single-phase power, the CB-67 integrates easily into any shop environment and delivers professional-grade results with every spin.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Limited One-Year Warranty:
Talyn offers a limited one-year warranty to the original purchaser of wheel service equipment in the United States and Canada. Talyn will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations:
This warranty does not cover:
Upon delivery of goods, the Customer has sole responsibility to notify Best Buy Auto Equipment of missing parts or concealed damage within 72 hours of receipt. If no notification of missing parts or of concealed damage is made, all parts will be purchased after 72 hours has passed.
Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.
The customer is required to notify Best Buy Auto Equipment of any missing parts within 72 hours. Timely notification must be received to be covered under warranty.
Talyn will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.
Talyn reserves the right to make improvements and/or design changes to its without any obligation to previously sold, assembled or fabricated equipment.
There is no other express warranty on the Nationwide wheel service equipment and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
To the fullest extent allowed by law, Nationwide shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.
This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.
Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state.
