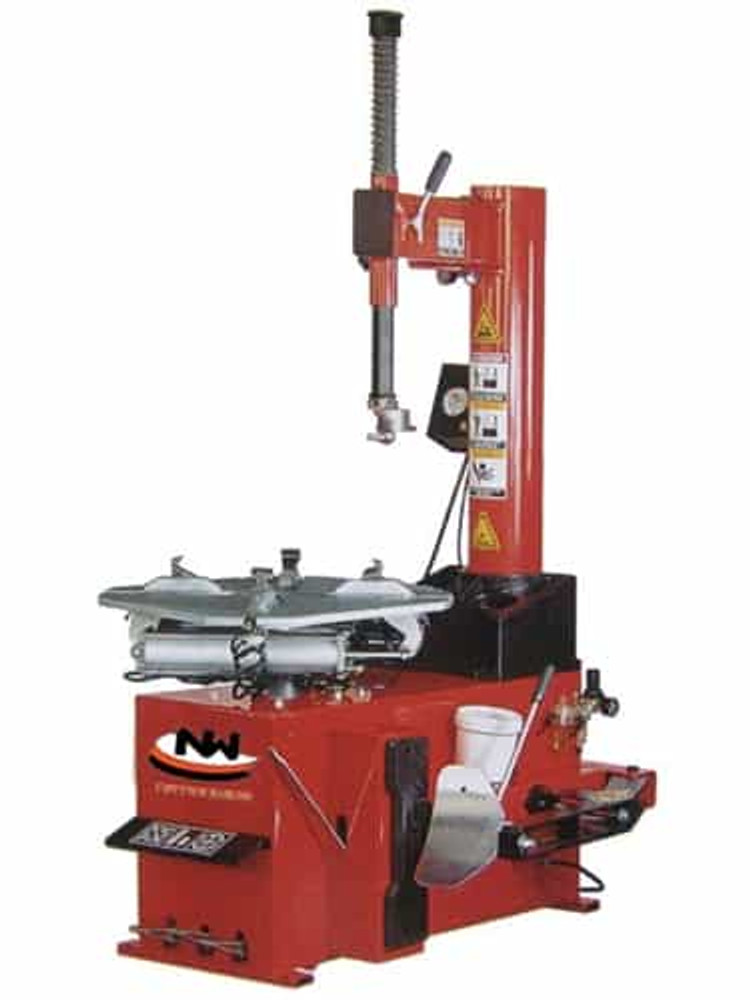

The Nationwide 950 Swing Arm Tire Changer delivers professional-grade performance with the power and capacity to handle demanding tire service operations. Engineered with a 26" x 26" square turntable that accommodates wheel diameters up to 47 inches, this tire changer is built to tackle everything from standard passenger vehicles to larger specialty wheels. The innovative swing arm design combined with four pneumatic clamps and double-acting cylinders ensures smooth, controlled operation on every job. With a robust 2500 kg bead breaker and rim-protecting design that ensures the machine never contacts the rim surface, the NW-950 provides both power and precision for busy auto shops, tire centers, and service facilities.
This model has power to spare and the capacity to handle wheel diameters up to 47 inches with ease. Designed for versatility, the NW-950 can be adapted for motorcycle and ATV tire service when equipped with the appropriate accessories. For motorcycle or ATV applications, you will need to purchase either the TC-M-Adapter Motorcycle Clamp Adapters (Set of 4) or TC-MC-A Motorcycle / ATV Adapters (Set of 4) separately.
The Nationwide NW-950 is engineered to handle an impressive range of wheel sizes and configurations. With a maximum wheel diameter of 47 inches and wheel width capacity from 3" to 15", this tire changer accommodates everything from compact car wheels to larger specialty applications. The inside rim clamp range spans 15" to 28", while the outside rim clamp range covers 13" to 24", providing the flexibility needed for diverse tire service work.
Four pneumatic clamps with double-acting cylinders provide secure, balanced wheel holding throughout the entire service process. The side-mounted bead breaker delivers 2500 kg of force, making quick work of stubborn beads while the bead seating inflation jets built into the clamping jaws ensure fast, reliable bead seating. Powered by standard 110V, 15 Amp, single-phase power and operating at 125 psi working pressure, the NW-950 integrates seamlessly into most shop environments without requiring special electrical infrastructure.
Built for durability and daily professional use, the NW-950 features robust construction with a compact footprint of L 3' 6" x W 3' 1" x H 3' 1.5". Despite its solid 640 lb shipping weight, the machine's thoughtful design maximizes functionality within a shop-friendly footprint. The integrated air management system—complete with lubricator, water separator, and air pressure regulator—ensures consistent performance and extends component life by maintaining optimal operating conditions.
The swing arm configuration provides excellent operator visibility and ergonomic access to all tire service points, reducing fatigue during extended use. The rim-protecting design means you can confidently service high-value wheels without the risk of cosmetic damage, making this an ideal choice for shops serving customers with premium wheels and tires.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Limited One-Year Warranty:
Nationwide offers a limited one-year warranty to the original purchaser of wheel service equipment in the United States and Canada. Nationwide will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations:
This warranty does not cover:
Upon delivery of goods, the Customer has sole responsibility to notify Best Buy Auto Equipment of missing parts or concealed damage within 72 hours of receipt. If no notification of missing parts or of concealed damage is made, all parts will be purchased after 72 hours has passed.
Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.
The customer is required to notify Best Buy Auto Equipment of any missing parts within 72 hours. Timely notification must be received to be covered under warranty.
Nationwide will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.
Nationwide reserves the right to make improvements and/or design changes to its without any obligation to previously sold, assembled or fabricated equipment.
There is no other express warranty on the Nationwide wheel service equipment and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.
To the fullest extent allowed by law, Nationwide shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.
This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.
Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state.
