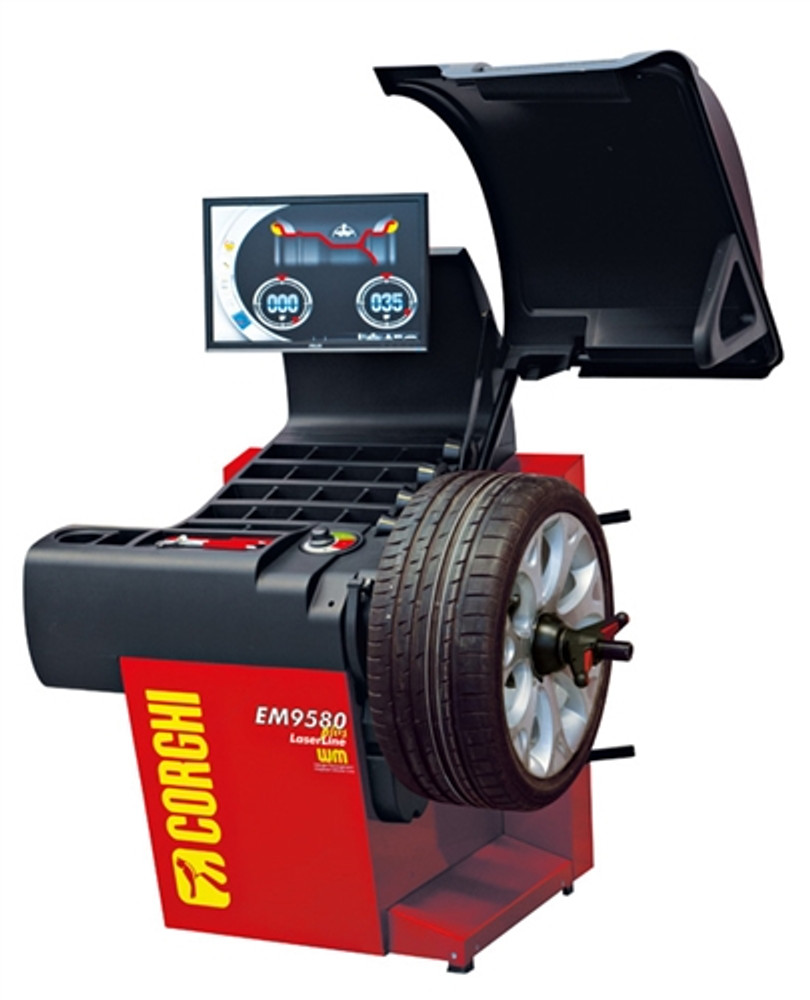

The Corghi EM9580 Plus delivers extraordinary performance in a versatile and compact design that's ideal for professional wheel service operations. This advanced balancer combines a fully automatic cycle, electric clamping brake, and automatic position search function to streamline your workflow and maximize accuracy. Featuring a comprehensive, intuitive graphic interface and a digital measuring sensor for wheels up to 28", the EM9580 Plus represents the perfect balance between price and performance for tire shops, auto dealerships, and fleet service centers. With the integrated Laser Line System (LPS) and advanced weight management features, this balancer handles wheels up to 44" in diameter and 187 lbs, making it a versatile solution for passenger vehicles, light trucks, and specialty applications.
The EM9580 Plus features a new digital gauge for acquisition of diameter and distance, delivering maximum precision and smoothness in every measurement. The integrated FSP (Fast Selection Program) function automatically activates the balancing program, eliminating the need for manual keypad selection and reducing operator input time. The new integrated LaserBlade pointer inside the measuring arm guides the operator in choosing the correct level within the alloy rim without any errors, providing extremely good visibility even on complex wheel designs. This combination of automated intelligence and laser-guided precision ensures accurate dimension entry across the rim diameter measurement range of 10" to 28", with settings available from 1.5" to 20" width and 1" to 35" diameter.
At the end of each spin cycle, the EM9580 Plus automatically brakes the wheel and brings it to the precise balancing position—no manual rotation needed. An integrated LED light illuminates the work area to facilitate rim cleaning and counterweight application, reducing eye strain and improving accuracy during weight placement. This automatic positioning feature is combined with three selectable balancing speeds (75, 85, or 98 rpm) to accommodate different wheel types and shop preferences, delivering an average measurement time of just 5.5 seconds for a standard 14kg wheel.
The Laser Line System uses a laser pointer positioned at 6 o'clock to show exactly where adhesive counterweights should be placed, dramatically reducing placement time and eliminating guesswork. Alternatively, operators can use the convenient weight tray clip for traditional weight application. This dual-method approach gives technicians flexibility to choose their preferred workflow while maintaining speed and accuracy. The system calculates unbalance values up to 35.3 oz (999g) with 1g resolution, ensuring precise correction even on heavily unbalanced wheels.

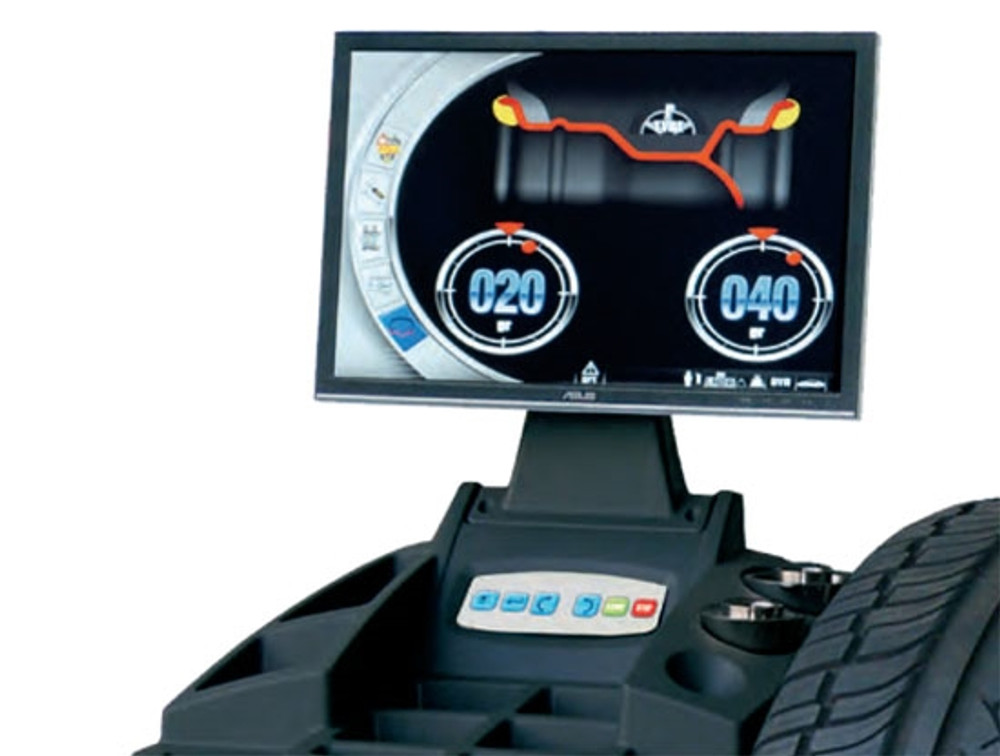

The EM9580 Plus offers every program the professional technician needs, all visualized on the widescreen monitor with high-resolution graphics and an intuitive user interface. The Hidden Weight program keeps rims looking great by dividing the external side balancing adhesive weight into two equivalent weights applied in hidden locations behind the spokes—perfect for maintaining the aesthetics of custom and high-end alloy wheels. The Weight Management program collection includes the innovative LESS WEIGHT function, which reduces work times by 20% and the amount of counterweights used by 30%, increasing economic benefits and environmental protection. Additional programs include OPT FLASH, SPLIT WEIGHT, and MULTIOPERATOR mode for shops with multiple technicians.
The Auto Width Calculation (AWC) function dramatically reduces wheel data entry times by suggesting the most probable width value, even in the absence of the AWD measuring sensor. This intelligent prediction speeds up the setup process and reduces the chance of entry errors. The NaviSystem interface makes controls and menu navigation quick and easy—just a click to directly access each program without hunting through nested menus. USB ports allow for connection to peripheral devices and easy software upgrading, ensuring your balancer stays current with the latest features and improvements. The WINUT device operates at 2.4 GHz frequency with a maximum radiofrequency signal power of 100mW, providing reliable wireless communication.
The ergonomic weight tray features many large trays to house all different types of counterweights and various tools, keeping everything organized and within easy reach. The inclined front part improves operator access to the inside of the rim, reducing strain during weight application. The patented space-saving wheel guard is designed to allow positioning along the wall while still accommodating wheels up to 44" (1,118 mm) maximum diameter and 23.6" (600 mm) width. Built on a robust 40 mm shaft, the balancer supports wheels up to 187 lbs (85 kg) with a maximum wheel-to-machine distance of 10.82" (275 mm). The entire unit measures 1453 mm L x 894 mm D x 1858 mm H and weighs 308.6 lbs (140 kg), providing a stable platform that won't walk during high-speed spins.
Every Corghi EM9580 Plus comes complete with essential accessories to get you up and running: pliers, width gauge, calibration slugs, wheel centering cone set, locking kit (42-118.5 mm), and wing nut. The balancer features manual wheel clamping for reliable security and operates on 115/208V / 50/60 Hz / 1 PH power with 400W total power absorption, making it compatible with standard shop electrical systems.
Corghi Customer Loyalty Program
Corghi offers a comprehensive Customer Loyalty Program for equipment owners. View or download the Customer Loyalty Form here.
Installation & Training Included: Installation and training will be provided on the purchase of all new machines except the @120 changer, @601 balancer, TS24 Tire Dunker, IC90 Inflation Station and all Service Pro models.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Limited Warranty
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within 7 days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.
This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).
PL60, Service Pro 750, EM9250, EM9280, EM9580, EM9780, EM9980C
Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner’s lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
