CEMB DWA3500 3D High Definition Wheel Alignment System
📄 Download Installation Manual
Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

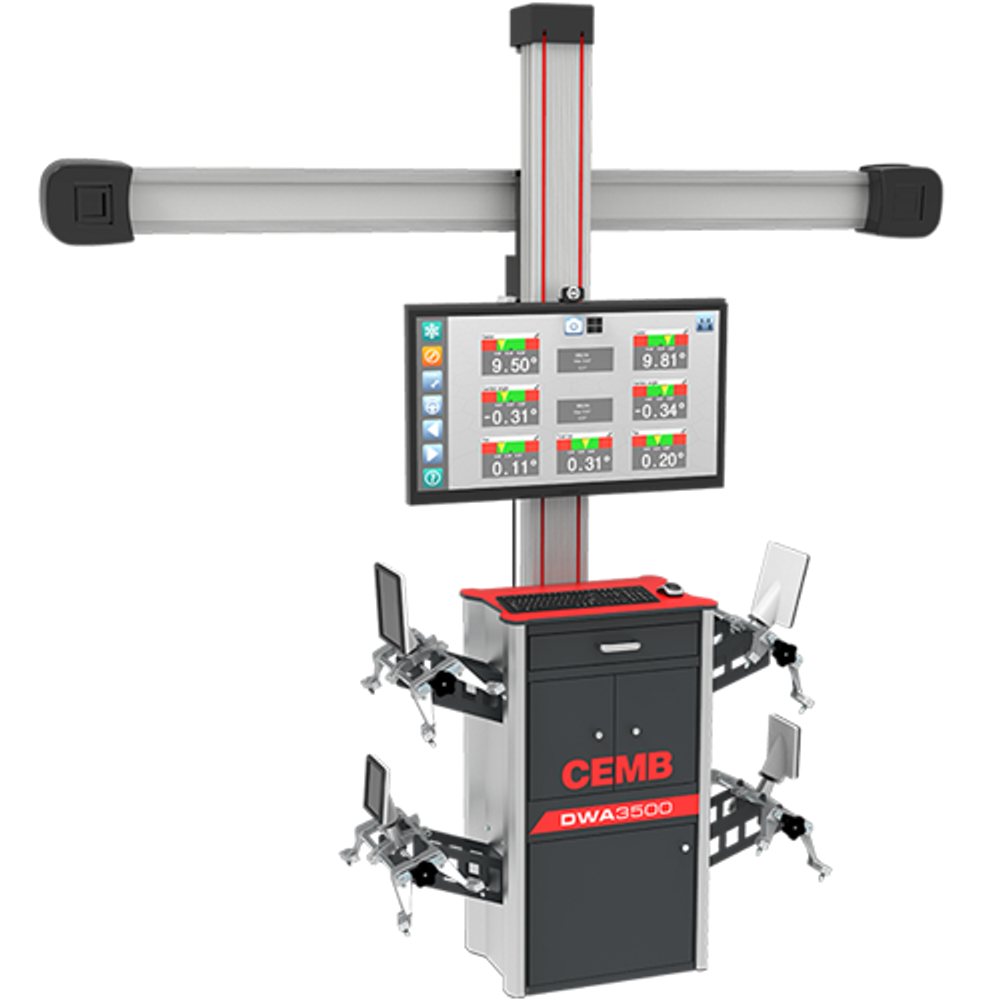

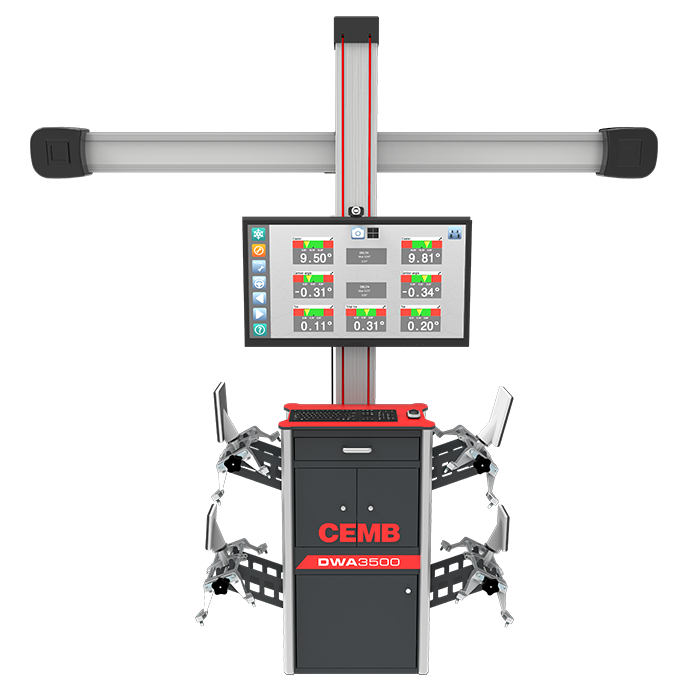

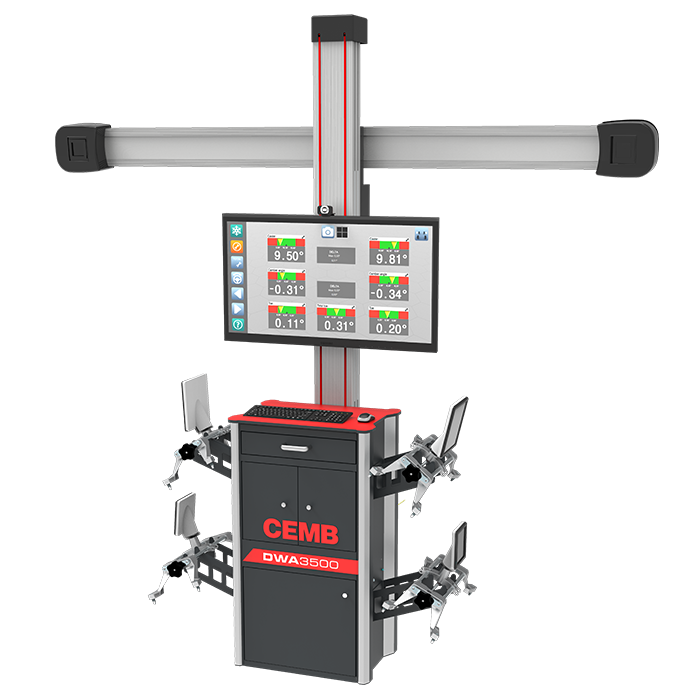

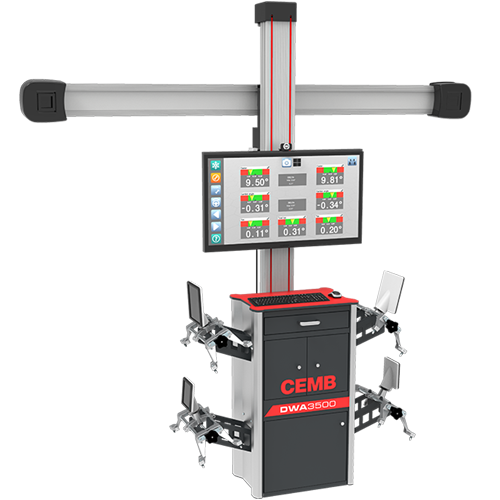

The CEMB DWA3500 represents the next generation of 3D wheel alignment technology for cars and light commercial vehicles. Featuring a completely redesigned cabinet with integrated drawers and dedicated housings for your printer and accessories, this system delivers unmatched ease of use and maintenance accessibility. The motorized 3D camera support beam is fully automated, automatically adjusting camera height to match your lift position—maximizing efficiency and optimizing workspace utilization. With an advanced software platform developed entirely by CEMB, the DWA3500 guides technicians through every alignment operation with clear, intuitive graphics and professional-grade precision.
Backed by over 30 years of CEMB vehicle database expertise containing more than 40,000+ vehicles with constant updates, the DWA3500 ensures you have access to the latest manufacturer specifications and a rapid vehicle selection system. This alignment system is engineered for professional shops that demand accuracy, speed, and reliability. The system includes a 24" LED monitor, a full set of HD targets, and four 4-point wheel clamps (12"–24") with universal grips—plus clamp extensions for front dually wheels and custom rims up to 30" diameter.
Discover More About CEMB:
View the 25 Things You Didn't Know About CEMB® to learn why CEMB is a trusted name in professional automotive equipment.
Repair-Focused Software Platform
The software system on the DWA3500 is entirely developed by CEMB and features exceptionally clear, user-friendly graphics that guide technicians through every alignment operation. This 3D technology detects all critical alignment parameters—including wheel diameters to identify potentially deflated tires—as well as dimensions such as track, wheelbase, and diagonals to spot damage from collisions or impacts. Every measurement is displayed with precision, empowering your team to deliver fast, accurate, and comprehensive alignment services.
30+ Year Vehicle Database with Constant Updates
Access a comprehensive database containing more than 40,000+ vehicle specifications, constantly updated to include the latest models. The new vehicle model ranking system allows for rapid and clear selection of different vehicles, ensuring your shop can handle everything from compact cars to light commercial vehicles with confidence. Your purchase includes free 1-year spec upgrades, keeping your system current with manufacturer changes and new vehicle releases.
Automatic Motorized Camera Beam Technology
The motorized 3D camera support beam on the DWA3500 is fully automated, providing seamless height adjustment to match your vehicle lift position. The tower automatically follows the targets as the vehicle is raised to different heights, eliminating manual adjustments and reducing setup time. Camera beam positioning is optimized to maximize available workspace, making this system ideal for busy shops with multiple bays and varying vehicle sizes.
Professional-Grade Wheel Clamps and Targets
The DWA3500 comes with a complete set of four 4-point wheel clamps (12"–24") featuring universal grips and HD targets. These clamps quickly attach to rims without marring surfaces, protecting even delicate custom wheels. Standard accessories include wheel clamp extensions to offset front dually wheels and accommodate custom rims up to 30" diameter, giving your shop the flexibility to service a wide range of vehicles and wheel configurations.
Key Highlights
- Motorized automatic camera beam adjusts height with lift position for maximum efficiency
- Completely redesigned cabinet with drawers and storage for printer, computer, and accessories
- 40,000+ vehicle database with over 30 years of CEMB data and constant updates
- Free 1-year spec upgrade included to keep your system current
- Includes professional training: set-up and on-site training of alignment system operations
What's Included with Your DWA3500
Professional Installation & Training:
- Complete set-up of alignment system
- On-site training of alignment system operations
Standard Accessories Included:
- HD Targets for precise 3D measurement
- 46DW026402 Mobile Trolley for easy equipment positioning
- 24" Monitor with crisp, clear display
- 74A010479 Brake Pedal Depressor
- 74A010478 Steering Wheel Holder
- Wheel clamp extensions for front dually wheels and custom rims up to 30"

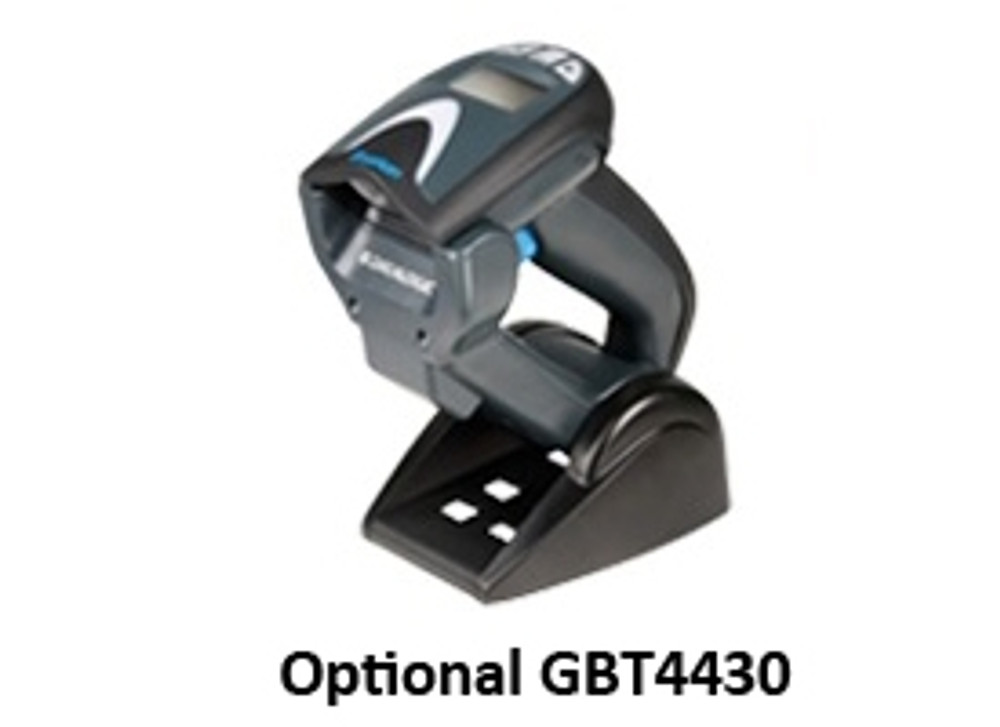

Optional Upgrade: VIN Barcode Scanner available for even faster vehicle identification and specification lookup.
Compare CEMB Alignment Systems:
To view or download the Alignment Systems Comparison Chart, click here.
See the DWA3500 in Action
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
