The MaxJax® M7K Portable Two Post Garage Lift - Ultimate Package is the most advanced portable lifting system available for the serious automotive enthusiast or professional shop. With a 7,000-lb lifting capacity and patented safety features built from the ground up, this lift offers the perfect balance of power, portability, and precision. The M7K delivers unobstructed under-car clearance, true two-post stability, and the unique ability to stow away in minutes when you need your workspace back. This Ultimate Package includes premium accessories like the RD-9G 9-Gallon Portable Oil Drain, Hi-Low Adjustable Reclining Creeper Seat, Frame Cradle Pads (Set of 4), and 5.5" Tall Height Adapters (Set of 4)—everything you need for professional-grade vehicle service in your own garage.
Supersedes MaxJax™ M6K, MX-6 & M6 models. Protected by PATENT NO. US 8.256.577 B2 and PATENT NO. US 9.150.395 B2.
The MaxJax M7K stands alone in the portable lift market. No one in the industry has a more sophisticated and comprehensive research and quality control program than MaxJax, and thousands of satisfied customers worldwide prove it. This lift eliminates the compromises of permanent installations while delivering professional-grade performance that rivals fixed two-post systems costing far more.
The M7K uses low-pressure HVLP Direct-Drive cylinders instead of lifting chains or screw mechanisms. This means smoother operation, better reliability, and virtually zero maintenance. Every hydraulic cylinder features integrated velocity-fuse safety valves, and a robust gear-type flow divider precisely distributes hydraulic pressure to provide consistent, equalized lifting every time. Rugged safety lock bars are capable of holding three times the rated lifting capacity, while automatic arm restraints engage each time the lift is raised for added peace of mind.
Perfect for ADAS
Newer vehicles are constantly becoming more and more advanced. They're also becoming more complicated to service with all their new upgrades. ADAS (Advanced Driver Assistance Systems) includes handy features such as forward collision warning (FCW), lane departure warning (LDW), automatic emergency braking (AEB), and more. When performing ADAS calibration you're telling sensors where to look, and with the complex nature of the systems, you're going to want to make sure to have as precise readings as possible.
To perform these calibrations, you'll need plenty of space around the vehicle and you'll need it to be perfectly level—and that's where the MaxJax M7K comes in. Since it's portable, you can simply position it in an optimal area to make sure you have plenty of unobstructed space. Some will perform calibrations while the vehicle remains between a two-post lift, but sometimes the posts could get in the way of the sensors. With MaxJax, you retain a larger floorspace and avoid sensor obstructions.
Pop-Up Bay Ready
You never want to lose out on business due to not having enough space. Take advantage of the portability offered with the MaxJax and you'll be able to create pop-up bays on demand. You can virtually double your work area when you need to. Unlike standard two-post lifts, you can easily set your MaxJax aside when you don't need the extra space.
The built-in wheels on each column allow you to roll the lift into position quickly, and the internally threaded recessed drop-in anchors with quick-connect/disconnect hydraulic couplers make setup and teardown incredibly fast. You can go from stow to go in less than 15 minutes.
Clear Undercar Access
Want under-car clearance without having to rely on a permanent installation? That's where MaxJax comes in! No other low-rise or mid-rise lift system provides more under-car clearance and unobstructed floor space than the MaxJax lifting system. Now you can easily access engine undersides as well as critical components like transmissions, drive-shafts, starters, differentials, or anything else that would require under-car access. With a maximum lift height of 47.25 inches (pad only) or 50.5 inches with 3" adapters, you'll have plenty of room to work comfortably.
Stow to Go in Less Than 15 Minutes
Internally threaded recessed drop-in anchors and quick-connect/disconnect hydraulic couplers provide for fast and simple set-up. NOTICE: Before drilling into post-tension garage floors, always consult a building engineer for determining cable locations and where to avoid drilling.
Works Like Magic: Gear-Type Flow Divider
A robust, gear-type flow divider is the heart of the MaxJax M7K system, providing consistent, equalized lifting. The specially designed flow divider/combiner is a positive-displacement fluid control device which allows precise distribution of hydraulic power to both columns even if load balance or pressures change. This technology ensures your vehicle lifts evenly and safely every single time.
Mobile Power Unit Cart
The great thing about our standard mobile power unit cart is that it's small enough to be stored out of the way and it features a storage area for the hydraulic hoses. The hydraulic power unit uses a single-phase motor that requires 110-220 VAC / 50-60 Hz / 1 Ph / 15 Amps. The industrial-grade power cord is 6-ft. long. A simple push-button switch raises the lift, and a push lever controls the lowering. Simple quick-disconnect hoses can be positioned easily for single or dual column operation. Time of full rise: 45 seconds.
Adjustable Lifting Arms & Stackable Adapters
Increases overall arm positioning for lifting a variety of different vehicles that have Uni-body construction, OEM recommended pick-up points, or wide and/or narrow frame configurations. Every MaxJax order includes four (4) medium height adapters and four (4) stackable standard lift pad adapters. The arm reach adjusts from 26" to 40", and the minimum pad height is just 5.5 inches—perfect for low-clearance vehicles.
Low-Profile Arms
Fit under the lowest compact and sport vehicles or custom motorcycles with lowered frames. With a minimum pad height of just 5.5 inches, you can service even the most aggressive lowered cars and bikes.
Automatic Arm Restraints
Each arm is equipped with durable arm restraints that automatically engage each time the lift is raised. When the lift is lowered, the gear-type arm restraints automatically disengage to provide easy positioning of the lift arms. This feature adds an extra layer of safety and convenience.

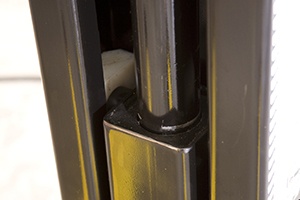

Maintenance-Free Slide Blocks
Rather than using roller bearings that need constant lubrication and maintenance, we use futuristic full-floating UHMW (ultra-high molecular weight polyethylene) load bearings that never need lubrication and last virtually the life of the lift. Say goodbye to tedious maintenance schedules.
Single-Piece Columns with Automatic Safety Locks
We purposely manufacture the columns using single-piece construction for added strength and less fatigue under heavy load conditions. The MaxJax M7K offers 7 locking positions (every 3 inches), and each position is secured by rugged safety lock bars capable of holding three times the rated lifting capacity. Each column weighs 300 lbs, ensuring rock-solid stability.
Direct-Drive Technology
By utilizing two low-pressure HVLP Direct-Drive cylinders, we've eliminated the need for lifting chains or screw mechanisms most commonly found on other lift designs. HVLP Direct-Drive technology offers better reliability, smoother operation, and less maintenance. You'll appreciate the quiet, consistent performance lift after lift.
Industrial-Grade Hydraulic Cylinders
Integrated into every MaxJax® hydraulic cylinder is a one-piece, pilot fitted, machined steel piston wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminates any fluid bypass. The micro-smooth chrome-rod is machined from high yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically, to ensure superior cylinder operation and life. Each hydraulic cylinder features integrated velocity-fuse safety valves for maximum protection.
Optional Motorcycle Adapter Kit
Our optional motorcycle adapter kit allows you to safely lift motorcycles, ATV's or other motorized vehicles to a comfortable working height. This versatility makes the MaxJax M7K a true multi-purpose lifting solution.
This Ultimate Package equips you with everything you need for professional vehicle service right out of the box:
MaxJax encourages all owners to know their equipment and to follow good safety practices when using any of our products. Your MaxJax car lift equipment has been designed and built with your safety in mind, but the ultimate responsibility for safe operation is with you, the operator. Detailed installation, maintenance and safety instructions accompany each MaxJax car lift. Every aspect of the M7K—from the rugged safety lock bars to the velocity-fuse valves—has been engineered with your protection as the top priority.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
To View or Download the MaxJax Comparison Chart Click Here
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
TWO-POST LIFTS/FOUR-POST LIFTS LIMITED WARRANTY
To View or Download Dannmar's Limited Warranty Click Here
LIMITED WARRANTY. Subject to the limitations of set forth below, Warrantor warrants that the Product sold hereunder conform to Warrantor's published specifications. WARRANTOR MAKES NO REPRESENTATION OR WARRANTY OF ANY OTHER KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE GOODS, WHETHER AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR ANY OTHER MATTER
Limited Warranty
As determined by Warrantor in its sole discretion**For all Dannmar brand Two-Post or Four-Post Vehicle Service Lifts (excluding specialty lifts, high rise, commercial parking, material handling, or models for particular purpose) manufactured on or following 6/1/2020.
