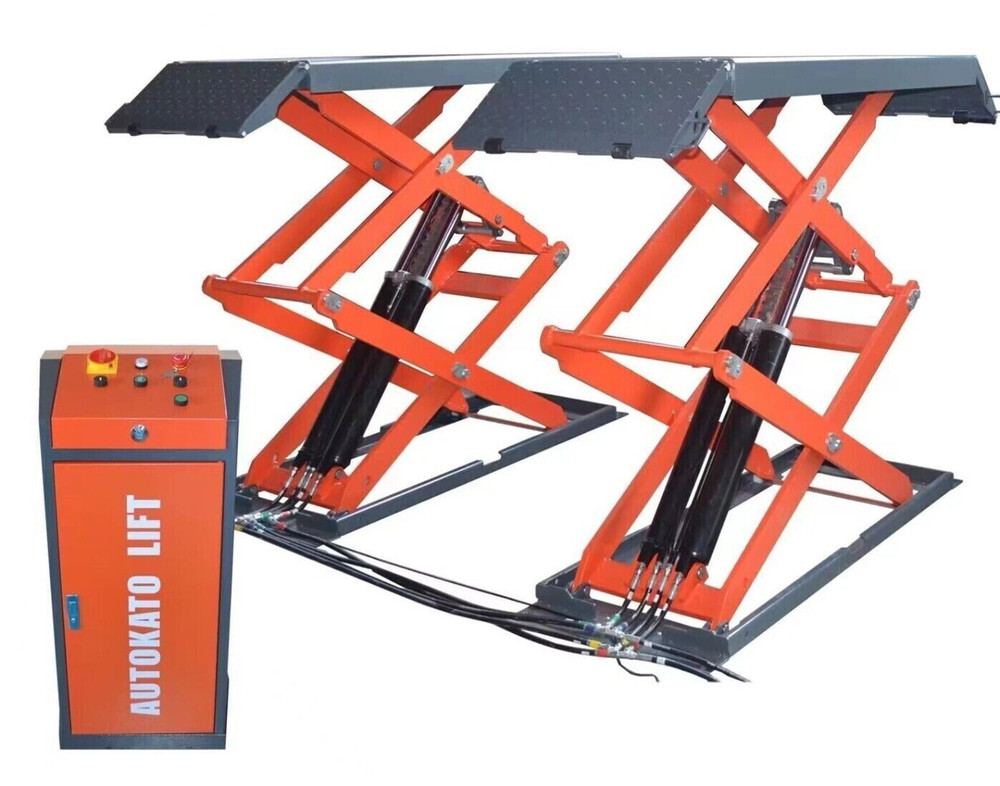

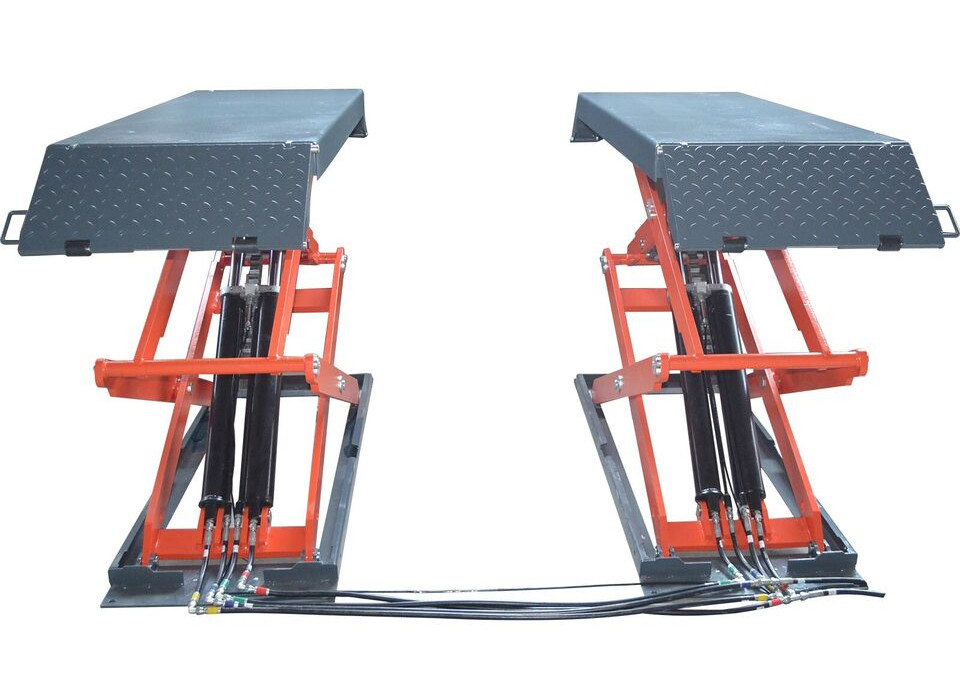

The Katool KT-X95 is a professional-grade, full-rise scissor lift engineered to deliver exceptional performance and reliability for automotive service shops, dealerships, and heavy-duty maintenance facilities. With a 8,000 lb (3,500 kg) lifting capacity and a maximum lift height of 72.3 inches, this flush-mount, fixed-installation lift provides full access to the underside of most vehicles, from sedans and SUVs to light trucks and commercial vans. Designed with safety, durability, and efficiency at the forefront, the KT-X95 combines advanced hydraulic technology with intelligent safety features to ensure smooth, secure operation day after day.
CE Approved and Certified, this lift meets rigorous international safety standards, including 115% dynamic loading capacity and 150% static loading capacity testing. This level of certification means the KT-X95 has been tested beyond its rated capacity to ensure it can handle real-world conditions safely and reliably. Whether you're performing alignments, brake work, exhaust repairs, or general undercarriage inspections, this lift provides the stability and peace of mind you need to work confidently.
The KT-X95 features a flush-mount design that integrates seamlessly into your shop floor, creating a clean, professional appearance while maximizing usable workspace. As a fixed-mounted, securely anchored lift, it provides a permanent, stable lifting solution that won't shift or move during operation. The lift must be properly anchored to concrete with a minimum thickness of 5.9 inches (150 mm) and a 3000 PSI rating to ensure safe operation. Proper installation on the correct concrete foundation is critical for safe operation and is the responsibility of the customer before purchase and installation.

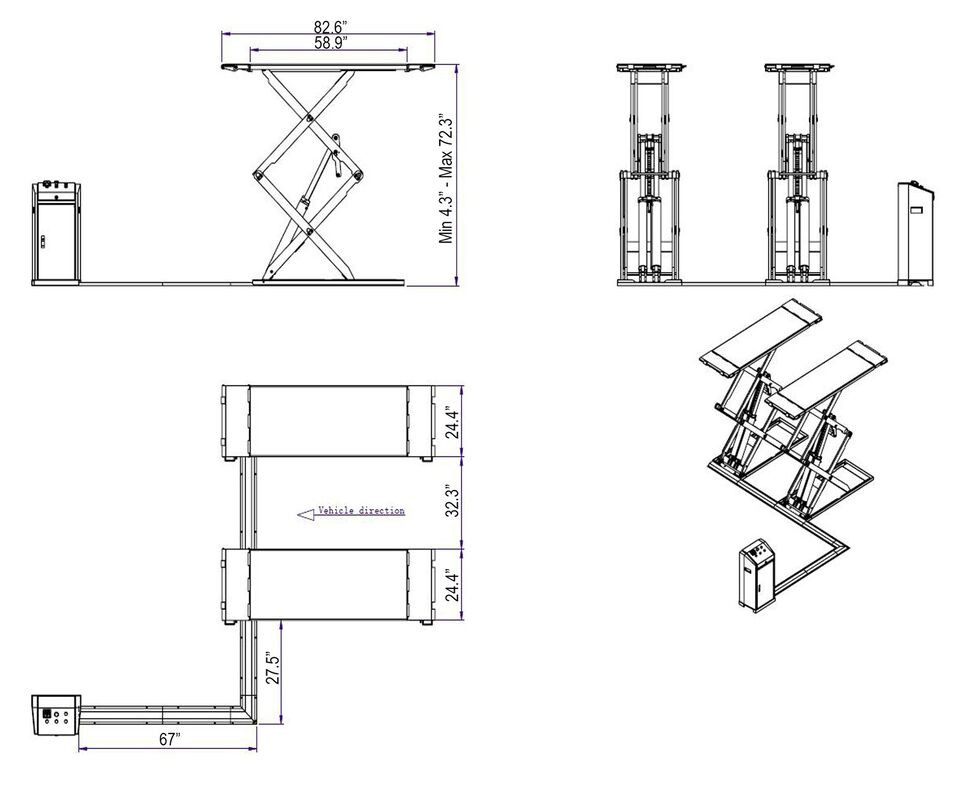

This lift is equipped with an intuitive starting-up system design that simplifies operation and ensures a smooth, controlled lift cycle every time. With a lifting time of 50 seconds or less, the KT-X95 keeps your workflow moving efficiently without sacrificing safety or stability. The platform measures 58.9 inches in length and 24.4 inches in width, providing ample space for a wide range of vehicle types, while the included drive-up ramps with locking design function as platform extensions to accommodate longer vehicles with ease.
Safety is paramount in any shop, and the Katool KT-X95 delivers multiple layers of protection to keep your technicians and vehicles secure. The lift utilizes a 24V safe control system, which reduces electrical hazards and ensures reliable performance. An electric safety release mechanism allows for controlled, gradual lowering in the event of power loss or emergency, preventing sudden drops that could damage vehicles or endanger personnel.
A built-in height limit switch automatically prevents the lift from exceeding its maximum safe height, protecting both the lift mechanism and the vehicle being serviced. Composite rubber lifting blocks are included to provide secure, non-slip contact with the vehicle's chassis, protecting against damage to undercarriage components while ensuring stable lifting. These blocks are designed to grip securely and distribute load evenly, minimizing the risk of slippage during operation.
At the heart of the KT-X95 is a top-level hydraulic system engineered for consistent, reliable lifting power. The system operates at a rated oil pressure of 20 MPa and is powered by a robust 2.2 kW aluminum motor. The motor features a top-mounted cooling fan designed to prevent overheating during extended use, ensuring the lift can handle back-to-back jobs in high-volume shops without performance degradation or downtime.
The lift is designed for 220V / 60Hz / 1-phase power, making it compatible with standard North American electrical systems. Additionally, the lift requires connection to a compressed air source operating at 85-114 PSI (6-8 kgf/cm²) to power pneumatic locking and safety mechanisms, ensuring smooth, controlled operation.
For long-term reliability and reduced maintenance, the KT-X95 comes equipped with self-lubricated bushings and bearings. This design minimizes friction and wear, reducing the need for frequent servicing and extending the operational lifespan of the lift. Whether you're running a high-volume shop or a specialty service center, this lift is built to deliver consistent performance year after year.
Watch the Katool KT-X95 demonstrate its smooth operation, reliable lifting power, and professional design.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to www.P65Warnings.ca.gov
Full-Rise Lift Limited Warranty
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
For the full warranty terms, disclaimer, and conditions Click Here
