Meets UL 1963 & SAE J2788 Standards
There's nothing easier than programming your A/C settings and walking away to let the machine do its job. The Ranger AC-134A CoolCharge brings the same intuitive thinking that has made Ranger a household name in shops worldwide—now in a fully automatic R-134A recovery, recycling, and recharging machine designed to match your needs and busy lifestyle. Especially during the summer months when vehicles need regular A/C service, older systems require more frequent attention due to leaks and inefficiencies. That's why you need a fast, reliable way to recharge drained systems while your technicians perform other inspections and provide the best possible customer care.

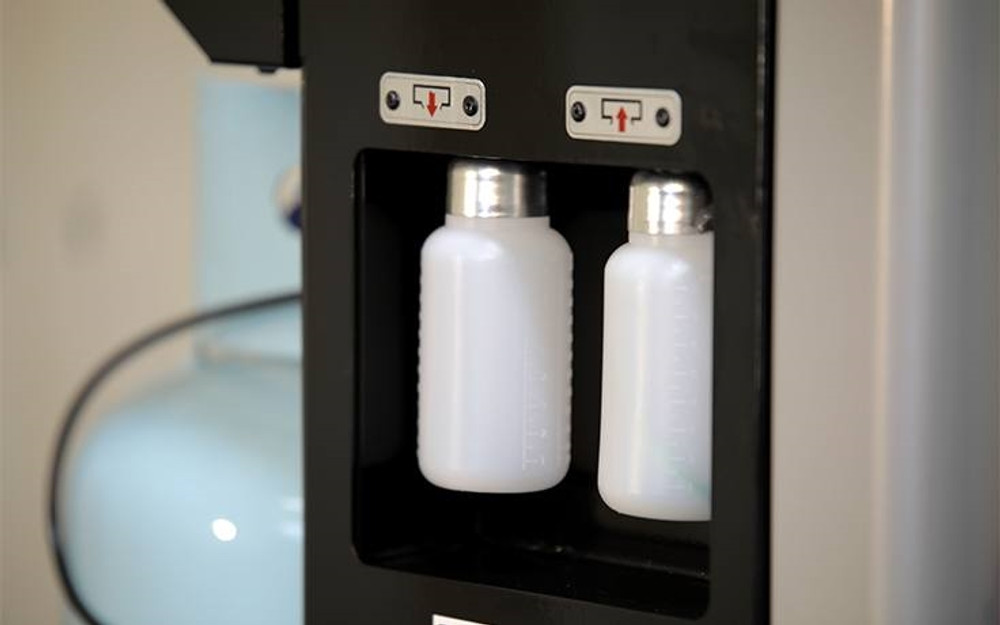

The AC-134A CoolCharge is 100% programmable, eliminating the need to monitor the recovery and recharge process. Simply program, connect, and you're done. Drained oil is automatically stored in an internal container, and the easy-to-read 4" x 1.5" LCD display indicates exactly how much oil must be returned to the vehicle system. The machine continuously monitors filter condition and refrigerant levels, automatically stopping operation if the filter becomes contaminated or refrigerant levels drop too low to safely service. This intelligent monitoring ensures safe, consistent results every time.

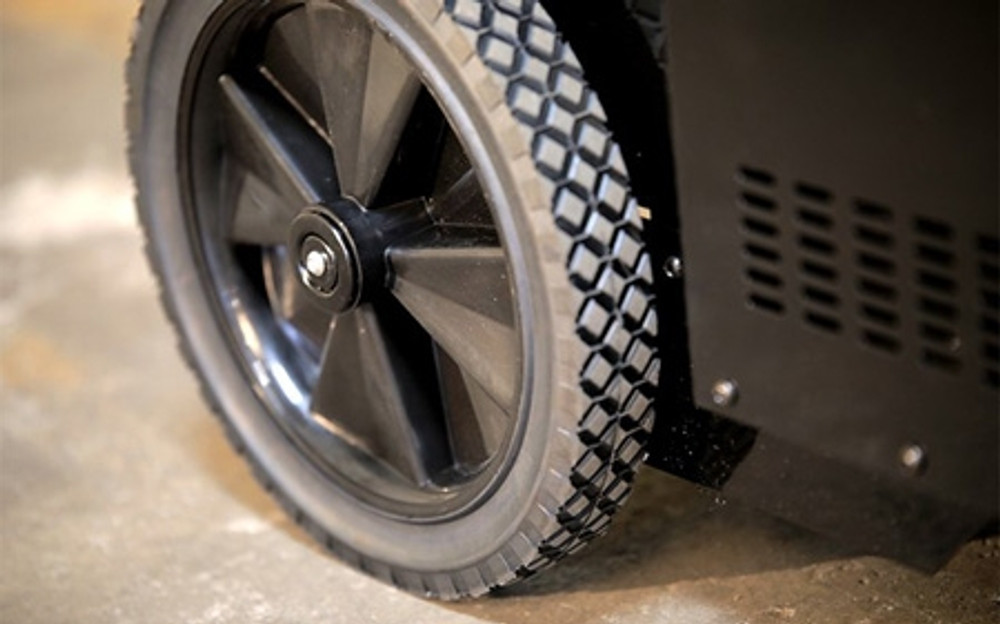

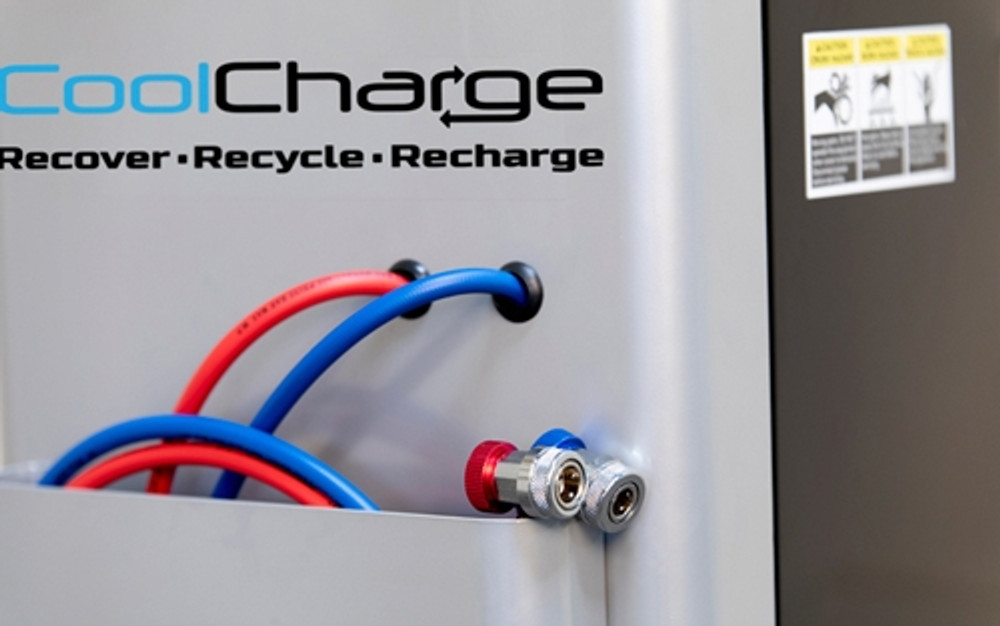

Fully portable and shop-friendly, the CoolCharge can easily serve as your sole A/C service machine. Oversized 12" rear wheels with rubber tread and lockable 4" front casters allow for effortless maneuverability around your shop, while a foot-activated lock secures the unit firmly in place when needed. With a 50 lb. (23 kg) tank capacity and 9-foot hoses, you have the reach and refrigerant capacity to handle multiple vehicles without constant refilling.
Don't waste time or money on inefficient recovery machines that drain resources and increase operating costs. The Ranger AC-134A CoolCharge is the dependable, all-in-one A/C solution your shop needs to service most cars, trucks, SUVs, and buses with R-134A refrigerant systems. Note: This machine does NOT service Electric/Hybrid A/C systems.
The AC-134A is engineered to deliver professional-grade performance with features that save time and improve workflow:
The AC-134A operates reliably across a wide temperature range (41°F to 104°F / 5°C to 40°C), making it suitable for year-round shop use. With automatic refrigerant charging via electronic scale and A/C pressure adjustment, you achieve precise, repeatable results on every vehicle.
Boost Shop Efficiency & Customer Satisfaction
✓ Save Time: Fully automated operation means your techs can focus on other tasks while the machine works—no babysitting required.
✓ Reduce Costs: Efficient refrigerant recovery and recycling minimize waste and lower your operating expenses.
✓ Professional Results: UL 1963 and SAE J2788 certified ensures compliance with industry standards and reliable performance.
✓ Versatile Compatibility: Services cars, trucks, SUVs, and buses—perfect for high-volume shops handling diverse fleets.
Measuring 38" H x 18" W x 30" D, the AC-134A has a compact footprint that fits comfortably in busy shop environments without sacrificing functionality. The robust wheel system—12-inch rubber-tread rear wheels and 4-inch locking front casters—ensures smooth transport across your shop floor and secure positioning during operation. At 276 lbs. (including a full refrigerant tank), this machine is built to last while remaining easy to move wherever service is needed.
Powered by 110 VAC / 60 Hz standard shop power and equipped with a reliable 1/3 HP / 12 cc compressor, the CoolCharge AC-134A delivers consistent performance day after day. Whether you're running a small independent shop or a high-volume service center, this machine scales to meet your demands.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Ranger AC-134A CoolCharge: The smart, automated A/C service solution that saves time, reduces waste, and delivers professional results every time. Program, connect, done.
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to www.P65Warnings.ca.gov
Wheel Service Equipment Warranty
The Best Warranty in the Business - You Have Ranger's Word
Duration: From the date of purchase by the original Purchaser or 24-12 months from the date of shipment by Ranger or whichever comes first.
One Year (12-Months) Warranty on equipment structure*
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty Free-Shipping** onground-freight charges related to warranty performance
Limited Warranty
*Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.
**Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses.
***For all Ranger brand tire changers, wheel balancers or brake lathes manufactured on or following 11/1/2011.
Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages BendPak/Ranger products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. BendPak/Ranger may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
