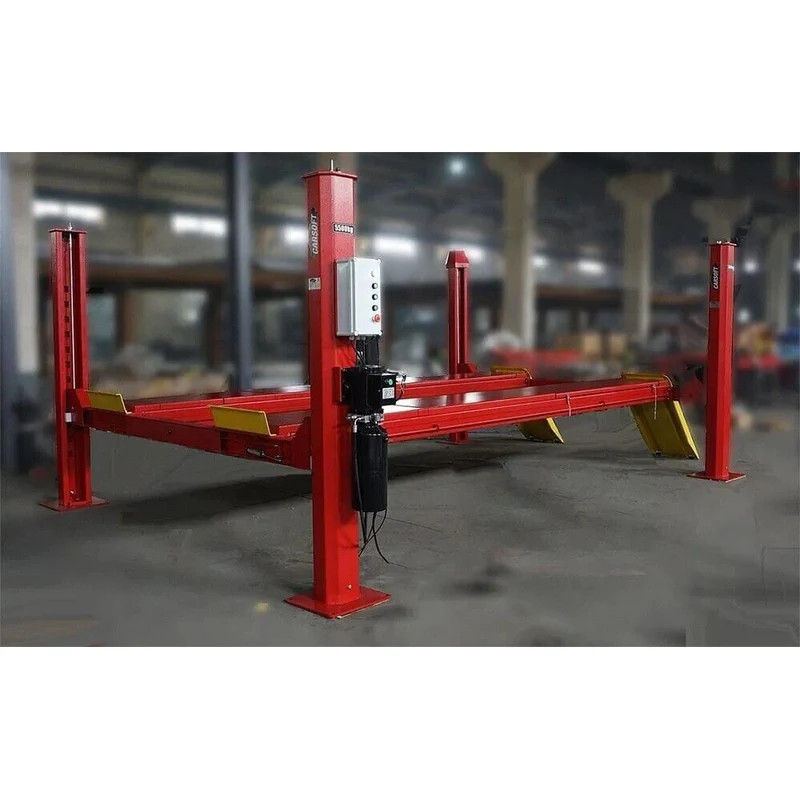

The Katool KT-4H150 is a CE-approvedfour-post alignment lift engineered to deliver professional-grade performance for heavy-duty vehicle lifting and alignment work. With a robust 15,000-lb capacity, this lift is rigorously tested to 115% dynamic load and 150% static load standards, ensuring exceptional safety and reliability for your shop. Designed for versatility and ease of operation, the KT-4H150 features a flexible power-side column configuration that can be installed on either side, front, or rear, making it adaptable to a wide range of shop layouts and workflow requirements.
Built with safety as the top priority, this four-post lift incorporates spring-loaded primary safety locks that automatically engage continuously as the lift rises. In addition, a secondary slack-cable safety system acts as a fail-safe device, engaging in the unlikely event of cable failure. The lift is equipped with multiple adjustable height locking positions for variable-height positioning, and a convenient push-button pneumatic safety lock control releases all four independent locks simultaneously for fast, safe operation. The non-skid diamond-texture ramps and non-slip coated runways provide superior traction and confidence during vehicle loading and unloading.
The KT-4H150 comes complete with a 6,000-lb rolling jack (model RJ60), enabling you to lift individual axles for wheel and suspension work while the vehicle is safely elevated. Powered by a high-quality hydraulic system with a 3KW motor running on 220V/60HZ/4PH power, this lift delivers reliable lifting performance with a 95-second rise time and 55-second descent time. With a maximum lifting height of 75 inches and a generous 99.5-inch drive-thru clearance, the Katool KT-4H150 is the ideal solution for alignment work, undercarriage inspections, and general maintenance on a wide variety of vehicles.
Key Selling Points
15,000-lb lifting capacity with CE approval and rigorous 115% dynamic / 150% static load testing for ultimate shop safety and confidence

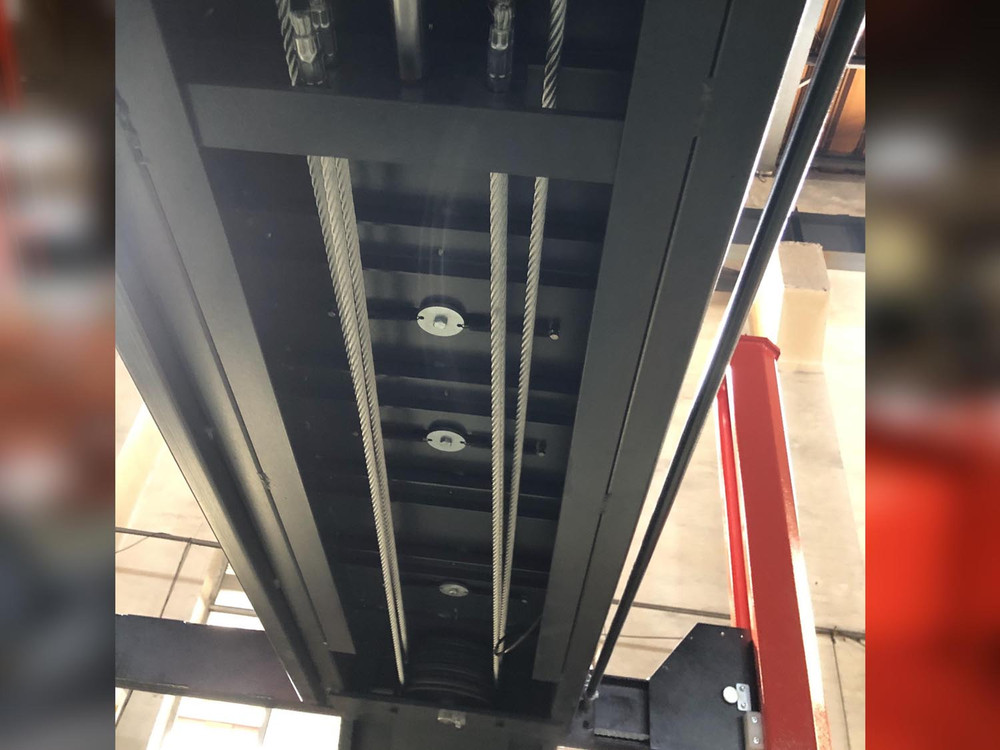

Dual safety lock system: Spring-loaded primary locks engage automatically during lift, plus a secondary slack-cable fail-safe system for redundant protection
Multiple adjustable height positions with push-button pneumatic release for all four locks—fast, convenient, and safe operation
Flexible power column installation (front, rear, or either side) adapts to any shop layout and workflow
Includes 6,000-lb rolling jack (RJ60) for individual axle lifting, plus non-skid diamond-texture ramps and non-slip coated runways for maximum traction
Designed for Professional Performance
The Katool KT-4H150 combines heavy-duty construction with intelligent design features to meet the demands of busy professional shops. The lift's 86-inch post height and 75-inch maximum lifting height provide ample clearance for undercarriage work, while the 9-inch minimum runway height ensures easy vehicle entry. With an overall width of 136 inches and 208-inch overall length (245 inches with ramps extended), this lift accommodates a wide range of vehicle sizes while maintaining a 99.5-inch drive-thru clearance for unobstructed access.
The lift's high-quality hydraulic system delivers smooth, controlled lifting action, with a 3KW motor providing reliable power. Operating on 220V/60HZ/4PH power (with 110V/60HZ/1PH optional), the system achieves a 95-second full rise time and 55-second descent, keeping your shop productive and efficient. At 4,450 lbs net weight, the KT-4H150 offers a sturdy, stable platform for heavy vehicle work.
Safety Features You Can Trust
Safety is engineered into every aspect of the Katool KT-4H150. The lift's spring-loaded safety locks engage automatically and continuously as the lift rises, providing constant protection at every height. The secondary slack-cable safety system adds an extra layer of protection, engaging immediately in the rare event of a cable failure. With multiple adjustable locking positions, you can position the lift at the precise height you need for any job, and the push-button pneumatic release allows you to disengage all four locks simultaneously with one simple action.

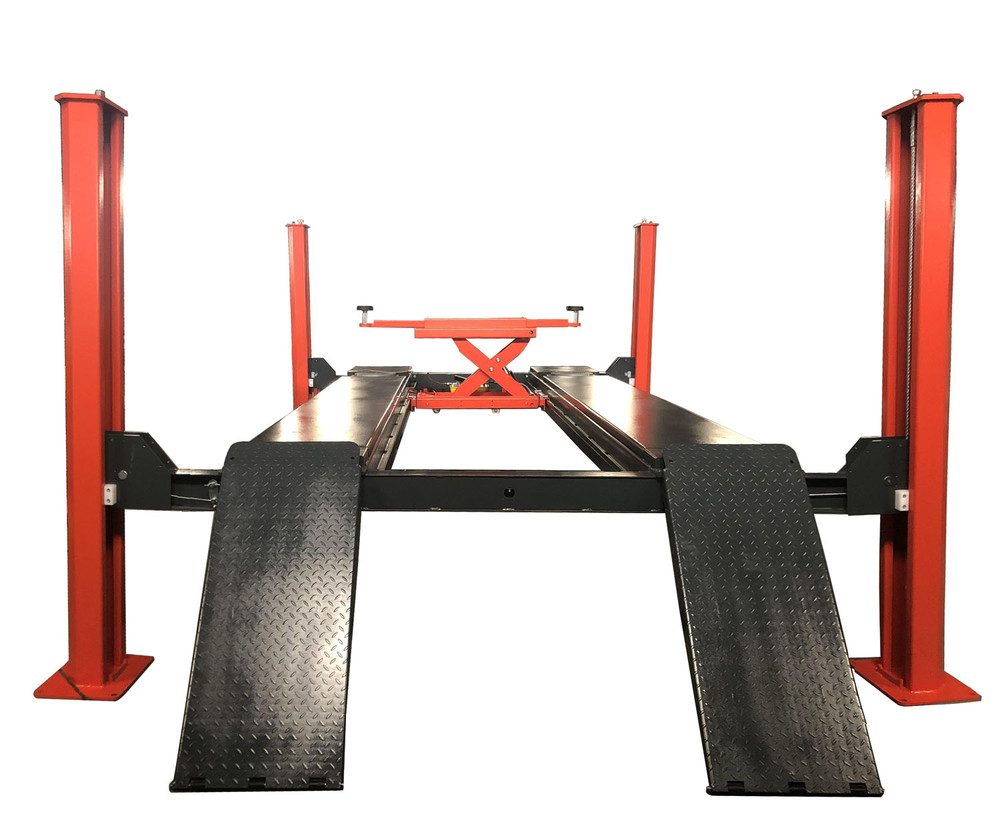

The lift's non-skid diamond-texture ramps and non-slip coated runways provide superior traction in all conditions, reducing the risk of slips during vehicle loading and unloading. The 118.11-inch width between columns provides ample room for vehicle positioning, while the 99.5-inch drive-thru clearance ensures easy access for alignment and undercarriage work.
What's Included
The Katool KT-4H150 comes complete with everything you need for professional vehicle service:

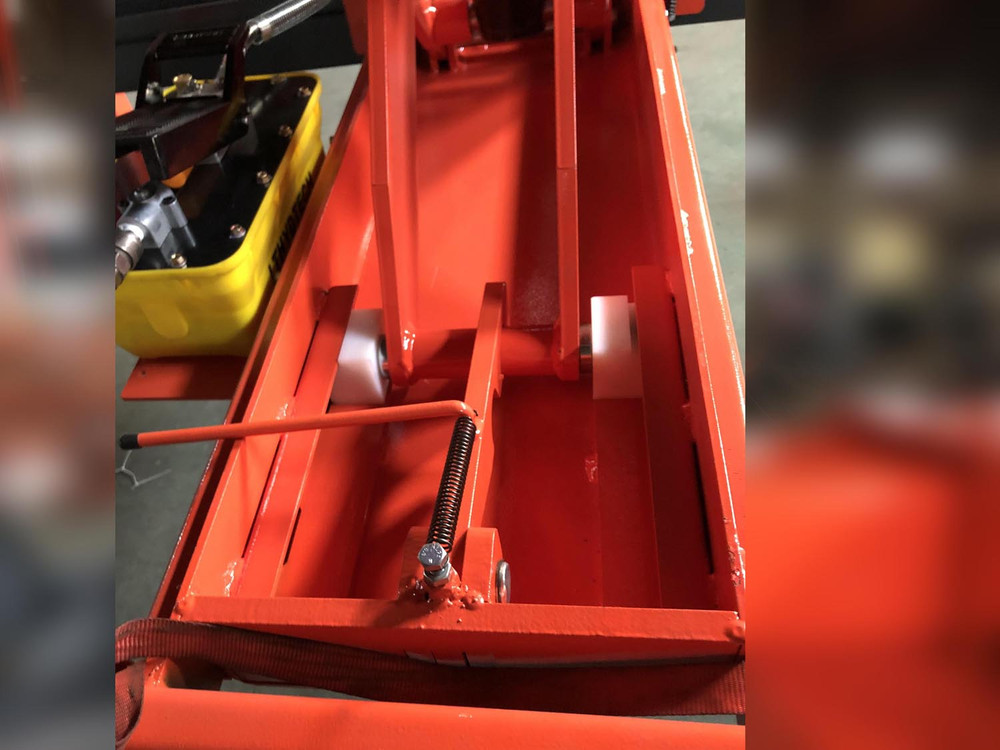

One (1) RJ60 6,000-lb rolling jack for individual axle lifting and wheel service
Non-skid diamond-texture ramps for safe, confident vehicle loading
Non-slip coated runways for maximum traction and safety
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Important Installation Requirements
⚠ Critical Concrete Requirements:
Concrete thickness must be at least 3.93 inches (100mm) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
California Prop 65 Warning:
This product contains certain metals/chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
A 2-year extended warranty plan may be purchased for any piece of Katool or M&E automotive equipment. Please click this link to find out more:
Click Here
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift
structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty.
Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested.
Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
