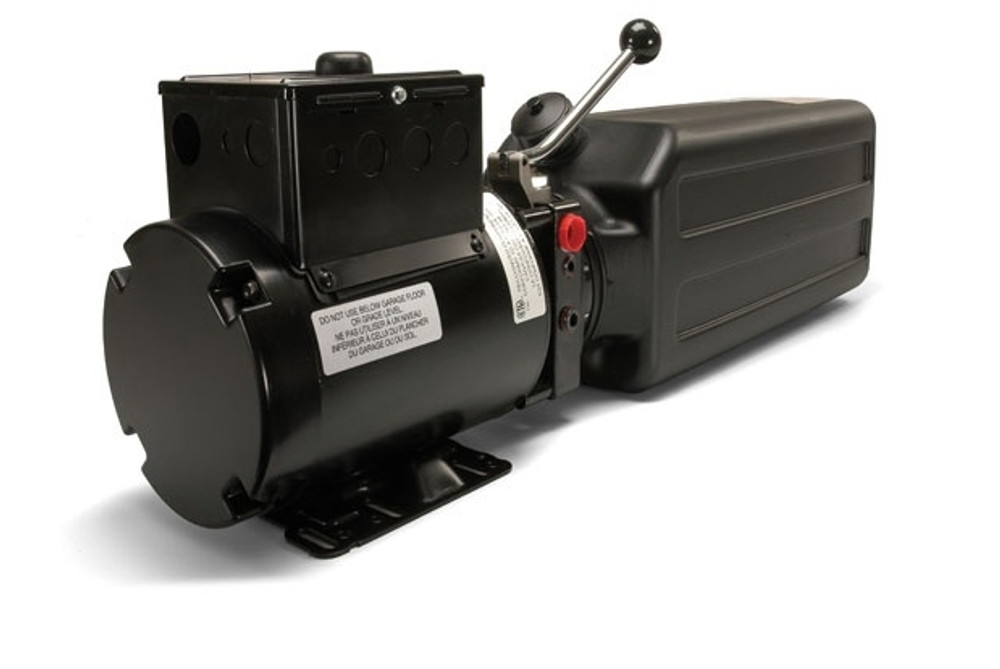

The SPX PU-S-AB-1270 is a high-quality, ETL/UL/CSA certified hydraulic power unit engineered specifically for 220V automotive lift applications. Trusted by leading lift manufacturers including BendPak, Challenger, Forward, and Rotary, this power unit delivers reliable performance for both professional shops and serious home garages. Featuring a 208-230V AC single-phase motor with 3450 RPM operation and a robust AFC 2.0 CC/Rev pump, this unit provides consistent hydraulic power with a 2750 PSI relief valve for safe, controlled operation.
Designed for versatility and ease of installation, the PU-S-AB-1270 fits almost every 2-post or 4-post automotive lift on the market. The adjustable mounting bracket features slotted holes that accommodate most lift configurations without the need for custom drilling. The unit includes a 4.0-gallon vertical plastic tank with 700 cubic inches of useable fluid capacity plus reserve, ensuring smooth lift cycles and longevity. If your lift uses an overhead cutoff switch, this model has you covered—the built-in overhead kill switch provides an additional layer of safety (simply leave it disconnected if your lift doesn't require it).
Universal Compatibility & Professional Quality
This power unit is manufactured and developed by SPX to meet the specific needs of automotive professionals and enthusiasts alike. Providing the automotive industry with a line of high-quality hydraulic power units that are ETL tested to suit lift safety standards, the PU-S-AB-1270 is the same brand and model used by top-tier lift manufacturers worldwide.
Whether you're replacing an aging power unit or upgrading your existing lift system, the SPX PU-S-AB-1270 offers professional-grade reliability backed by a full factory warranty. You may need to add a small hydraulic fitting depending on your lift configuration, although most lifts will bolt on directly. The bracket's adjustable slots ensure a secure fit on virtually any lift mounting plate, and you may need to drill new mounting holes in rare cases—but in most installations, the existing holes will align perfectly.
Key Features & Benefits
ETL/UL/CSA Certified for safety and compliance—meets all North American lift standards
220V Single-Phase Operation—208-230V AC motor runs on standard shop power with 3450 RPM performance
Overhead Cutoff/Kill Switch Included—adds an extra layer of safety for lifts that require it
Manual Release Valve (cartridge-style) for controlled, safe lowering of your lift
Mounting Hardware Included—everything you need for a secure installation right out of the box
4.0-Gallon Vertical Tank with 700 cu. in. useable capacity plus reserve and vent screw
Fixed Relief Valve at 2750 PSI (191 Bar nominal) protects against overpressure
Check Valve and Manual Release both cartridge-style for easy maintenance and long service life
Standard 9/16 SAE Pressure-Return Port and 3/8 NPTF Auxiliary Port (plugged) for flexible hydraulic connections
Specifications & Diagram
Below is a detailed technical diagram and port configuration for the SPX PU-S-AB-1270. Click the image to view it larger or to download a high-resolution copy for your installation reference.
Click on image to view it larger or to download it.
Why Choose the SPX PU-S-AB-1270?
Trusted by Industry Leaders
This is the same power unit brand and model used by BendPak, Challenger, Forward, and Rotary on their automotive lifts. When you choose the SPX PU-S-AB-1270, you're choosing the same quality and reliability that top lift manufacturers trust.
Universal Fit, Easy Installation
Fits almost every 2-post or 4-post lift with adjustable mounting slots and included hardware. Brand new with full factory warranty for your peace of mind.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
