Professional-Grade Truck Alignment Solution
The AMGO® Hydraulics PRO-18A is an engineering powerhouse designed specifically for heavy-duty truck alignment services. With a robust 18,000 lb capacity, this alignment lift makes light work out of heavy lifting, providing your shop with the versatility and precision needed for professional-grade truck maintenance and alignment operations.
What sets the PRO-18A apart is its dedicated alignment capability. This model features extra-long, non-skid runways with integrated slip plates and adjustable turnplate pockets that accommodate a wide variety of wheelbases—from compact trucks to full-size work vehicles. Whether you're performing 4-wheel alignment on wheelbases ranging from 99 5/8" to 182 5/8" or 2-wheel alignment up to 209 1/8", the PRO-18A delivers the flexibility your shop demands.
Built with advanced safety features including air-released safety locks, mechanical self-lock mechanisms, and cable breaking protection utilizing 1/2" aircraft-quality cable, this lift ensures reliable, safe operation shift after shift. The hydraulic cylinders are manufactured to exacting standards with flow restrictors for stable, smooth lifting speed, while the skid-proof diamond platform provides secure footing during service.
Key Highlights
18,000 lb lifting capacity handles heavy trucks, vans, and commercial vehicles with ease
Alignment-ready design with integrated slip plates and adjustable turnplate pockets for precise wheel alignment services
Impressive lifting height of 75 3/8" provides ample clearance for comprehensive undercarriage access
Wide 108 1/4" drive-thru clearance accommodates large vehicles and allows easy access for rolling jacks and equipment
Fast 81-second lifting time powered by a reliable 2.0HP, 220V single-phase motor maximizes shop productivity
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Designed for Demanding Shops
The PRO-18A delivers everything found in the standard PRO-18 model, plus specialized alignment capabilities that transform it into an essential tool for full-service automotive shops. With an overall length of 293 1/4" with ramps and 137 1/8" overall width, this lift provides generous workspace while maintaining a footprint that fits most professional shop environments.
The 22" wide runways with skid-proof diamond plating ensure secure vehicle placement, while the 51 1/4" width between runways allows easy access to the undercarriage. With a minimum height of just 9 7/8", the PRO-18A accommodates low-clearance vehicles, yet extends to a full 75 3/8" lifting height for maximum working room.
Important Note: Turnplates are not standard and must be purchased separately. Optional accessories include 40101 Adjustable Turnplate Blocks specifically designed for the PRO-18A, RJ-10A Pneumatic Rolling Jacks (10,000 lbs), 40106 Airline Kit, 41801 Extension Kit (adds 29" of platform length), and the 40103 LED Light Kit for enhanced visibility.
Engineered for Safety and Reliability

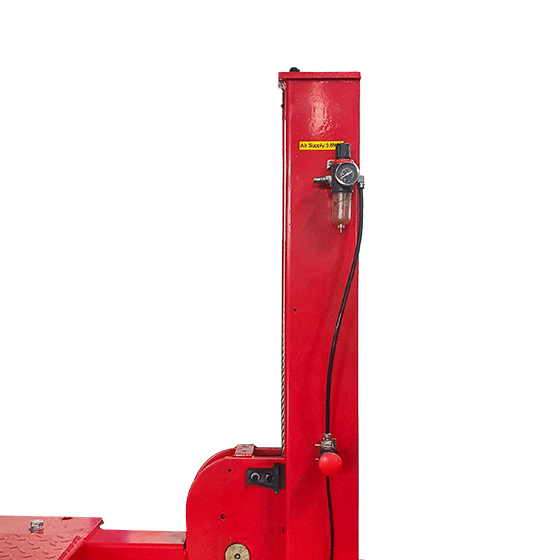

Every AMGO® PRO-18A is built with safety as the top priority. The air-released safety lock system provides convenient, reliable operation, while the mechanical self-lock and cable breaking protection deliver multiple layers of security. The lift uses 1/2" aircraft-quality cable—the same grade trusted in aerospace applications—for uncompromising strength and durability.
Hydraulic cylinders are manufactured to stringent quality standards and incorporate flow restrictors to ensure stable, smooth operational speed throughout the lift cycle. This attention to detail means consistent performance, reduced wear, and a longer service life for your investment.
Optional Accessories Available:

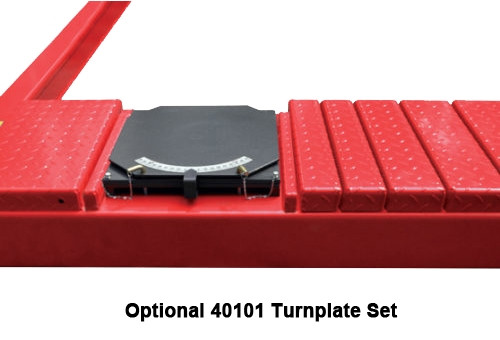

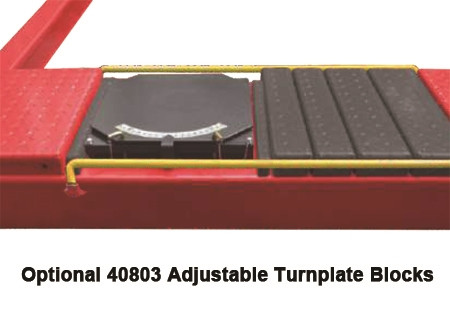

40101 Adjustable Turnplate Blocks for the PRO-18A
RJ-10A Pneumatic 10,000 lbs Rolling Jacks

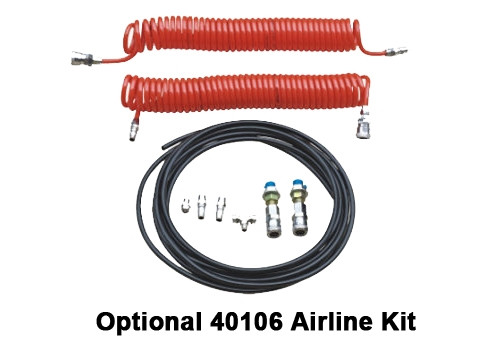

40106 Airline Kit for 4 Post Lifts less than 18K
41801 Extension Kit adds an extra 29" (737mm) length to the platform
40103 LED Light Kit for 4 Post Lifts
Built to AMGO® Standards
AMGO® Hydraulics has earned its reputation by delivering professional-grade automotive equipment that stands up to the demands of high-volume shops. The PRO-18A continues that tradition with newly engineered lift technology, precision construction, and a comprehensive approach to both performance and safety.
Weighing in at 4,334 lbs, this lift is substantial enough to handle the toughest jobs while maintaining the stability and precision required for accurate alignment work. Strict quality control throughout manufacturing ensures every cylinder, cable, and component meets exacting standards.
Note: Design, materials, and specifications are subject to change without notice.
Click on Image to Download or Enlarge It

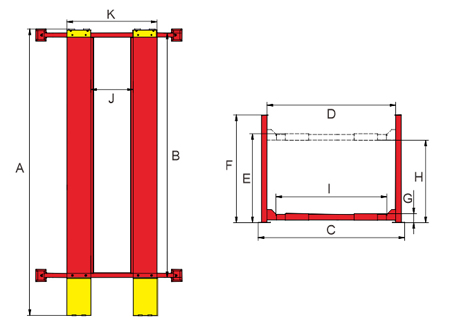

AMGO PRO-18A Specifications and Dimensions Diagram
