The Launch X-431 ADAS Pro Plus LDW Standard Package is a professional, high-precision ADAS calibration system designed for auto repair shops and glass shops that need accurate, efficient calibration of advanced driver assistance systems. This stationary wheel clamp-based calibration platform combines millimeter-precision laser range-finding technology with comprehensive Lane Departure Warning (LDW) patterns and targets to eliminate guesswork and tape measurements from the calibration process. Compatible with multiple Launch X-431 diagnostic tablets including the Throttle III, Throttle Link, Throttle, Torque III, and Torque 5 (sold separately), the ADAS Pro Plus integrates seamlessly with Launch's professional diagnostic software to provide detailed, step-by-step calibration instructions directly on your device.
Built on an upgraded aluminum alloy frame for enhanced durability and portability, this calibration system features electric lifting and manual adjustment for fast setup and operation. The platform supports multi-directional fine-tuning including forward/backward, left/right, and horizon adjustments—all without moving the main calibration tool. This design allows you to achieve parallelization and centralization in as little as one minute, dramatically reducing setup time and increasing shop productivity. Whether you're performing routine windshield replacements with camera recalibration or complex ADAS diagnostics, the ADAS Pro Plus Standard Package delivers the precision and efficiency modern automotive service demands.

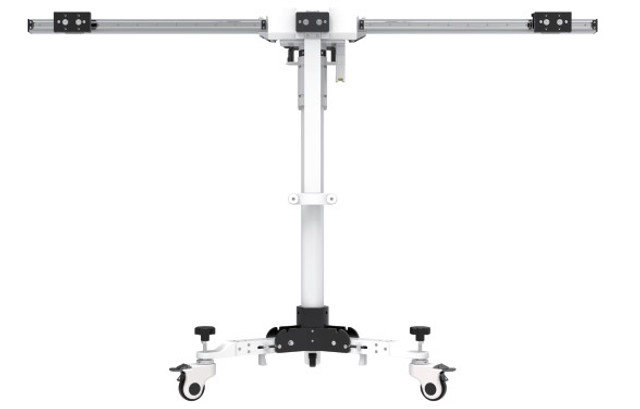

The X-431 ADAS Pro Plus is engineered to determine the precise locations of both the vehicle being calibrated and the calibration tool itself. Working in conjunction with Launch's calibration software, this system delivers complete ADAS calibration capabilities for passenger cars. The main system is composed of a calibration main frame with integrated cross member, wheel clamps, target holders, laser range finders, ranging panels, and vehicle-specific calibration targets that vary by package configuration.
This system is purpose-built to meet the daily calibration needs of busy shops. With laser-guided positioning replacing traditional tape measures, technicians achieve faster, more accurate setups every time. The LDW Standard Package includes comprehensive Lane Departure Warning patterns and targets, including specialized targets for VW/Audi LDW systems, ensuring broad vehicle coverage right out of the box.
See how the ADAS Pro Plus streamlines calibration with laser precision and intuitive setup.
The LDW Standard Package arrives ready to calibrate with everything you need to get started:
? Important Documentation & Resources
View or Download LDW Patterns & Targets →
The X-431 ADAS Pro Plus works seamlessly with the following Launch X-431 diagnostic tablets (sold separately):
These diagnostic platforms provide the professional ADAS calibration software with detailed step-by-step instructions, helping technicians quickly and correctly perform calibrations with confidence.
Launch Tech USA provides comprehensive video tutorials covering setup, operation, and specific calibration procedures. View all Launch X-431 ADAS Pro Plus videos on YouTube →
Explore advanced features and calibration techniques with Launch's official training content.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
