The Launch X-431 ADAS Pro Plus Forward Facing Deluxe Package is a professional, high-precision ADAS calibration solution designed for automotive repair shops and glass replacement specialists who demand accuracy and efficiency. This stationary calibration system combines millimeter-precise laser measurement technology with a robust aluminum alloy frame to deliver fast, accurate calibrations for modern Advanced Driver Assistance Systems including Lane Departure Warning (LDW), Adaptive Cruise Control (ACC), and Blind Spot Detection (BSD).
Built on a wheel clamp-based design, the ADAS Pro Plus eliminates the guesswork and time-consuming tape measurements associated with traditional calibration methods. The integrated laser range-finders establish precise vehicle and target positioning in moments, while the electric lifting and manual adjustment capabilities allow for rapid setup and portability. Multi-directional fine-tuning is supported across forward/backward, left/right, and horizon adjustments, enabling parallelization and centralization within 1 minute—without needing to move the entire calibration frame.

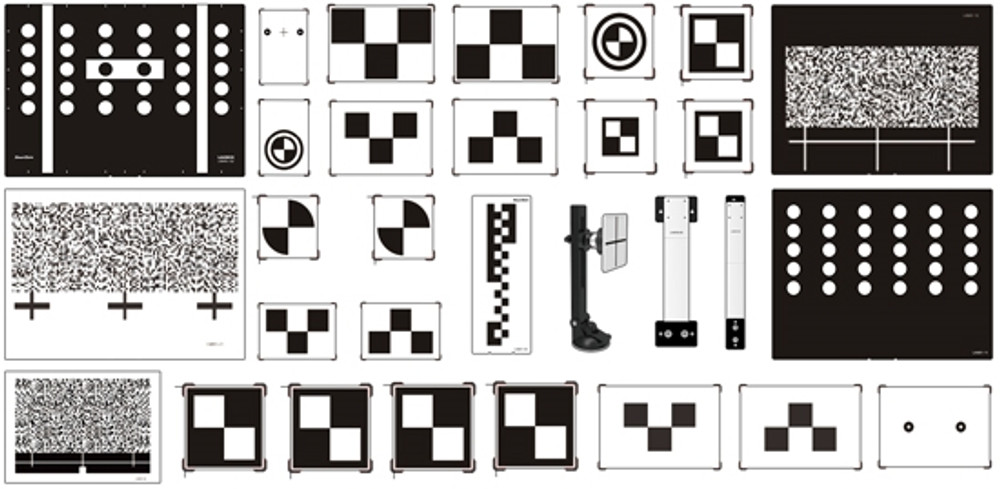

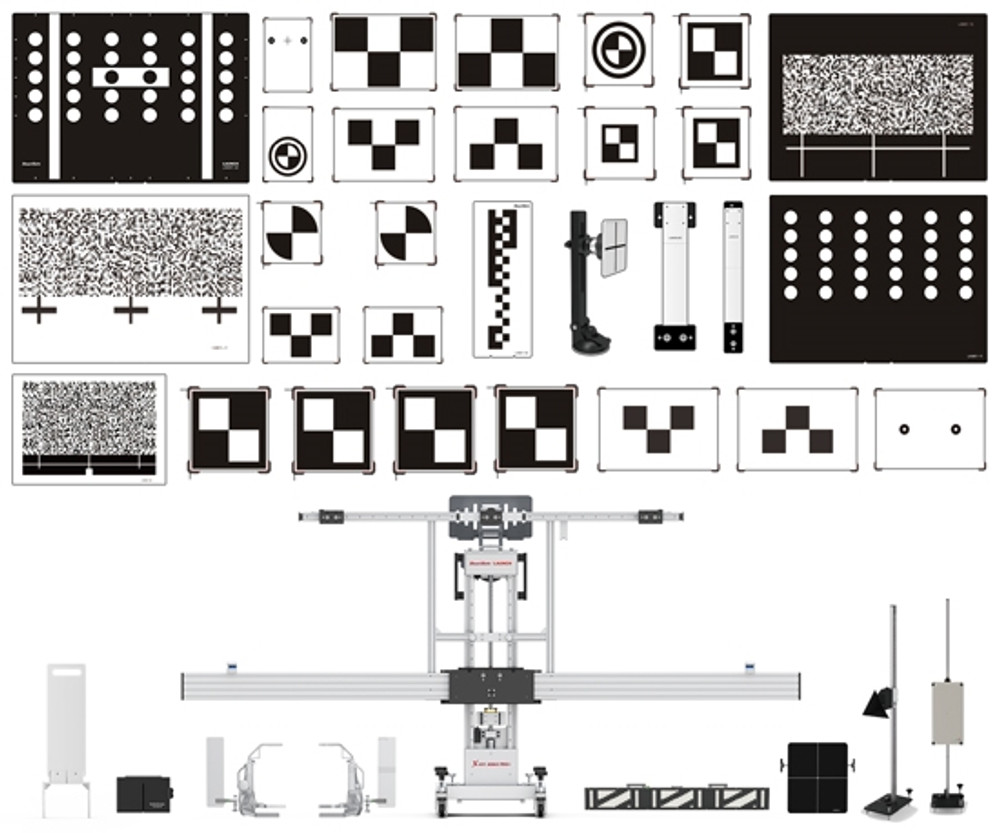

This Forward Facing Deluxe Package (SKU 701040011) includes a comprehensive suite of targets, range-finders, and accessories to support a wide variety of ADAS calibration scenarios. When paired with compatible Launch X-431 diagnostic platforms such as the X-431 Throttle III, X-431 Throttle Link, X-431 Throttle, X-431 Torque III, or X-431 Torque 5 (sold separately), the system provides detailed step-by-step calibration instructions directly on your scan tool, guiding you through each procedure with confidence and accuracy. The durable, upgraded aluminum alloy construction ensures years of reliable service in demanding shop environments.

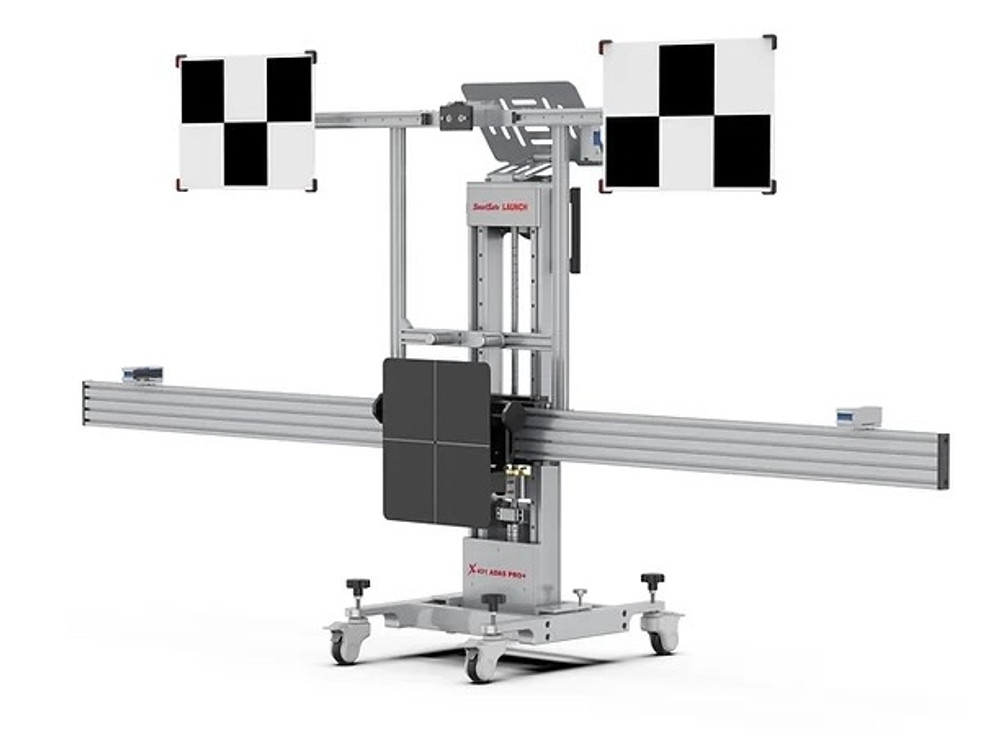

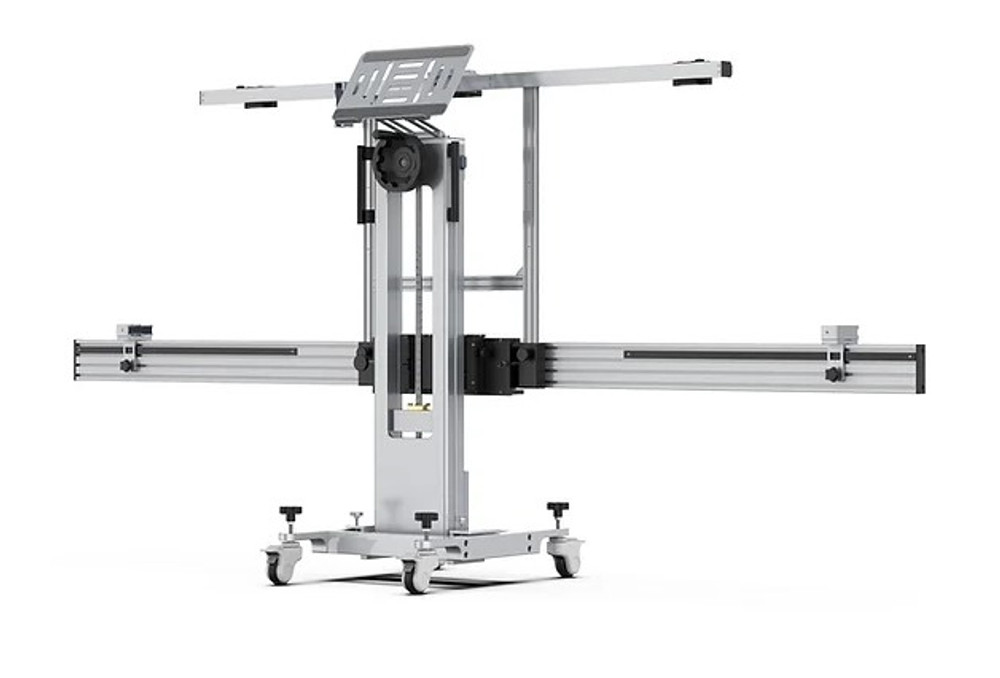

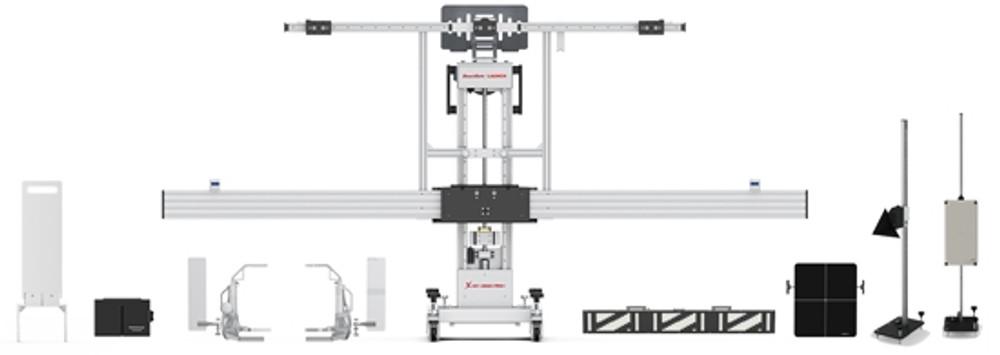

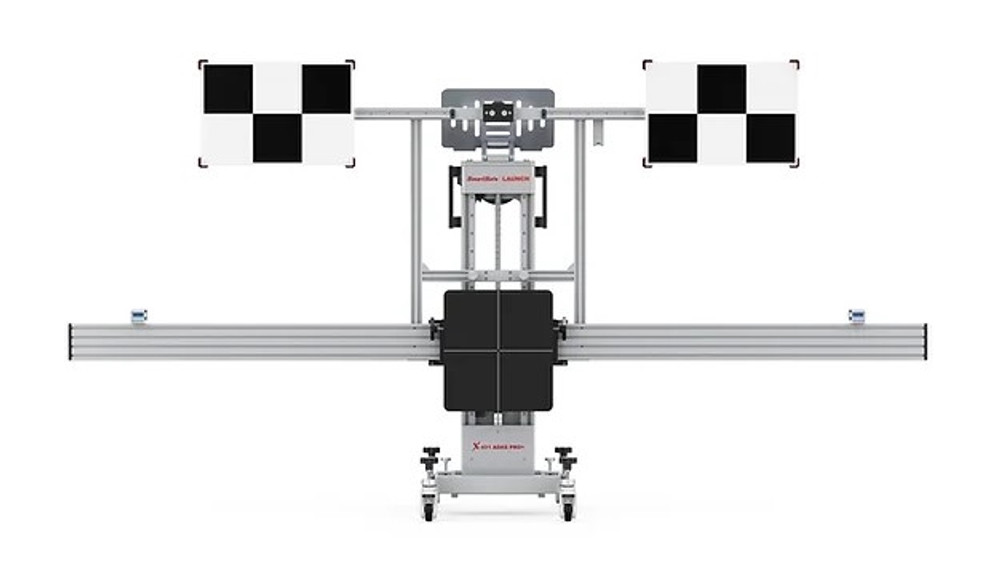

The ADAS Pro Plus system is designed to determine the precise locations of both the vehicle being calibrated and the calibration tool itself. The system is composed of a calibration main frame with cross member, wheel clamps, target holders, multiple laser range-finders, a ranging panel, calibration targets (configurations vary by package), and all necessary accessories.
The wheel clamp-based design anchors the system to the vehicle's wheels, establishing a stable reference point. Laser range-finders then measure distances and angles with millimeter precision, guiding you through the alignment process. Once positioned, the system works in conjunction with your Launch X-431 diagnostic software, which provides real-time calibration instructions tailored to the specific vehicle and ADAS system being serviced. This combination of hardware precision and software guidance ensures accurate, efficient calibrations every time.
This Forward Facing Deluxe Package provides everything you need to perform a wide range of forward-facing ADAS calibrations:
? Additional Resources:
View the ADAS Pro Plus Forward Facing Deluxe Package Detailed Spec Sheet
The ADAS Pro Plus system is designed to work seamlessly with the following Launch X-431 diagnostic platforms (sold separately):
Note: Launch diagnostic scan tools are not included with this calibration package and must be purchased separately.
When connected to a compatible scan tool, the professional diagnostic software provides detailed step-by-step instructions to help users quickly perform calibrations correctly. This guided approach reduces training time and ensures consistent, accurate results across your entire team.
The ADAS Pro Plus arrives ready for professional shop use. With a shipping weight of 795 lbs, this is a substantial, stable calibration platform built for accuracy and longevity. The electric lifting mechanism combined with manual fine-tuning adjustments provides the perfect balance of speed and precision, allowing technicians to dial in exact positioning without unnecessary physical effort.
The system's multi-directional adjustment capabilities mean you can fine-tune forward/backward positioning, left/right alignment, and horizon leveling without moving the main calibration frame. This feature dramatically reduces setup time and ensures repeatable accuracy across multiple calibrations throughout the day.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
