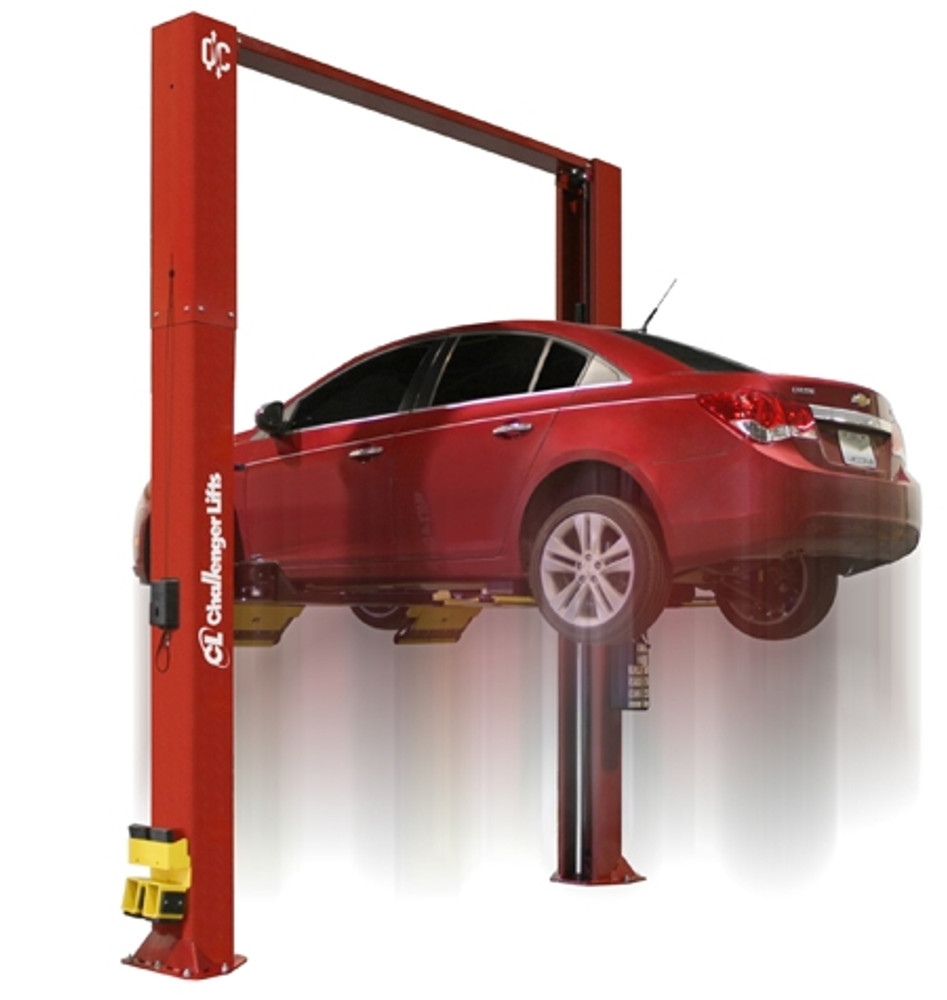

The Challenger CL10A-XP9-DPC-QC represents the ultimate evolution in express service bay technology. This 9,000 lb. capacity 2-post lift combines Quick Cycle™ technology with an innovative drive-on pad design, dramatically improving throughput while maintaining the precision and safety standards that professionals demand. Whether you're running an express lube center, tire shop, or high-volume service facility, this ALI-certified lift delivers accurate first-try spotting that boosts productivity and eliminates frustration.
At the heart of this system is Quick Cycle™ technology, which reduces rise time to just 24 seconds and descent to 17 seconds—a 30% improvement over standard models. Combined with Dual Pendant Power Controls that provide unobstructed views of lift points from either column, you'll spot vehicles faster and work more efficiently than ever before. The drive-on express pad configuration means no more guessing, no more repositioning, and no more wasted minutes on every single vehicle.
Challenger engineered this lift for the real world: three width adjustment settings (from 11'6-1/2" to 11'11"), adjustable column heights to fit 12-foot ceilings or higher, and a low-profile 2.25" pad height that minimizes clearance issues with lowered or performance vehicles. Built in the USA with premium materials including an oversized 5" diameter pulley, heavy-duty 5/16" cable, and a 48" elongated carriage design, this lift is engineered for decades of reliable service in the most demanding environments.
Quick Cycle™ Technology: Speed Without Compromise
Quick Cycle™ models dramatically improve lifting speed to achieve 24-second rise time and 17-second descent—a 30% reduction compared to standard models. This translates directly to increased bay utilization and higher revenue per hour. The system achieves this performance boost through an upgraded 3HP single-phase motor (versus 2HP in standard models) running on 208/230V, 60Hz power, delivering more torque and faster hydraulic actuation without sacrificing smoothness or control.
In express service environments where every minute counts, Quick Cycle™ technology can mean the difference between completing six jobs per hour versus eight. Over the course of a year, that efficiency gain adds up to thousands of additional services—and significantly increased profitability—while reducing technician fatigue and customer wait times.
Dual Pendant Power Controls: Precision at Your Fingertips
The Dual Pendant Power Control system redefines operator convenience and safety. With control stations mounted on both columns, technicians always have immediate access to lift controls regardless of which side they're working from. This design provides an unobstructed view of lifting points during vehicle spotting, eliminating the guesswork and allowing for micro-adjustments without running around the vehicle.
Key Dual Pendant Features:
Always within reach when small spotting adjustments matter most—no more walking around the lift to make a minor correction
OSHA-compliant keyed lockout safety button locks out power to the lift, preventing unauthorized operation and ensuring compliance with workplace safety regulations
Intuitive up power button raises the lift smoothly and predictably
Down power button with dual single-point mechanical lock release allows lift lowering from either column, improving workflow efficiency and safety
Unobstructed sightlines to vehicle lift points from both sides expedite accurate positioning on the first try
This dual-control architecture dramatically reduces vehicle spotting time while enhancing safety. Technicians maintain full visual contact with lift arms and vehicle contact points throughout the entire lifting cycle, catching potential issues before they become problems.
Drive-On Express Pad: Precision Spotting Made Simple

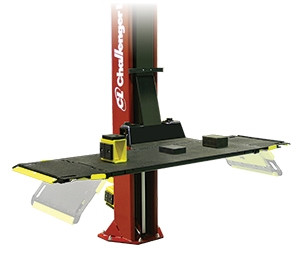

The CLXP9 Low Profile Express Service Pad is the defining feature that sets this lift apart for high-volume operations. Unlike traditional swing-arm configurations that require careful positioning and multiple attempts, the drive-on pad design allows vehicles to be driven directly onto 24" wide platforms with minimal fuss. The result? Accurate first-try spotting that slashes setup time and keeps your bays moving.

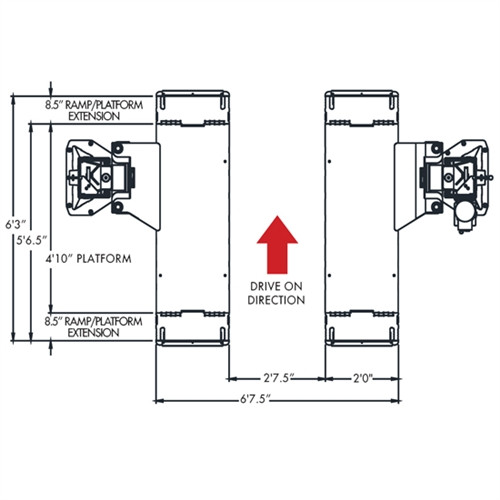

At just 2.25" in height, the low-profile pad design accommodates even lowered vehicles, sports cars, and performance models that might scrape or bottom out on taller ramps. The 58" / 66.5" / 75" platform length options and 31.5" width between platforms provide excellent coverage across a wide range of vehicle types, from compact sedans to full-size trucks.
Each CL10A-XP9-DPC-QC includes a complete set of spotting accessories:
(4) 1.5-inch rubber spotting blocks for fine-tuning lift point contact
(4) 3-inch rubber spotting blocks for vehicles requiring additional height
(2) Spotting block storage caddies to keep accessories organized and accessible
This drive-on configuration is ideal for oil changes, tire rotations, brake inspections, alignments, and other express services where speed and repeatability are paramount. Your technicians will appreciate the reduced physical strain and mental load, while your bottom line will reflect the increased throughput.
Engineered for Longevity and Reliability
Challenger didn't just design this lift for speed—they engineered it to last. Every component is built to withstand the rigors of daily commercial use in high-volume environments:
Oversized 5" diameter pulley and heavy-duty 5/16" cable reduce stress on the equalization system, extending cable life far beyond industry norms. This robust design ensures consistent, smooth operation even after tens of thousands of lift cycles.
The 48" elongated carriage design distributes load more evenly across the lift mechanism, reducing wear on individual components and significantly increasing overall lift life. This extended carriage design also improves stability during lifting and lowering operations, particularly with heavier vehicles near the 9,000 lb. capacity limit.
A fully gusseted base plate design increases column rigidity and structural integrity, preventing flexing and maintaining precise alignment between columns over years of use. The pulley-less jacketed single-point lock release system eliminates a common failure point, making operation smoother, easier, and more reliable while extending service intervals.
Additional durability features include:
Plated arm restraints and arm pins that inhibit rust and provide long-lasting durability even in humid or corrosive environments
Premium powder coat finish with an upgraded textured formula (implemented November 1, 2022) that provides superior scratch resistance and long-lasting appearance
Standard dual integrated rubber door guards that protect vehicle panels from inadvertent damage during entry and exit
Padded overhead shut-off system that prevents vehicle damage if the lift is inadvertently raised too high
Flexible Configuration Options for Any Facility
The CL10A-XP9-DPC-QC Series offers three column height configurations to accommodate virtually any facility ceiling height:
CL10A-XP9-DPC-QC – Standard model with column heights of 11'2" or 11'8", perfect for facilities with 12-foot ceilings (minimum)
CL10A-XP9-2-DPC-QC – 2-foot column extension with heights of 13'2" or 13'8" for shops with taller ceilings
CL10A-XP9-3-DPC-QC – 3-foot column extension with heights of 14'2" or 14'8" for maximum overhead clearance
All models feature adjustable width from 11'6-1/2" to 11'11" with three distinct settings, allowing you to optimize the lift for your specific bay dimensions and vehicle mix. The 90" drive-thru clearance ensures plenty of room for technicians to work safely around raised vehicles.
Maximum specifications include a 74-1/8" (1908mm) rise height and 11'11" max extended cylinder height, providing ample working room underneath vehicles. The low lock height of 12" net rise allows for safe work at minimal elevation when full height isn't required.
Facility Requirements: Bay Dimensions: 13'3" or 13'9" width × 14'3" or 14'9" depth (depending on configuration) Ceiling Height: 12' minimum (standard model) Electrical: Quick Cycle DPC: 3HP, Single Phase, 60Hz, 208/230V / Standard DPC: 2HP, Single Phase, 60Hz, 208/230V
Why Choose the CL10A-XP9-DPC-QC?
This lift represents the intersection of speed, precision, and durability—three factors that define success in modern express service operations:
30% faster cycle times with Quick Cycle™ technology mean more vehicles serviced per day
Drive-on pad design eliminates spotting errors and reduces vehicle positioning time to seconds
Dual pendant controls provide unprecedented operator convenience and safety compliance
9,000 lb. capacity handles everything from compact cars to full-size trucks and SUVs
ALI-certified design ensures compliance with industry safety standards and insurance requirements
Made in the USA with premium components and Challenger's legendary build quality
Adjustable height and width options ensure perfect fitment in virtually any service bay
Made in the USA
This lift is proudly manufactured in the United States with American steel and components, supporting domestic jobs while ensuring the highest quality standards and rapid parts availability.
See the CL10A-XP9-DPC-QC in Action
Bay Layout and Installation Planning
Click on Image to Enlarge or Download
Proper bay layout is critical for optimal lift performance and technician safety. Download the comprehensive bay layout diagram above to ensure your facility meets all dimensional requirements before installation. The diagram includes anchor bolt locations, electrical conduit routing, and clearance specifications.
Paint Upgrade Notice
Note: Starting November 1, 2022, Challenger implemented a paint upgrade to a textured formula that provides superior durability and scratch resistance. For full details, click here.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Challenger Lifts, Inc. (CLI) lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation, and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lifts, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation,
abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when
repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is
authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are considered the power units, cylinders, sheaves, sheave pins, hoses, hydraulic & pneumatic fittings, cables, adapters, latches, valves, and controls.
Structural parts are considered the carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
