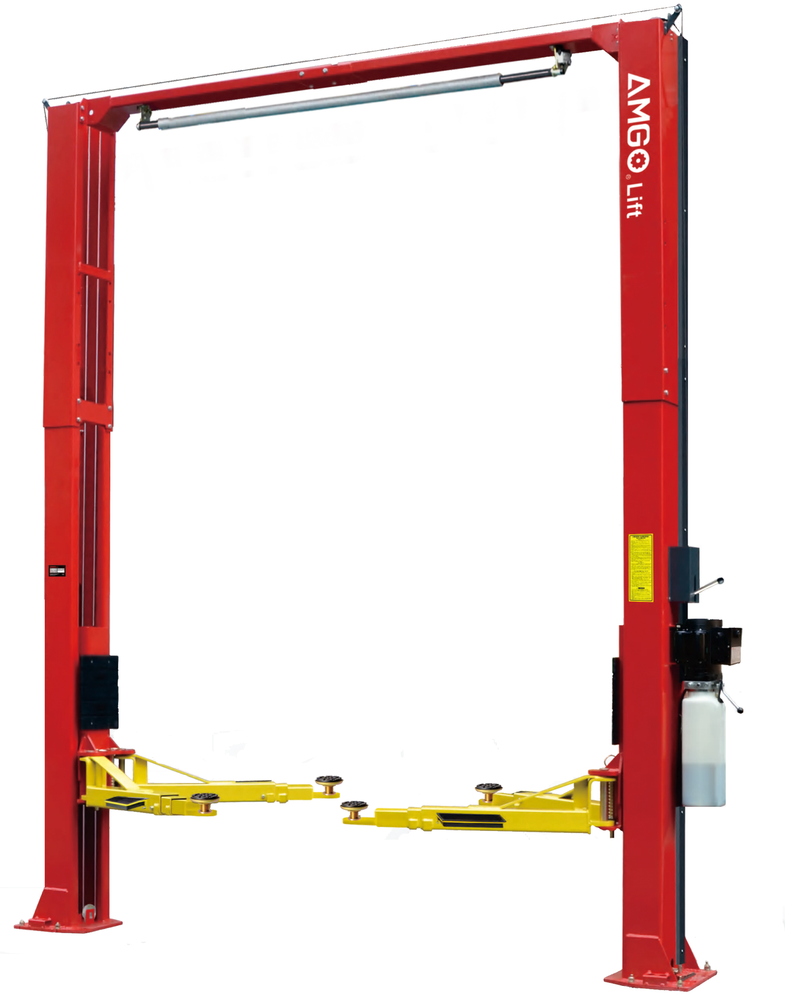

When your shop demands serious lifting power for heavy-duty trucks and commercial vehicles, the AMGO Hydraulics OH-12 delivers where standard lifts fall short. Built for the rigors of busy commercial shops, this 12,000 lb capacity two-post lift combines exceptional strength with intelligent engineering to handle the full spectrum of heavy-duty service work. Whether you're servicing fleet trucks, larger SUVs, or heavy commercial vehicles, the OH-12 provides the capacity, reach, and reliability your team needs to work safely and efficiently every day.
Designed to accommodate the unique challenges of heavy truck service, the OH-12 features adjustable two-height settings that let you configure the lift to match your shop's ceiling height—perfect for facilities with varying bay dimensions. With an impressive lifting height range of 72.5" to 82.875", you'll have ample clearance for undercarriage work, maintenance, and repairs on even the tallest vehicles in your service queue.
Heavy-Duty Performance, Engineered for Versatility
AMGO's heavy-duty two-post lifts are the best choice for heavy-duty vehicles or trucks in commercial shops—stronger and higher than standard automotive lifts. The OH-12 doesn't just lift more weight; it's engineered to handle the physical demands and dimensional challenges of modern trucks and commercial vehicles with ease.
Three-Stage Arms: The OH-12 is equipped with 4 three-stage arms that provide exceptional reach and flexibility, allowing you to lift trucks from short to long wheelbases without repositioning or struggling with arm placement. This design ensures stable, balanced lifting across a wide range of vehicle configurations—from compact utility trucks to extended cab models and long-bed commercial vehicles.

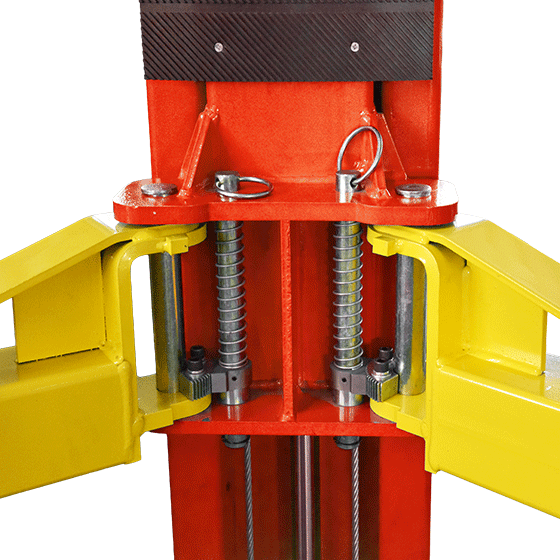

Automatic Arm Restraints: Safety and efficiency go hand in hand with the OH-12's automatic arm restraints, which keep the lifting arms securely locked in their proper positions during operation. No manual locking or fumbling with pins—just smooth, confident positioning that saves time and reduces operator error.
Single Point Safety Release: One of the standout safety features of the OH-12 is its single-point safety release system. Instead of requiring the operator to move between columns to disengage locks, this intelligent design allows you to unlock both column locks from one column—streamlining the lowering process and keeping your technician in a safe, controlled position throughout the entire operation.
Built to Last: Premium Components and Thoughtful Engineering
The OH-12 is built with components selected for long-term durability and minimal maintenance. Self-lubricating UHMW Polyethylene sliders and bronze bushings reduce friction and wear, ensuring smooth carriage movement and extending the service life of critical components. Aircraft-quality cable is used for synchronization, providing reliable, precise lifting action cycle after cycle—no stretching, no uneven lifting, just consistent performance.
The lift also includes practical features that make daily operation easier: a detachable foot guard and tool tray allow for a clutter-free workspace, letting you customize the lift to suit the job at hand. When you need maximum floor access, remove them; when you need convenience, they're right where you need them.
Powered by a robust 2 HP, 220V single-phase motor, the OH-12 lifts smoothly and efficiently with a lifting time of just 69 seconds—fast enough to keep your workflow moving, controlled enough to ensure safe, stable operation. With a drive-thru clearance of 109.75 inches and a width between columns of 123.5 inches, you'll have the space and access needed for even the widest trucks and commercial vehicles.
Why the OH-12 Stands Out
12,000 lb lifting capacity handles heavy-duty trucks and commercial vehicles with confidence
Four three-stage arms accommodate short to long wheelbase vehicles with ease
Single-point safety release for fast, safe, one-column unlocking
Adjustable two-height settings to match your shop's ceiling height requirements
Self-lubricating sliders and bronze bushings reduce maintenance and extend component life
Includes with Purchase: The OH-12 comes complete with set of stackable rubber pads, set of frame saddle adapters,and a full set of extension adapters (3" and 6"), giving you the flexibility to safely lift a wide variety of vehicle frame configurations right out of the box.
Complete Technical Specifications
The AMGO OH-12 offers impressive dimensions and capabilities designed for commercial-grade service work:
Lifting Capacity: 12,000 lbs
Lifting Height: 72 1/2" to 82 7/8"
Overall Height: 174" / 198" (4420 / 5030mm) — adjustable for your ceiling
Overall Width: 150.75" (3829mm)
Drive-Thru Clearance: 109.75" (2787mm)
Width Between Columns: 123.5" (2850mm)
Minimum Pad Height: 4.5" (115mm) — ideal for low-slung trucks and vehicles
Lifting Time: 69 seconds
Motor: 2 HP / 220V
Gross Weight: 2,436 lbs (1051 kg)
Click on the image below to enlarge or download the detailed specification diagram:
Looking for full specifications and features? Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
