The Ultimate Heavy-Duty Wheel Balancing Solution

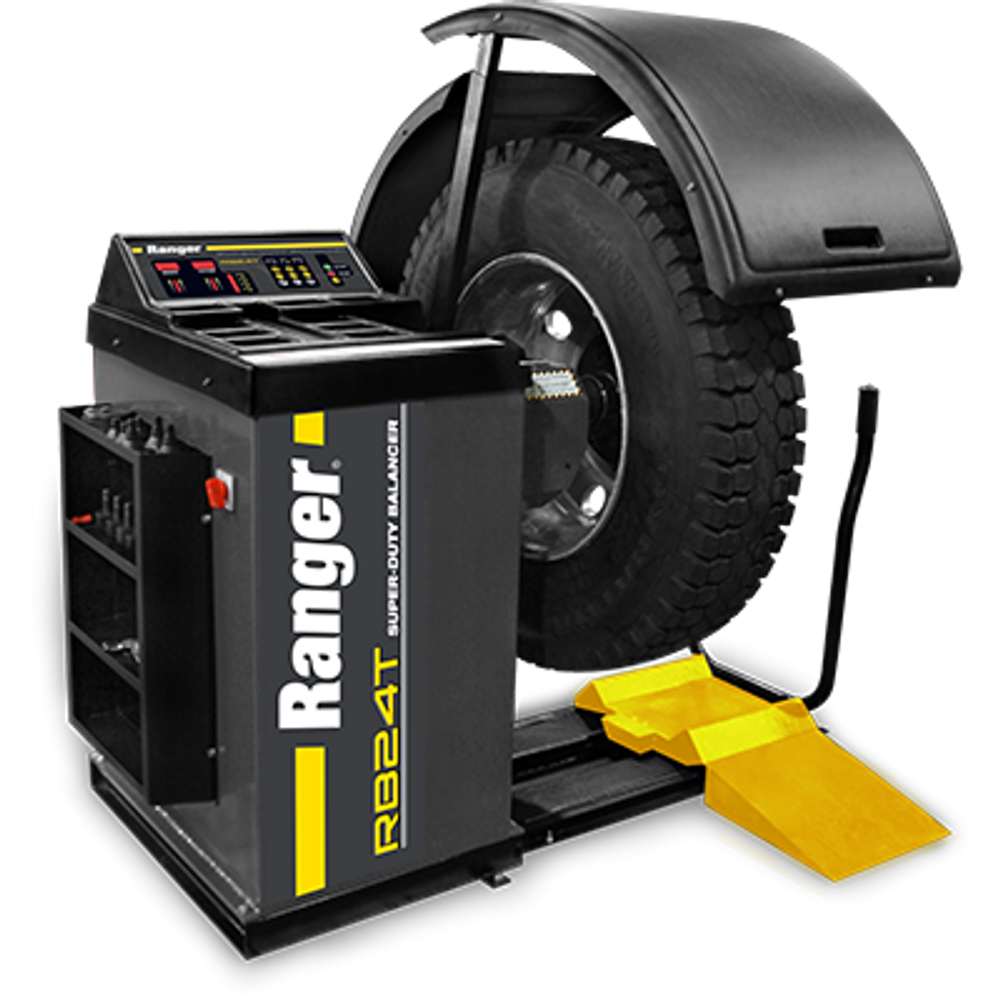

The Ranger RB24T is a professional-grade super-duty truck wheel balancer engineered specifically for high-volume commercial tire dealers, truck fleets, and service centers that demand precision and productivity. This powerhouse handles tires up to 50" in diameter, 20" wide, and rim sizes up to 30" in diameter, making it the ideal solution for bus, truck, and OTR wheels. Yet it remains fully capable of accommodating passenger cars and light trucks with equal precision.
What sets the RB24T apart is Ranger's exclusive Drive-Check™ technology—a revolutionary vibration detection system that simulates real-world road and driving speed conditions. This advanced system automatically measures computer-generated imbalance and recommends the most cost-effective weight optimization correction, minimizing weight usage while maximizing shop productivity. Combined with an integrated wheel lift that effortlessly raises even the heaviest wheel assemblies, the RB24T transforms what used to be back-breaking work into smooth, efficient operations.
Featuring 64-bit architecture and single-chip technology, this balancer delivers the fastest and most accurate rotational readings available. With rapid 7-10 second cycle times, manual data entry, and precision accuracy down to ±1 gram (.03 oz) for cars and light trucks and ±10 grams (.35 oz) for trucks, buses, and OTR, the RB24T ensures perfectly balanced wheels around the clock, day after day.
Exclusive Drive-Check™ Technology
Available exclusively through Ranger Products, Drive-Check™ technology makes rotational measurements easier and faster than ever before. Identifying and repairing unbalanced rides is now a breeze with this cutting-edge innovation. The RB24T performs a driving simulation before measuring the tire and wheel for imbalances, and also detects run-out on both the rim and tire.
Before you mount your wheel back on the vehicle, Drive-Check™ identifies virtually every possible complication—from hidden imbalances to subtle run-out issues. This proprietary technology simply makes technicians' work easier to handle while delivering more accurate results that translate directly to customer satisfaction and reduced comebacks.
Highly Precise Digital Sensor Technology
The RB24T leverages advanced 64-bit architecture and single-chip technology to deliver the fastest and most accurate rotational readings of any wheel balancer Ranger has ever produced. This streamlined single-chip architecture uses less hardware, which directly reduces maintenance costs and increases equipment life cycle.
An extremely fast, dedicated hyper transport protocol allows data to communicate with the microprocessor at lightning speeds. The result? Lower power consumption, reduced heat output, and better stability and accuracy when balancing wheels. An ergonomic control board and easy-to-read LED display with vibrant visual cues and keypad improves efficiency and proper balancing techniques for faster floor-to-floor times.
A perfectly balanced, vibration-free, counter-weighted flywheel belt drive offers unmatched performance and dependability under all load conditions. The serpentine belt features a polyester-aramid fiber composite core specifically designed to resist degradation of functional performance under extreme operating conditions.
Multi-Directional Quartz Piezoelectric Force Sensors
The RB24T utilizes highly precise dual-component piezoelectric quartz load sensors combined with a single digital rotation encoder that together measure the longitudinal, transversal, and shear effects for multi-directional force unbalance detection. Sensors comprised of fine quartz deliver extremely high frequency detection in all measurable directions, ensuring no imbalance goes undetected.
Automatic Weight Optimization
The RB24T automatically calculates the minimum weight needed for optimal balance—a critical feature for massive truck wheels. Because your readings are more accurate, you'll use less weight, which means significant savings over time. This intelligent optimization reduces inventory costs and improves overall profitability.
User-Friendly Operation

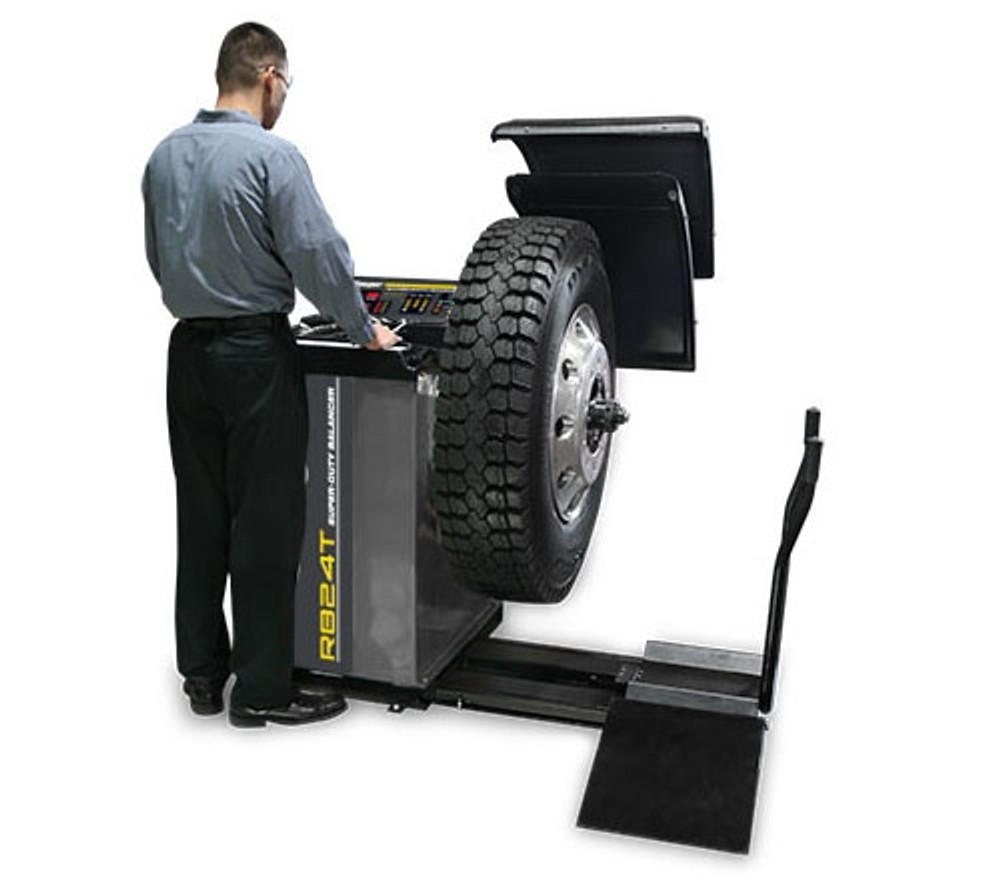

A touch-pad display panel simplifies speed entry of wheel data and helps guide technicians through balancing procedures with confidence. Operator function keys are labeled with simple, easy-to-read icons to help identify and command all balancing functions instantly.
Bright LED weight placement indicators show weight positions as the wheel is gently rolled to exact top-dead-center. A pneumatic braking system automatically engages and secures the wheel firmly in place as soon as the weight placement indicators light up, ensuring precision and safety.
A full menu of time-saving features includes dynamic, static, and performance alloy settings (1 dynamic, 1 static, and 3 alloy modes), allowing you to balance large and small wheel configurations with minimal effort and maximum speed. Bright LED indicators mark the exact amount and location for wheel weight placement in mere seconds.
Powerful Three-Phase Drive Motor
Although single-phase motors are versatile, they have limitations, especially in heavy start-up conditions. Single-phase motors require special starting arrangements such as capacitors, additional windings, and switches in order to get them turning under load.
The RB24T features a robust 1.5 HP, 380V, three-phase drive motor to overcome these limitations and get heavy wheels spinning quickly and smoothly. A built-in digital solid-state phase converter produces three-phase output voltage, regardless of whether your shop has single or three-phase power supply (208-240V, 50/60 Hz, 1 Ph power supply).
Professional Tooling Package Included
Quick-Chuck Kit: Our self-centering quick-chuck kit reduces operator fatigue and decreases set-up times dramatically. Installation and accuracy are not affected by the weight of the wheel, because the auto-centering, hardened steel wheel-holding supports lift, hold, and automatically center heavy wheels with ease. The perfectly balanced three-jaw chuck features a forged steel body and hardened wheel-supports and gear slides.
Adjustable Flange Plate and Stud Kit: A universal flange plate kit features multi-position interchangeable pins to provide quick setup and universal fitment. The kit adapts to varying lug bolt circles for maximum versatility.
Standard Cone Kit: The RB24T tooling package includes a fully equipped six-piece cone kit for full coverage of most all wheel configurations, from cars and light trucks to super-duty truck, bus, and OTR. This well-equipped package includes five standard cones and one dual tapered cone. Individual cone sizes: 2.00" - 2.75", 2.75" - 4.00", 4.00" - 5.75", 6.00" - 6.50", 6.75" - 8.00", 8.25" - 9.00", and 10.75" - 11.50".
No More Heavy Lifting

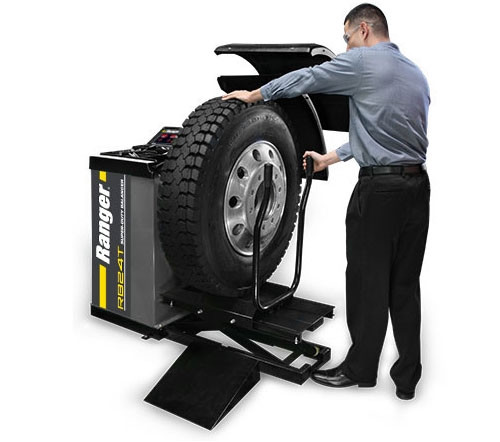

An integrated wheel lift helps technicians mount wheels effortlessly on the balancer, preventing potential injuries and reducing fatigue. The 500-lb. capacity, push button-controlled wheel lift quickly raises the wheel to exact heights, and a bearing-mounted slider positions them for easy mounting.
One-handed operation means the technician's free hand remains able to control the wheel assembly once it is lifted into the mounting position—a critical safety feature when working with heavy truck wheels.
Superior Stopping Power
Heavy wheels need power-assisted braking in order to safely reduce wheel spin. The faster the wheel starts and stops, the more increases in productivity and profits. The RB24T features electro-magnetic pulse control combined with pneumatic braking to get heavy wheels stopping in mere seconds.
The pneumatic braking system engages automatically as soon as the weight placement indicator is positioned at top-dead-center. Automatic air brakes hold wheels firmly in place during surface preparation and weight placement operations. Upfront controls on the display panel allow you to engage and disengage the pneumatic brake with the simple push of a button.
Key Features at a Glance
Max. Tire Diameter: 50" (1,270 mm) — handles the biggest truck and OTR tires
Max. Tire Weight: 400 lbs. (181 kg) — engineered for heavy-duty applications
Precision-machined, hardened-steel 40 mm shaft — built to last
Low RPM balancing speed (220 RPM) and rapid 7-10 sec. cycle time — productivity you can count on
Open-sided hood design — allows for broader coverage of tire shapes and sizes
High-volume top weight tray and side shelf storage — keeps weights and tools organized
Self-calibration function — maintains accuracy over the life of the equipment
Gram/ounce and millimeter/inch selection — flexible for any shop standard
Dual function weight position indicators — provides either top-dead-center or bottom-dead-center weight positions
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Like all Ranger wheel balancers, the RB24T is commercial-grade equipment designed for perfectly balanced wheels around the clock, day after day. With its combination of cutting-edge technology, rugged construction, and user-friendly design, this super-duty truck wheel balancer represents the pinnacle of professional wheel balancing equipment.
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to www.P65Warnings.ca.gov
The Best Warranty in the Business - You Have Ranger's Word
Duration: From the date of purchase by the original Purchaser or 24-12 months from the date of shipment by Ranger or whichever comes first.
Two Years (24-Months) Warranty on equipment structure*
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty on site or at factory
One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance
Limited Warranty
Who gives this warranty (Warrantor): BendPak/Ranger 1645 lemonwood dr. Santa Paula, CA 93060
Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
What products are covered by this warranty: Any Ranger brand tire changer, wheel balancer or brake lathe***
What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below
What is not covered under this warranty:
Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied
And damage caused by overloading lift beyond rated capacity
Items or service normally required to maintain the product, i.e. lubricants, oil, etc.
Items considered general wear parts such as rubber or plastic pads/protectors, cutting tips, plastic trays, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship
Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings
Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants
Rusted components due to improper maintenance or corrosive environments
Cosmetic defects that do not interfere with product functionality
Damage due to incorrect voltage or improper wiring
Any incidental, indirect, or consequential loss, damage, or expense that may result from any defect, failure, or malfunction of Ranger product
All electrical components are guaranteed for one year against defects in workmanship and/or materials when the lift is installed and used according to specifications
Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. Ranger will pay reasonable labor costs for the first 12 months only
Responsibilities of Purchaser under this warranty:
Provide dated proof of purchase and maintenance records
In some cases, components may be required to be shipped to the nearest Ranger Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser.
Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.
**Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses.
***For all Ranger brand tire changers, wheel balancers or brake lathes manufactured on or following 11/1/2011.
Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages BendPak/Ranger products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. BendPak/Ranger may modify these terms and conditions at any time by
either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
