The Ranger R76ATR combines cutting-edge tilt-back tower engineering with a powerful right-side assist tower, delivering the fastest, safest tire changes your shop has ever performed. Whether you're tackling stubborn low-profile tires, challenging run-flats, or delicate alloy wheels, this NextGen™ tire changer is built to handle a max tire diameter of 43" and wheels up to 30" internally and 26" externally. With dual pneumatic cylinder clamping, an electric/hydraulic drive system, and TurboBlast™ bead seating, the R76ATR empowers your technicians to work faster, safer, and with greater precision—translating directly into more jobs per day and increased shop profitability.
When it comes to your tire repair business, the Ranger R76ATR has everything you need for safer, faster tire changes—especially when working with tricky aluminum wheels. The tilt-back tower design offers exceptional ground clearance and dramatically reduces setup time when loading new sets of wheels. No more tedious adjustments to match each wheel's diameter; the tower tilts back, you load the tire, and you're ready to go.
The right-side assist tower is a game-changer for low-profile and run-flat tires—anything with a stiff sidewall. This advanced system holds the bead firmly in the drop-center, protecting both tire and wheel from damage. A multi-profile traveling drop-center tool keeps stubborn sidewalls securely positioned for swift, precise mounting. The single lower-bead lifting disc unseats difficult lower beads or elevates the tire for ideal tool placement, while a power-drop top bead assist roller holds tough top beads in place during removal and installation. These integrated tools dramatically reduce operator effort and fatigue, allowing your team to power through even the most challenging tire jobs with confidence.
Extraordinarily easy-to-use, adjustable RimGuard™ clamps provide both internal and external clamping, with a centering cone to further assist with external wheel clamping. A specialized saucer and roller combination offers yet another line of defense against stubborn beads, making the R76ATR the most specialized and versatile tire changer in Ranger's lineup.
The R76ATR features a powerful 3 HP electric/hydraulic drive system (220 VAC, 50-60 Hz) that delivers high torque with smooth, variable speed control. The turntable spins in both directions for quicker tire removal and installation, and the controlled speed gives low-profile and run-flat beads the time they need to relax—reducing the risk of tire damage and ensuring a professional finish every time. This reversible, high-torque system is engineered for speed and precision, allowing your technicians to work confidently on a wide variety of tire and wheel combinations.

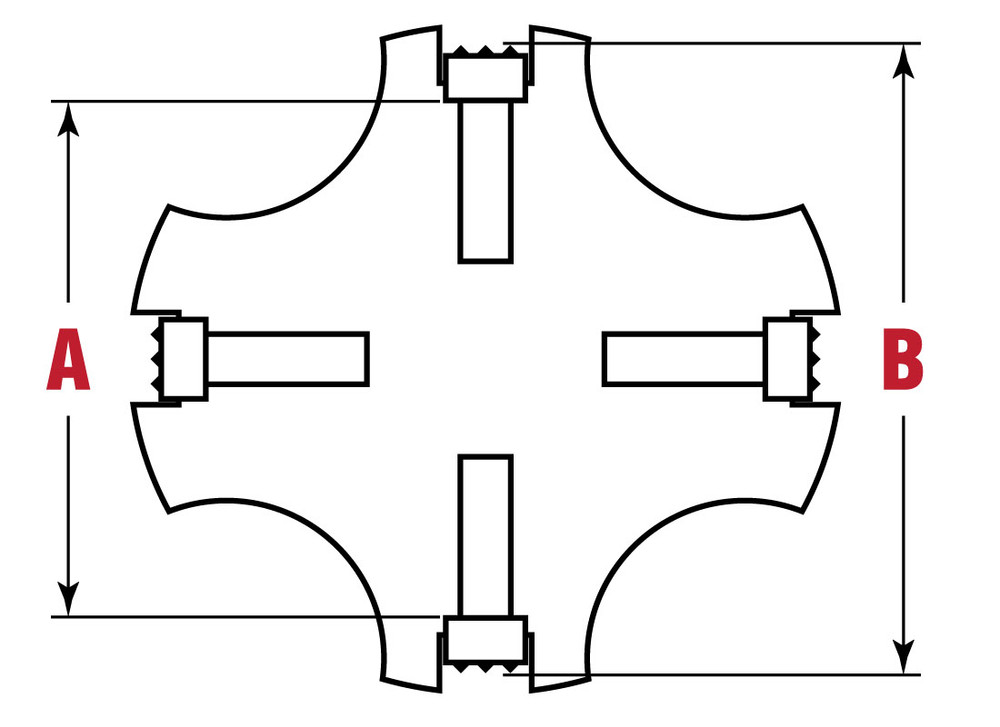

Durable, adjustable RimGuard™ wheel clamps are made from hardened steel and feature internal and external multi-teeth jaws. The 4-clamp design accommodates wheels from 10" to 30" internally and 8" to 26" externally, covering virtually every passenger vehicle, light truck, and performance wheel you'll encounter. Vertical mounting bolts make clamp replacement fast and simple, minimizing downtime.
Versatile advanced clamp positioning gives you improved control when clamping wheels. Position the clamps exactly where you need them within the entire clamping range—no need for the clamps to cycle through the full range. This saves time and allows for more precise wheel centering, especially important when working with delicate alloy rims. The dual pneumatic cylinder clamping system ensures secure, even pressure distribution around the wheel, protecting expensive wheels from distortion or damage.

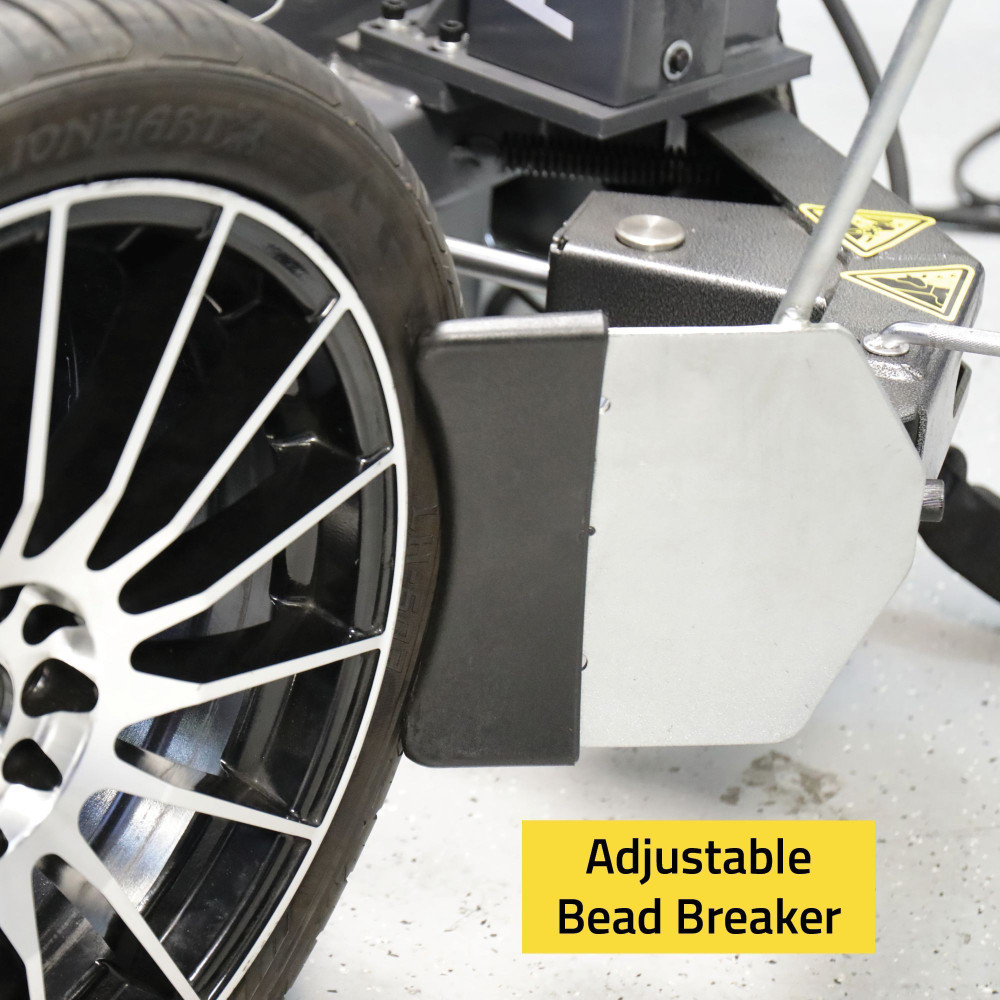

The R76ATR features a completely new and proprietary adjustable pneumatic bead-breaker blade with bilateral pneumatic accelerators for lightning-fast bead-breaker speeds in both directions. The 100% stainless steel cylinder body eliminates moisture contamination and corrosion, ensuring consistent performance over years of heavy use.
Exclusive design features include a multi-axis, adjustable blade for multi-angle tire capacity, and a large, dual-flange axle that eliminates blade flex and premature failure. Adjustable blade settings help accommodate a larger variety of tire and wheel combinations, from low-profile performance tires to heavy truck tires. The rugged box-frame construction of the blade increases mechanical strength, service life, and overall performance. A large rubber bump-stop ensures smooth return, reducing shock loading and minimizing wear on the pneumatic cylinder, guides, and associated moving parts.

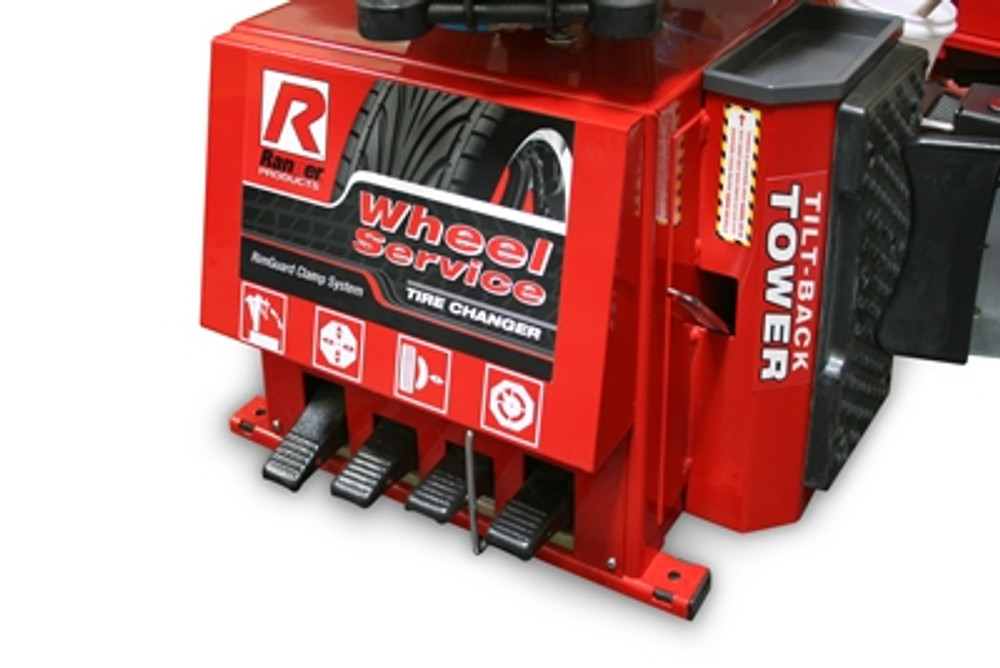

Ergonomic controls are sensibly placed to minimize excessive reaching, walking, or bending—resulting in more jobs per day and increased profits. The forged-steel foot pedals (not heavy cast iron) are durable enough for daily use in fast-paced shops and tire centers. Snap-action spring return offers extremely accurate and safe operation, while the foot-pedal control valves are complete with multi-link rod connections for non-binding plunger movement and precise bilateral control.
A geometric tabletop design makes bead lubrication easy and allows operators to visibly inspect the lower bead during tire mounting and inflation. The large 30" capacity turntable provides ample working space, and linear guide bearings make it easy to adjust both vertical and horizontal wheel settings. The horizontal arm's hardened lower roller guide assists in maintaining an even tempo for the arm's oscillating movements, and durable rubber bump-stops ensure safe return during tilt-back operations, lessening shock loading and minimizing wear on tower guides and other moving parts.
The equi-dimensional shape of the hardened-steel mount/demount head lets you change functions without moving the tool head. The remarkably smooth surface gently glides tire beads during mounting and demounting, preventing expensive tire damage. A nylon non-marring tool head comes standard, protecting your customers' expensive alloy rims and wheels from marring or damage.
In order to prevent wheel damage, Ranger's mount/demount tool heads feature hardened-steel horizontal outrigger support arms, as well as a rigid 45 mm spring-assisted hexagonal vertical tool shaft with pneumatic locking. These standard features keep the tool head in the precise position you set during service. If you're working with like sets of tires and wheels, the pneumatically locked tool head will remain in place on the tower return, allowing for more rapid setup on your next job.

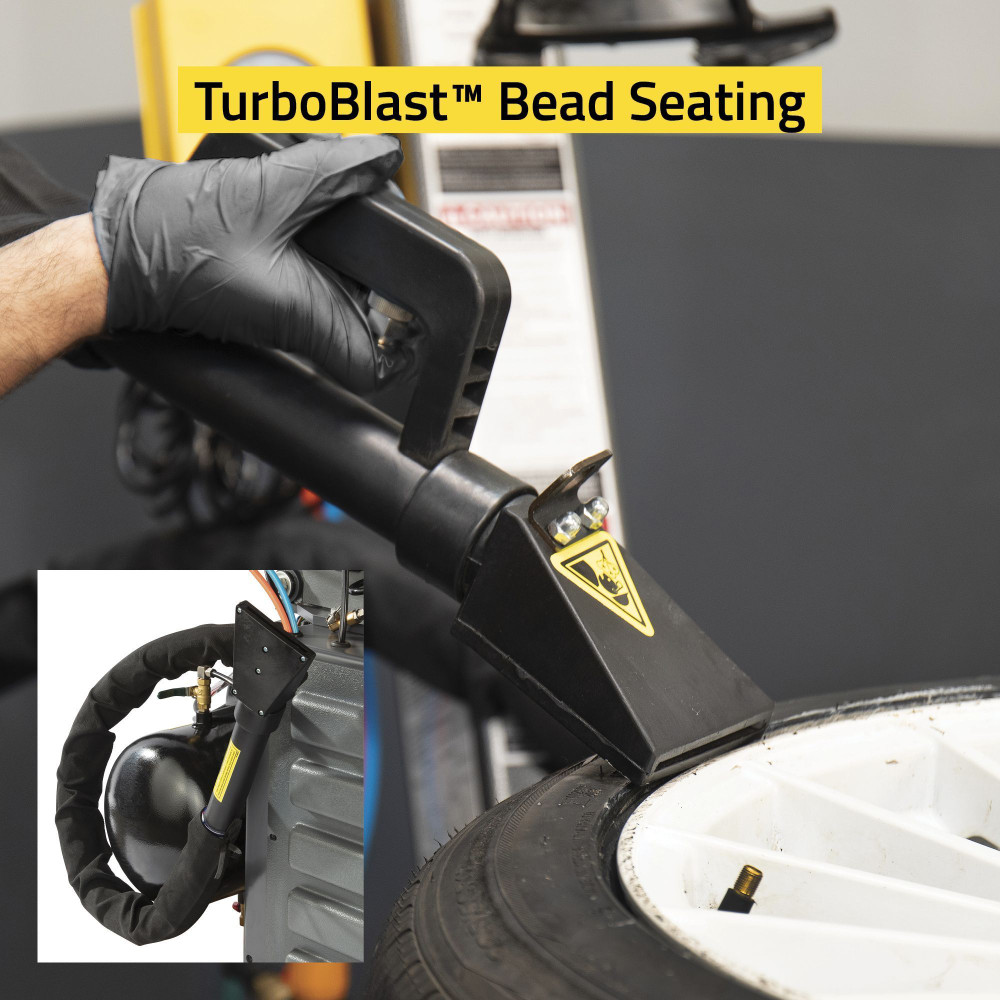

Ranger's TurboBlast™ bead seating system efficiently shoots a burst of air between the tire and rim, seating beads quickly without damage to the tire structure. For a more controlled air discharge, the system features a nylon discharge barrel with a contoured tab that locks against the rim, ensuring safe, repeatable bead seating on every tire.
The integrated foot-controlled tire inflator keeps both hands free during operation, and a push-button integrated air dump valve allows you to release tire pressure as necessary. An inflation pressure regulator/limiter, inflation gauge, water filter, oiler/lubricator, and air regulator are all included as standard equipment, ensuring precise air control and protecting your equipment from contamination. The machine requires 110-175 PSI (8-12 BAR) compressed air for optimal performance.
The drive belt on the R76ATR tire changer is crafted with convex sidewalls that structurally carry and disperse stress throughout the unit's structure. Oil, weather, age, and other environmental factors do not affect belt performance, because flex-bonded cords and flex-weave covers protect the system at all times. This ensures consistent, reliable operation in any shop environment.
A balanced flywheel reduces vibrations during operation, as well as stress on the machine as a whole. Well-balanced flywheels keep Ranger tire changers running smoothly for years of zero or low-maintenance operation, reducing noise and extending component life.
All pneumatic cylinders prevent the tire changer from overly vibrating, reducing friction and contributing to the long lifespan of the equipment. End-of-stroke cushions are included to extend the life of all seals, as well as the wear band and piston rods. The entire cylinder system is self-lubricating and low-maintenance throughout the course of ownership, minimizing service requirements and maximizing uptime.
The R76ATR comes complete with a comprehensive accessory package, including a bead tool/tire iron, alloy-steel mount-demount head, nylon mount-demount head, large soap bucket, soap brush, and tool tray/bin storage. Everything you need to get started is included in the box.
If your shop services motorcycles, or you'd like to expand your business, Ranger offers an optional series of motorcycle turntable clamps specifically designed to cater to motorcycle wheels and tires. This versatility makes the R76ATR an excellent investment for shops looking to diversify their service offerings.
See how the Ranger R76ATR handles demanding tire changes with ease. These videos showcase the tilt-back tower design, power assist system, and intuitive controls in real-world shop environments.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
California Prop 65 Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Wheel Service Equipment Warranty
The Best Warranty in the Business - You Have Ranger's Word
Duration: From the date of purchase by the original Purchaser or 24-12 months from the date of shipment by Ranger or whichever comes first.
Two Years (24-Months) Warranty on equipment structure*
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty on site or at factory
One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance
Limited Warranty
*Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.
**Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses.
***For all Ranger brand tire changers, wheel balancers or brake lathes manufactured on or following 11/1/2011.
