Transform your tire service operation with this comprehensive Ranger equipment combo package. This powerful pairing delivers both professional-grade tire changing and laser-precision wheel balancing in one complete solution. The R76ATR NextGen™ tire changer features an innovative tilt-back tower design with a power assist tower, making it remarkably efficient on everything from standard passenger tires to demanding low-profile and run-flat applications. Combined with the LS43B 3D Quick-Touch™ Laser-Spot™ wheel balancer, you gain automatic data entry, 7-second cycle times, and pinpoint weight placement accuracy that reduces comebacks and maximizes productivity. This package is designed for shops seeking speed, versatility, and reliability in every tire job.
Why This Combo Package?
Pairing the R76ATR tire changer with the LS43B laser balancer gives you a complete tire service bay solution. Handle wheels up to 30" on the changer and balance up to 47" diameter tires, all with speed and accuracy that keeps customers happy and your shop running profitably.
Tilt-Tower Design with Power Assist for Fast, Safe Tire Changes
The Ranger R76ATR brings unmatched versatility to your tire shop. This is Ranger's most specialized, advanced tire changer, designed for shops that demand speed, precision, and protection for expensive alloy wheels. The innovative tilt-back tower design eliminates repetitive duck head adjustments between tire changes—simply tilt the tower back, load your next wheel, and you're ready to go. This saves significant time when working through a full set of wheels.
The right-side assist tower is purpose-built for low-profile and run-flat tires, holding stubborn beads in the drop-center and protecting the tire from damage. Combined with a multi-profile traveling drop-center tool, top bead assist rollers, and a lower bead lifting disc, this tire changer dramatically reduces operator effort and fatigue. Whether you're servicing standard passenger cars or tackling aggressive low-profile performance tires, the R76ATR has the tools and capacity to handle it all.
Adjustable RimGuard™ Clamps Protect Expensive Wheels
Hardened-steel RimGuard™ wheel clamps are fully adjustable and feature internal clamping from 10" to 30" and external clamping from 8" to 26". Multi-teeth jaws with vertical mounting bolts make replacement fast and simple. Advanced clamp positioning allows you to place clamps exactly where needed within the entire clamping range—no need to cycle through the full range every time. This gives you improved control and faster setup, especially when working with delicate alloy wheels.
High-Torque Electric Turntable with Variable Speed
The 3 HP electric motor drives a high-torque turntable that features increased speed and reversible direction for quicker tire removal and installation. Controlled, variable speed gives low-profile and run-flat tire beads time to relax, reducing the risk of tire damage during demanding service jobs.
Advanced Bead-Breaker System with Bilateral Pneumatic Accelerators

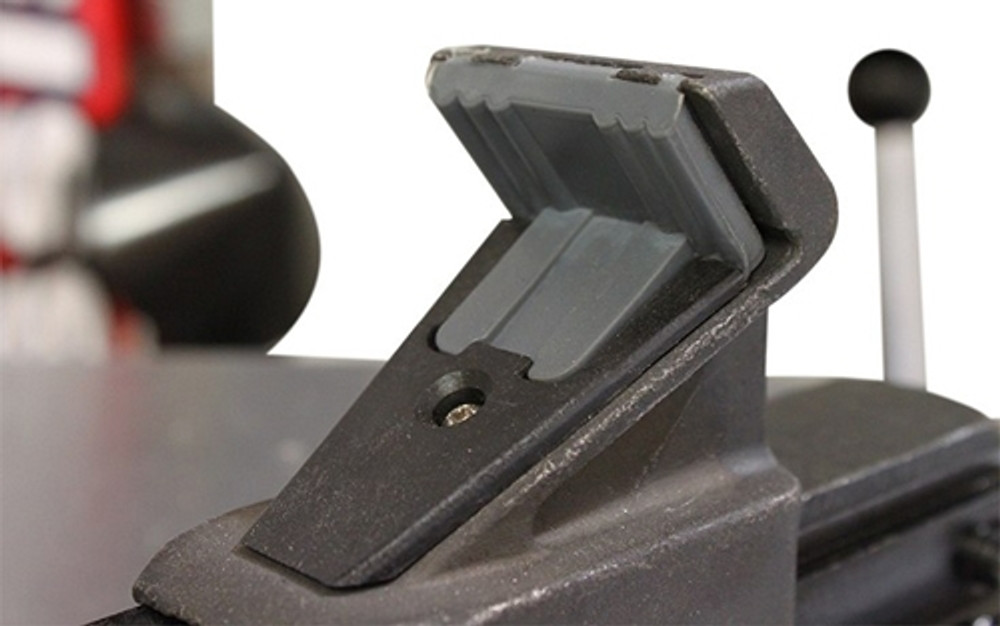

Ranger's proprietary bead-breaker design features bilateral pneumatic accelerators for lightning-fast bead-breaker speeds in both directions. The 100% stainless steel cylinder body eliminates concerns about moisture contamination and corrosion. A multi-axis, adjustable blade accommodates a larger variety of tire and wheel combinations, while a large dual-flange axle eliminates blade flex and premature failure. The enhanced bead-breaker blade features rugged box frame construction that increases mechanical strength and service life, and a large rubber bump-stop ensures smooth return and reduced shock loading.
Ergonomic Controls Minimize Fatigue
Controls are sensibly placed to minimize excessive reaching, walking, or bending, resulting in more jobs per day and increased profits. Forged-steel foot pedals (not heavy cast iron) are durable enough for daily use in fast-paced shops. Snap-action spring returns offer extremely accurate and safe operation, while foot-pedal control valves feature multi-link rod connections for non-binding plunger movement and precise bilateral control.
Geometric Tabletop for Easy Bead Lubrication
The geometric tabletop makes bead lubrication easy and allows operators to visibly inspect the lower bead during tire mounting and inflation. This design feature contributes to faster service and fewer mistakes.
Right-Side Assist Tower with Multi-Profile Drop-Center Tool
The right-side assist tower features a multi-profile traveling drop-center tool that holds stubborn sidewalls in the drop-center area of the wheel for swift, precise mounting. A single lower-bead lifting disc unseats stubborn lower beads or elevates tires for tool placement. A power-drop top bead assist roller helps hold difficult top beads in place during removal and installation of tough sidewall tires. Upfront trigger control and articulating arm allow for variable tire and wheel configurations. A heavy-duty, tri-flange, cast-iron assist tower carriage features linear way bearings for maintenance-free operation.
Tilt-Back Tower Offers More Ground Clearance
Ranger uses a tilt-back tower design because it offers more ground clearance, as well as easier removal and inflation of tires. If you're using like sets of tires and wheels, the pneumatically locked tool head will remain in place on the tower return, allowing for more rapid setup on your next job.
Multi-Function Mount and Demount Heads
The equi-dimensional shape of the hardened-steel mount/demount head lets you change functions without moving the tool head. The remarkably smooth surface gently glides tire beads during mounting/demounting and prevents expensive tire damage. Additionally, a nylon tool head comes standard to protect your customers' expensive alloy rims and wheels from marring or damage during mounting. A spring-assisted, 45 mm hexagonal vertical tool shaft features hardened-steel horizontal outrigger support arms that keep the tool head in the precise position you set it during service.
Advanced Drive Belt System
The drive belt is crafted with convex sidewalls that structurally carry and disperse stress throughout the unit's structure. Flex-bonded cords and flex-weave covers protect the system at all times. Oil, weather, age, and other environmental factors do not affect belt performance, ensuring long-term reliability.
Stainless Steel and Aluminum Pneumatic Cylinders
All pneumatic cylinders prevent the tire changer from overly vibrating, reducing friction and contributing to the long lifespan of the equipment. End-of-stroke cushions extend the life of all seals, wear bands, and piston rods. The entire cylinder system is self-lubricating and low-maintenance throughout the course of ownership.
Guide Bearings for All Moving Parts
Ranger takes special care of all moving parts. Linear guide bearings make it easy to adjust both vertical and horizontal wheel settings. The horizontal arm's hardened lower roller guide assists in maintaining an even tempo for the arm's oscillating movements. Durable rubber bump-stops ensure a safe return during tilt-back operations and lessen shock loading. Wear is minimal on tower guides and other moving parts.
Foot-Controlled Tire Inflator with TurboBlast™ Bead Seating
Tire changers require two hands to operate, so Ranger keeps both of your hands free with an easy-to-use foot pedal tire inflator. A push-button air pressure dump valve is integrated into the unit, letting you release tire pressure as necessary. The TurboBlast™ bead seating system efficiently shoots a burst of air between the tire and rim, seating beads quickly without doing damage to the tire structure. The system features a nylon discharge barrel with a contoured tab that locks against the rim for a more controlled air discharge.
Balanced Flywheel Reduces Vibrations
A balanced flywheel reduces vibrations during operation, as well as stress on the machine as a whole. Well-balanced flywheels keep Ranger tire changers running smoothly for years of zero or low-maintenance operation.
Optional motorcycle turntable clamps available for shops that service motorcycles or wish to expand their service offerings.
Supreme Speed and Amazing Accuracy
The Ranger LS43B wheel balancer handles wheels up to 47" in diameter, making it one of the most versatile balancers on the market. The average cycle time is just 7 seconds, making it one of the fastest and most reliable balancing machines ever built. The standout feature on this model is Ranger's exclusive 3D Quick-Touch™ Laser-Spot™ technology that highlights the pinpoint location at which operators should place the minimal amount of weight in order to achieve a perfect balance at the 6 o'clock position. Ranger makes it easy to seamlessly determine the exact weight placement position. Only a single weight placement should be necessary for most wheel and tire configurations.
Laser-Spot™ Technology Eliminates Guesswork
Laser balancers are increasingly being used in high-volume shops because lasers eliminate second-guessing and speed up weight placements. This also means the balance check you perform after placing inboard and outboard weights will almost always be clean. The fewer weights you use, the better your bottom line. Plus, customers will enjoy long-lasting balances that make their rides feel like new again. When ALU modes are selected and stick-on weights are desired, instinctive lasers mark the low-side of the wheel at the 6-o'-clock position, making stick-on weight placement and installation a breeze. When it's time for clip-on weights, the intuitive data control automatically senses that topside weight positioning is desired and pinpoints the laser at precisely 12-o'-clock. Laser-Spot™ weight-positioning lasers provide greater weight placement accuracy and help reduce mistakes. More single-spin balances and fewer customer comebacks will increase productivity and profits.
3D Automatic Wheel Data Entry
This balancer features Ranger's exclusive 3D Auto Data Entry technology, so you never have to manually input wheel parameters again. The extendable DataWand™ automatically retrieves wheel diameter, wheel width, and offset distance in an average of just three seconds. This eliminates manual entry errors and dramatically speeds up your workflow.
Dynamic, Static, and Performance Alloy Settings
The LS43B offers dynamic, static, and performance alloy balancing modes (ALU1, ALU2, ALU3). A simultaneous retrieval of static, dynamic, and ALU data streamlines the balancing process. Multi-user save function holds presets to increase productivity, making it easy for multiple techs to operate the balancer efficiently.
Low-RPM Balancing Speed with Rapid 7-Second Cycle Time
Low-RPM balancing speed at 180 RPM ensures smooth, quiet operation, while the rapid 7-second cycle time keeps your bay moving. Accuracy is +/- 1 gram (.035 oz.), ensuring professional results every time. Automatic braking and electronic wheel spin braking provide safe, controlled stops.

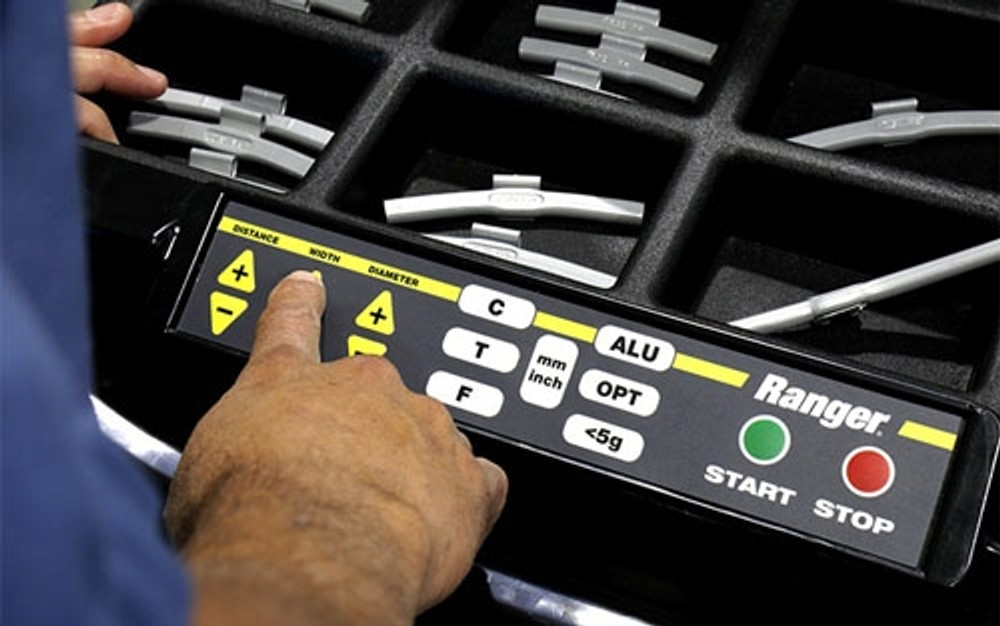

Ergonomic Control Board and Easy-to-Read LED Display
The ergonomic control board and easy-to-read LED display make operation intuitive. Features include gram/ounce selection, millimeter/inch selection, and an automatic round-off with top-dead-center weight position indicator. Tiered weight placement indicators help identify out-of-sight position weight placement, such as split-weight or hidden "behind-the-spoke" techniques.
Manual or Automatic Start Options
Choose manual or automatic start when the hood is lowered. Auto start feature speeds up operation in busy shops. A self-calibration function ensures consistent accuracy over time.
High-Volume Top Weight Tray and Side Shelf Storage
High-volume top weight tray and side shelf storage give you room to inventory a wide variety of wheel weights and tools. The newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls. This combo package includes a 1400-piece wheel weight kit (one bulk roll of 700 silver adhesive steel tape weights and one bulk roll of 700 black adhesive steel tape weights).
Precision-Machined, Hardened-Steel 36 mm Shaft
The precision-machined, hardened-steel 36 mm shaft provides durability and stability. A quick-release hub nut dramatically reduces set-up times. Side-position brake holds wheels at precisely 12-o'clock for proper weight placement. Side cone storage pegs keep accessories readily available.
"Open-Side" Hood Design
The "open-side" hood design allows for broader coverage of tire shapes and sizes, accommodating a wide range of wheel and tire configurations.
Wheel Diameter Capacity: 10" - 30"
Wheel Width Capacity: 2" - 18"
Max. Tire Diameter: 47"
Max. Tire Weight: 145 lbs.
Balancing Increments: 0.25 or 0.01 oz
Drive System: Belt Drive
Motor: 1.5 HP, 208-240, 50/60 Hz, 1Ph
Standard accessories include 3 standard cones, 1 truck cone, wheel calipers, rear cone mount spring, no-mar rear cone mount pressure cup, and quick-release & mount hub nut.
R76ATR Tire Changer Standard Features:
LS43B Wheel Balancer Standard Features:
See the Ranger R76ATR tire changer in action:
See the Ranger LS43B laser balancer in action:
Additional feature demonstration:
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Wheel Service Equipment Warranty
The Best Warranty in the Business - You Have Ranger's Word
Duration: From the date of purchase by the original Purchaser or 24-12 months from the date of shipment by Ranger or whichever comes first.
Two Years (24-Months) Warranty on equipment structure*
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty on site or at factory
One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance
Limited Warranty
*Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.
**Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses.
***For all Ranger brand tire changers, wheel balancers or brake lathes manufactured on or following 11/1/2011.
Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages BendPak/Ranger products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. BendPak/Ranger may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
