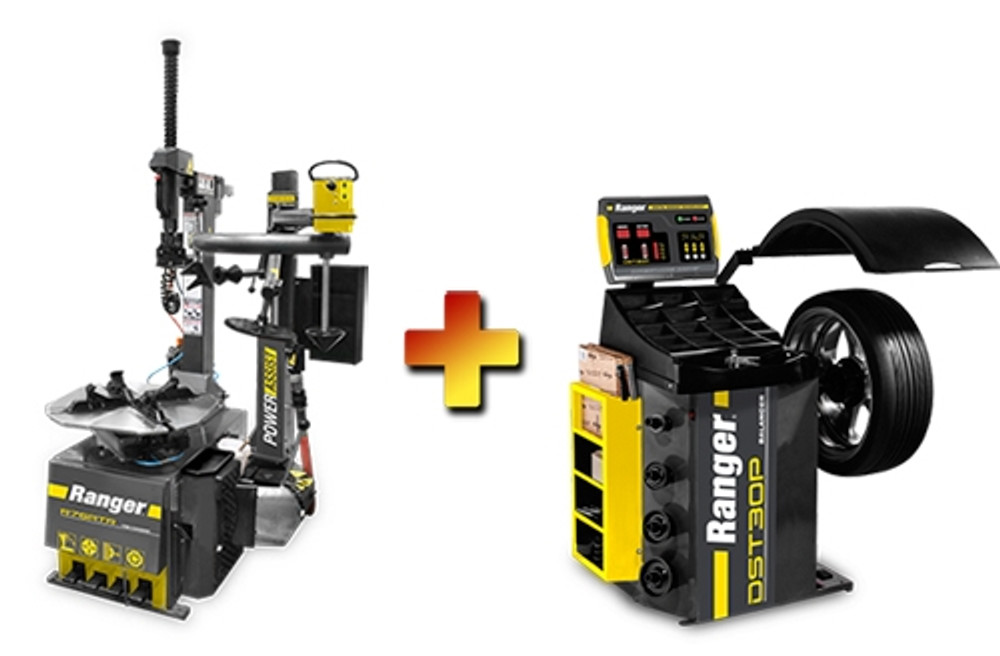

Transform your tire shop's productivity with this complete professional combo package: the Ranger R76ATR NextGen™ Tilt-Back Tire Changer with single-tower assist and the DST30P Wheel Balancer with a precision-machined 40mm hardened-steel shaft. This dynamic duo is engineered to handle everything from standard passenger vehicles to light trucks, delivering exceptional performance on low-profile, run-flat, and stiff-sidewall tires. With 10"–30" internal clamping range, 7-second balancing cycle times, and advanced bead-seating technology, this combo equips your shop to deliver faster turnarounds, superior accuracy, and unmatched reliability on every job.
Tilt-Tower Design with Power Assist for Faster, Safer Tire Changes
The Ranger R76ATR is built for speed and precision, featuring an innovative tilt-back tower design that eliminates the need to adjust the tool head for every wheel diameter. Simply tilt the tower back for easier tire removal and inflation, saving precious seconds on every service. The right-side single-tower power assist tackles stubborn low-profile and run-flat tires with ease, holding the bead securely in the drop-center and protecting both tire and rim throughout the process. Adjustable RimGuard™ hardened-steel clamps accommodate wheels from 10" to 30" (internal) and 8" to 26" (external), handling a vast range of passenger and light truck applications.
Ergonomic Controls and Time-Saving Features
Every control and feature on the R76ATR is strategically positioned to minimize excessive reaching, bending, and walking—boosting productivity and reducing operator fatigue. The multi-profile traveling drop-center tool, top bead assist rollers, and lower bead lifting disc work in concert to dramatically reduce the effort required for difficult tire changes. A TurboBlast™ bead seating system delivers a powerful burst of air to seat stubborn beads quickly and safely, while the large 30" turntable provides ample capacity for oversized wheels.
High-Torque Electric Turntable with Variable Speed Control
The high-torque electric turntable drive features variable, reversible speed control for quicker tire removal and installation. Controlled rotation gives low-profile and run-flat beads time to relax, reducing the risk of tire damage and ensuring consistent, safe service on every wheel.

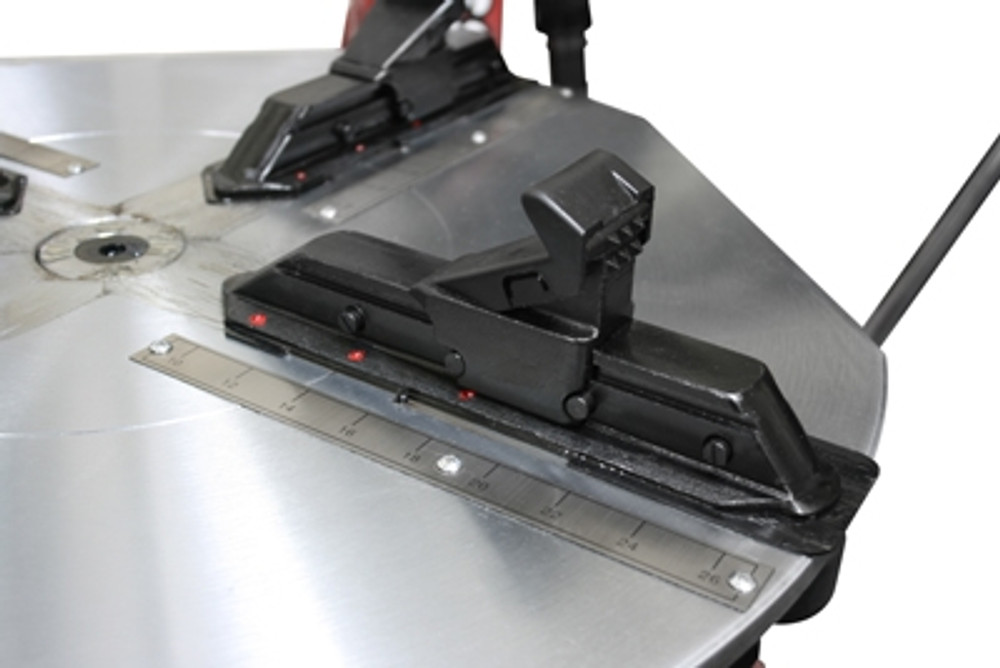

Adjustable RimGuard™ Wheel Clamps
Durable, adjustable RimGuard™ clamps are precision-machined from hardened steel and accommodate wheels from 9" up to 30", featuring internal and external multi-tooth jaws with vertical mounting bolts for fast and simple replacement. Advanced clamp positioning allows you to place clamps exactly where you need them within the entire clamping range—no need to cycle through the full range on every wheel.
Easier Bead Lubrication and Inspection
The geometric tabletop design makes bead lubrication simple and efficient, allowing operators to visibly inspect the lower bead during tire mounting and inflation. This thoughtful design detail improves quality control and ensures every tire is properly seated and lubricated.

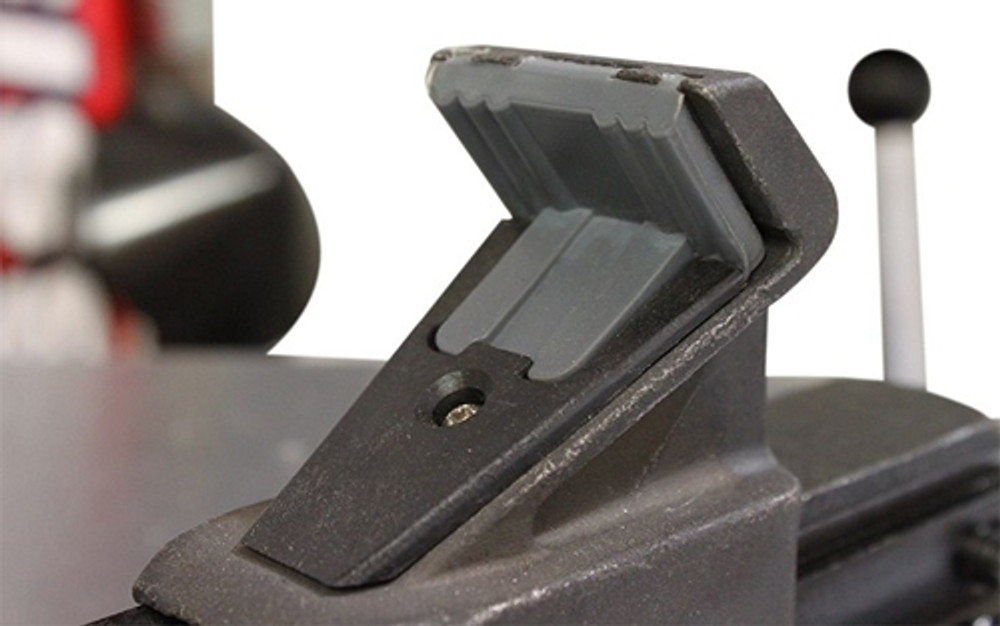

Proprietary Bead-Breaker Design
The R76ATR features a completely new and proprietary bead-breaker design with bilateral pneumatic accelerators for lightning-fast bead-breaking in both directions. A 100% stainless steel cylinder body eliminates moisture contamination and corrosion, ensuring long-term reliability. The multi-axis, adjustable blade accommodates a wide variety of tire and wheel combinations, while the large dual-flange axle eliminates blade flex and premature failure. An enhanced bead-breaker blade with rugged box frame construction increases mechanical strength, service life, and overall performance, complemented by a large rubber bump-stop for smooth return and reduced shock loading.
Balanced Flywheel for Smooth, Low-Vibration Operation
A precision-balanced flywheel reduces vibrations during operation and minimizes stress on the machine as a whole. Well-balanced flywheels keep Ranger tire changers running smoothly for years of zero or low-maintenance service.

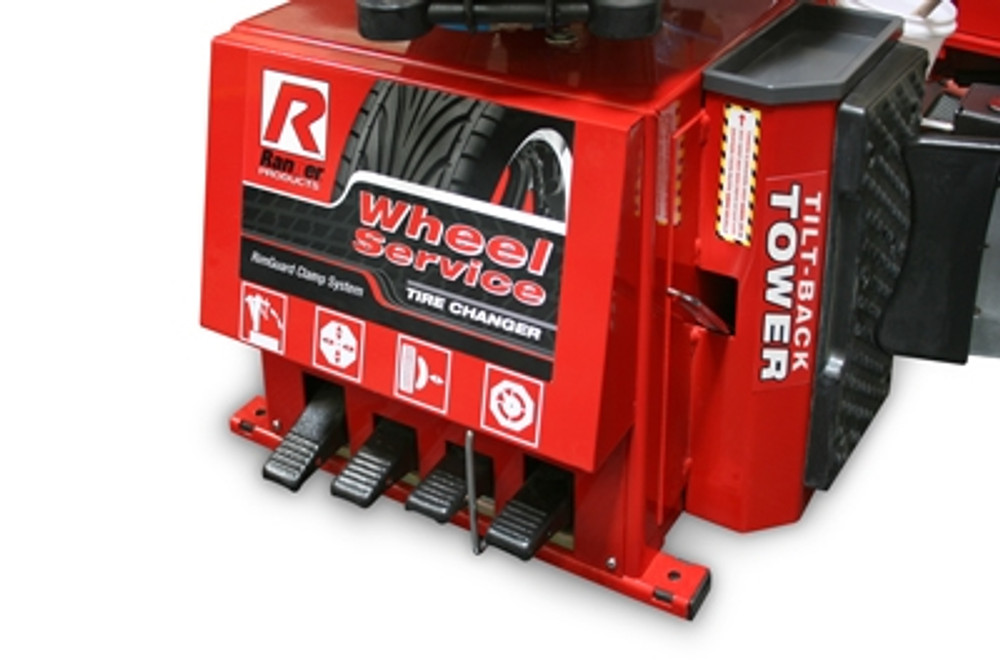

Simple, Durable Foot-Pedal Control
Heavy-duty forged steel foot pedals (not clunky cast iron) are built for daily use in fast-paced shops and tire centers. Snap-action spring return offers extremely accurate and safe operation, while foot-pedal control valves feature multi-link rod connections for non-binding plunger movement and precise bilateral control.
Right-Side Tower Drop-Center Design

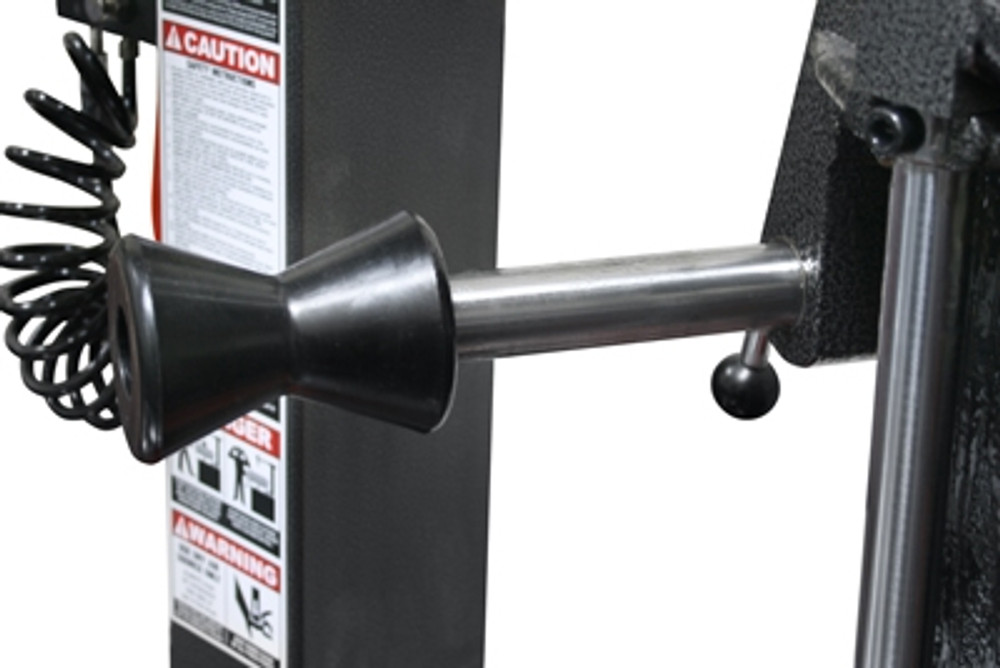

The right-side assist tower features a multi-profile traveling drop-center tool that holds stubborn sidewalls in the drop-center area of the wheel for swift, precise mounting. A single lower-bead lifting disc unseats stubborn lower beads or elevates tires for tool placement. A power-drop top bead assist roller holds difficult top beads in place during removal and installation of tough sidewall tires, dramatically reducing the effort required to change difficult low-profile tires and minimizing operator fatigue. Upfront trigger control and articulating arm allow for variable tire and wheel configurations, while a heavy-duty, tri-flange, cast-iron assist tower carriage features linear way bearings for maintenance-free operation.
Tilt-Back Tower Advantages
Ranger uses a tilt-back tower design because it offers superior ground clearance and easier tire removal and inflation. When working with like sets of tires and wheels, the pneumatically locked tool head remains in place on the tower return, enabling more rapid setup on your next job—a real time-saver in high-volume shops.
Advanced Drive Belt System
The drive belt on the R76ATR is engineered with convex sidewalls that structurally carry and disperse stress throughout the unit's structure. Oil, weather, age, and other environmental factors do not affect belt performance, thanks to flex-bonded cords and flex-weave covers that protect the system at all times.
Stainless Steel and Aluminum Pneumatic Cylinders
All pneumatic cylinders are designed to prevent excessive vibration, reduce friction, and contribute to the long lifespan of the equipment. End-of-stroke cushions extend the life of all seals, wear bands, and piston rods. The entire cylinder system is self-lubricating and low-maintenance throughout the course of ownership.

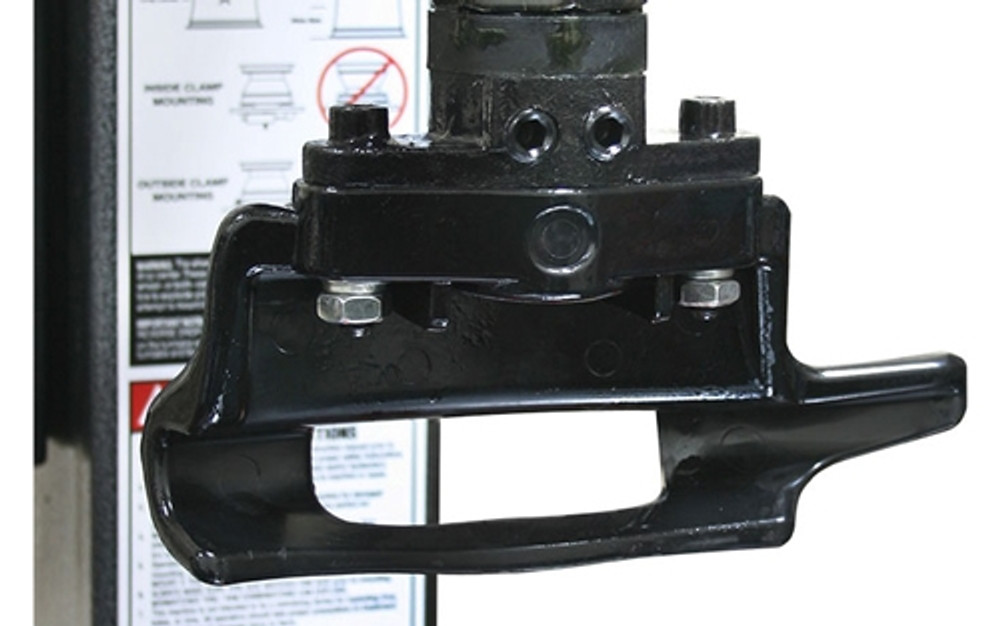

Multi-Function Mount and Demount Head
The equi-dimensional shape of the hardened steel mount/demount head lets you change functions without moving the tool head. The remarkably smooth surface gently glides tire beads during mounting and demounting, preventing expensive tire damage. A nylon tool head comes standard to protect your customers' expensive alloy rims and wheels from marring or damage during mounting.
Spring-Assisted Tool Shaft
To prevent wheel damage, Ranger's mount/demount tool heads feature hardened-steel horizontal outrigger support arms and a rigid 45mm spring-assisted hexagonal vertical tool shaft. These standard features keep the tool head in the precise position you set during service.
Guide Bearings for All Moving Parts
Ranger takes special care of all moving parts. Linear guide bearings make it easy to adjust both vertical and horizontal wheel settings. The horizontal arm's hardened lower roller guide assists in maintaining an even tempo for the arm's oscillating movements. Durable rubber bump-stops ensure a safe return during tilt-back operations and lessen shock loading, minimizing wear on tower guides and other moving parts.
Foot-Controlled Tire Inflator
Tire changers require two hands to operate, so Ranger keeps both hands free with an easy-to-use foot pedal tire inflator. A push-button air pressure dump valve is integrated into the unit, letting you release tire pressure as necessary without interrupting your workflow.
TurboBlast™ Bead Seating System
Ranger's TurboBlast™ bead seating system efficiently shoots a burst of air between the tire and rim, seating beads quickly without damaging the tire structure. The system features a nylon discharge barrel with a contoured tab that locks against the rim for controlled air discharge and safe operation.
Optional Motorcycle Clamps Available
If your shop services motorcycles or you'd like to expand your business, Ranger offers an optional series of turntable clamps specifically designed to cater to motorcycle wheels and tires.
R76ATR Key Highlights:
One-Spin, Minimal Weight Placement for Maximum Accuracy
The DST30P Wheel Balancer accurately and efficiently calibrates wheel and tire configurations with 7-second average cycle times and +/- 1 gram (.035 oz) accuracy. Like the DST-2420, the DST30P handles wheels up to 30" diameter, but features the 64-tooth magnetic transducer encoder from the DST-64T for minimal yet incredibly precise wheel weight placements. The larger encoder features precision-cut square teeth to convert rotary position to a digital electronic signal, quickly achieving maximum profile and top-dead-center positioning.
Direct-Drive System for Long-Term Reliability
The Direct-Axis drive system helps keep the DST30P running smoothly over time. A single belt connects the motor and unbalance sensor, eliminating most maintenance costs during your wheel balancer's many years of service. This direct-drive belt system ensures consistent, vibration-free operation and maximum uptime in busy shops.
Highly Precise Digital Sensor Technology
The DST30P doubles the potential placement for wheel weights while maintaining a space-conscious and highly cost-effective shop solution. Dynamic, static, and ALU balancing modes are standard on each unit, featuring dual-plane calibration for all OEM configurations and performance wheels. Ranger's proprietary Digital Sensor Technology offers a 16-digit digital sensor processor and single-chip technology for better speed and accuracy in your readings. OEM and performance wheels require this sort of sophisticated technology for proper balancing, and the DST30P delivers it with precision and reliability.

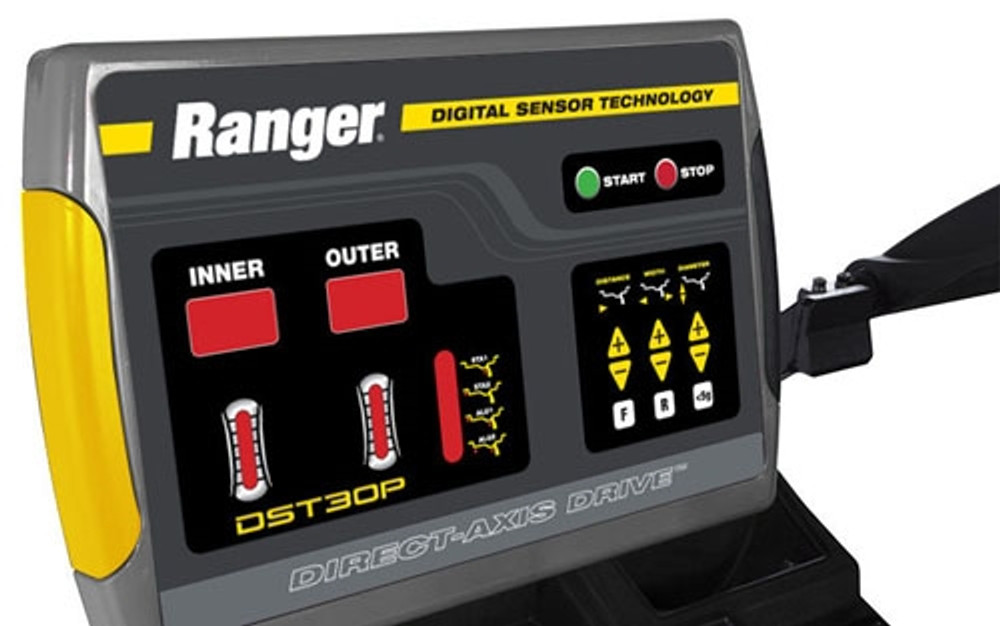

Ergonomic Control Board and Easy-to-Read LED Display
An ergonomic control board and easy-to-read LED display features vibrant visual cues and keypad controls to improve efficiency and proper balancing techniques for faster floor-to-floor times. A multi-user save function holds presets to increase productivity, while simultaneous retrieval of static, dynamic, and ALU1/ALU2 data identifies weight placement configurations for a variety of wheel styles and designs with the simple push of a button. The automatic rolling wheel parameter setting feature saves valuable time and minimizes errors.
Low RPM Balancing Speed and Automatic Braking
Low RPM balancing speed (260/320 RPM) and rapid six-second cycle time mean you'll finish more balancing jobs per hour. Automatic electronic braking stops the wheel precisely at top-dead-center for accurate weight placement every time. Gram/ounce and millimeter/inch selection, automatic round-off with top-dead-center weight position indicator, and manual or automatic start when the hood is lowered all contribute to a seamless, intuitive balancing experience.
Self-Calibration Function and Precision-Machined 40mm Shaft
A self-calibration function ensures the DST30P stays accurate over time, while the precision-machined, hardened-steel 40mm shaft provides superior strength and stability for large, heavy wheel and tire assemblies. A quick-release hub nut dramatically reduces setup times, and the side-position brake holds wheels precisely at 12-o'clock for proper weight placement.

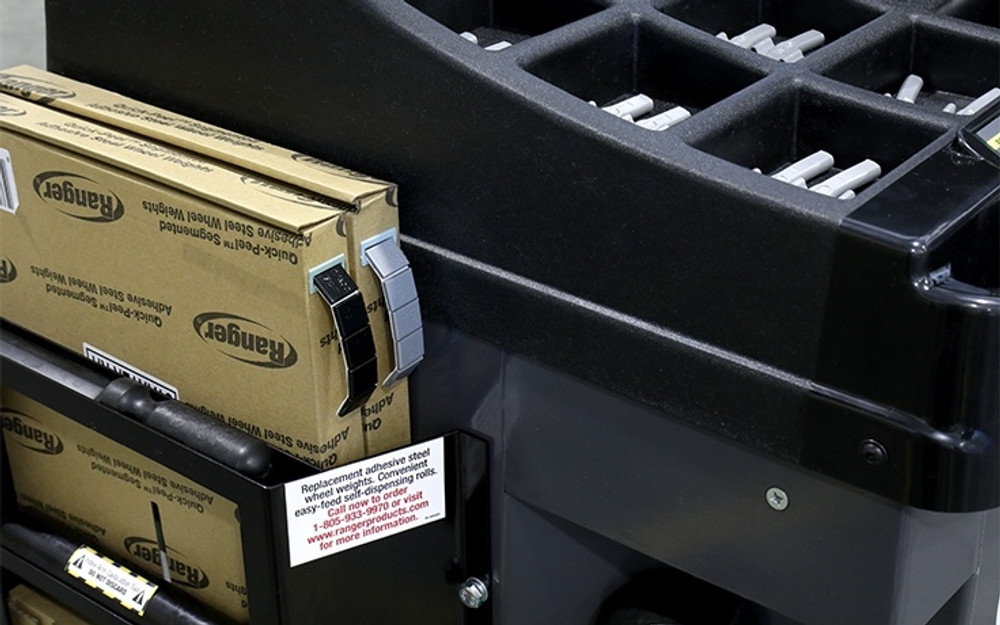

High-Volume Top Weight Tray and Open-Top Side Shelf Storage
A high-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools. The newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls for easy access and faster service.
New "Open-Side" Hood Design

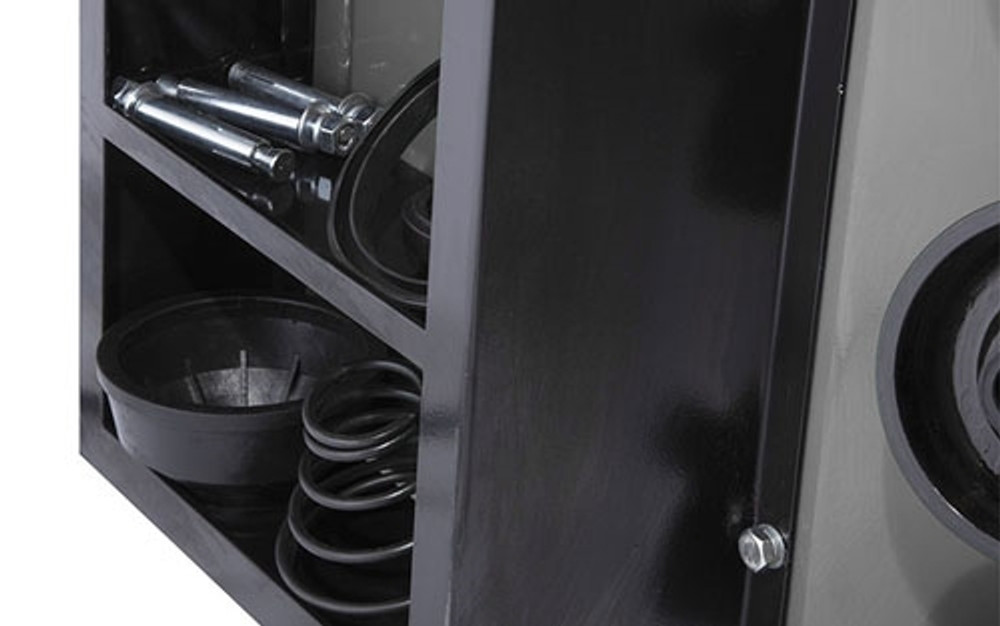

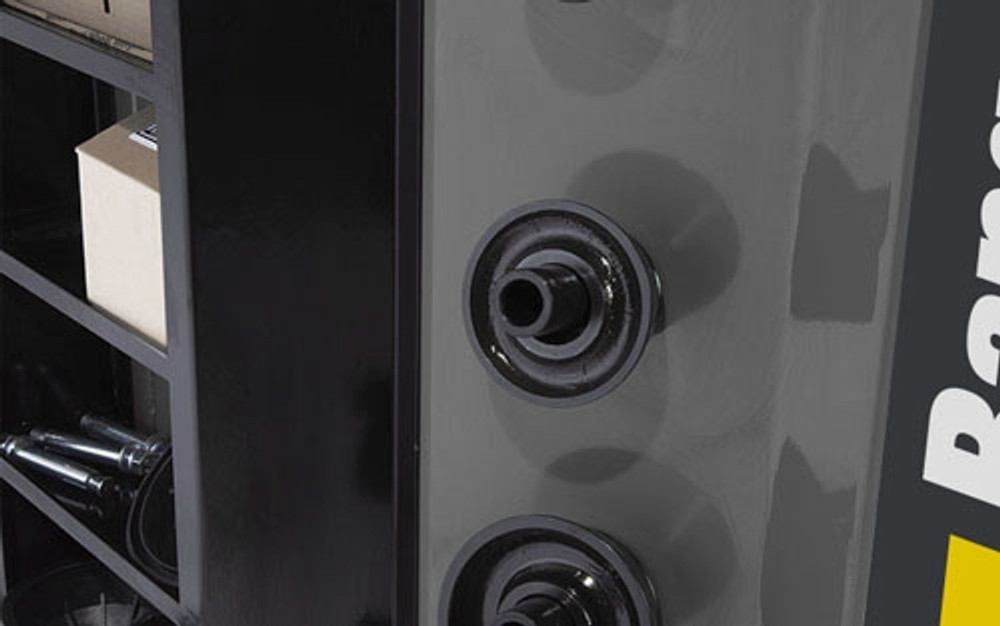

The new "open-side" hood design allows for broader coverage of tire shapes and sizes, accommodating wheels up to 47" diameter and 150 lbs. weight capacity. Side cone storage pegs keep accessories readily available for quick wheel mounting and reduced downtime.
Includes Wheel Weight Kit – 1400 Pieces
This combo includes a comprehensive 1400-piece wheel weight kit:
DST30P Key Highlights:
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
When you invest in the Ranger R76ATR NextGen™ Tire Changer and DST30P Wheel Balancer combo, you're equipping your shop with a complete, integrated solution designed to maximize efficiency, accuracy, and profitability. The R76ATR tackles the toughest tire changes with power assist and tilt-back convenience, while the DST30P delivers lightning-fast balancing with precision weight placement. Together, they represent the ideal pairing for high-volume shops that demand speed, reliability, and exceptional results on every job.
With included 1400-piece wheel weight kit, installation manuals, and Ranger's legendary build quality, this combo is ready to go to work the moment it arrives. Upgrade your tire service capabilities and start delivering faster turnarounds and happier customers today.
