Transform your tire service operation with this complete, professional-grade combo package from Ranger. Pairing the advanced R76ATR-L tilt-back tire changer with single-tower assist and the precision-engineered DST-2420 dynamic wheel balancer, this turnkey solution is engineered to handle everything from standard passenger vehicles to light trucks, run-flats, and stubborn low-profile tire configurations. With powerful TurboBlast™ bead seating, dual pneumatic clamping cylinders, automatic electronic braking on the balancer, and a 64-bit digital signal processor delivering results in 6–9 seconds, this combo delivers unmatched speed, accuracy, and reliability. Whether you're launching a new shop or upgrading worn-out equipment, the R76ATR-L and DST-2420 provide the rugged, professional-grade tools you need to boost productivity and profitability.
Tilt-Tower Design with Power Assist for Safer, Faster Tire Changes

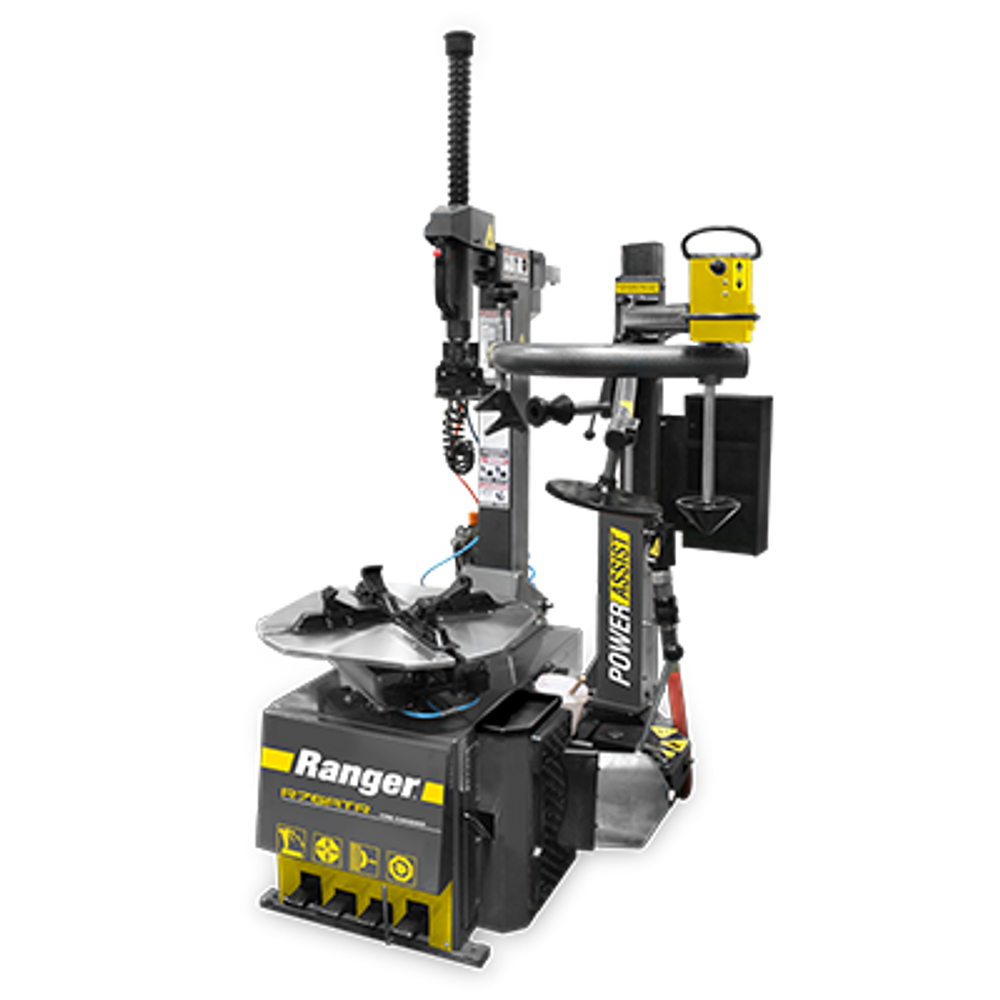

When it comes to your tire repair business, the Ranger R76ATR-L delivers everything you need for safer, faster tire changes—even when working with tricky aluminum wheels or stubborn low-profile tires. The tilt-back tower design saves significant time when loading a new set of wheels: no more constant adjustments to match each wheel's diameter. The single-tower power assist on the right side helps change low-profile and run-flat tires (anything with a stiff sidewall), holding the bead securely in the drop-center and protecting the tire from damage. Adjustable, extraordinarily easy-to-use RimGuard™ wheel clamps provide internal clamping from 10" to 30" and external clamping from 8" to 26". A centering cone assists with external clamping, and a specialized saucer/roller combination offers yet another line of defense against stubborn beads.
Our Most Specialized, Versatile Tire Changer
Ergonomic controls are sensibly placed to minimize excessive reaching, walking, or bending, resulting in more jobs per day and increased profits. Other time-saving features include a multi-profile traveling drop-center tool, top bead assist rollers, lower bead lifting disc, and a nylon non-marring wheel restraint device. These important tire shop tools are designed to dramatically reduce effort, increase safety, and help minimize operator fatigue. A large 30" capacity turntable features adjustable, hardened-steel RimGuard™ wheel clamps that accommodate wheels from 9" up to 30", with internal and external multi-teeth jaws and vertical mounting bolts that make replacement fast and simple.
Electric Turntable with High-Torque Drive
A high-torque electric turntable drive (powered by 110 VAC) features increased speed and reversible direction for quicker tire removal and installation. Controlled speed gives low-profile and run-flat beads time to relax and reduces the risk of tire damage. The advanced drive belt system is crafted with convex sidewalls that structurally carry and disperse stress throughout the unit's structure. Oil, weather, age, and other factors do not affect belt performance, thanks to flex-bonded cords and flex-weave covers that protect the system at all times.
Advanced Clamp Positioning and Easier Bead Lubrication
Versatile clamp positioning allows for improved control when clamping wheels. Position clamps exactly where you need them within the entire clamping range—no need for the clamps to cycle the full range. A geometric tabletop makes bead lubrication easy, and operators are able to visibly inspect the lower bead during tire mounting and inflation.
Proprietary Bead-Breaker Design
A completely new and proprietary bead-breaker design features bilateral pneumatic accelerators for lightning-fast bead-breaker speeds in both directions. A 100% stainless steel cylinder body means no more worrying about moisture contamination from corrosion. Other exclusive design features include a multi-axis, adjustable blade for multi-angle tire capacity, a large, dual-flange axle that eliminates blade flex and premature failure, and adjustable blade settings that help accommodate a larger variety of tire and wheel combinations. The enhanced bead-breaker blade features rugged box frame construction that increases mechanical strength, service life, and overall performance. A large rubber bump-stop assures smooth return to help reduce shock loading and minimize wear on the pneumatic cylinder, guides, and associated moving parts.

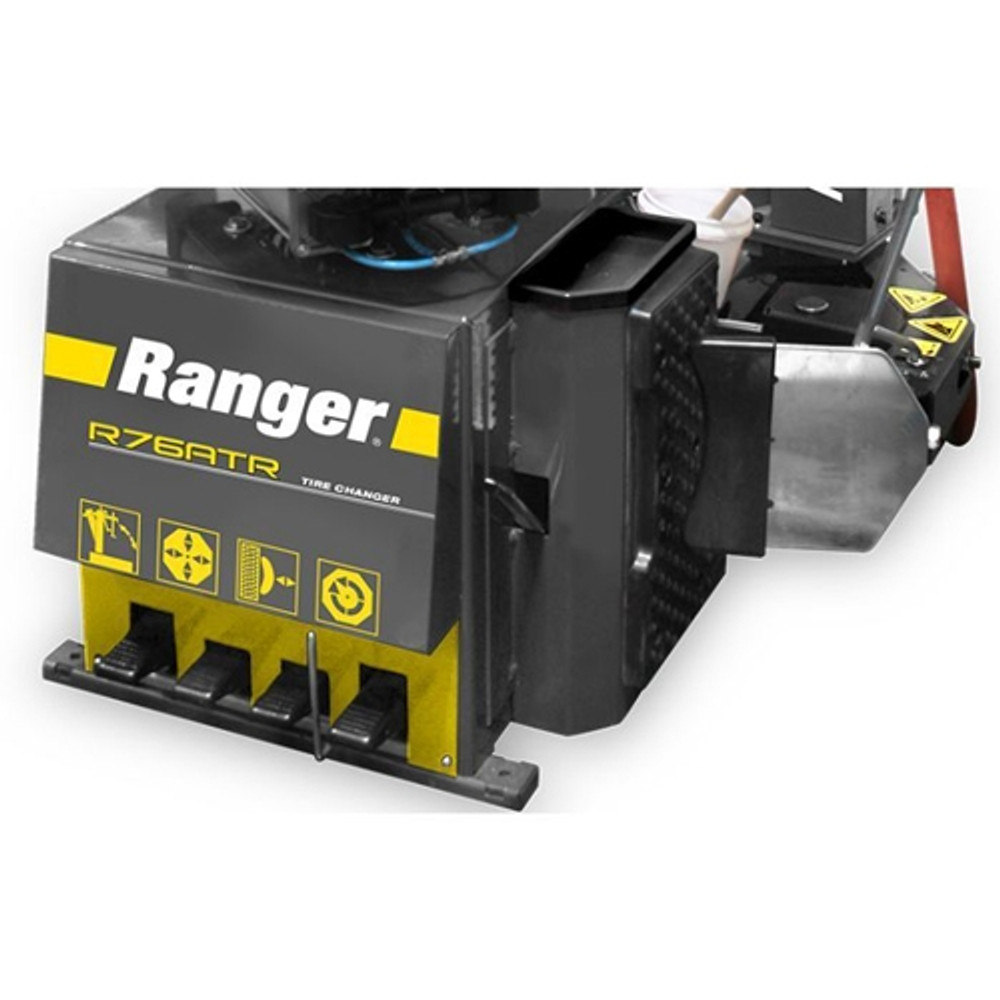

Balanced Flywheel and Simple Foot-Pedal Control
A balanced flywheel reduces vibrations during operation, as well as stress on the machine as a whole. Well-balanced flywheels keep our tire changers running smoothly for years of zero or low-maintenance operation. Rather than heavy, clunky cast iron, we make our foot pedals from forged steel that is durable enough for daily use in fast-paced shops and tire centers. The snap action spring return offers extremely accurate and safe operation, while the foot-pedal control valves are complete with multi-link rod connections for non-binding plunger movement and precise bilateral control.
Right-Side Tower Drop-Center Design
The right-side assist tower features a multi-profile traveling drop-center tool that holds stubborn sidewalls in the drop-center area of the wheel for swift, precise mounting. A single lower-bead lifting disc can be used to unseat stubborn lower beads or to elevate tires for tool placement. A power-drop top bead assist roller helps hold difficult top beads in place during removal and installation of tough sidewall tires. These important tire shop tools dramatically reduce the effort required to change difficult, low-profile tires and help minimize operator fatigue. Upfront trigger control and articulating arm allow for variable tire and wheel configurations. A heavy-duty, tri-flange, cast-iron assist tower carriage features linear way bearings for maintenance-free operation.
Tilt-Back Tower for More Ground Clearance
Ranger uses a tilt-back tower design for this tire changer because it offers more ground clearance, as well as easier removal and inflation of tires. If you're using like sets of tires and wheels, a pneumatically locked tool head will remain in place on the tower return, allowing for more rapid setup on your next job.
Stainless Steel and Aluminum Pneumatic Cylinders
All pneumatic cylinders prevent the tire changer from overly vibrating, reducing friction and contributing to the long lifespan of the equipment. End-of-stroke cushions are included to extend the life of all seals, as well as the wear band and piston rods. The entire cylinder system on the tire changer is self-lubricating and low-maintenance throughout the course of ownership.
Multi-Function Mount and Demount Head
The equi-dimensional shape of the hardened steel mount/demount head lets you change functions without moving the tool head. The remarkably smooth surface gently glides tire beads during mounting/demounting and prevents expensive tire damage. Additionally, a nylon tool head comes standard. Protect your customers' expensive alloy rims and wheels from marring or damage when mounting with our durable nylon tool head that comes as a standard accessory.
Spring-Assisted Tool Shaft and Guide Bearings
In order to prevent wheel damage, Ranger's mount/demount tool heads feature hardened-steel horizontal outrigger support arms, as well as a rigid 45 mm spring-assisted hexagonal vertical tool shaft. These standard features keep the tool head in the precise position you set it during service. Linear guide bearings make it easy to adjust both vertical and horizontal wheel settings. The horizontal arm's hardened lower roller guide assists in maintaining an even-tempo for the arm's oscillating movements. Durable rubber bump-stops ensure a safe return during tilt-back operations and lessen shock loading. Wear is minimal on tower guides and other moving parts.
Foot-Controlled Tire Inflator and TurboBlast™ Bead Seating
Tire changers require two hands to operate, so we keep both of your hands free with our easy-to-use foot pedal tire inflator. A push-button air pressure dump valve is integrated into the unit, letting you release tire pressure as necessary. Ranger's TurboBlast™ bead seating system efficiently shoots a burst of air between the tire and rim, seating beads quickly without doing damage to the tire structure. For a more controlled air discharge, the system features a nylon discharge barrel with a contoured tab that locks against the rim.
Optional Motorcycle Clamps Available
If your shop services motorcycles, or you'd like to expand your business, Ranger offers an optional series of turntable clamps specifically designed to cater to motorcycle wheels and tires.
Supersedes DST-1200

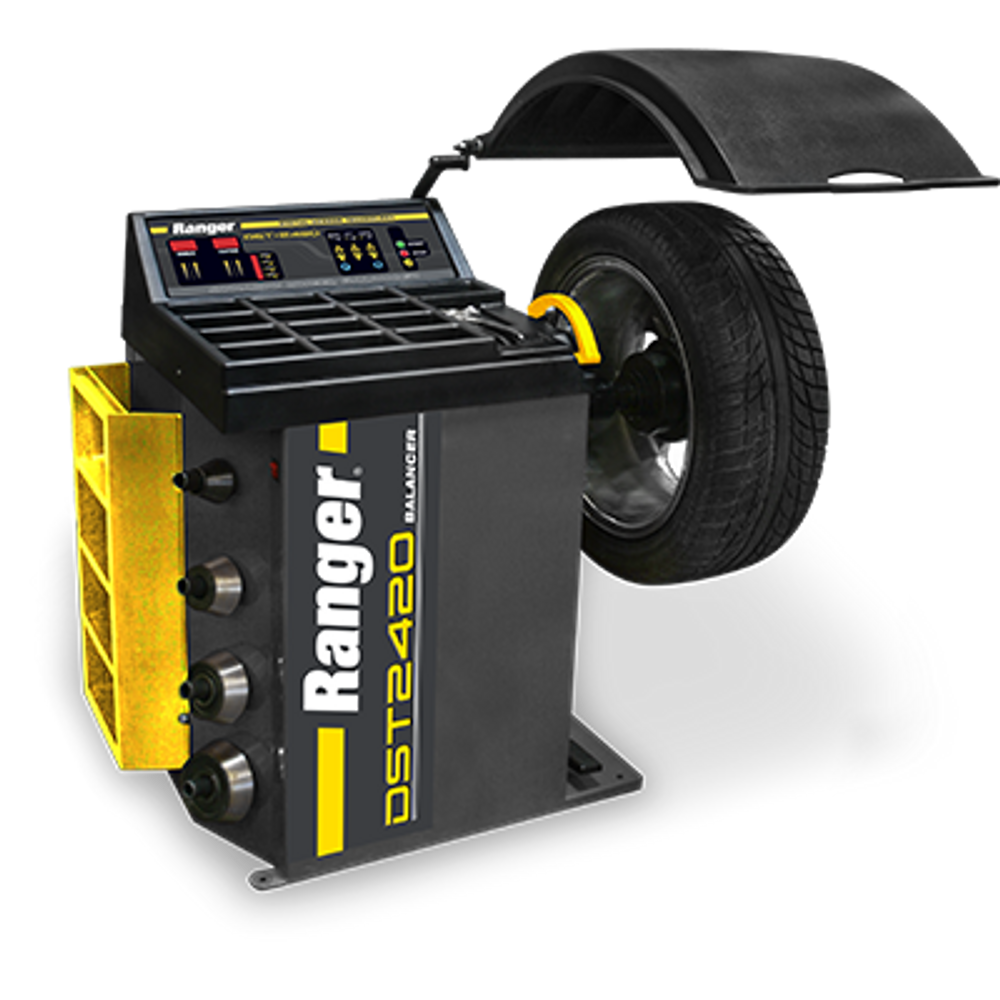

The new and improved Ranger DST-2420 wheel balancer now handles wheels up to 30" diameter. It is a highly accurate and dependable no-frills balancer that features our proprietary Digital Sensor Technology for critical reliability and repeatability. From one-bay shops to high-volume tire stores, the DST-2420 is built with a gritty toughness that puts out perfectly balanced wheels day after day, around the clock. Like all of our DST Series wheel balancers, it's a zero-tolerance performer that features our proven Direct-Axis drive system, accurate to within +/- 1 gram (.035 oz), ensuring wheels are balanced vibration-free.
The DST-2420 automatically calculates the exact weight needed to achieve an optimal balance for almost every tire and wheel configuration on the planet, and brightly displayed LED indicators mark the exact amount and location in just 6 seconds. A full menu of time-saving features includes Dynamic, Static, and 3-Alloy balancing modes that allow you to balance OEM wheel configurations and performance wheels with minimal effort and speed.
Digital Sensor Technology with 64-Bit Architecture
Our highly accurate Digital Sensor Technology features a 64-bit digital signal processor and single-chip technology that increases productivity and offers unprecedented speed and accuracy—especially when using sophisticated balance and weight placement techniques required for newer high-tech OEM and aftermarket wheels. Single-chip circuit board architecture provides an inherent performance and reliability advantage compared to multi-chip implementations of the same functionality. In addition to overall latency reductions, the single-chip architecture significantly boosts device throughput. An extremely fast dedicated hyper transport protocol allows data to communicate with the microprocessor at much faster speeds. This solution offers unmatched integration of features and functionality and results in lower power consumption and dissipated heat.
Precision DataWand™ and Automatic Rolling Parameter Setting
Highly precise 64-bit architecture and single-chip technology combined with the Precision DataWand™ and inner data set arm allow you to quickly and automatically enter all wheel parameter settings in less than three seconds. Automatic rolling wheel parameter setting feature saves valuable time and minimizes errors. You can choose manual or automatic start when the hood is lowered, and the balancer includes a self-calibration function for consistent accuracy.
Serpentine Poly-V Belt Drive System
The serpentine poly-V belt features a polyester-aramid fiber composite core to resist degradation of functional performance under extreme operating conditions. The poly-V belt mates perfectly with motor and spindle sheave for continuous tension and distribution, providing reliable operation and reduced maintenance.
Dynamic, Static, and Alloy Balancing Modes
Three balancing modes—(1) Dynamic, (2) Static, (1) Standard Alloy—plus a variable alloy setting enable you to select the exact weight placement location you choose for the specific wheel being serviced. Easily configured with the simple push of a button for a variety of wheel styles and designs. Tiered weight placement indicators help identify out-of-sight position weight placement such as split-weight or hidden "behind-the-spoke" techniques.
Low RPM Balancing Speed and Rapid Cycle Time
Low RPM balancing speed of 180 RPM and rapid six-second cycle time deliver fast, accurate results without compromising precision. Balancing increments of 0.25 or 0.01 oz and a resolution of 0.01 ounce, 1.4° ensure optimal accuracy across a wide range of wheel and tire configurations.
Automatic Electronic Braking and Audible Alarm
Automatic electronic braking stops the wheel safely and precisely. An audible alarm and brightly displayed LEDs identify exact weight amounts and precise positioning for perfect balancing. Gram/ounce selection and millimeter/inch selection provide flexibility for different measurement preferences.
Wheel Restraint Pedal and LED Inner Wheel Target Light
A wheel restraint pedal secures wheels at precisely 12-o'clock for easier servicing and proper weight placement. The LED inner wheel target light automatically illuminates the interior of the rim and helps identify the exact weight placement location. The light auto-activates each time the wheel restraint pedal is depressed.
High-Volume Storage and Quick-Release Hub Nut

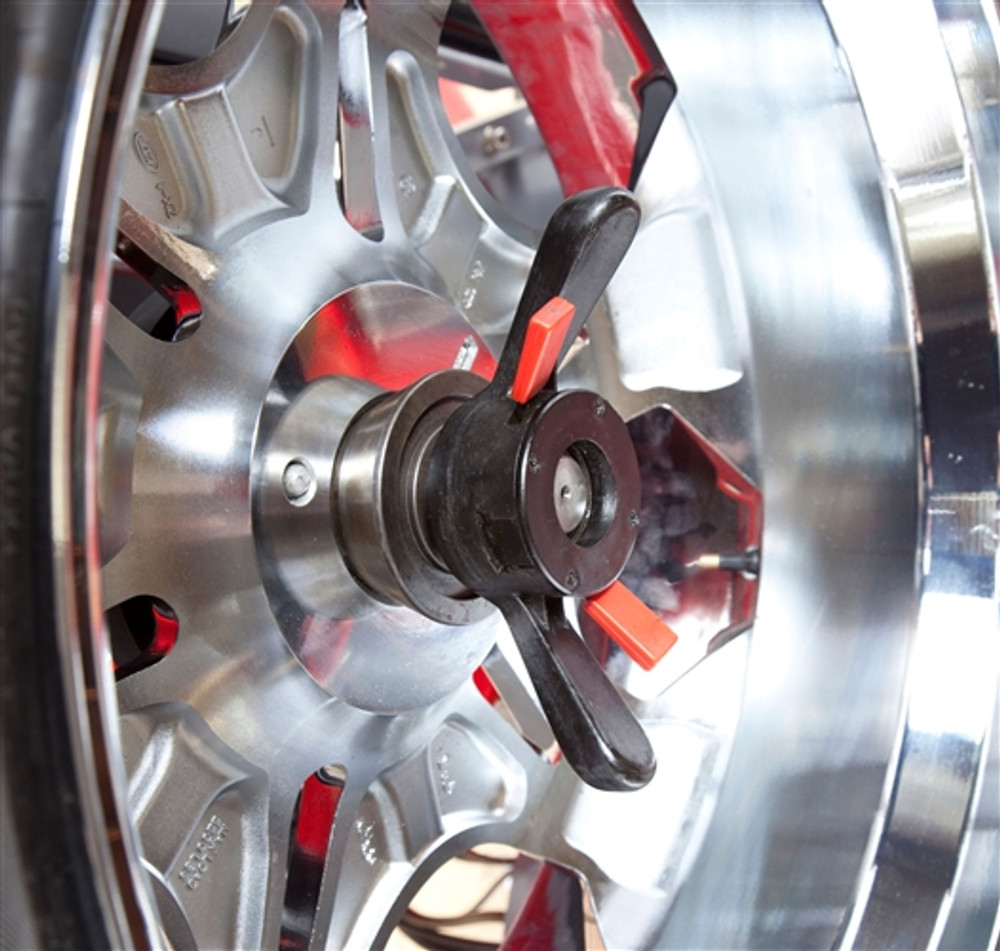

High-volume top weight tray and side shelf storage give you room to inventory a wide variety of wheel weights and tools. Side cone storage pegs keep mounting cones readily available. A precision-machined, hardened-steel 36-mm shaft (ACME thread 30-degree 3-P) with quick-release hub nut delivers dramatically reduced set-up times.
Open-Sided Hood Design and Included Cones
Open-sided hood design allows for a broader coverage of tire shapes and sizes. The balancer includes 3 standard cones and 1 truck cone for versatile wheel mounting. A 1.5 HP, 110V / 220V, 50 / 60 Hz, 1Ph motor delivers reliable, long-lasting power.
Wheel Weight Starter Kit Included – Free Samples
Free samples of Ranger steel wheel weights are included. The starter kit includes:
This complete tire service solution combines the R76ATR-L tilt-back tire changer with the DST-2420 dynamic wheel balancer to deliver unmatched performance, speed, and accuracy. Key highlights include:
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
⚠ WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Wheel Service Equipment Warranty
The Best Warranty in the Business - You Have Ranger's Word
Duration: From the date of purchase by the original Purchaser or 24-12 months from the date of shipment by Ranger or whichever comes first.
Two Years (24-Months) Warranty on equipment structure*
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty on site or at factory
One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance
Limited Warranty
*Equipment structure is defined as any non-moving permanently affixed frame or main body, or sub-structures that are non-moving and permanently affixed or attached to any main equipment structure or frame.
**Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote addresses.
***For all Ranger brand tire changers, wheel balancers or brake lathes manufactured on or following 11/1/2011.
Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages BendPak/Ranger products are provided and sold as is without any express or implied warranties including warranties of merchantability or fitness for particular purpose. No warranties, expressed or implied, will apply after this period. BendPak/Ranger may modify these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
