Transform your tire service operation with the Katool KT-T830 & KT-B760 Combo — a complete tire changing and wheel balancing solution engineered for professional shops and serious enthusiasts. This premium combo pairs a heavy-duty wheel clamp tire changer with double assist arms and a precision wheel balancer featuring automatic measurement for exceptional accuracy and efficiency. Built with industrial-grade components and powered by 110V single-phase motors, both machines deliver reliable performance day after day.

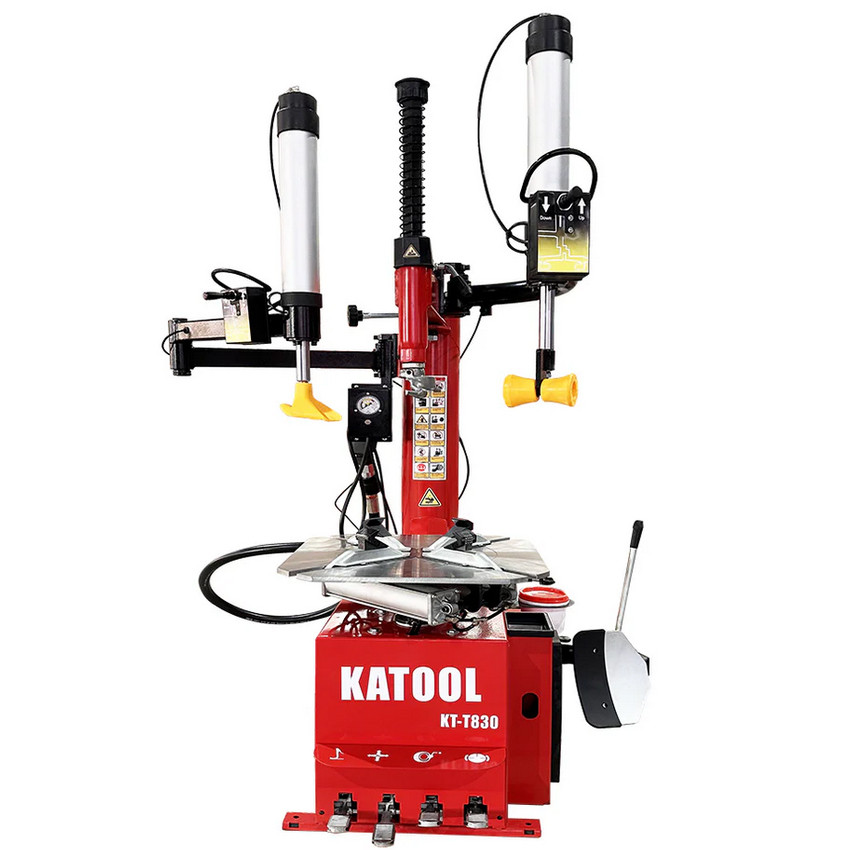

The KT-T830 tire changer is designed to handle wheels up to 41 inches in diameter and 15 inches wide, with versatile clamping options for both inside (14" - 24") and outside (12" - 22") mounting. Its 2.0HP motor with pure copper windings provides outstanding power and faster heat dissipation for continuous operation. The double-sided assist arms and integrated bead blast seater with post tank make quick work of stubborn beads, while the alloy steel jaws with carburization treatment and protective covers ensure rims stay damage-free throughout every service.
The KT-B760 wheel balancer complements the tire changer with precision balancing for wheels up to 34.64 inches in diameter and rim diameters up to 30 inches. Its automatic measurement ruler eliminates manual input errors by automatically capturing A and D values, while the ±1g balancing accuracy and 7-second measurement time ensure fast, precise results. The robust construction features 3mm-thick steel body with minimal vibration, and the 36mm quenched shaft provides exceptional strength for heavy-duty wheels up to 143 lbs.
The KT-T830 wheel clamp tire changer is built to tackle the toughest tire service jobs with confidence. Its alloy steel jaws undergo interface carburization treatment to a depth of 0.8-1.1mm and a whole quenching process, creating exceptional tenacity on the inside and hardness on the outside. Combined with protective jaw covers, your customers' rims stay pristine even during aggressive tire removal.
The double side assist arms provide critical leverage when dealing with low-profile and performance tires, while the bead blast seater with post tank delivers the concentrated air burst needed to seat stubborn beads safely and quickly. The 186mm (7.32-inch) stainless steel bead breaker cylinder offers powerful breaking force without damaging tire beads or rims.
Operational ease comes from the pull-type pedal control system, which simplifies tire changing procedures and maintenance tasks. The inflation gauge with pedal control allows precise tire inflation without taking your hands off the wheel. Air system reliability is ensured by a high-quality lubricator that provides consistent oil-drop lubrication and effectively filters compressed air, extending pneumatic system life. The machine's closed body design protects internal components from dust and debris.
Power comes from a top-level 2.0HP (1.5KW) motor specifically configured for North American 110V single-phase power, delivering stronger power and better efficiency than standard motors. The pure copper winding construction ensures more power output, faster heat dissipation, lower defect rates, and longer service life. At 6.8 rotations per minute and operating on 116-145 PSI (0.8-1.0 MPa) air pressure, the KT-T830 provides smooth, controlled operation for professional results.
The KT-B760 wheel balancer brings precision and speed to wheel balancing with its automatic measurement ruler that automatically inputs A and D values — eliminating manual entry errors and speeding up your workflow. The machine accommodates wheels from 3 to 12 inches wide with rim center hole diameters up to 135mm (5.31 inches), handling a wide range of passenger and light truck applications.
Structural integrity is exceptional thanks to a 3mm-thick steel body with high-strength solid welding that minimizes vibration during spin cycles. The all-in-one pressure sensor support design features 8mm-thick bottom and side boards, ensuring the sensor operates with stability and maintains ±1g balancing accuracy — critical for eliminating wheel vibration and extending tire life.
The 36mm shaft is precision-made with quenching treatment for high strength and is longer than standard shafts for compatibility with wider wheels. Spinning at 180 RPM, the balancer completes measurements in just 7 seconds, dramatically improving throughput. The 0.25KW motor with pure copper windings offers reliable power with faster heat dissipation and extended service life.
Advanced electronics set the KT-B760 apart. The computer board uses advanced welding technology for moisture-proof, dust-proof, and antistatic protection, ensuring long-term reliability. Various balance modes accommodate different rim types for maximum precision, while the built-in fault diagnosis and self-calibration program with double-side calibration eliminates the need for pre-set parameters — operators can use the machine with ease right from the start. Unit selection between ounces and grams and millimeters and inches accommodates any preference. The high-quality integration power board delivers stable, reliable operation, and an optional wheel guard is available for added safety.
Both machines in this combo are engineered with professional-grade materials and construction methods. The KT-T830's stainless steel mounting head undergoes solution treatment and interface polishing, with a shape conforming to engineering mechanics principles. Accompanied by a plastic cover for rim protection, it handles even delicate alloy wheels with care. The mounting head design, combined with the protective covers on all contact points, means you can service expensive custom wheels without worry.
The KT-B760's advanced sensor technology and vibration-dampened construction ensure repeatable accuracy shift after shift. Whether you're balancing steel wheels, alloy wheels, or specialized performance rims, the various balance modes adapt to deliver optimal results. The self-calibration capability means minimal downtime and consistent performance without constant technician intervention.
With a combined weight of 529 lbs for the tire changer and a robust balancer construction, both machines provide the stability needed for precise, shake-free operation. Standard 110V single-phase power means easy installation in any North American shop without special electrical requirements.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Wheel Equipment Limited Warranty
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
