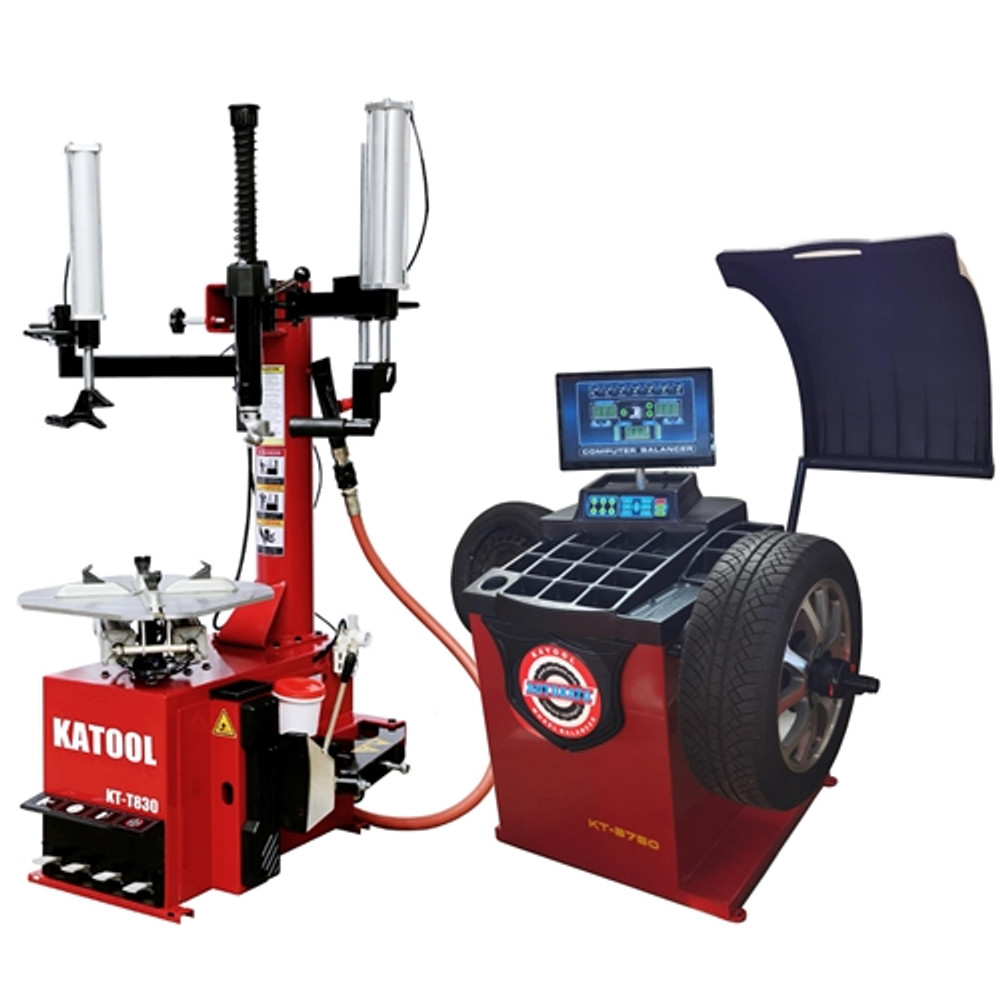

Transform your tire service shop with this complete, professional-grade combo from Katool. The KT-T830 Tire Changer and KT-B750 Wheel Balancer package delivers everything you need for efficient, accurate tire mounting and balancing operations. Engineered for high-volume shops and mobile tire services, this combo features robust construction, advanced automation, and precision engineering that speeds up your workflow while protecting expensive wheels and tires. Both machines run on 110V 1-Phase power, making installation simple in any North American facility.

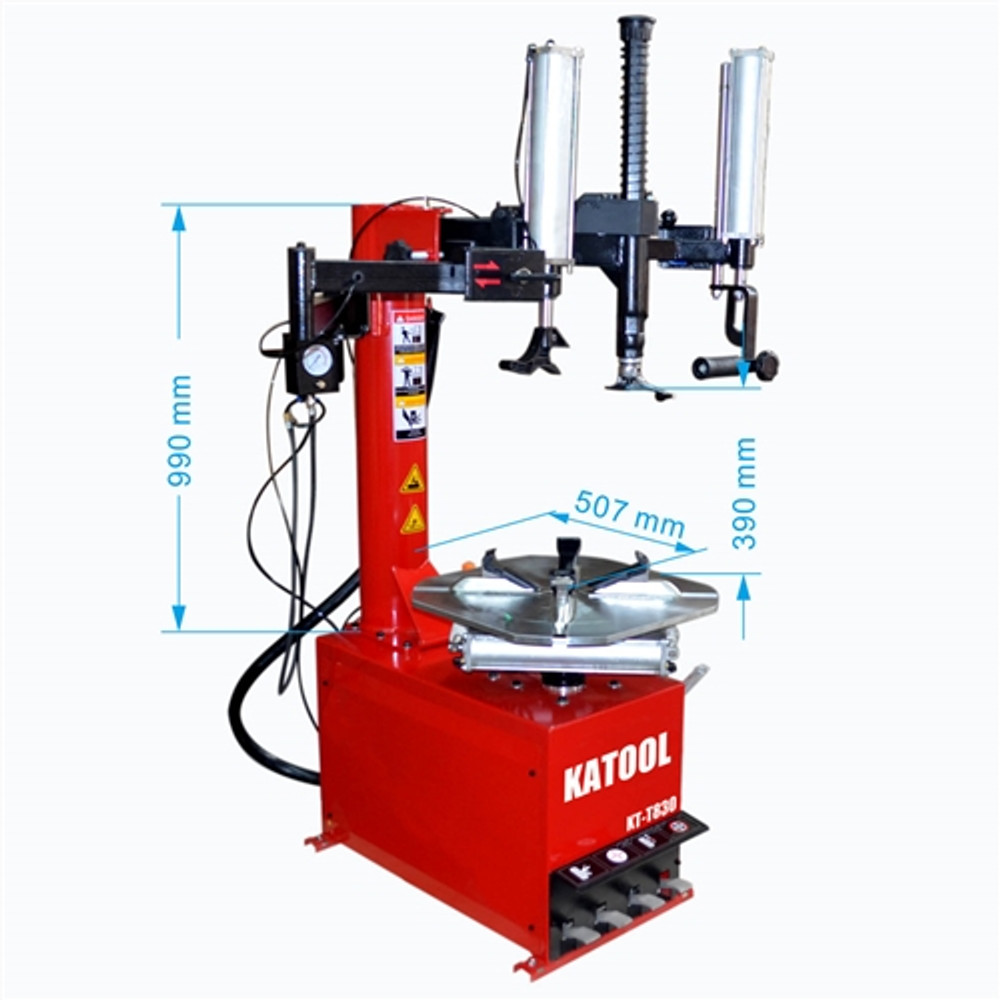

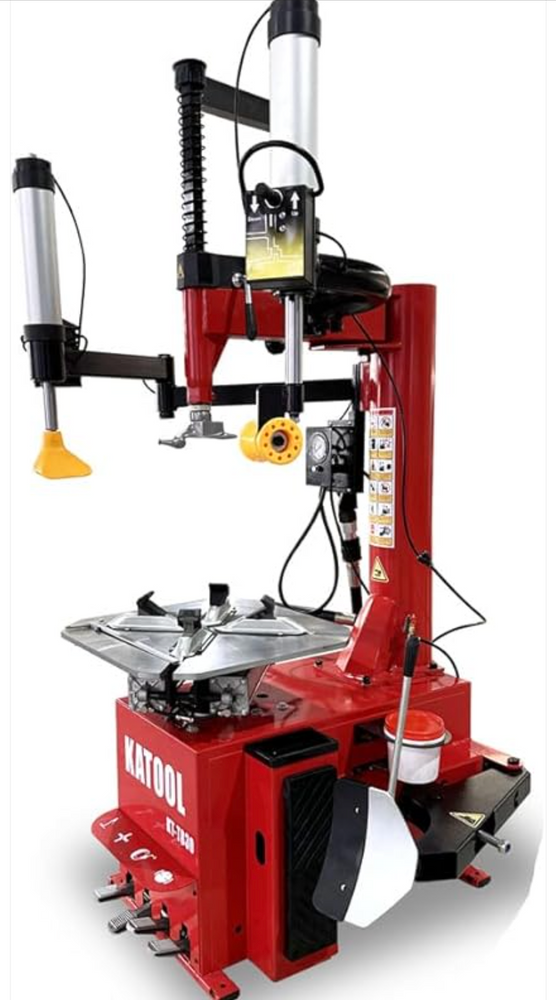

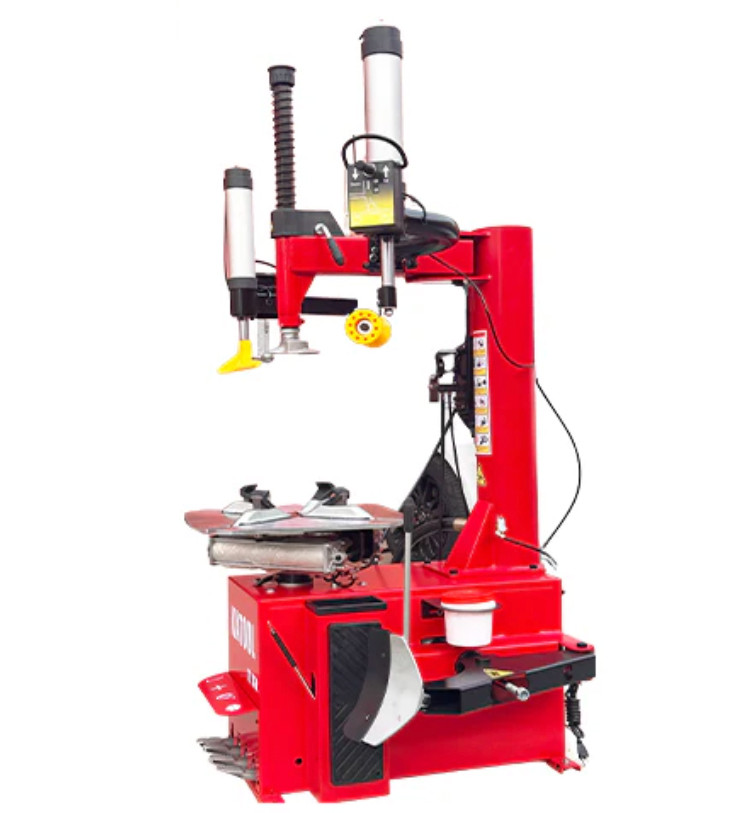

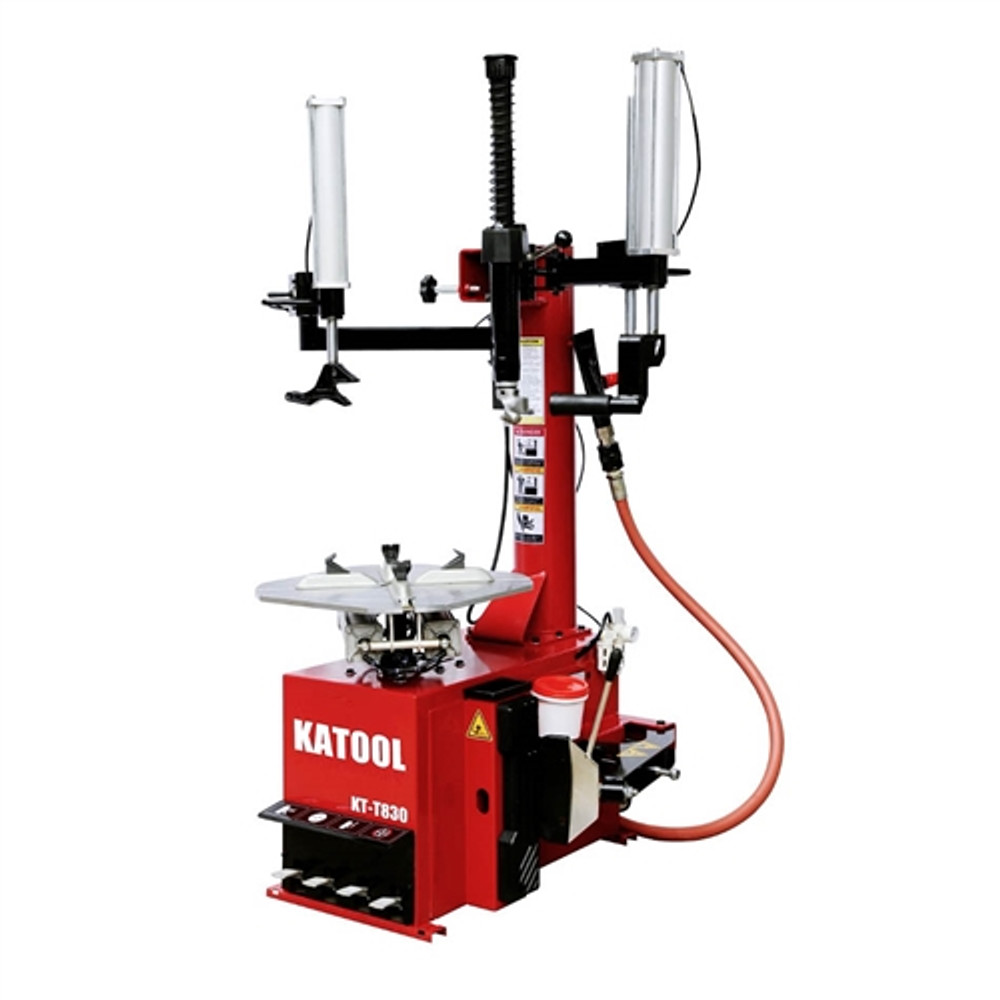

The KT-T830 tire changer handles wheels up to 41" diameter and 15" width, with double-side assist arms and a powerful 2.0HP motor with pure copper windings for reliable performance on even the most stubborn tire beads. The KT-B750 wheel balancer features an automatic measurement ruler that instantly inputs wheel dimensions, ±1g balancing accuracy, and a heavy-duty 3mm-thick steel body for rock-solid stability during high-speed spin cycles. Together, they create a complete tire service solution at an unbeatable value.

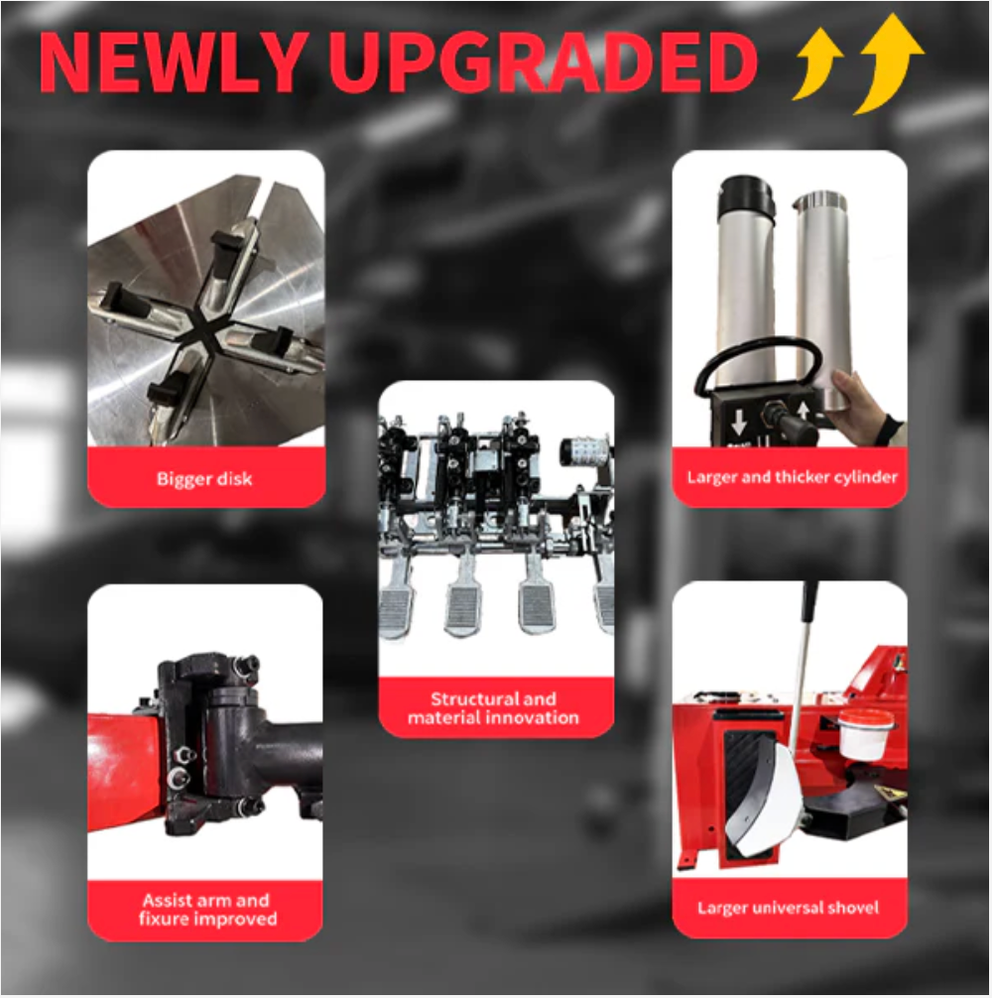

The KT-T830 is engineered with precision components that extend the life of your equipment while safeguarding your customers' expensive wheels. The alloy steel jaw undergoes interface carburization treatment to a depth of 0.8-1.1mm, followed by a complete quenching process. This creates a jaw that is incredibly hard on the outside for durability, yet tenacious on the inside to resist cracking and fatigue. Protective jaw covers further shield rims from contact damage.
The stainless steel mounting head receives solution treatment and interface polishing, shaped according to engineering mechanics for smooth tire removal and installation. It comes with a plastic rim protector cover to prevent scratches on delicate finishes. The high-quality spade cover adds another layer of protection, effectively preventing rim damage during bead breaking operations.

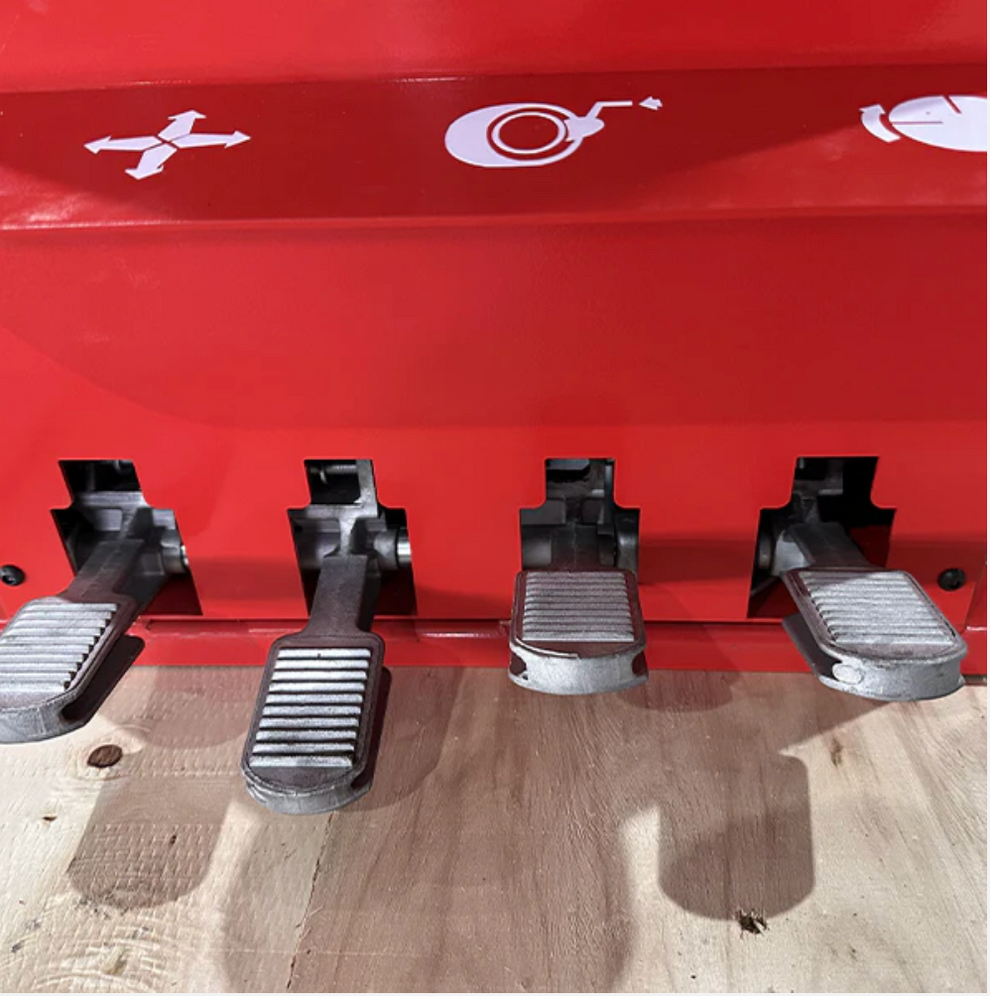

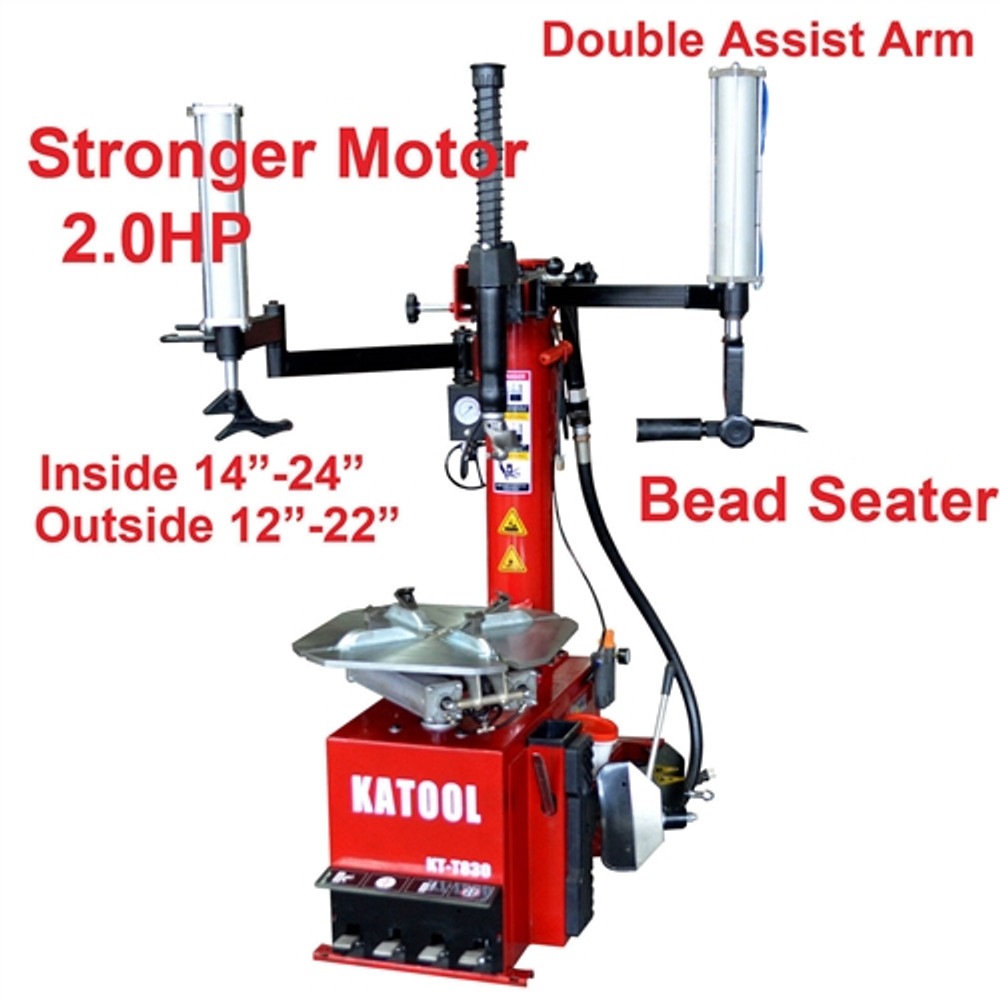

Dual double-side assist arms make quick work of stiff sidewalls and low-profile tires, reducing operator fatigue and speeding up cycle times. The bead blast seater with post-mounted tank delivers fast, controlled inflation for stubborn beads. An inflation gauge with pedal control puts precise air pressure at your feet, allowing you to focus on mounting technique. The pull-type pedal control system is intuitive and easy to maintain, reducing downtime and simplifying training for new technicians.
Under the hood, a top-level motor with pure copper windings provides exceptional torque and power. Pure copper construction ensures faster heat dissipation, lower defect rates, and a longer service life compared to aluminum-wound competitors. The 2.0HP motor is specifically designed for the North American market, delivering stronger power and better efficiency on 110V single-phase electrical systems. A 186mm (7.32") stainless steel bead breaker cylinder supplies ample force to break even the most stubborn tire beads without excessive effort.
The high-quality lubricator provides reliable oil-drop lubrication and effectively filters compressed air, extending the service life of the entire pneumatic system. The closed body design protects internal components from dust, debris, and accidental damage, ensuring consistent performance year after year.

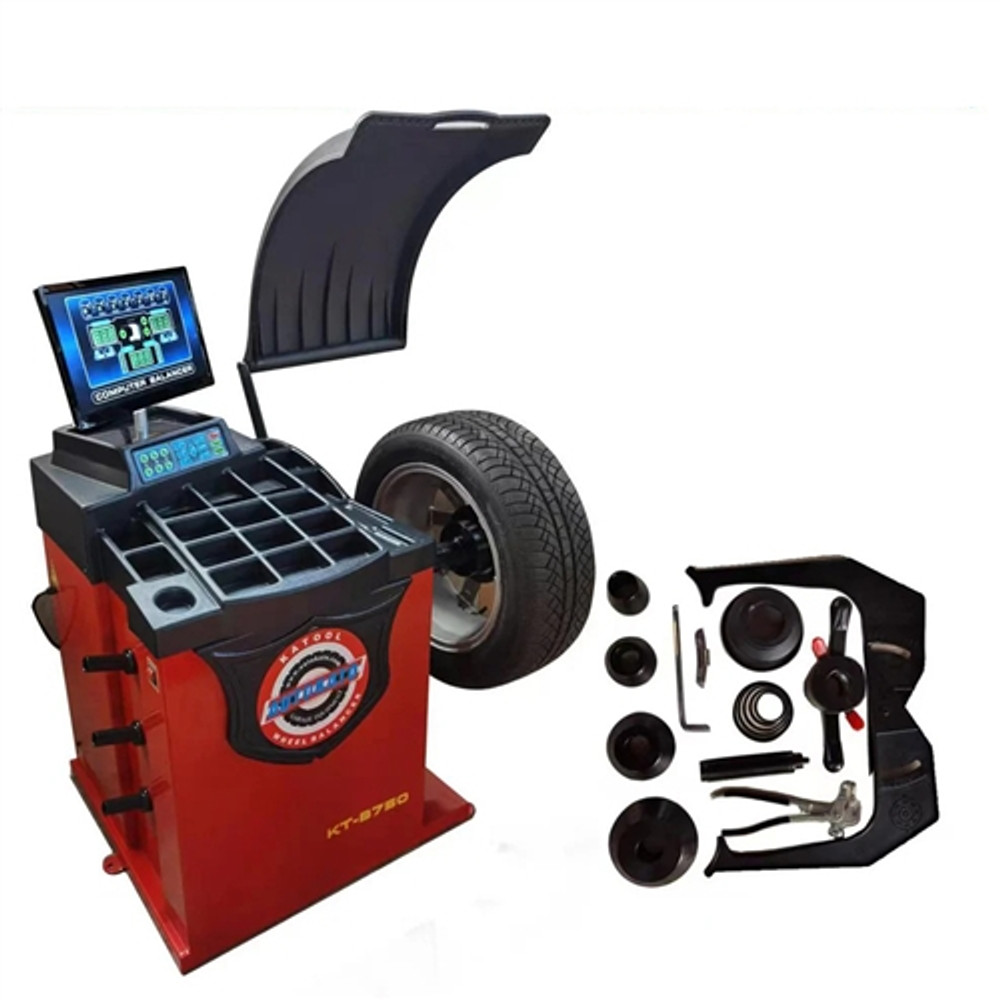

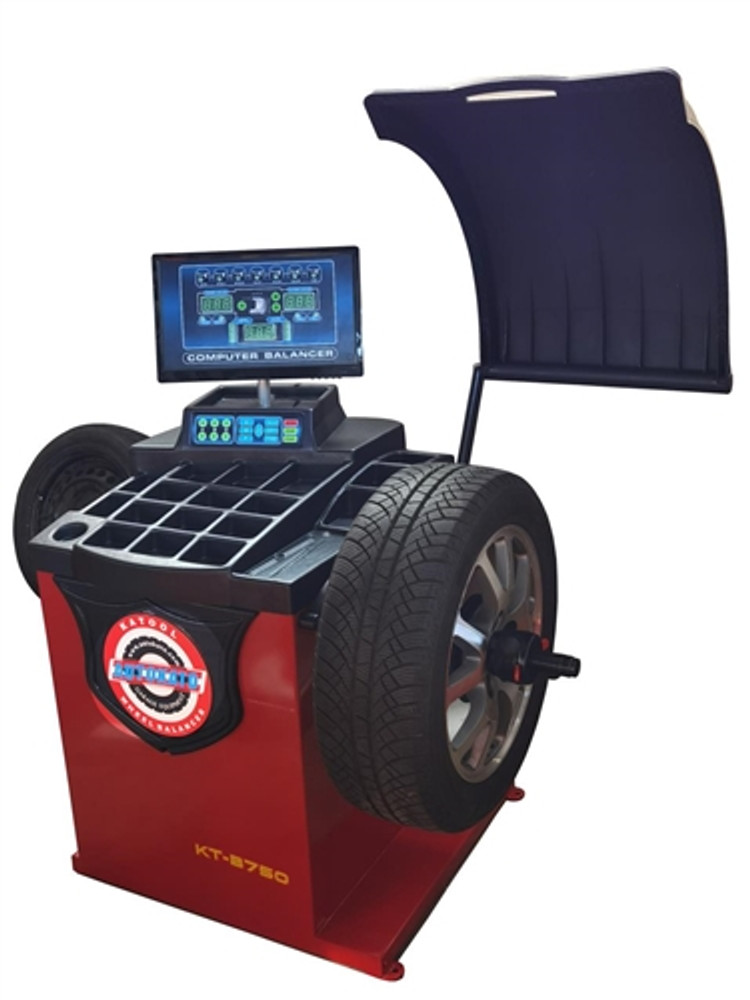

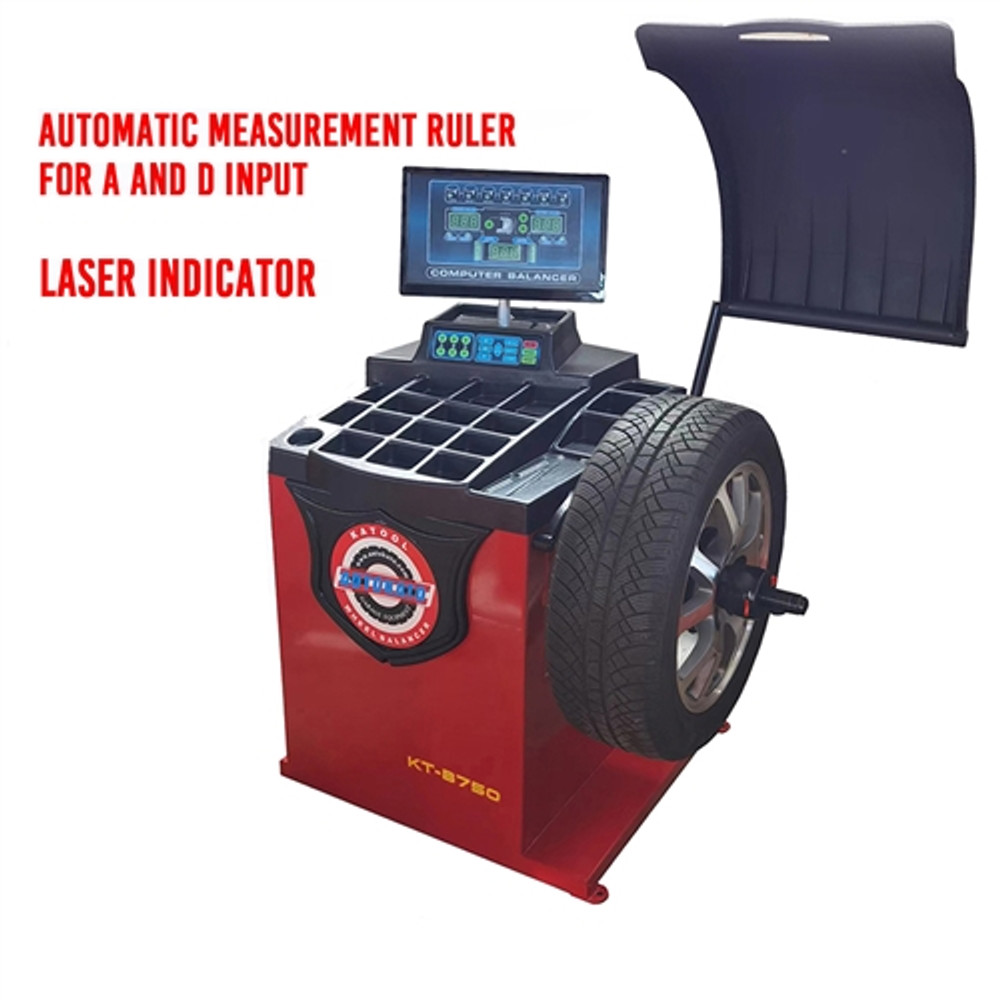

The KT-B750 Wheel Balancer brings automation and precision to your balancing operations. The standout feature is the automatic measurement ruler, which instantly inputs A and D values (distance and diameter) as you position the wheel. This eliminates manual data entry errors and dramatically speeds up your workflow—just mount the wheel, measure, and spin.
Built on a 3mm-thick steel frame, the KT-B750 provides exceptional rigidity and low vibration during high-speed spin cycles. The all-in-one pressure sensor support design features both bottom and side boards machined to 8mm thickness, ensuring the sensor operates in a stable environment for ±1g balancing accuracy. At 180 RPM balancing speed, measurements complete in just 7 seconds, keeping your service bays moving efficiently.
The motor uses pure copper windings for the same advantages found in the tire changer: more power, faster heat dissipation, lower defect rates, and longer service life. The 36mm shaft thread is hardened through quenching treatment, offering exceptional strength to support heavy wheels without flex or wobble. The longer shaft accommodates wider wheels, expanding the range of vehicles you can service.
The advanced computer board employs state-of-the-art welding technology to make it moisture-proof, dust-proof, and antistatic—critical for longevity in busy, sometimes harsh shop environments. A built-in fault diagnosis and self-calibration program with double-side calibration simplifies setup and eliminates the need to memorize calibration parameters. Operators can switch between ounce/gram and mm/inch units with ease, accommodating any workflow preference.
The balancer offers various balance modes tailored to different rim types, ensuring optimal precision for alloy wheels, steel wheels, and specialty applications. The high-quality integrated power board ensures stable, reliable operation shift after shift. A composite slash/wheel guard is included for operator safety during spin cycles.

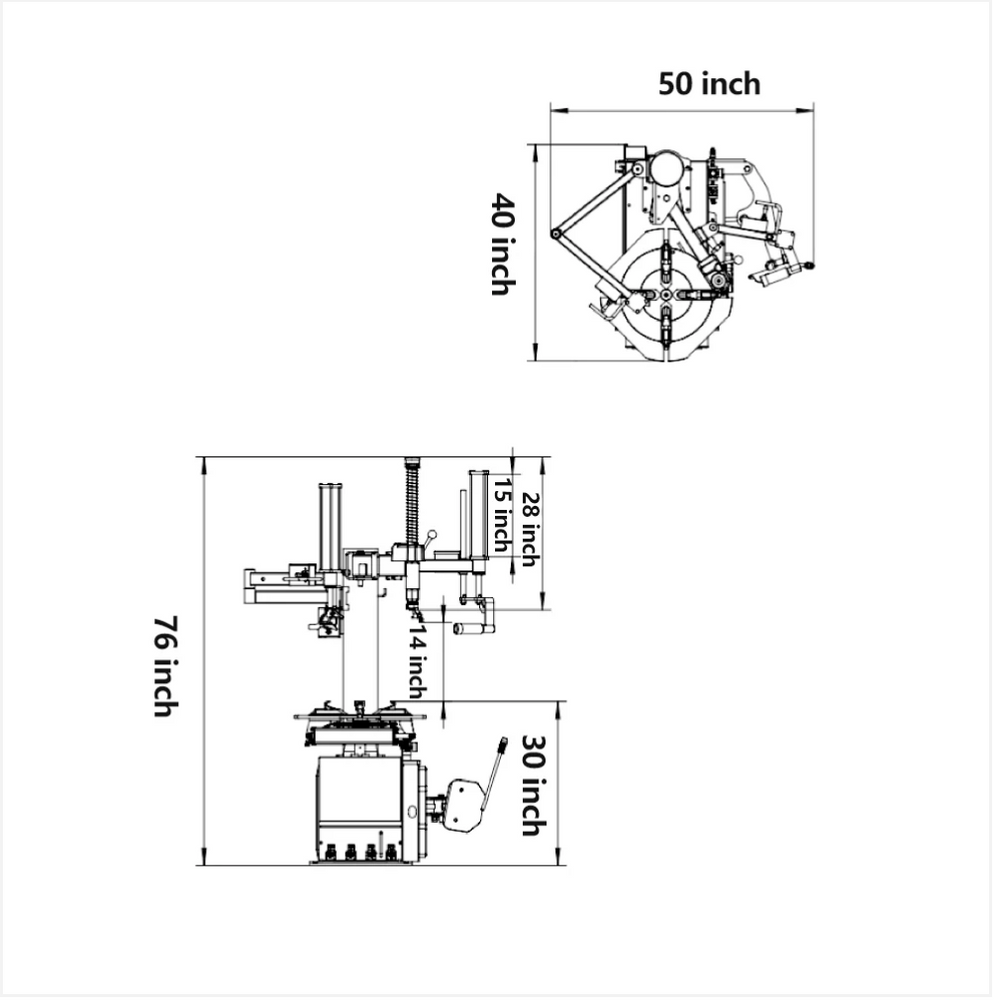

The KT-T830 Tire Changer handles wheels up to 41" (1040mm) diameter and 15" (380mm) width, with outside clamping from 12"-22" and inside clamping from 14"-24". It operates at 6.8 RPM rotation speed, powered by a 2.0HP (1.5KW) motor on 110V 1-Phase supply, requiring 116-145 PSI (0.8-1.0 MPa) air pressure. Net weight is 529 lbs (240 KG).
The KT-B750 Wheel Balancer accommodates wheels up to 34.64" (880mm) diameter, rim diameters from 8"-30", rim widths from 1.5"-20", and wheel weights up to 143 lbs (65 KG). The rim center hole diameter capacity is up to 5.31" (135mm). It spins at 180 RPM for balance measurements, completing cycles in approximately 7 seconds, with ±1g balancing accuracy. Powered by a 0.25KW motor on 110V 1-Phase supply.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
When you invest in the Katool KT-T830 and KT-B750 combo, you're choosing equipment designed for professionals who demand reliability, speed, and precision. The tire changer's double-side assist arms, stainless steel mounting head, and heavy-duty bead breaker handle the toughest tires with ease, while multiple rim protection features safeguard your customers' wheels. The wheel balancer's automatic measurement, ±1g accuracy, and 7-second cycle time keep your bays productive and your customers satisfied.
Both machines are built with pure copper motor windings, precision-hardened components, and advanced diagnostics that reduce maintenance headaches and downtime. The 110V 1-Phase power requirement means you can plug in and start working without costly electrical upgrades. Whether you're equipping a new shop, upgrading aging equipment, or expanding your mobile tire service, this combo delivers professional performance at an exceptional price.
Best Buy Auto Equipment stands behind the Katool brand with expert support and fast parts availability. Order the KT-T830 & KT-B750 combo today and take your tire service capabilities to the next level.
Wheel Equipment Limited Warranty
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
