Transform your tire service operation with the Katool KT-T830 & KT-B700 Combo – a complete wheel servicing solution that combines professional-grade tire changing with precision wheel balancing. This powerful duo delivers the performance, durability, and accuracy that modern shops demand, all at an exceptional value. Whether you're servicing standard passenger vehicles or tackling larger wheels up to 41" diameter, this combo gives you the versatility to handle virtually any job that rolls into your bay.
The KT-T830 Tire Changer is engineered with serious power and protection in mind. Its 2.0HP motor with pure copper winding delivers robust torque for smooth, efficient tire changes while providing superior heat dissipation and extended service life. The machine features double side assist arms to handle difficult low-profile and stiff sidewall tires with ease, plus a comprehensive array of rim protection features including alloy steel jaws with carburization treatment, protective jaw covers, a stainless steel mounting head with solution treatment and polishing, and a high-quality spade cover – all designed to prevent rim damage during service.
Complementing the tire changer is the KT-B700 Wheel Balancer, built for precision and reliability. Its heavy-duty construction features 3mm-thick steel with solid welding for minimal vibration, plus an all-in-one pressure sensor support design with 8mm-thick bottom and side boards for stable, high-precision operation. The balancer achieves impressive ±1g balancing accuracy with rapid 7-second measuring time, and offers various balance modes to accommodate different rim types. Advanced features include built-in fault diagnosis, self-calibration programming with double side calibration, and unit selection between ounce/gram and mm/inch for ultimate convenience.
The KT-T830 Wheel Clamp Tire Changer is designed to make tough tire jobs easier while protecting valuable wheels throughout the process. The machine's alloy steel jaws undergo interface carburization treatment to 0.8-1.1mm depth, followed by a complete quenching process that creates exceptional toughness inside and superior hardness outside. Protective jaw covers provide an additional layer of rim protection during clamping.
The mounting head is crafted from stainless steel with solution treatment and features interface polishing for smooth contact with tires. Its shape conforms to engineering mechanics principles for optimal leverage, and it's accompanied by a plastic protective cover to safeguard rims during mounting and demounting operations. The high-quality spade cover effectively prevents rim damage during bead breaking and tire removal.
Operational convenience comes from the pull-type pedal control system, which makes tire changing and maintenance intuitive and easy. The inflation gauge with pedal control allows precise pressure adjustment, while the bead blast seater with post tank provides the air blast needed to seat stubborn beads. A massive 186mm (7.32") stainless bead breaker cylinder delivers the force necessary to break the toughest beads without excessive effort.
The double side assist arms are invaluable when working with low-profile tires and rigid sidewalls, providing mechanical advantage exactly where you need it. The machine operates on 110V single-phase power with a robust 2.0HP (1.5KW) motor featuring pure copper windings that deliver stronger power, better efficiency, faster heat dissipation, lower defect rates, and longer service life compared to standard motors.
Additional professional features include a high-quality lubricator that provides reliable oil-drop operation and effectively filters compressed air to extend pneumatic system life, a closed body design that protects internal components from contamination and damage, and a rotation speed of 6.8 RPM for controlled, safe operation. The machine requires 116-145 PSI (0.8-1.0 MPa) air pressure and weighs a substantial 529 lbs (240 KG), reflecting its heavy-duty construction.
Clamp Range Versatility:
The KT-T830 offers 12" - 22" outside clamp and 14" - 24" inside clamp ranges, giving you the flexibility to service everything from compact car wheels to larger truck and SUV applications with ease.
The KT-B700 Wheel Balancer brings professional-grade precision to wheel balancing with construction and technology that ensure accurate, repeatable results. The body is fabricated from 3mm-thick steel with high-strength solid welding that produces extremely low vibration during spin cycles – critical for achieving precise measurements.
At the heart of the balancer's accuracy is its all-in-one pressure sensor support design. Both the bottom and side boards are constructed with 8mm-thick steel, ensuring the sensor operates in a stable environment for consistently high precision. This robust sensor mounting eliminates deflection and vibration that can compromise measurement accuracy.

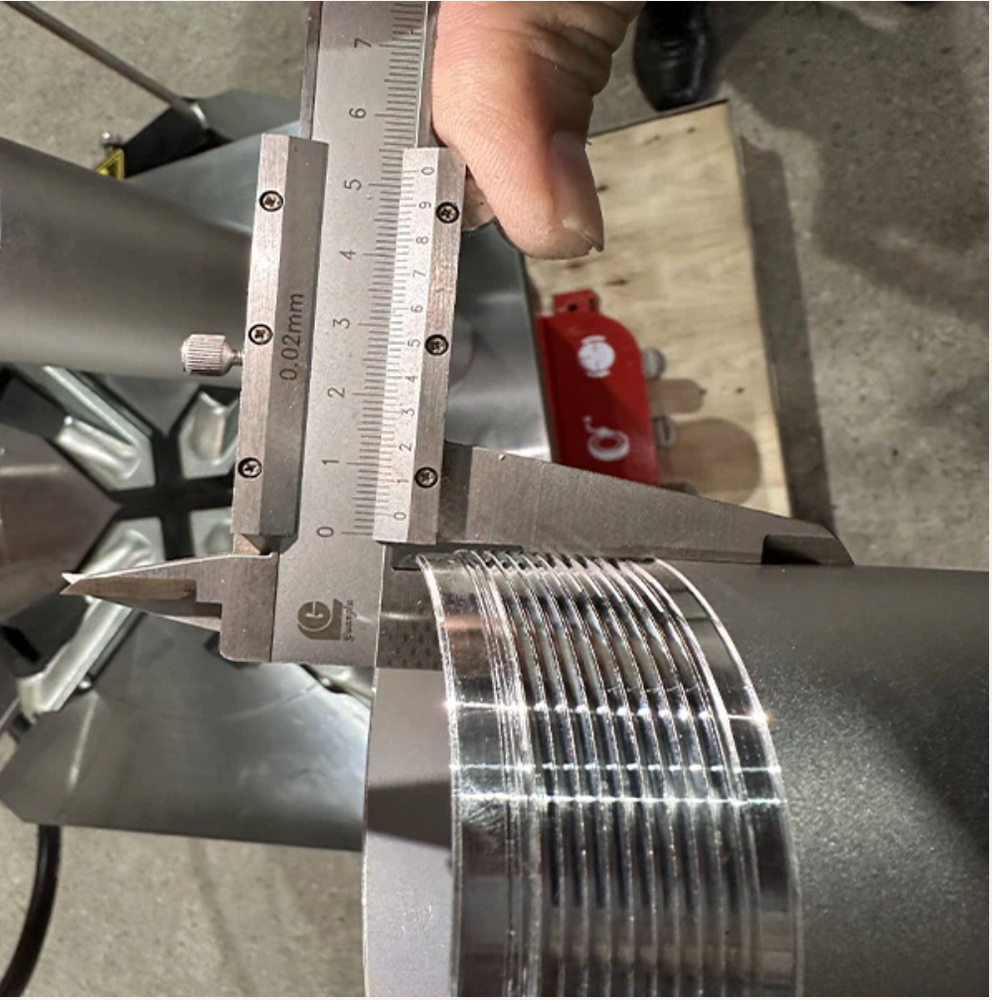

The balancer's 36mm shaft undergoes quenching treatment to provide exceptional strength and durability, and the longer shaft design is compatible with wider wheel applications. Power comes from a top-level motor with pure copper winding that provides reliable power delivery, rapid heat dissipation, low defect rates, and extended service life. The motor operates on 120V single-phase power with 0.25KW draw.
The computer board utilizes advanced welding technology to make it moisture-proof, dust-proof, and antistatic, while the high-quality integrated power board delivers stable and reliable operation. The system features built-in fault diagnosis and a self-calibration program with double side calibration, eliminating the need for preset parameters and making operation straightforward even for less experienced technicians.
The balancer offers various balance modes optimized for different types of rims, ensuring the most precise balance regardless of wheel construction. Convenient unit selection allows switching between ounce/gram and mm/inch measurements to match your preference. The machine spins at 180 RPM for rapid yet accurate measurements, with typical measuring time of just 7 seconds and impressive ±1g balancing accuracy.
Capacity specifications include wheels up to 880mm (34.64") diameter, 30" rim diameter, 3" - 12" wheel width, 65KG (143 lbs) wheel weight, and 135mm (5.31") rim center hole diameter. An optional wheel guard is available for added operator safety during high-speed spin cycles.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Complete Your Shop Setup
The Katool KT-T830 & KT-B700 Combo delivers everything you need for professional wheel service in one value-packed package. With industrial-grade construction, comprehensive rim protection, precision balancing technology, and user-friendly operation, this combo is ready to become the workhorse of your tire bay.
Wheel Equipment Limited Warranty
We offer a limited one-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.
* Including but not limited to: Cylinders, power units, motors, displays, electronics, etc...
Vehicle lifts will include an additional three-year (36 months) warranty on all lift structural components only.
Warranty claim for all products must fall within above period in order to qualify for limited warranty. Warranty is non-transferable, must have original order number, and purchased from our company or a registered vendor. Replacement Parts will be provided at no cost to the customer and will include free shipping.
*All warranty claims submitted to KATOOL are subject to approval by the warranty/service department and may be approved or denied at the full discretion of these departments. Photos and/or videos of original defects may be requested. Customers should not disassemble any piece of equipment before proof of original problem/issue has been determined. Any equipment outside of the policy will not be covered and buyer will be responsible for purchasing replacement parts at full cost and shipping charges will apply. Labor is not included in warranty.
