Computerized wheel aligner with 8-CCD-camera sensor heads
The Corghi Exact 70 represents professional-grade wheel alignment technology designed for the most demanding automotive shops. This computerized alignment system features advanced 8-CCD-camera sensor heads that deliver precise measurements across all critical alignment angles. Whether you choose the wireless or cable sensor configuration, the Exact 70 provides the accuracy and flexibility needed to service a wide range of vehicles from compact cars to light trucks with tires up to 40"-44" diameter.
Built around the powerful EXACT PLUS alignment program running on Windows XP Embedded, this system offers intuitive operation with clear graphics and a comprehensive vehicle database containing over 18,000 cars and vans. The wheeled cabinet design features roomy internal storage space for protecting your PC and printer, while the wireless version operates on 2.4 GHz industrial radio frequency for reliable, interference-free communication. Battery charging is conveniently integrated into the cabinet, supporting both sensor heads and clamps.
From quick front-axle checks to complete four-wheel alignment procedures, the Exact 70 streamlines your workflow with features like "Easy Caster" quick measurement, "Quick Check" procedures, and animated tutor guides that simplify vehicle preparation. Continuous sensor calibration checking ensures consistent accuracy, while compatibility with Asa Network, RH-Meter, and Romess CM-09606 systems integrates seamlessly into your existing shop setup.
The Exact 70 delivers exceptional measurement ranges across all critical alignment parameters. With Total Toe measurement to ± 48°, Camber to ± 10°, Caster and King Pin to ± 30°, this system handles even the most challenging alignment scenarios. Additional capabilities include Set Back (± 22°), Thrust Angle (± 10°), and Steering Angle (± 20°) measurements, providing complete diagnostic information for accurate adjustments.

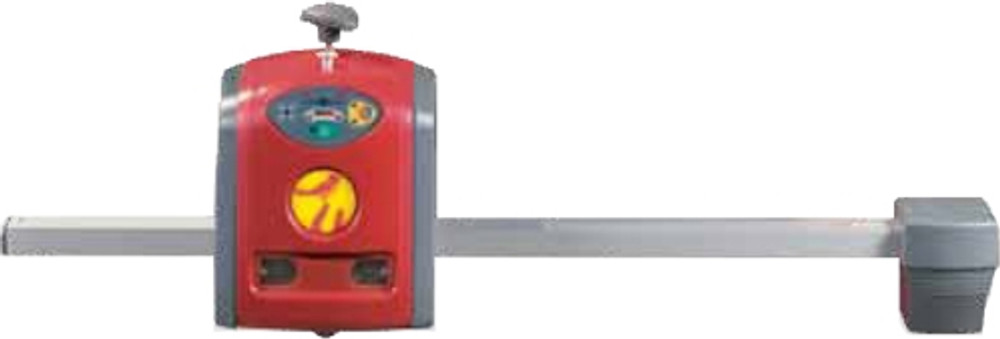

The system accommodates vehicles with maximum tire diameters of 40"-44" depending on tire shape, making it versatile enough for everything from passenger cars to light trucks. Sensor heads measure 800mm x 135mm x 210mm, and the complete system with sensors installed spans 1350mm x 1320mm x 1710mm, providing a compact footprint that fits efficiently into your shop layout.
EXACT PLUS is Corghi's flagship wheel alignment program designed for the most demanding professionals. The software delivers clear, intuitive graphics that are both user-friendly and completely customizable to match your shop's workflow. Animated tutor guides walk technicians through proper vehicle preparation, reducing setup errors and improving efficiency.
The system includes manual toe curve measurement and adjustment procedures, along with multiple ROC (Rolling Offset Compensation) options: push-type, 2 and 3 point, single sensor ROC, and ROC skip capability for specialty applications. Cradle adjustment procedures and quick job record data input streamline documentation, while optional procedures for trucks and trailers, MULTILINK, RADAR, and specialty applications expand the system's versatility.
Every Exact 70 system includes a comprehensive professional configuration designed for immediate productivity. The wheeled cabinet provides mobility and houses the complete computer system, featuring an Intel motherboard, 256MB RAM (minimum), 80GB hard drive (minimum), DVD reader, high-speed USB 2.0 ports, and Ethernet network capability. The system comes complete with keyboard, pedal depressor, and steering clamp for immediate operation.
Power requirements are flexible with the central unit accepting 90-260 Vca / 50-60 Hz / 1ph input while consuming just 0.4 kW, making it energy-efficient and compatible with various shop electrical configurations worldwide. The system is fully compatible with Asa Network, RH-Meter, and Romess CM-09606 platforms for seamless integration into networked shop environments.
The Exact 70 offers extensive customization through a complete range of optional accessories. Enhance operator convenience with an optical mouse or IR remote control. Display options include 17", 19", or 20" LCD color monitors with universal mounting support. Document your work with an optional color inkjet printer.
Wheel attachment options include 10-26" or 10-19" car wheel brackets with self-centering system, 9-21" quick wheel clamps, BMW-Mercedes wheel clamps, and 10-25" truck wheel clamps with self-centering system. For fleet heavy-duty applications, ROC skip clamps are available. Additional software packages provide adjustment help with schematic slides or animations, special procedures for MULTILINK, RADAR, trucks and trailers, vehicle weight analysis, and access to the Specialty Product catalogue.
For wireless configurations, an external battery charger enables charging batteries with the PC off, maximizing uptime. Special car constructor configurations are available for shops specializing in specific manufacturers.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Corghi values long-term partnerships with automotive professionals. To view or download details about Corghi's Customer Loyalty Program, click here.
Installation and training will be provided on the purchase of all new machines except the @120 changer, @601 balancer, TS24 Tire Dunker, IC90 Inflation Station and all Service Pro models.
California Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Limited Warranty
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within 7 days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.
This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).
Alignment Machines/Specialty Equipment
Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner’s lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
To View or Download Corghi Full Warranty Information Click Here
