Half a century since the invention of the Artiglio and eleven years since the introduction of "Leva la leva" (leverless) technology, Corghi sets the benchmark higher once again with the Artiglio MasterCode. This revolutionary touchless tire changer combines automatic wheel dimension acquisition with intelligent tool positioning and the invaluable Smart Corghi System demounting procedure, rewriting the rule book for what a tire changer can do.
Designed to achieve an even higher degree of automation, the MasterCode Basic increases performance and efficiency with all wheel types while drastically reducing service time. The computerized Touch Screen system guides operators through all procedures and suggests the best possible solution to any problem encountered. From Run Flat and UHP tires to both small and large balloon tires, the MasterCode is compatible with all tire types, making work safer, simpler, and quicker for the tire service professional while ensuring total protection for both rim and tire.

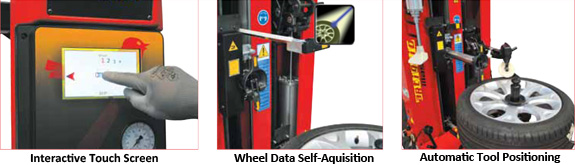

The MasterCode Basic automatically acquires wheel dimensions and positions tools with precision, eliminating guesswork and manual adjustments. Operators can select from three wheel type settings and choose between AUTOMATIC or MANUAL work cycles. This intelligent, user-friendly system is quick, safe, and ergonomic—saving time on every service while maintaining absolute accuracy.

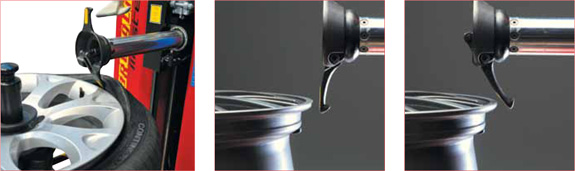

Corghi's exclusive Smart Corghi System demounting procedure delivers automated, synchronized tire demounting and mounting with minimized tire stress and absolutely no contact with the rim. This groundbreaking technology protects expensive wheels from damage while streamlining service operations and ensuring perfect results every time.

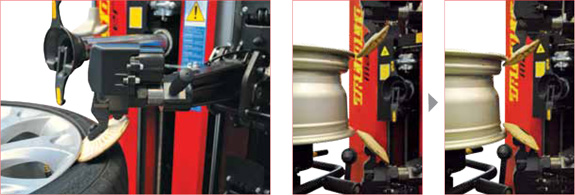

Dual pneumatic bead breaker penetrators with maximum rigidity and dual opposed bead breaker discs featuring separately controlled cylinders provide 1,641.1 lbf of force on both the upper and lower beads. The 19" max bead breaking range ensures maximum efficiency and precision, even on stubborn, heavily-seated tire beads.
The freely adjustable mobile control console provides total control during all manual operations. Simple, quick, and intuitive controls make the manual cycle extremely user-friendly, giving operators the flexibility to override automatic functions when precision hand control is needed. This ergonomic design keeps essential commands at your fingertips without cluttering the workspace.

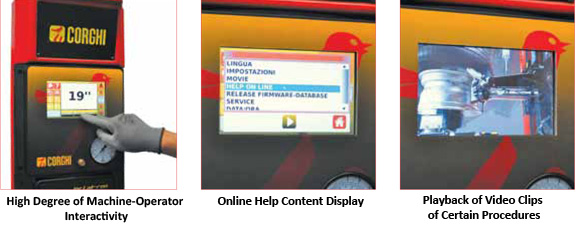

The interactive multifunctional TFT-LCD Touch Screen interface with microprocessor control provides guided assistance through all procedures. Features include a USB port for software database updates and loading demonstration videos, playback capability for on-screen tutorials, scheduled maintenance reminders, self-diagnosis, sensor state checks, and fault indication. Online help includes the instruction manual and special procedures for WDK, BSR, RFT, and UHP tires—putting expert knowledge at your fingertips during every service.

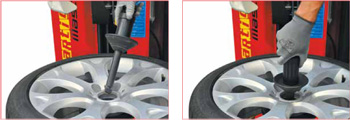

Corghi's new patented wheel clamp system delivers intelligent, fast, simple, and reliable automatic clamping for all wheel types. The electromechanical turntable comes equipped with additional specific flanges to accommodate a wide range of wheels. With 811 ft-lb of torque and dual speeds, it handles everything from delicate alloys to heavy-duty truck wheels with confidence.

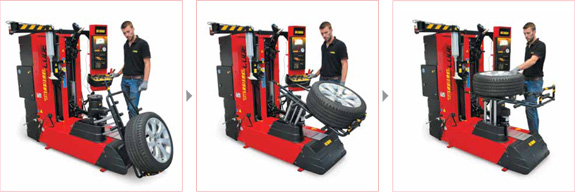

The integrated fully articulated lifter features a 187.4 lb (85 kg) maximum load capacity, making it easy to position heavy wheels and tires on the turntable without straining. This ergonomic feature reduces operator fatigue and speeds up service, especially on larger wheels.
The adjustable-height bead depressor features a shape ideal for Run Flat Tires (RFT) and is WDK homologated. Its ergonomic design and adjustable working height allow operators to tackle challenging low-profile and run-flat tires with ease, ensuring consistent, damage-free service on even the most demanding wheels.
The 2-speed inverter motor provides second speed operation in both forward and reverse rotation modes, delivering torque control and a controlled acceleration curve to safeguard tires during rotation. This advanced motor technology ensures smooth, consistent operation while protecting expensive tires from damage due to sudden starts or excessive torque.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
The MasterCode Basic comes fully equipped with an extensive range of standard accessories to handle virtually any tire service scenario right out of the box:
Installation and training will be provided on the purchase of all new machines (except the @120 changer, @601 balancer, TS24 Tire Dunker, IC90 Inflation Station, and all Service Pro models). Take advantage of Corghi's Customer Loyalty Program—view or download the loyalty form here.

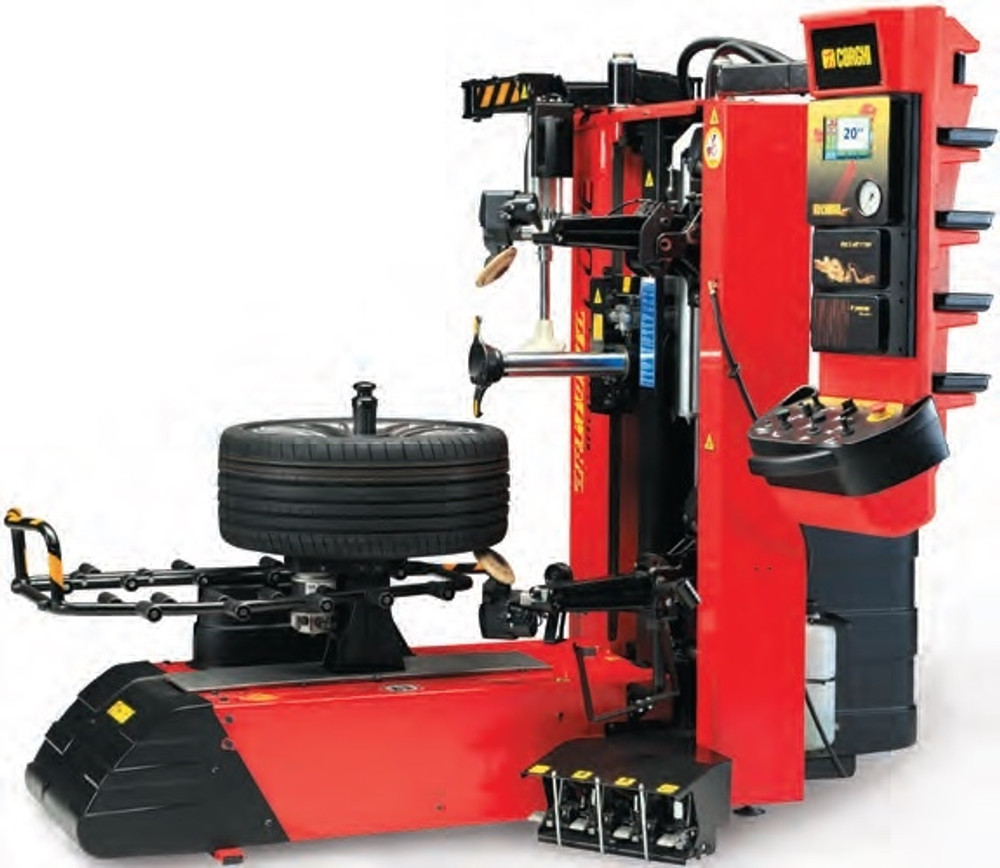

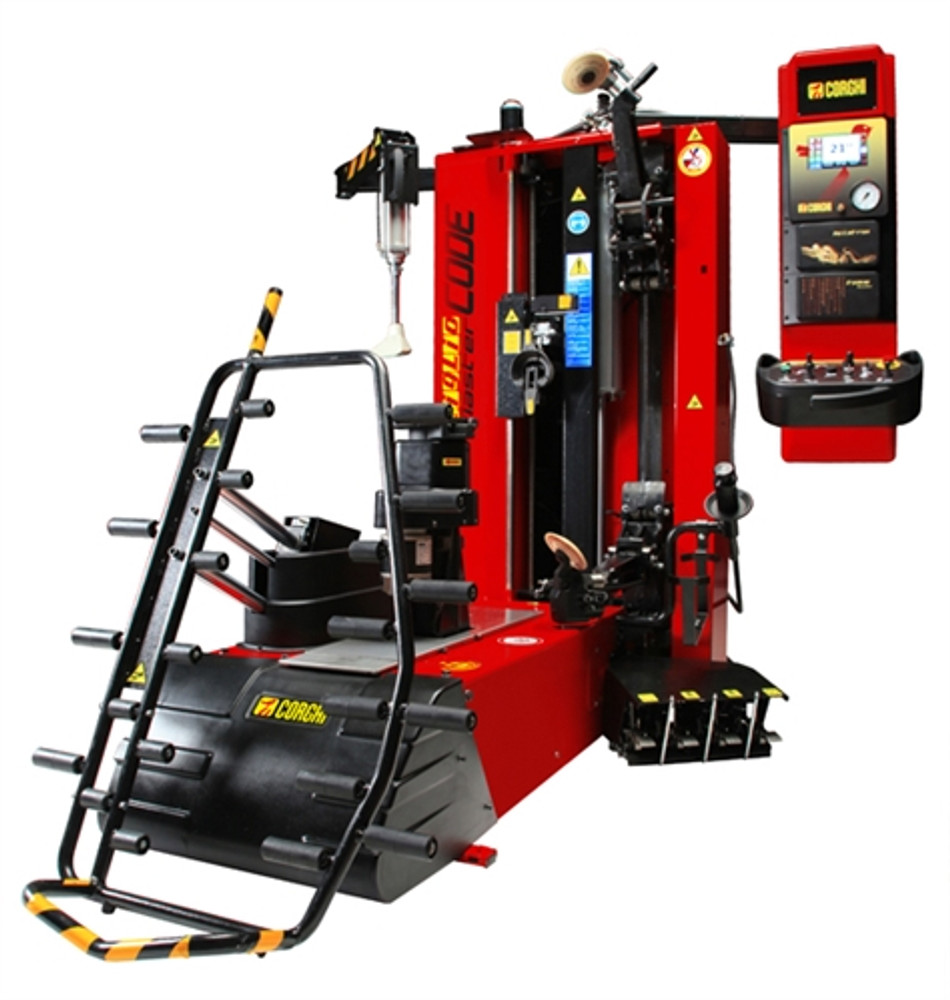

This latest creation from Corghi—The Only Innovator in the Tire Changer Segment—makes work safer, simpler, and quicker for the tire service professional while ensuring total protection for the rim and tire. With a weight of 1,312 lbs and compact dimensions of 72.5" H x 69.3" W x 86" D, the MasterCode Basic fits into busy shops while delivering unmatched performance and reliability.
Note: The manufacturer reserves the right to modify the features of its products at any time.
Limited Warranty
General Terms
Corghi USA expressly warrants its products will be free from defects in material and/or workmanship for the time period specified. Corghi USA must be informed in writing within 7 days after discovery of a defect. Corghi USA reserves the right to repair or replace a product at our discretion. Consumable products and accessories such as but not limited to; plastic protection parts, bead breaker pads, inflation hoses, and rollers, are not covered under this warranty.
This warranty does not cover any damage resulting from abuse or failure to perform any necessary maintenance (i.e. damage due to or resulting from, faulty installation, neglect, misuse, improper electrical connections or electrical surges, problems resulting from excessive water, contaminated air system, or pollutant of any nature, fire or freight damage).
AM50, AM500, AM5000, Master J, Master Code, Master28
NOTE: Rubber Pads, air lines, gauges, mount/demount heads, and swabs - 90 day warranty
Disclaimer & Limitation on Liability
Corghi USA agreement to repair a tire changer or balancer is expressly in lieu of all other warranties, express, implies or statutory, including any warranties for merchantability and fitness for a particular purpose. Corghi USA maximum liability shall be limited to the cost of the machine. In no event shall Corghi USA be responsible for owner’s lost profits, goodwill or other incidental or consequential damages. Corghi USA is not responsible for equipment or accessories damages in shipment. Freight claims are to be made directly with the carrier. We will be more than happy to assist you with any questions regarding filing claims.
To View or Download Corghi Full Warranty Information Click Here
