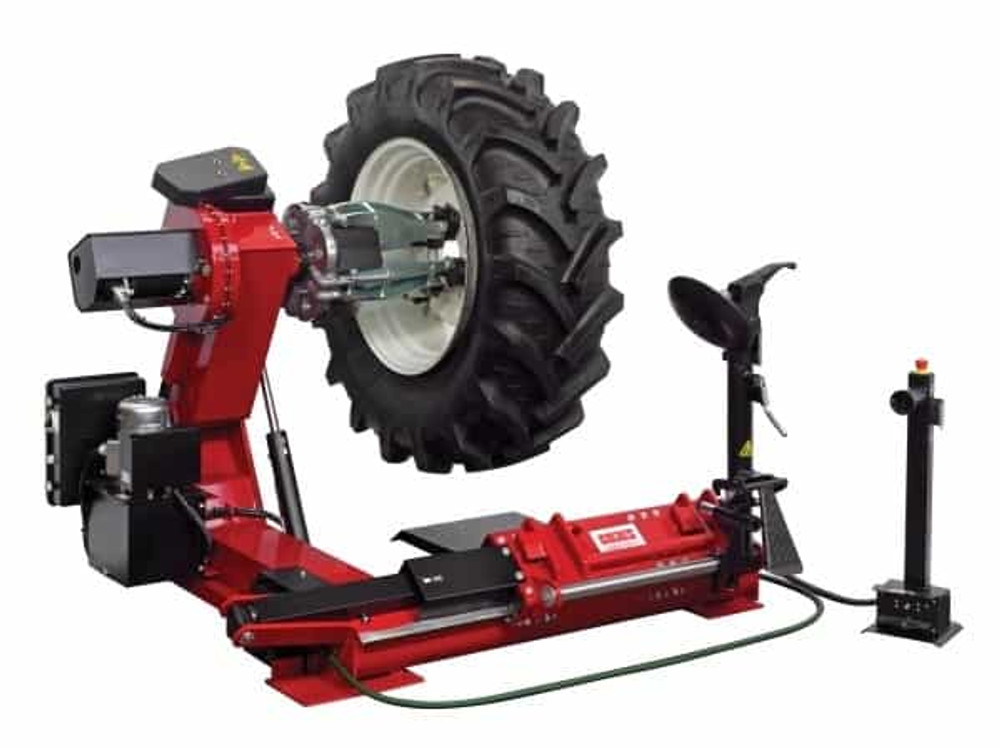

The COATS® CHD-9041 represents the pinnacle of heavy-duty tire changing capability, engineered specifically for moderate to high-volume shops, commercial fleets, and agricultural operations where tire fitments vary dramatically from day to day. This powerhouse machine handles an extraordinary range of applications with its extended capacity four-jaw chuck and open frame design, making wheel movement effortless while delivering the clamping force and torque needed for the most demanding jobs.
Built to tackle massive tires with confidence, the CHD-9041 accommodates tire diameters up to 90.5 inches and widths up to 42 inches, working seamlessly with rims ranging from 14 inches to 46 inches (expandable to 56 inches with optional clamping extensions). Whether you're servicing Budd and Dayton wheels, tube or tubeless configurations, or heavy agricultural equipment, this tire changer delivers the versatility and muscle your operation demands.
The CHD-9041 is designed around serious capability. Its 4-jaw chuck system provides 10,362 lbs of clamping power and delivers an impressive 5,262 ft-lbs of maximum chuck torque, ensuring secure control of even the heaviest wheel assemblies up to 3,300 lbs. The chuck rotation operates at a variable 5-11 rpm, powered by a robust 1.7-2.4 HP motor, giving operators precise control during mount and demount operations.
The machine features a side-mounted moving table with clamp arm lifting for efficient wheel handling, while the hook and roller mount/demount system on a reversible mount provides flexibility across different tire types. The foot-release, permanently-mounted tool head offset keeps operators in control with hands-free operation when needed, improving both safety and workflow efficiency.
Powered by 208-230VAC, 3-phase, 60Hz electrical service with a 15-amp requirement and a 2 HP hydraulic motor, the CHD-9041 delivers consistent industrial-grade performance shift after shift. Despite its power, the machine operates at less than 70 dBA acoustic pressure, maintaining a more comfortable work environment.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
At 1,874 lbs and measuring 88"(W) × 79"(D) × 59"(H) at maximum extension, the CHD-9041 is a substantial machine built to last in demanding commercial environments. Its robust construction and industrial-grade components ensure reliable performance year after year, while the open frame design provides unparalleled access and visibility during tire service operations.
When your shop services everything from medium commercial trucks to massive agricultural equipment, the COATS® CHD-9041 Heavy-Duty Tire Changer delivers the range, power, and reliability you need to keep operations running smoothly. Step up to a full range of fitment solutions with a machine engineered to handle it all.
