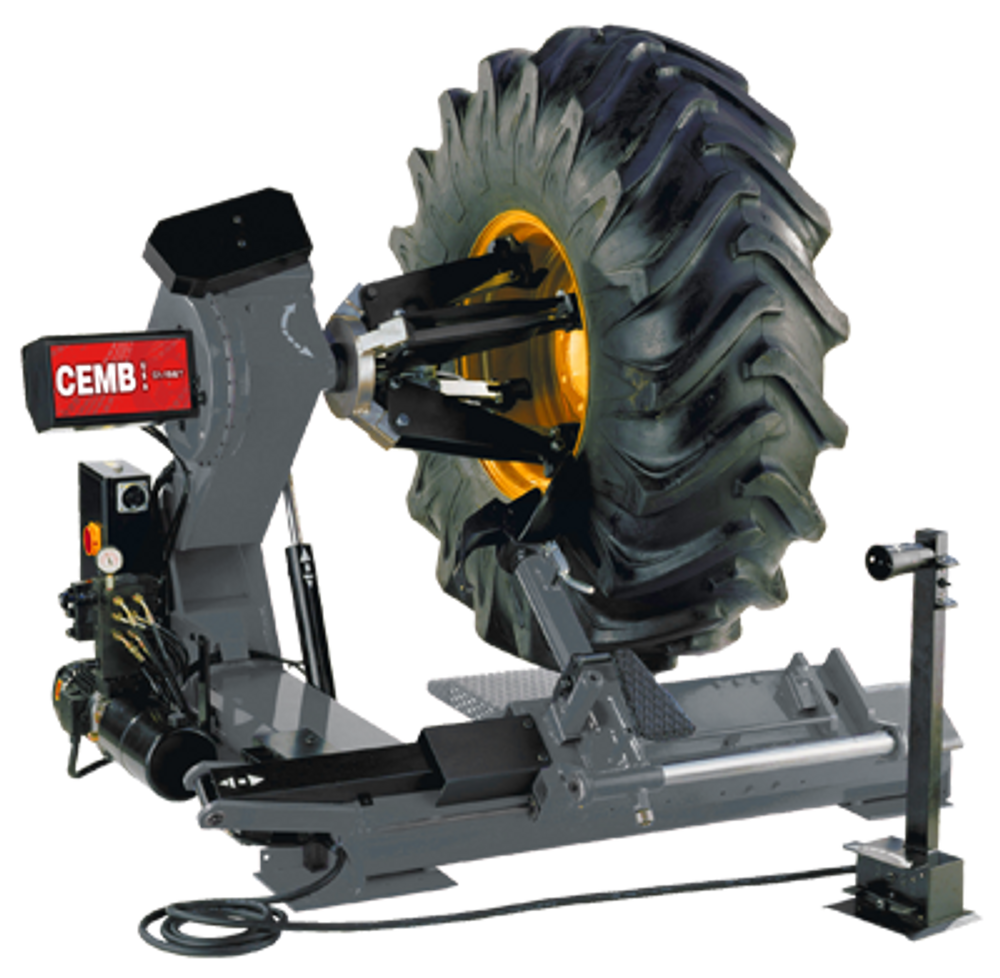

The CEMB SM56T is a professional-grade heavy-duty tire changer engineered specifically for truck, bus, agriculture, and earth moving vehicles. Built to handle the most demanding tire service applications, this robust machine features a self-centering four-jaw clamping system with a wheel clamping range from 14" to 46" (expandable to 56" with optional accessories), a maximum tire diameter of 63", and maximum tire width of 42". Perfectly suited for both tube and tubeless tires used on heavier off-road farm and commercial use tractors, the SM56T delivers 6,000 lbs. of bead breaker force and is final assembled and tested in the USA.
To View the 25 Things You Didn't Know about CEMB® Click Here.
The CEMB SM56T stands out as the ideal solution for shops servicing large commercial vehicles, agricultural equipment, and earth moving machinery. Nominal HD truck wheel service ranges from 15" to 24.5" rims, covering the vast majority of heavy truck and trailer applications in today's fleets. The machine's self-centering four-jaw clamping system not only securely grips the wheel but also doubles as a wheel lift, streamlining the entire service process and reducing physical strain on technicians.
With bi-directional rotation controlled by a simple-to-use hand-held portable control unit, operators gain complete access to multiple areas around the tire and wheel during service. This portable control design is essential for tire bead lubrication, demounting, and mounting operations, allowing technicians to move freely around the large tires while maintaining full operational control. The machine operates on a heavy-duty 220VAC, 3-phase, 50/60 Hz high torque motor that delivers reliable performance even under the most demanding workloads.
The CEMB SM56T includes a comprehensive set of standard accessories designed to help you service a wide variety of wheel and tire combinations right out of the box. From specialized mounting tools to protective equipment, CEMB ensures you have everything needed for professional tire service on heavy-duty vehicles.
Click on Image to Download or Enlarge Standard Accessories List:
Built to industrial standards, the SM56T features a robust construction with shipping dimensions of L63" x W53" x H46" and a shipping weight of 2,000 lbs. (907 kg). The machine operates on 220VAC, 3-phase, 50/60 Hz power and is capable of inflating tires with air pressure from 0 to 1,885 psi (0-130 bar), accommodating high-pressure commercial tire applications with ease.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Choosing the right tire changer for your shop's specific needs is critical. CEMB offers a full range of tire changing equipment for different applications. To view or download the complete Tire Changer Comparison Chart, click here.
Professional Heavy-Duty Performance
The CEMB SM56T is engineered for high-volume commercial shops servicing trucks, buses, agricultural equipment, and earth moving machinery. With its 6,000 lbs. bead breaker force, portable hand-held control, and self-centering four-jaw clamping system, this tire changer delivers unmatched productivity and operator convenience for the toughest tire service jobs.
