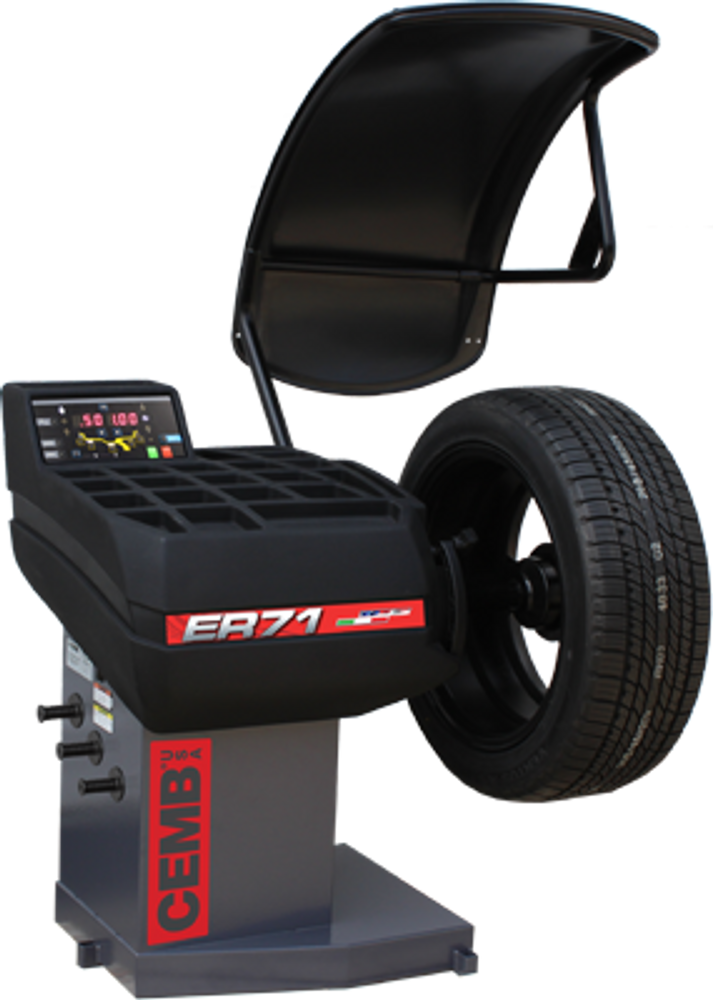

The CEMB ER71 is a professional-grade, compact space-saver wheel balancer engineered to deliver precision, speed, and reliability in environments where floor space is at a premium. Featuring laser line weight spotting technology, an automatic 2D inner data entry arm, and an impressive 5-second average cycle time, the ER71 makes short work of even the most demanding balancing jobs. With a balancing accuracy of less than 0.1 oz and the ability to handle wheels up to 40" diameter and 165 lbs, this motorized balancer is built to serve high-volume shops, dealerships, and tire centers that need a reliable, easy-to-use machine that doesn't sacrifice capability for compact size.
Designed with a simple, intuitive interface and a multi-function display, the ER71 eliminates the confusion of excessive balancing modes by using direct measure input. The result? Faster workflows, fewer operator errors, and consistent, accurate results every time. Whether you're working with steel wheels, alloy rims, or custom spoke designs, the ER71's guided weight placement, ALU mode, and hidden spoke capability make it the perfect all-in-one solution. It arrives fully assembled and tested, combining Italian engineering with final assembly and quality control in the USA.
Discover What Makes CEMB® Stand Out
To view the 25 Things You Didn't Know About CEMB®, click here.
The CEMB ER71 is ideal for shops that need maximum performance in minimal space. This motorized balancer combines a robust, high-quality design with extremely accurate balancing, all wrapped in a compact frame perfect for tight service bays. It handles rim diameters from 10" to 30" and rim widths from 1.5" to 20", with a maximum tire diameter of 40 inches and wheel weight capacity of 165 lbs. Its 40mm shaft size and included 3 cone passenger car–light truck kit (1.7" to 4.3") ensure compatibility with a wide range of vehicles.
With a balancing speed under 100 rpm and an average cycle time of just 5 seconds, the ER71 keeps your workflow moving. Its balancing accuracy of less than 0.1 oz (less than 1 g) ensures every wheel is perfectly balanced, reducing vibration, tire wear, and customer comebacks. The machine operates on 110VAC / 50/60 Hz / 1 ph power and performs reliably in temperatures from 32°F to 113°F (0°C to 45°C).
Automatic Approach: Once the measuring cycle is complete, the wheel automatically stops approximately 15 degrees from the exact point of weight application. This intelligent positioning allows the operator to place the counterweight accurately with minimal wheel movement, speeding up the process and reducing operator fatigue.
Virtual Sonar Technology: The ER71 features Virtual Sonar, CEMB's innovative 3D wheel measurement software. Even without a physical sonar device, Virtual Sonar intelligently detects rim width by using the automatic gauge to measure the first correction plane, then calculates the position of the external plane based on measured unbalance and the tolerance determined by the AutoAdaptive mode. This eliminates guesswork and streamlines the setup process.
Laser Line Weight Spotter: With the wheel locked securely in position via the electric foot brake, the laser line projects precisely where to place weights on the rim. This visual guide guarantees easy, extremely quick, and highly accurate weight placement—no more second-guessing or trial and error.
Direct Measure Input & Automatic 2D Data Entry: The automatic inner data entry arm (2D) captures wheel dimensions directly, eliminating the need for excessive balancing modes and manual data entry. Combined with guided weight placement, ALU mode, and hidden spoke mode, the ER71 adapts to any wheel type—whether steel, alloy, or custom spoke—ensuring perfect results every time.
Static Residual Force Minimization Software: Advanced software reduces static imbalance and residual forces, delivering smoother, more accurate balancing for improved ride quality and customer satisfaction.
The foot brake wheel hold and quick-clamp wing nut make wheel mounting and dismounting fast and secure, while the multi-function display keeps all critical information at your fingertips.
