Supersedes ER100 EVO
To View the 25 Things You Didn't Know about CEMB® Click Here.

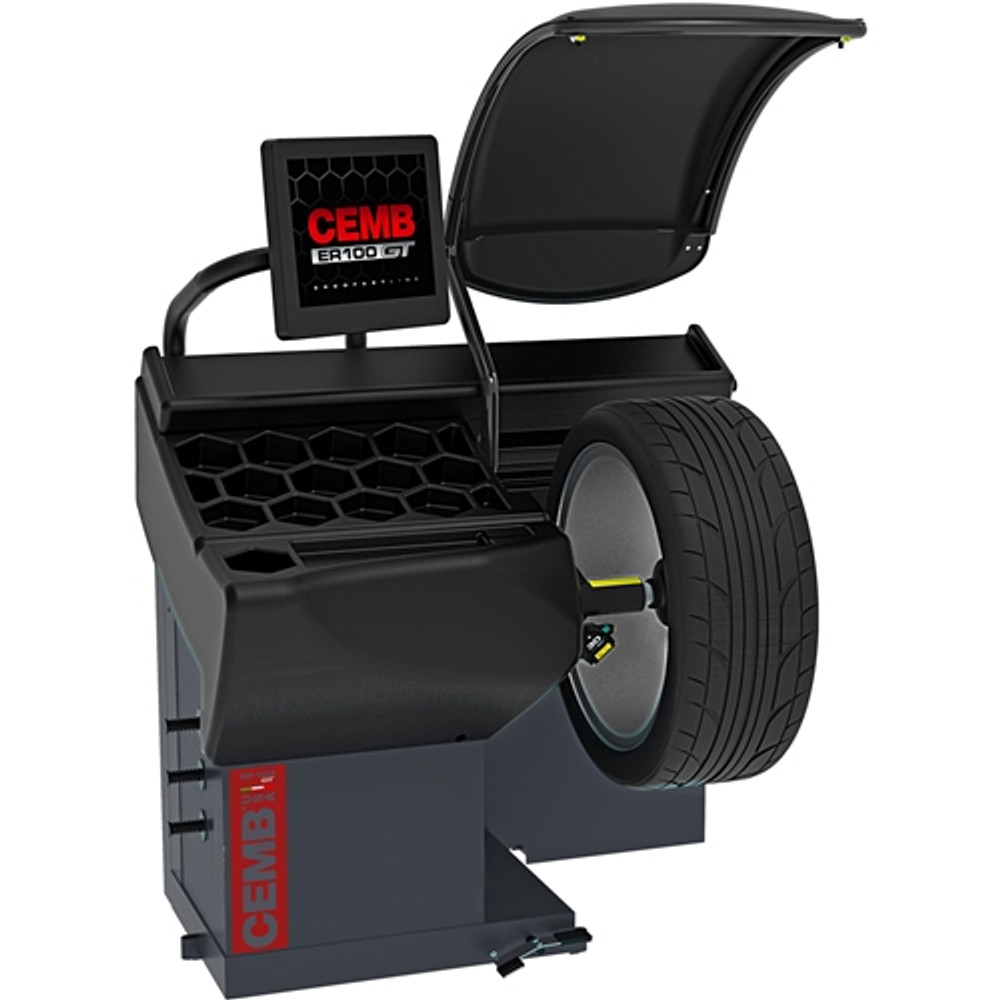

The CEMB ER100GT HubMatch® represents the pinnacle of automatic diagnostic wheel balancing technology. Completely renewed from its predecessor, this top-of-the-range balancer revolutionizes shop efficiency with an average 6-second cycle time that includes automatic RFV (Radial Force Vectoring) and wheel scanning performed simultaneously during the balance cycle. Without any manual intervention from the operator, the ER100GT automatically detects all wheel dimensions, unbalance, internal and external wheel and rim eccentricity, tread-depth, and continuity—delivering comprehensive diagnostics in a single, lightning-fast operation.
Engineered with CEMB's innovative AutoAdaptive Mode software, this balancer intelligently acquires each wheel's weight and dimensions, then recalculates the tolerance value to cancel any vibration perceived on the steering wheel. The result is the greatest possible driving comfort and dramatically reduced comebacks. Combined with CEMB's OPB (One Plane Balancing) program, 3D Laser Scan technology, and the groundbreaking HubMatch® system—which clocks the RFV highpoint of the assembly to the vehicle hub before mounting it at the 12 o'clock position—the ER100GT guarantees significant time savings during every balancing process. The machine also includes TDC Laser (Top Dead Center) for precise steel rim measurements. Proudly Made in Italy & Assembled in the USA, this balancer is built to deliver world-class performance for high-volume shops and dealerships demanding speed, accuracy, and advanced diagnostics.
The ER100GT is not just a balancer—it's a complete wheel diagnostic workstation. The machine's integrated diagnostic suite includes:
Equipped with CEMB's patented Pneumatic Wheel Locking system, the ER100GT provides extremely easy and quick wheel clamping while ensuring accurate wheel centering every time. This pneumatic clamping technology eliminates the variability of manual tightening and dramatically speeds up wheel mounting and removal. An electric brake wheel locking system locks the wheel in the correct position by means of an electromagnetic brake, ensuring the wheel remains perfectly stationary during measurement for maximum accuracy.
The ER100GT is built to handle the most demanding wheel assemblies with ease:
Powered by 220V / 1ph with air supply required, the ER100GT is engineered for high-volume professional shop environments where speed, precision, and diagnostics are non-negotiable.
Unmatched Speed & Efficiency:
With 6-second cycle times and 33% time savings from dynamic OPB, the ER100GT balances more wheels per hour than any other machine in its class—without sacrificing diagnostic depth or accuracy.
Complete Diagnostic Confidence:
Automatic RFV, eccentricity measurement, conicity detection, and tread depth ensure you catch problems before they become comebacks—all in a single spin.
HubMatch® Technology:
Eliminate vibration at the source with guided on-car eccentricity cancellation—the only system that shows you exactly how to mount the wheel for zero steering wheel shake.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
