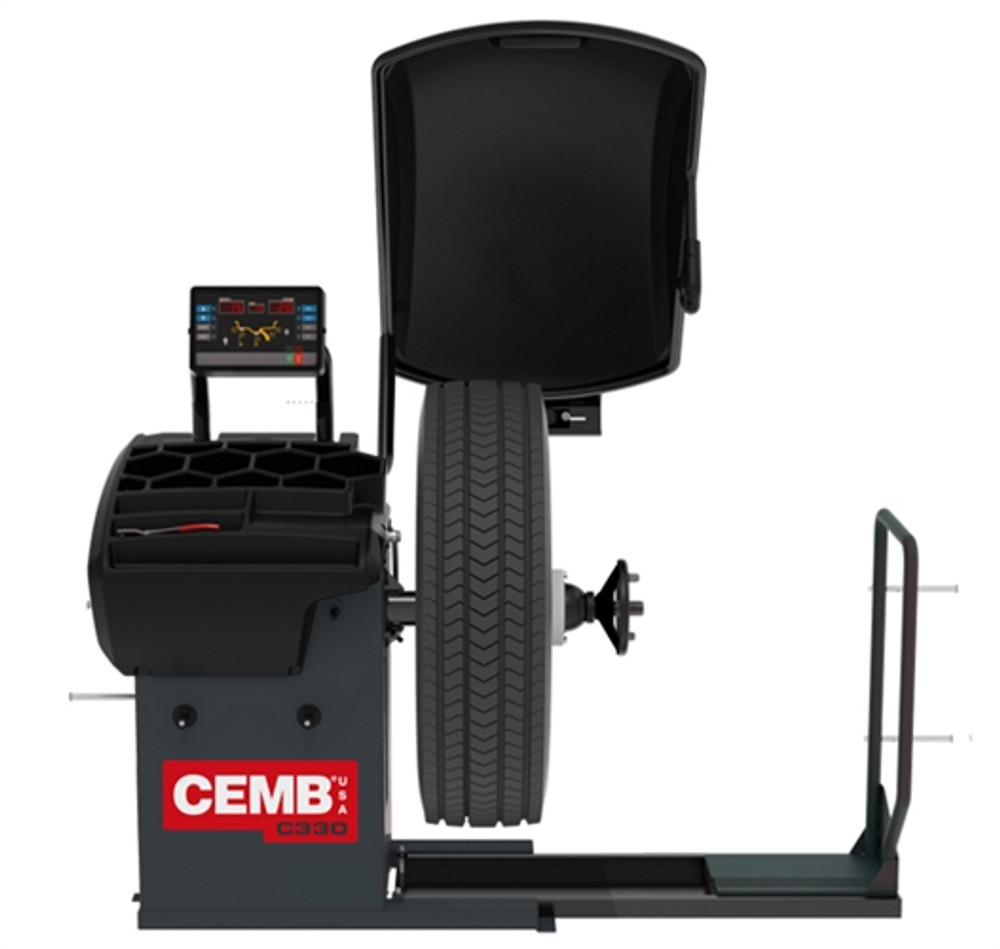

The CEMB C330 represents the pinnacle of heavy-duty wheel balancing technology for professional truck, bus, and commercial vehicle service. This advanced digital wheel balancer is engineered to handle the toughest challenges in commercial tire service, accommodating wheels up to 550 lbs (250 kg) and tire diameters reaching 54 inches. Built with CEMB's renowned Italian engineering precision, the C330 delivers exceptional accuracy and efficiency for high-volume shops demanding professional-grade performance.

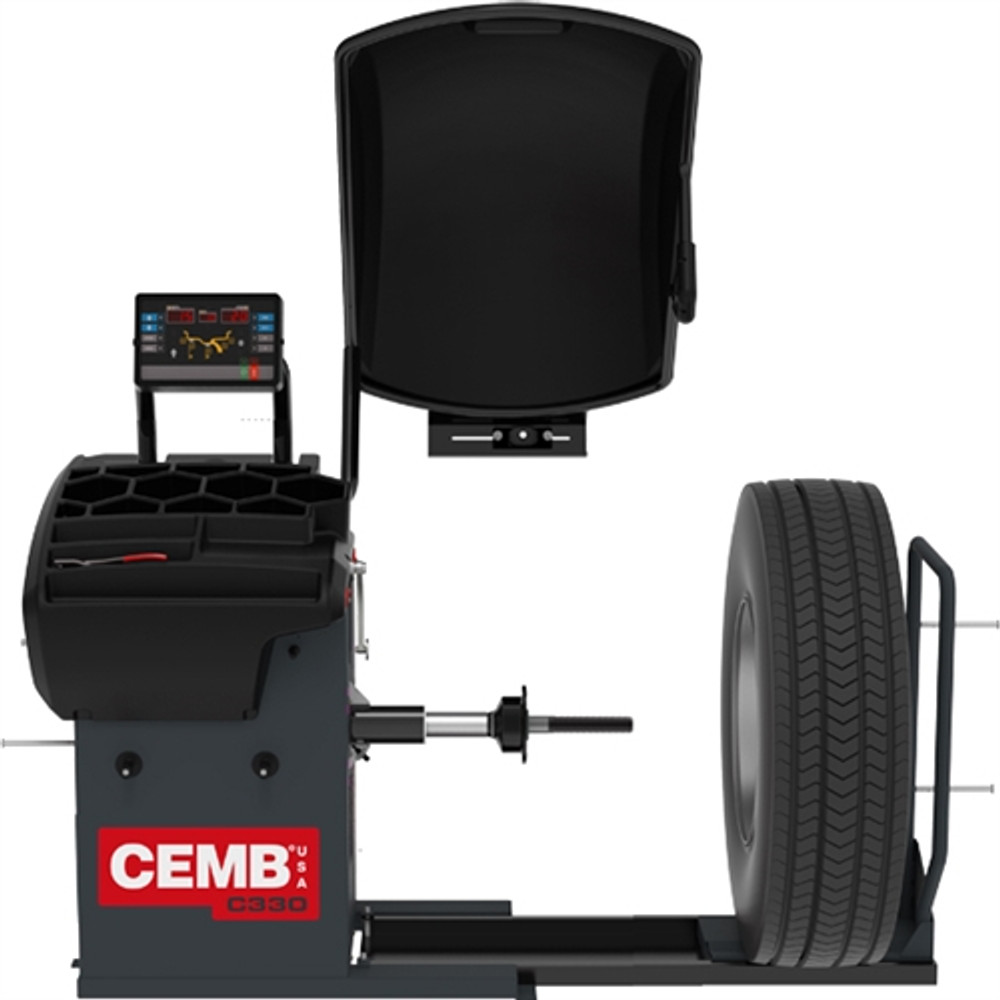

What sets the C330 apart is its innovative height-adjustable lifting spindle that revolutionizes the wheel loading process. The motorized spindle effortlessly rises and lowers, allowing operators to load even the heaviest truck and bus wheels with minimal physical strain while ensuring precise centering with minimal effort. This ergonomic design not only protects your technicians from injury but dramatically increases productivity by eliminating the awkward lifting and positioning traditionally required for large commercial wheels.
To View the 25 Things You Didn't Know about CEMB® Click Here.
The CEMB C330 is equipped with cutting-edge measurement and balancing technologies designed to streamline your workflow and enhance accuracy. The LA Sonar system provides contactless automatic wheel width measurement, eliminating manual gauge work and reducing cycle times. An integrated laser line facilitates precise positioning of adhesive counterweights at the 6 o'clock position, significantly increasing balancing accuracy and ensuring consistent, quality results every time.
The machine features an automatic extended gauge capable of measuring diameter and distance on rims up to 32 inches, with maximum rim width capacity of 20 inches (510 mm). This automatic measurement capability removes operator error from the equation and accelerates the setup process for each wheel.
An electromagnetic brake locks the wheel in the exact weight position during the balancing procedure, making weight placement faster and more accurate. Combined with the functional rotational weight tray that has been designed to maximize available workspace and keep your counterweights organized and accessible, the C330 provides an intuitive, efficient working environment that keeps technicians productive throughout their shift.

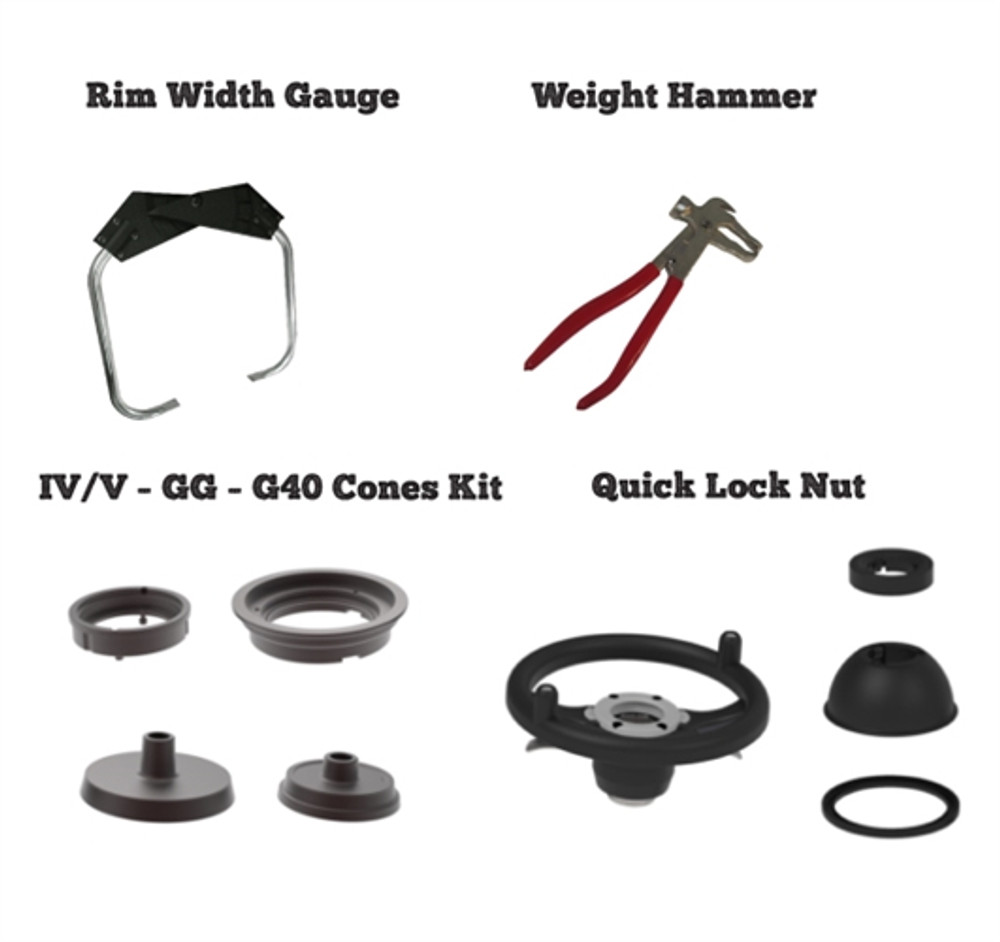

The CEMB C330 arrives as a complete balancing solution with all essential accessories included. Each unit ships with a rim width gauge, weight hammer for secure weight installation, a comprehensive IV/V - GG - G40 cones kit for versatile mounting options, and a quick lock nut for efficient wheel mounting and removal. This turnkey package ensures you have everything needed to begin balancing commercial wheels immediately upon installation.
With overall dimensions of 90.6" L x 53.6" W x 87" H and a gross shipping weight of 650 lbs, the C330 requires adequate shop space and proper installation planning. The machine operates on 230V, single-phase, 50-60 Hz power, ensuring reliable performance in professional shop environments.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
