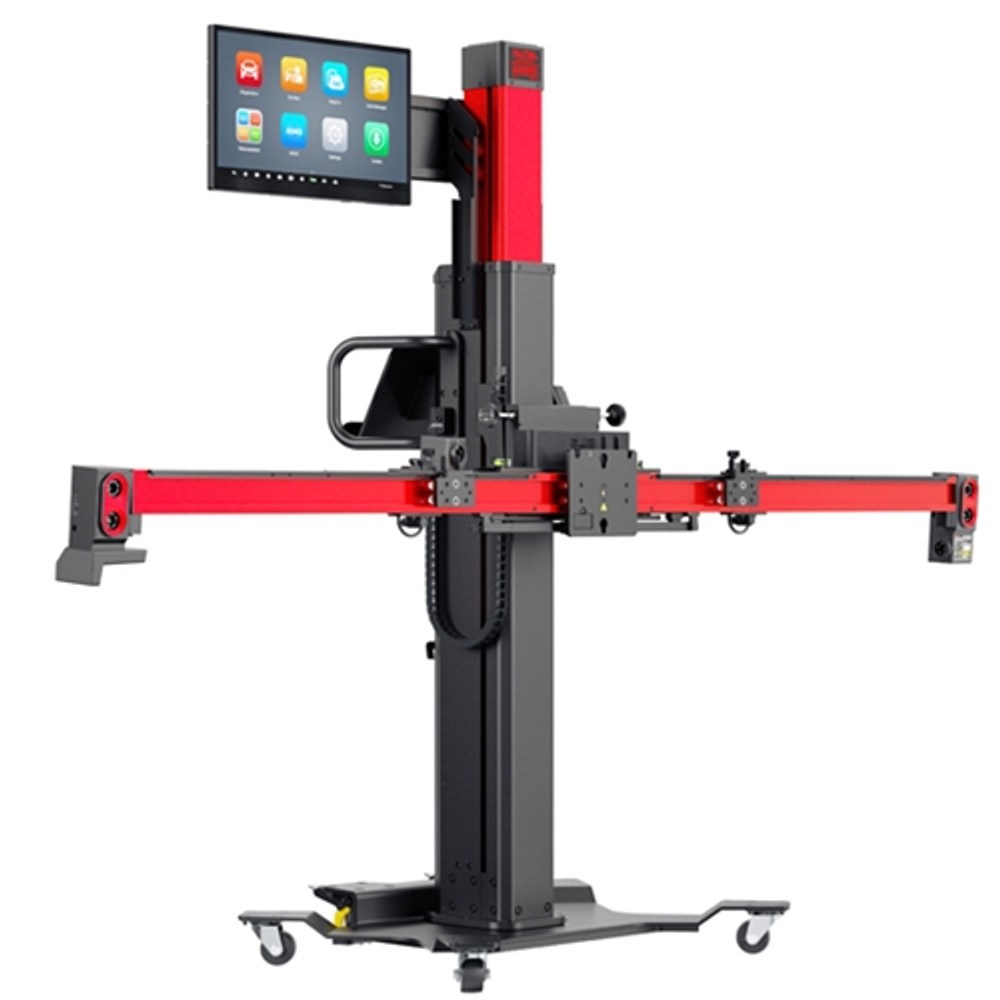

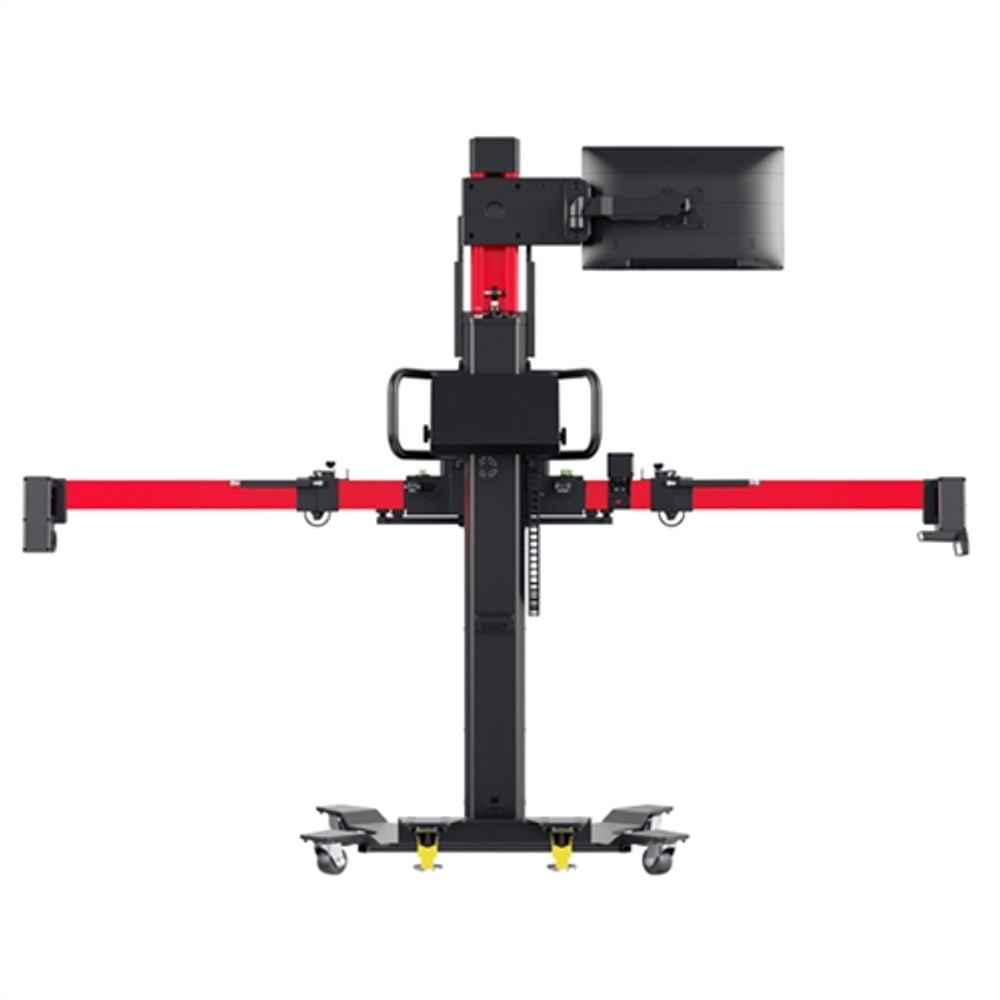

The Autel MaxiSYS ADAS IA900WA with LDW targets and ULTRAADAS tablet represents the pinnacle of professional automotive service technology, delivering a complete turnkey solution for modern shops ready to dominate the rapidly expanding ADAS calibration and alignment market. This is not just an alignment rack or a standalone ADAS system—it's an integrated revenue-generating platform that combines four-wheel alignment capabilities with comprehensive ADAS component calibration in one seamless, robotic-driven frame. With the included 12.9-inch MaxiSYS ULTRAADAS wireless touchscreen tablet preloaded with both Alignment and ADAS software, plus a dedicated 24-inch touchscreen display mounted directly to the frame for at-a-glance monitoring, you have everything required to perform precise alignments and critical safety system calibrations with speed, accuracy, and confidence.
This package includes factory Lane Departure Warning camera calibration targets and boards, enabling you to immediately service one of the most prevalent ADAS systems in today's vehicle fleet. The IA900WA frame is equipped with six high-resolution positioning and tracking cameras that continuously and automatically monitor vehicle height on your shop lift, ensuring real-time accurate measurements throughout the entire alignment process—even as suspension settles or adjustments are made. With robotic frame movement that positions itself automatically, the system delivers unmatched workflow efficiency and alignment reading accuracy to 0.02 degrees, guaranteeing OEM-level precision on every single job.
Comprehensive Vehicle Coverage & Professional Software Interface
The MaxiSYS ADAS IA900WA provides expansive alignment coverage for U.S., Asian, and European vehicles from 1996 and newer, ensuring your shop can confidently service virtually any vehicle that enters your bay—from classic domestic sedans to the latest European luxury models equipped with cutting-edge driver assistance systems. The intuitive MaxiSYS software interface monitors and displays alignment measurements in real time, presenting illustrated alignment instructions, live angle readings, required tools, and precise adjustment locations all on a single unified screen for maximum workflow efficiency. This integrated approach eliminates the need to flip between manuals, printouts, and screens, reducing alignment time while dramatically improving accuracy and technician confidence.
What truly sets the IA900LDWT apart is that Autel is a full diagnostic platform, not just an alignment tool. After performing a wheel alignment, the system can immediately scan the vehicle and identify which ADAS sensors require calibration, creating a seamless, profitable workflow from alignment to ADAS service without needing separate diagnostic equipment or sending the customer to another shop. This integration is a fundamental game-changer for shop efficiency, customer satisfaction, and revenue generation. You can identify additional calibration needs on the spot, quote the service, and complete it immediately—all within the same visit.
Unmatched Revenue Potential for Forward-Thinking Shops
The IA900LDWT system offers the best earning potential in its class, with revenue-generating capabilities that extend far beyond traditional wheel alignment. This is a true profit center for your business, with tools and features designed to uncover additional billable services during every vehicle inspection:
Tire Tread Inspection: Quickly identify uneven tire wear patterns that indicate the need for alignment services and tire replacement—turning every alignment into a potential upsell opportunity
TPMS Sensor Health Checks: Detect low TPMS sensor batteries during routine service and recommend immediate replacement with Autel 1 Sensor universal solutions, adding another revenue stream
Digital Inspection Reports: Document findings with photos and video evidence of worn suspension components, braking systems, steering parts, and other service items—building customer trust while selling more jobs during each visit
Step-by-Step Wheel Alignment Guidance: Complete procedural instructions with detailed photos and videos for every alignment, reducing training time and improving technician productivity
Steering Angle Sensor Calibration: Perform critical SAS calibrations immediately after alignment to ensure proper vehicle safety system operation
Seamless ADAS Calibration Integration: Scan and identify required ADAS calibrations post-alignment, then perform them on the same integrated platform using the included calibration targets—no need to invest in separate systems or refer customers elsewhere
Autel delivers the best ADAS coverage of any manufacturer operating in the United States, giving your shop a decisive competitive advantage. You'll be able to service more makes, models, and ADAS system types than competitors still relying on limited aftermarket solutions. This comprehensive coverage translates directly into more billable hours, increased customer loyalty, and the reputation as the go-to shop for advanced vehicle technology services in your market.
Complete Turnkey System—Everything Included

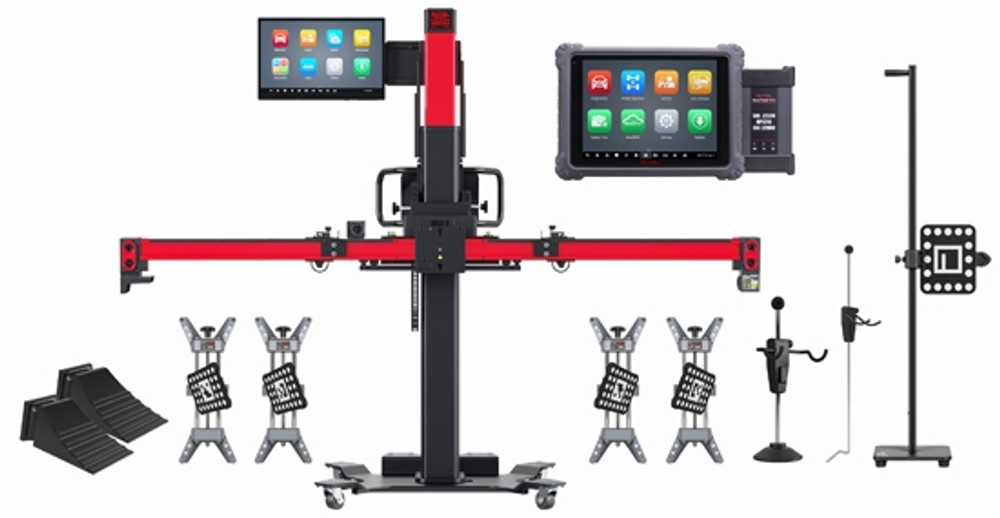

The IA900LDWT package arrives at your shop as a complete, ready-to-deploy professional system with every component you need to begin performing advanced alignments and ADAS calibrations immediately. This is a true turnkey solution engineered for professional automotive service facilities:
24-inch touchscreen display that mounts directly to the alignment frame unit, providing technicians with a large, easy-to-read interface for monitoring alignment angles and system status in real time
12.9-inch MaxiSYS ULTRAADAS wireless touchscreen tablet with preloaded Alignment and ADAS Calibration software, offering portability and full diagnostic capabilities anywhere in the shop
ADAS Lane Departure Warning camera calibration targets included in the package for immediate calibration of LDW systems on a wide range of vehicles
Four precision wheel clamps with integrated camera targets for accurate positioning, measurement, and alignment procedures
Steering wheel lock to securely maintain steering position during alignment and calibration procedures
Wheel chocks for safe vehicle stabilization on the lift during service
Every component is precision-engineered to work together seamlessly as part of an integrated system. The IA900LDWT is backed by a one-year limited warranty for peace of mind and investment protection. With robotic frame movement powered by advanced servo motors and controlled by intelligent software, the system automatically positions itself for efficient operation and delivers consistent, repeatable accuracy across every alignment job—minimizing technician effort while maximizing throughput and precision.
The system ships in two packages for delivery: Package 1 measures 86" H x 52" L x 42" W and weighs 655 lbs, while Package 2 measures 48" H x 59" L x 44" W and weighs 440 lbs. Professional installation is recommended to ensure proper setup and calibration of all system components.
Key Competitive Advantages at a Glance
Dual-purpose professional frame performs both precision 4-wheel alignment and comprehensive ADAS calibration on a single integrated platform—eliminating the need for separate equipment investments
Alignment accuracy to 0.02 degrees ensures OEM-specification precision results for every vehicle, every time, with automated robotic positioning
Full diagnostic capabilities built into the MaxiSYS platform identify additional revenue opportunities during every alignment—from TPMS sensors to suspension wear to ADAS calibration needs
Industry-leading ADAS coverage for U.S., Asian, and European vehicles spanning decades of model years—service more vehicles than your competition
Robotic frame movement with six high-resolution cameras for fully automated, highly accurate operation that reduces technician workload and improves consistency
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
IA900 Series System Comparison Reference
Compare all available Autel IA900 series configurations to find the perfect solution for your shop's specific needs, budget, and service mix. The comprehensive comparison chart below details the differences between models, included targets, software packages, and capabilities. Click the image to download a full-resolution PDF or enlarge the chart for easier viewing:
Click image to view full-size comparison chart (PDF available)
