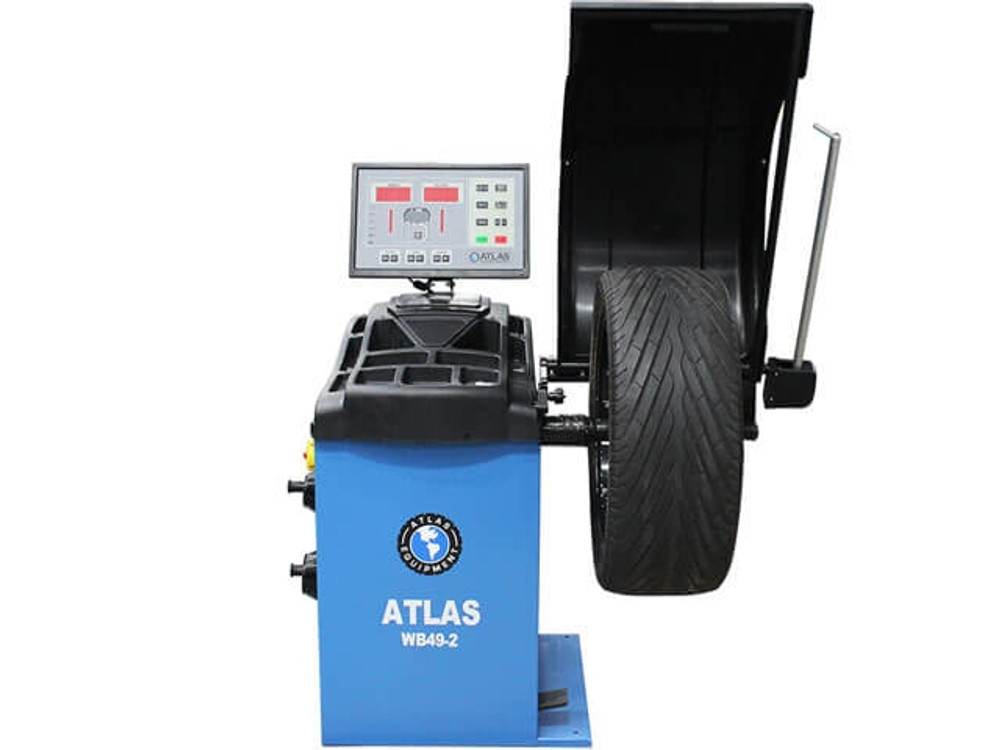

The Atlas® WB49-2 Pro represents the pinnacle of precision wheel balancing technology for professional automotive shops. Building on the proven performance of the WB49-2 platform, this fully automatic 3D computer wheel balancer delivers exceptional accuracy, unmatched ease of use, and incredible time savings through complete automation of the data entry process. If you demand the best balancing results with the fastest workflow, the WB49-2 Pro is your solution.
To view or download the Quick Start Guide, click here.
Complete 3D Automation for Maximum Efficiency
The Atlas® WB49-2 Pro incorporates all the advanced features of the highly regarded Atlas® WB41 computer wheel balancer—and goes significantly further. This is the ultimate upgrade for shops that want to eliminate manual data entry completely. Where other balancers require you to manually input rim width, diameter, or offset, the WB49-2 Pro does it all automatically with its innovative dual measuring arm system.
The inner measuring arm automatically captures rim offset and diameter as you position the wheel, while the outer measuring arm precisely measures rim width. This fully automatic 3D data entry means you simply mount the wheel, lower the hood, and let the balancer do the rest. The result? Faster turnaround times, fewer operator errors, and consistent, repeatable accuracy on every single wheel.
Advanced Features for Professional Results
Beyond the time-saving automation, the WB49-2 Pro packs a host of premium features designed to deliver the highest quality balancing work. The Split-Weight Function allows you to discreetly position balance weights behind wheel spokes for a clean, professional appearance that your customers will appreciate. An automatic LED light illuminates the inside of the rim exactly when you need it—making weight placement faster and more accurate, especially on dark or complex wheel designs.

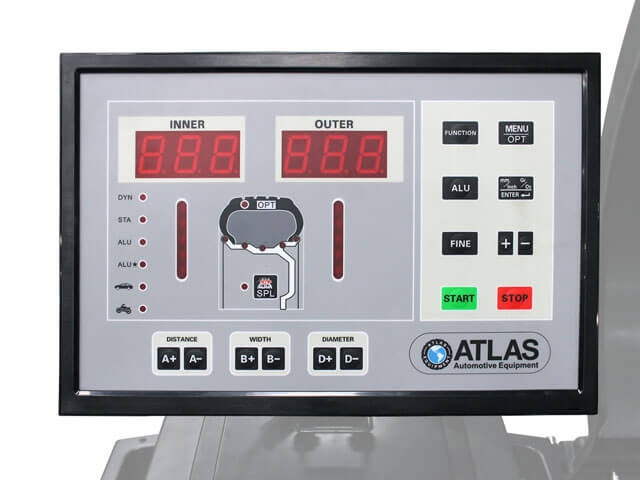

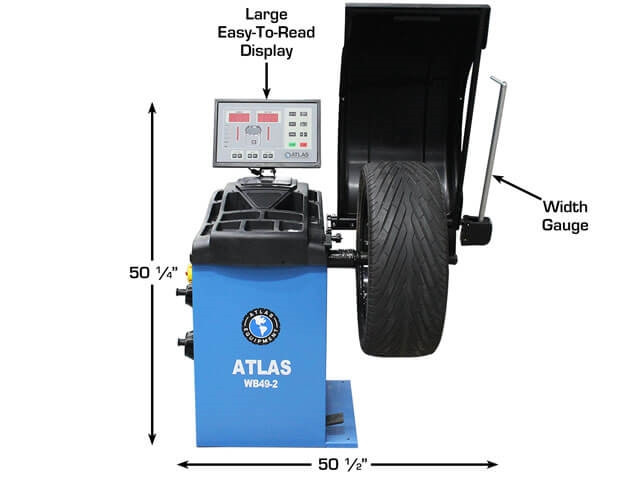

The balancer features a higher, easy-to-read display that presents data clearly in either standard or metric units (grams or ounces, mm or inches). The large weight tray keeps all your balance weights organized and within easy reach. With automatic positioning that shows you exactly where to apply weights, automatic and pedal-operated brake, and automatic start/stop when the hood is lowered or raised, every step of the balancing process is streamlined for maximum productivity.
The WB49-2 Pro also features self-calibration and self-diagnosis capabilities, ensuring that your balancer maintains peak accuracy over time with minimal intervention. The unit offers both static and dynamic balancing modes, as well as rapid optimization (OPT) for fine-tuning balance results. With exceptional stability in reading the unbalance between planes and 1 gram accuracy with 1.4° weight position resolution, you can trust every balance to be precise and reliable.
Built for Versatility and Ease of Installation
Engineered to handle a wide range of wheel sizes, the WB49-2 Pro accommodates wheels from 10" to 32" rim diameter (for cars and light trucks), rim widths from 1½" to 20", and tires up to 39" in diameter. It can balance wheels up to 150 lbs. with confidence. The 40mm shaft size and ¼ HP motor spinning at 150 RPM provide smooth, stable operation on every spin. Note: Rims from 23" to 32" require manual input of some data.
One of the most appreciated features of the WB49-2 Pro is that it requires no anchor-down installation. This makes setup simple and allows you to reposition the balancer in your shop if needed. The unit operates on standard 110V / 1 phase power, making it compatible with virtually any shop electrical system. For shops that also service larger commercial vehicles, an optional truck adapter set is available to further expand the balancer's capabilities.
Why Choose the WB49-2 Pro?
Fully Automatic 3D Data Entry: Dual measuring arms eliminate manual input for offset, diameter, and rim width—saving time and reducing errors.
Superior Accuracy:1 gram precision and 1.4° weight position resolution ensure perfect balance on every wheel.
Self-Calibrating Technology: Maintains peak performance with minimal maintenance, plus self-diagnosis for troubleshooting.
Professional Features: Split-weight function, automatic LED lighting, rapid optimization, and both static and dynamic balancing modes.
No Anchor-Down Required: Simple installation and flexible shop placement—just plug in and start balancing.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Atlas® Automotive Equipment Large Truck Adapter Set - 40mm Shafts
The Atlas® large truck adapter set is needed to properly mount wheels with larger than normal center holes. The standard cone...
Atlas® Automotive Equipment 9-1/4" Hub Assembly Motorcycle Adapter MC Kit
To View or Download the Quick Start Guide
Click Here
The Atlas® MC adapter kit will allow your Atlas® (passen

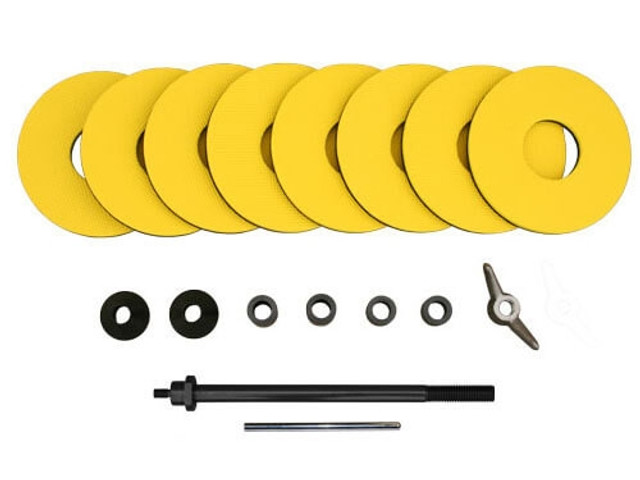

Atlas® Automotive Equipment 13-3/4" Hub Assembly Motorcycle Adapter MC-XLT Kit
