Transform your shop's heavy-duty tire service capabilities with this professional-grade combo package from Atlas® Automotive Equipment. The TTCWB-COMBO2 pairs the fully automatic TTC305 truck tire changer with the versatile WBT210 computer wheel balancer, delivering a complete solution for shops that handle everything from passenger cars to over-the-road semi-truck assemblies. Engineered through a prestigious collaboration between leading Italian and Asian wheel service manufacturers, this combo represents the pinnacle of durability, precision, and productivity for high-volume operations.
Atlas® TTC305 Automatic Heavy Duty Truck Tire Changer
Need help with installation? Our AI assistant has read this
installation manual and can help you find the right page and walk you through each step.

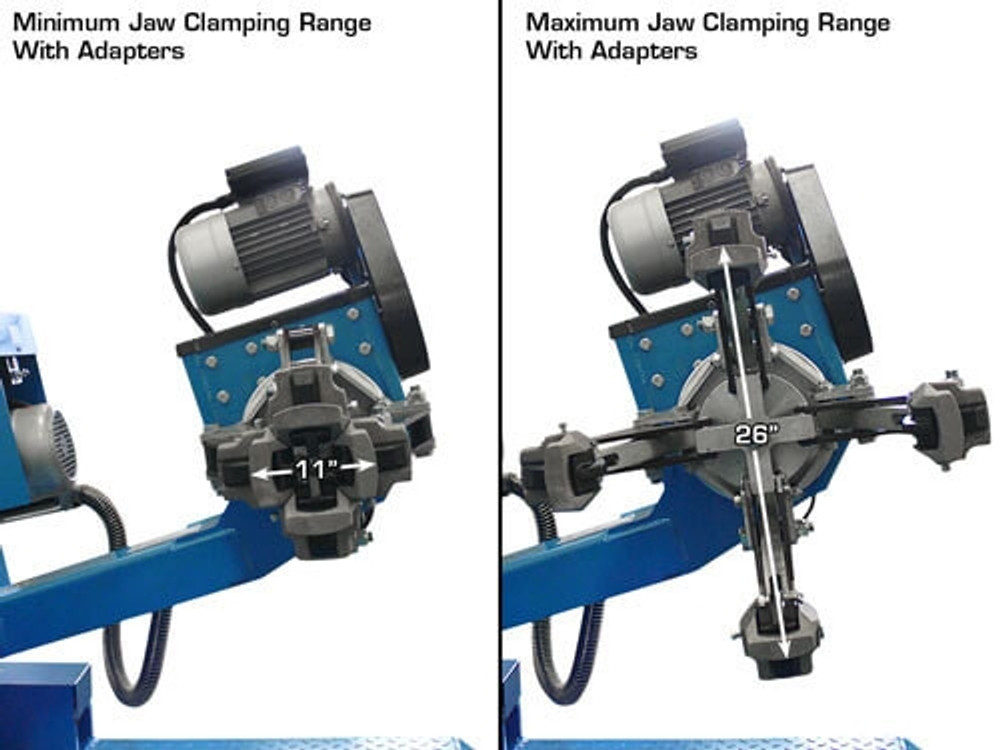

This heavy-duty Atlas® truck tire changer is precision-engineered to handle the toughest tire service jobs with ease. Designed to accommodate rim bore sizes from 8 inches to 26 inches (with adapters) and tire diameters exceeding 55 inches, the fully automatic TTC-305 makes quick work of wide-body tires up to 30.5 inches in maximum width. This automatic truck tire changer represents the result of a prestigious joint venture between Italy's most respected wheel service manufacturer and Asia's leading wheel service equipment producer, combining European design excellence with proven manufacturing quality.

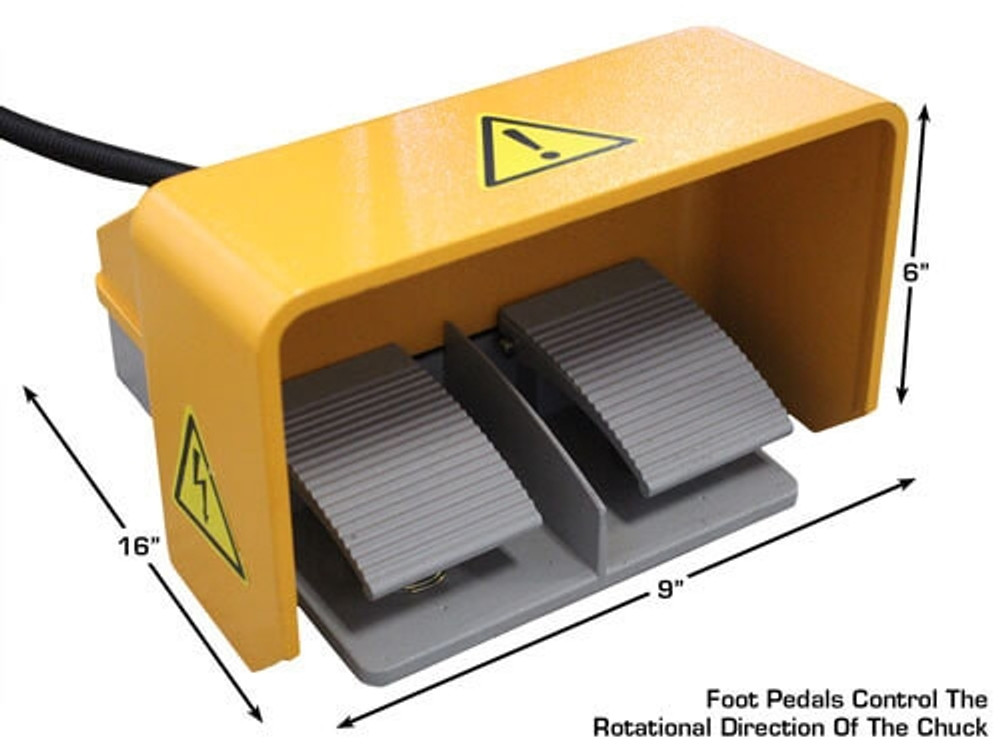

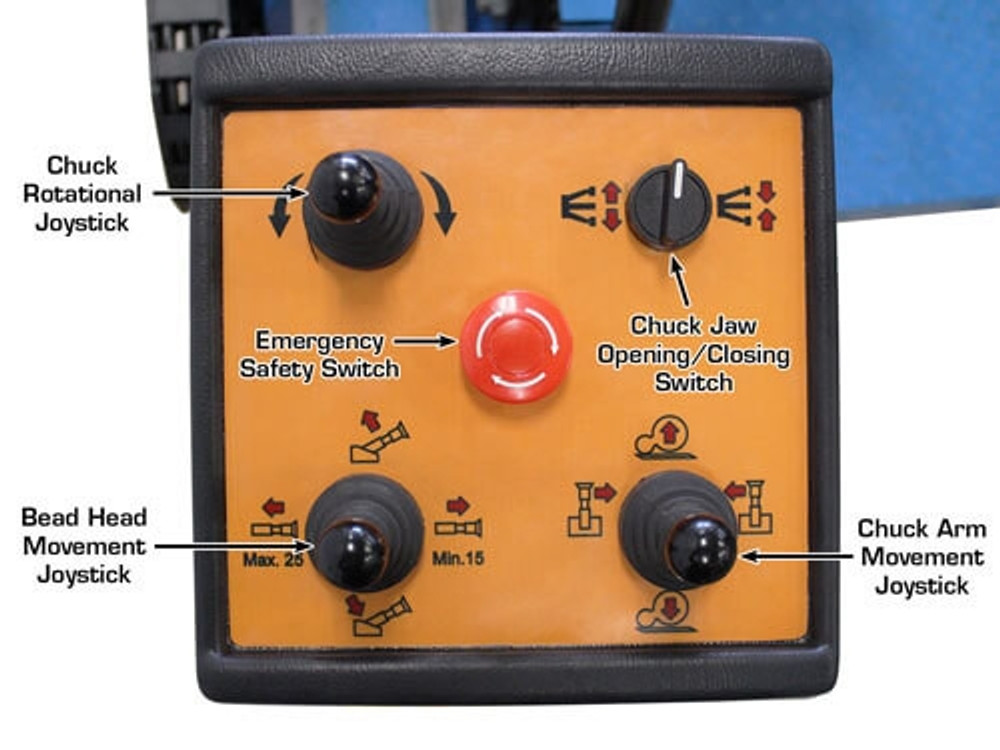

The TTC-305 truck tire changer features a sophisticated electric/hydraulic self-centering four-jaw chuck with five (5) different rim locking positions, delivering 6,600 lbs. of clamping power to securely hold wheel assemblies up to 838 lbs. The ergonomic toggle control panel and foot pedals provide complete command over the automatic operation of the tire changer. The main control panel allows the technician to manage the automatic movement of the chuck arm, the automatic positioning of the bead tool (raise and lower), and the automatic movement of the carriage to perfectly align the bead tool with the tire. The foot pedals provide intuitive control over the rotational direction of the chuck during operation.
The Atlas® TTC-305 comes equipped with both a standard mount/demount head and a super-fast roller head that can be swapped out in minimal time, giving operators maximum versatility for different tire types. The powerful bead breaker delivers 3,990 lbs. of force, making even the most stubborn beads yield without excessive effort. An emergency safety switch on the control panel can stop all functions immediately, ensuring operator safety at all times.
This is the perfect automatic tire changer for high-production shops that regularly service semi-tires, 19.5 tires, and forklift tires. Say goodbye to backbreaking work with tire irons and brute force! Watch the Atlas® TTC-305 eliminate the hard labor traditionally required for changing those oversized tires that exceed the capacity of standard passenger tire changers.
The Atlas® TTC-305 truck tire changer is built for high-volume truck tire shops that demand unwavering dependability and exceptional durability from their equipment. Constructed with a single-piece frame with solid floor-plate, this machine is engineered to withstand years of demanding commercial use. It's the perfect choice for large truck tire centers performing high-volume work on over-the-road wheel assemblies, where the automatic features drastically reduce the time required to mount and demount truck tires.
Powered by a robust 3 HP 220V chuck motor and a 2 HP hydraulic motor, both operating on single-phase power, the TTC-305 delivers reliable performance shift after shift. The unit operates at less than 70dBA acoustic pressure, maintaining a relatively quiet working environment despite its powerful capabilities.

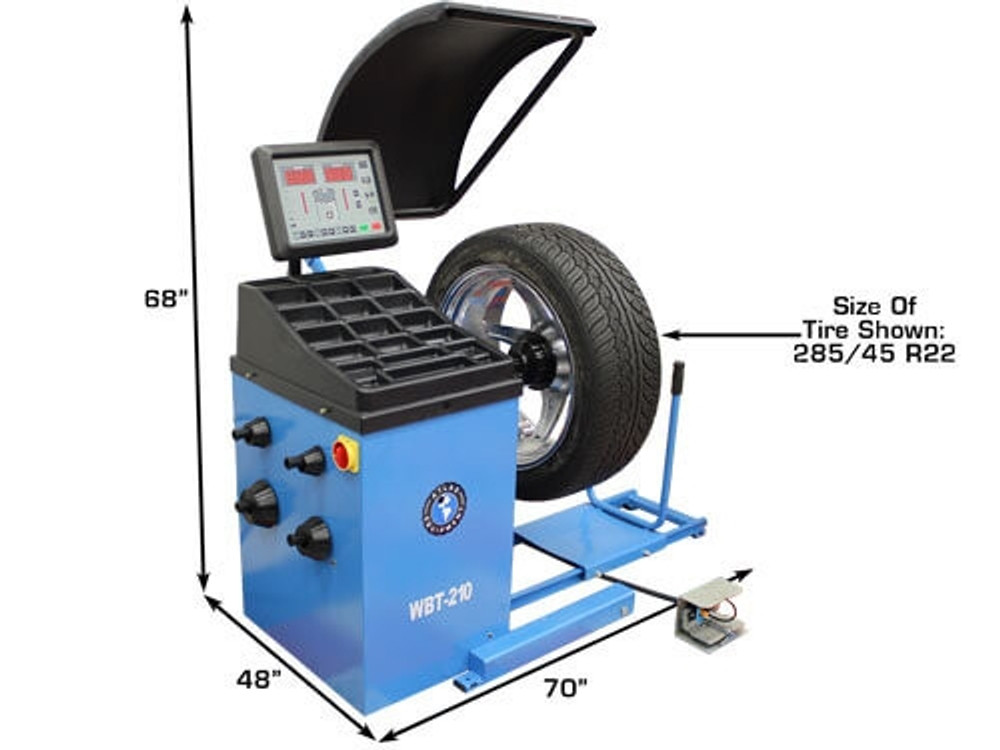

Atlas® WBT-210 Computer Truck Tire Wheel Balancer with Wheel Lift
The Atlas® WBT-210 truck tire wheel balancer delivers exceptional value as one of the most competitively priced large truck tire computer balancers on the market. Priced thousands of dollars less than Big Name brand truck tire wheel balancers, this unit offers the same level of accuracy and reliability that Atlas® is renowned for across its entire wheel balancer product line.
The Atlas® WBT-210 is the ideal wheel balancer for shops seeking one versatile machine that can balance everything from a 14-inch steel rim all the way up to and including a 300-pound semi-truck tire. This balancer easily handles the growing market of large 32-inch custom wheels and oversized "gumbo-mudder" tires that have become increasingly popular. With a maximum tire diameter capacity of 47 inches and maximum wheel weight capacity of 440 lbs, this machine covers an impressive range of applications.
The Atlas® WBT-210 is the perfect computer spin balancer for trucking companies and service centers that operate diverse fleets ranging from passenger cars to light trucks to over-the-road semi tractor/trailer rigs. The 40mm heavy-duty shaft accommodates standard mounting cones for most cars and pickup trucks, while several large truck adapters are included in the package to allow operators to mount and balance most Budd-style wheels commonly found on heavy-duty commercial vehicles.
The Atlas® WBT-210 combines simplicity with sophistication in its design. Each electrical component is virtually "plug and play," making repairs straightforward when it's time to replace parts. The balancer is capable of self-diagnosing problems and displays clear error codes, enabling operators to make necessary adjustments or repairs in-house. There's no need to wait for expensive service technician visits. The machine features self-calibration capability, ensuring consistent accuracy over time.
Operating at 150 RPM for Car Mode and 90 RPM for Truck Mode, the WBT-210 delivers impressive balancing speeds without sacrificing accuracy. The unit achieves 1g accuracy for Car Mode and 10g accuracy for Truck Mode, with a weight position resolution of 1.4°. The display can show measurements in standard or metric units, accommodating different operator preferences and international applications.
The simplicity of the Atlas® WBT-210, both in ease of use and ease of repair, makes this balancer the perfect choice for shops that value productivity, reliability, and long-term value. Powered by a 1/3 HP motor running on 220V single-phase power and requiring 115-145 PSI air supply, the unit integrates seamlessly into most shop environments.
Key Combo Package Highlights
Complete Tire Service Solution: Fully automatic tire changer paired with precision computer wheel balancer covers your entire heavy-duty tire service workflow
Exceptional Capacity Range: Handle everything from 14-inch passenger rims to 55-inch+ truck tires weighing up to 838 lbs
Powerful Automation:Automatic tool positioning, self-centering four-jaw chuck, and self-calibrating balancer dramatically reduce labor time and operator fatigue
Shop-Friendly Diagnostics: Self-diagnosing components and plug-and-play design minimize downtime and eliminate expensive service call costs
Unbeatable Value:Professional-grade performance at thousands less than competing brands — the smart investment for high-volume operations
What's Included in the TTC305 Package
Mobile Cable Control for operator convenience
Mobile Cable Unit with ergonomic design
Full set of mounting/demounting accessories
Standard mount/demount head and super-fast roller head
What's Included in the WBT210 Package
Cone sets for car and light truck tires
Cone and spacer set for truck, bus, or implement tires
Quick release nut for fast wheel changes
Heavy-duty steel wing nut
Protective hood for operator safety
See the Atlas® Equipment in Action
Watch these demonstration videos to see the TTC305 automatic truck tire changer and WBT210 wheel balancer in operation:
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
