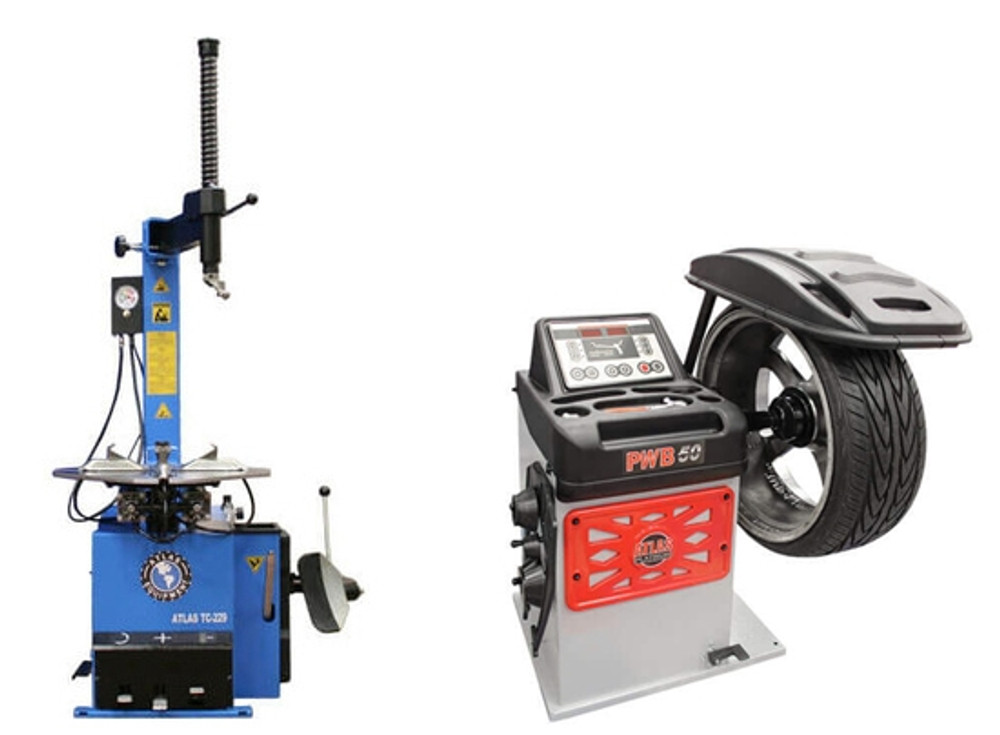

This complete tire service combination package pairs the Atlas® TC229 rim-clamp swing arm tire changer with the advanced Atlas® Platinum PWB50 computerized wheel balancer. Engineered for farms, homeowners, and automotive shops of all sizes, this powerful duo delivers professional-grade tire changing and balancing capabilities at an exceptional value. Both machines operate on 110V power, both are CE approved for safety and quality, and both are backed by the Atlas® 1-year parts warranty. Whether you're servicing passenger cars, light trucks, SUVs, ATVs, or motorcycles, the TCWB-COMBO7 package provides everything you need to handle a wide range of tire service tasks with speed, precision, and confidence.

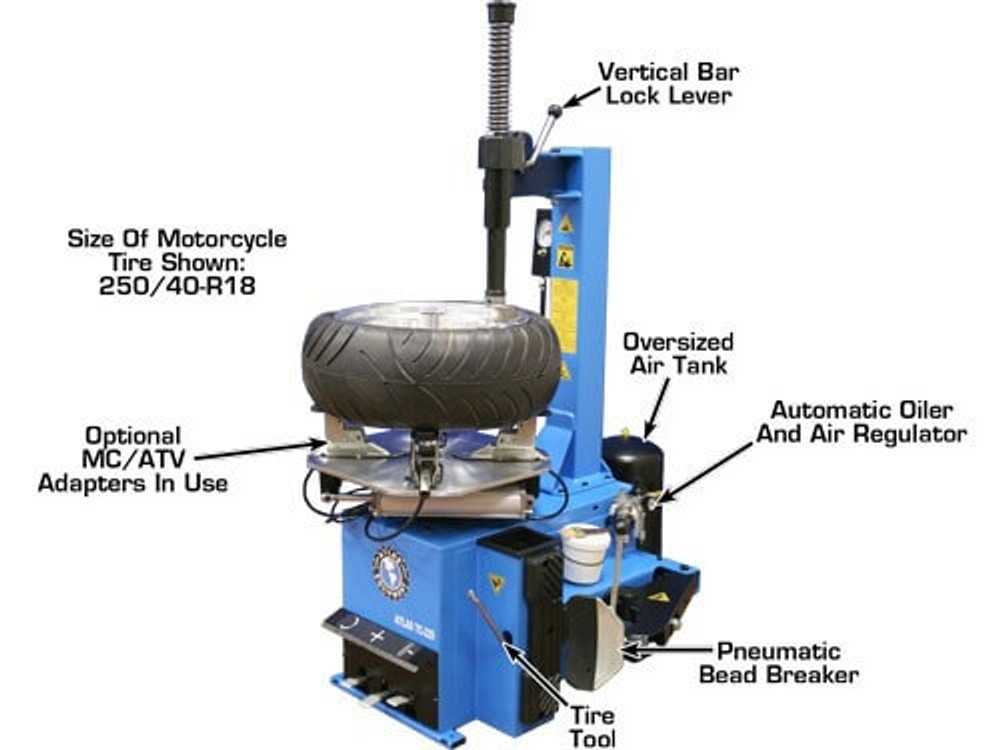

The Atlas® TC229 wheel clamp swing arm tire changer is the ideal choice for small automotive garages, ATV/motorcycle dealers, and any shop requiring versatile tire changing capabilities. Building on the proven performance of the TC221, the TC229 features the same robust clamping and tire changing functionality, but adds an integrated bead blaster system to help you inflate stiff sidewall tires and other "hard to inflate" tire assemblies with ease. This feature is invaluable when working with run-flat tires, low-profile performance tires, or stubborn bead seating situations.

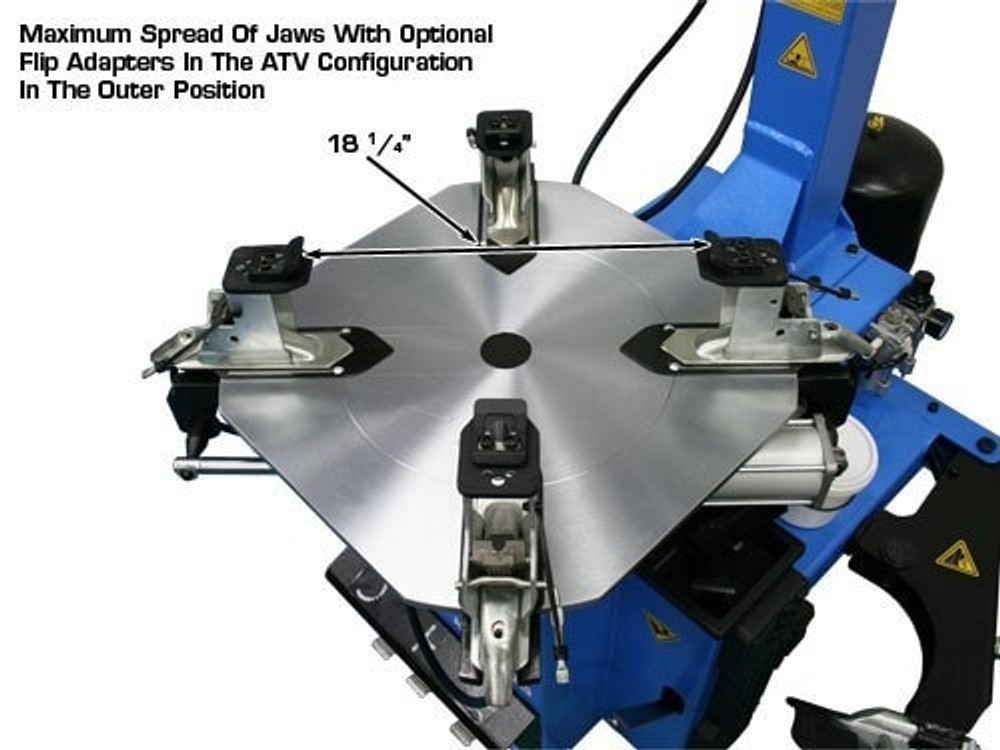

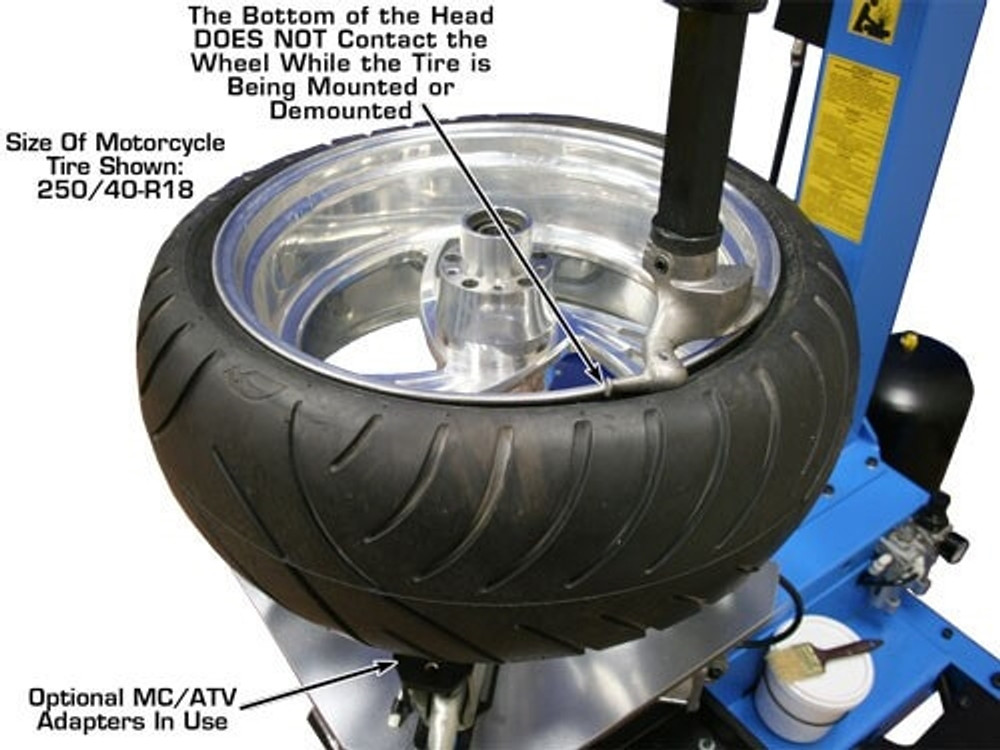

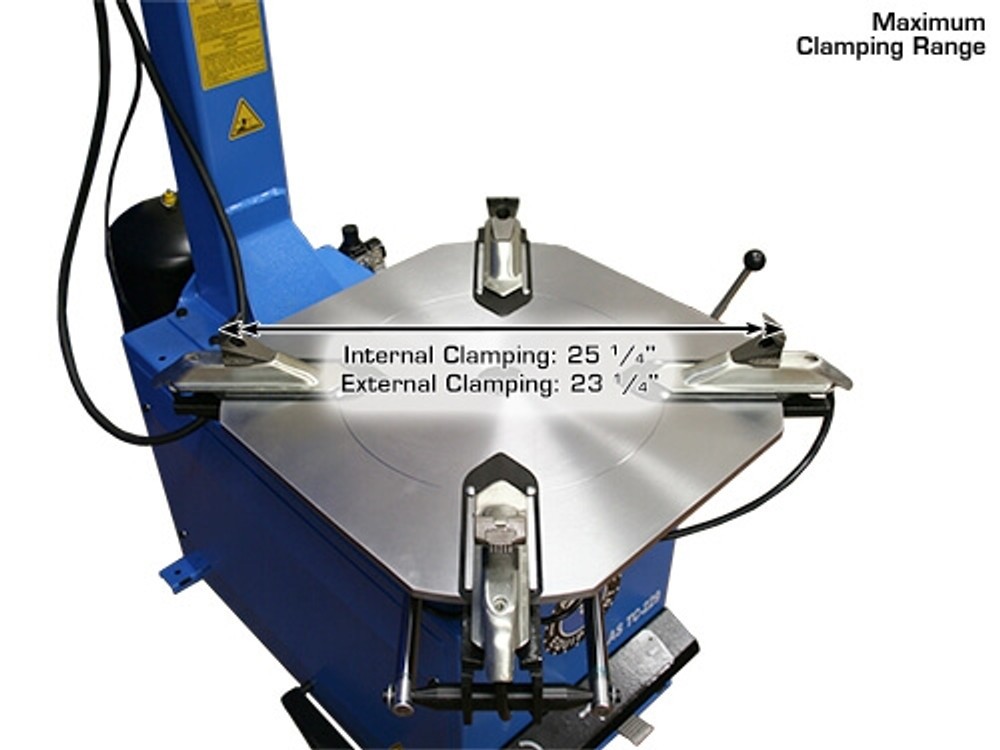

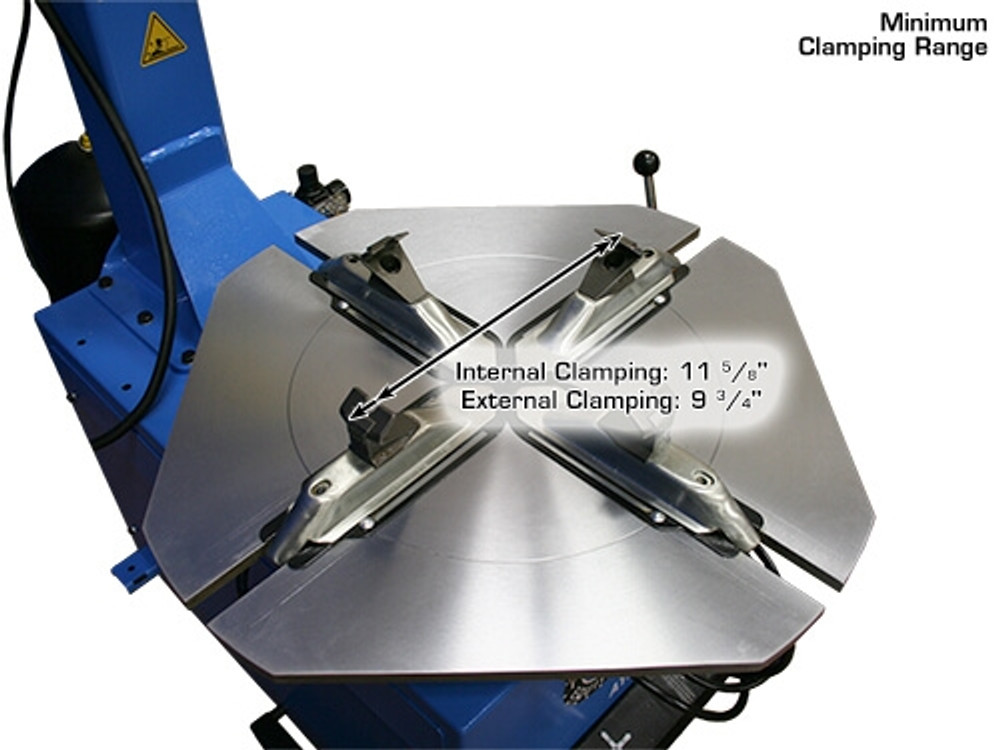

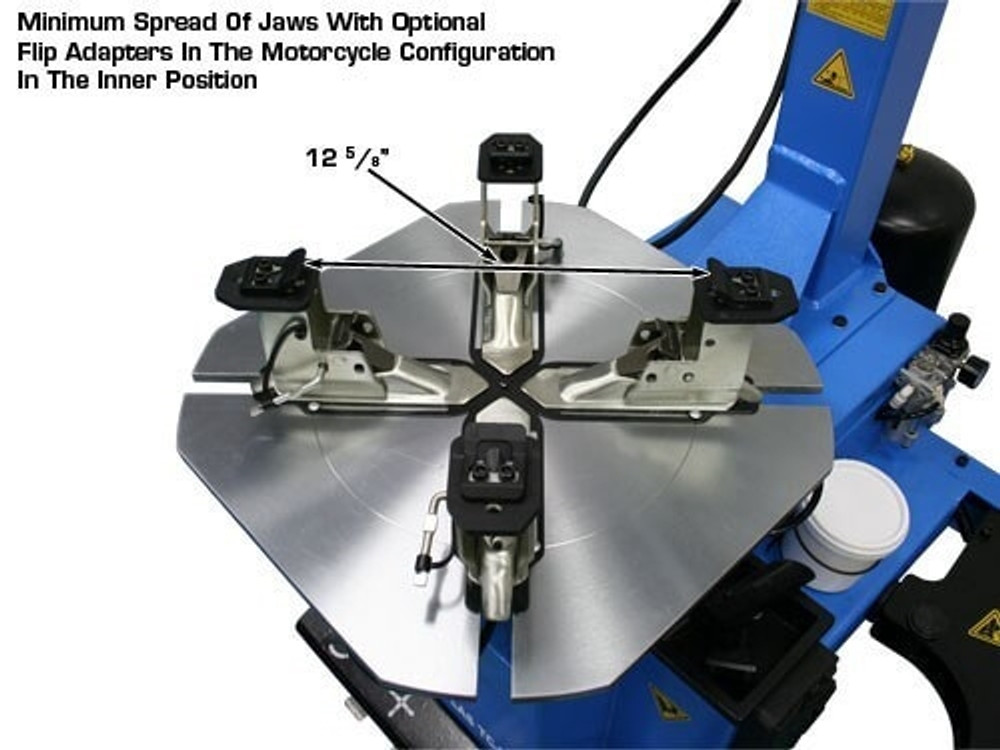

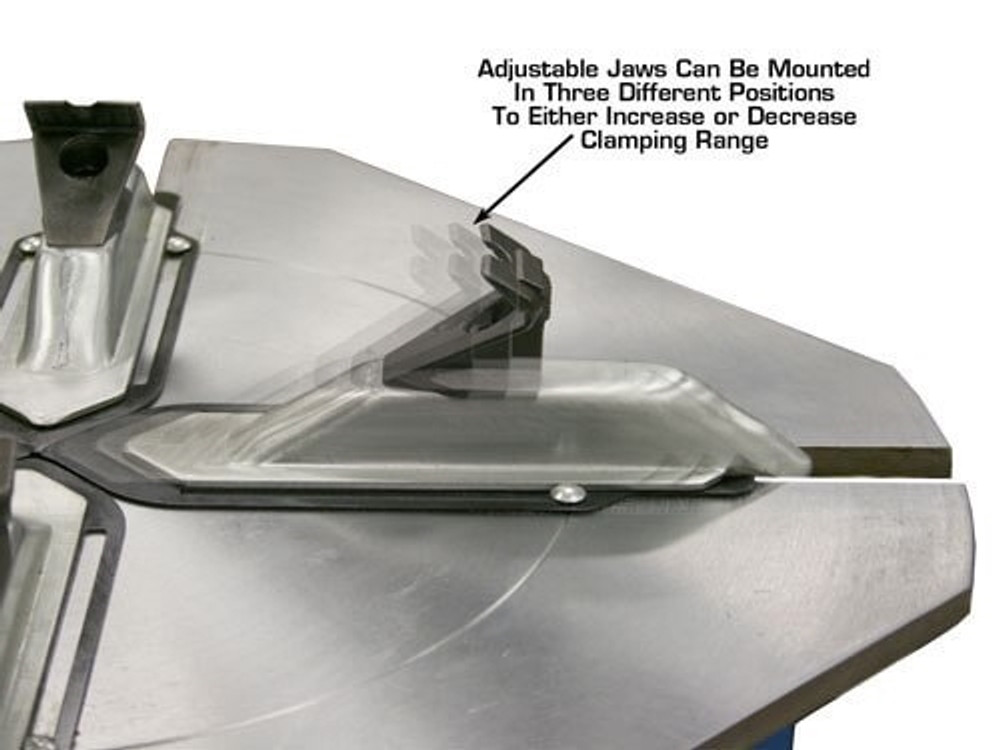

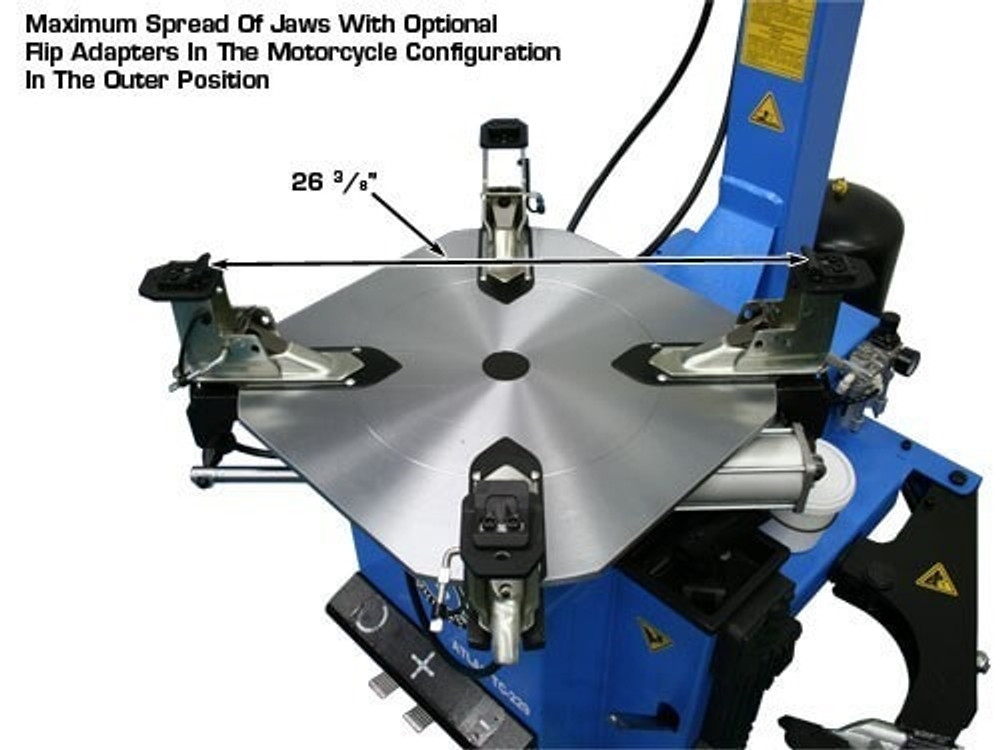

The TC229 handles steel, aluminum, and alloy rims up to 39 inches in diameter with a maximum wheel width of 13 inches for the bead breaker. Its 4-jaw internal/external wheel clamping system offers three adjustable positions for maximum versatility. The outside locking rim clamp accommodates wheels from 9¾" to 23¼", while the inside clamp extends from 11⅝" to 25¼". When equipped with flip adapters, the machine easily configures for ATV wheels (as small as 2⅞") and motorcycle wheels (up to 26⅜").

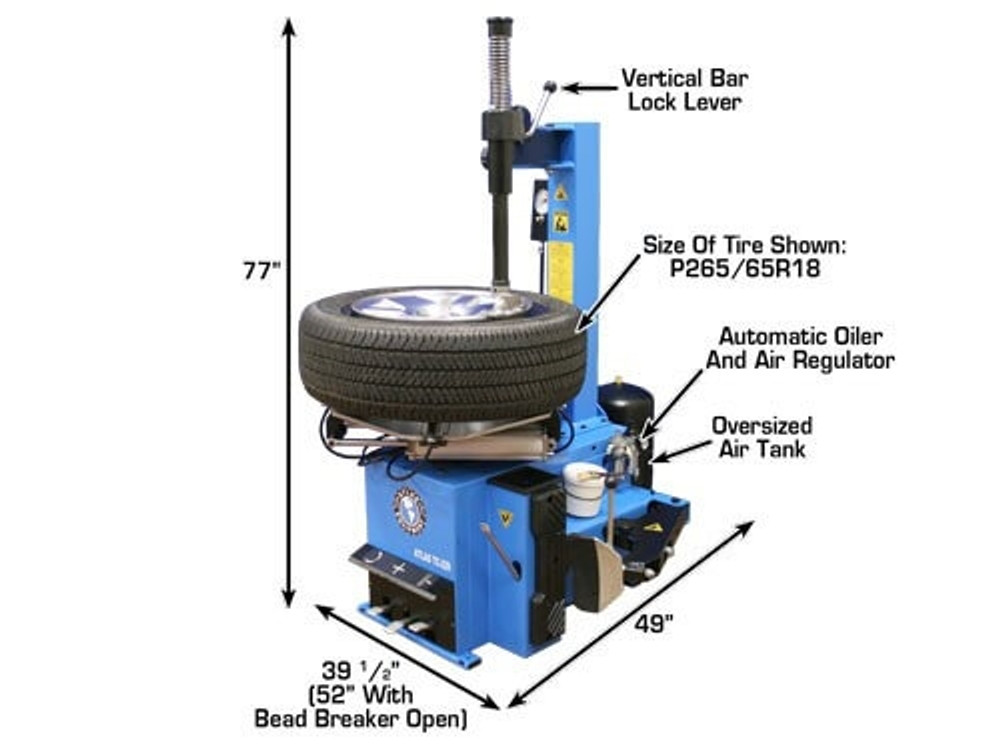

Powered by a robust pneumatic system delivering 5,500 lbs of bead breaker force and 885 ft/lbs of turntable rotating torque, the TC229 makes quick work of even the most stubborn tires. The machine operates on 90-110 PSI air pressure (maximum inlet pressure should not exceed 140 PSI) and includes essential accessories right out of the box: 4 black plastic rim protectors, an oiler, filter, and regulator, a soap reservoir, and a tire inflator. With a shipping weight of 500 lbs and standard 110V 1-phase electrical requirements, the TC229 is designed for straightforward installation and reliable daily use.
The Atlas® Platinum PWB50 is a feature-packed electronic wheel balancer that combines Italian engineering excellence with the factory-direct value Atlas is renowned for worldwide. Featuring an easy-to-read LED display and automatic 2D data entry via a single data entry gauge, the PWB50 streamlines the balancing process while delivering professional-grade accuracy and speed for high-volume passenger vehicle tire service.
This advanced balancer handles wheels up to 43 inches in diameter and 165 lbs in weight, with rim diameter capacity from 10" to 30" and rim width from 1½" to 20". The 40mm shaft provides robust support, while the balancer achieves remarkable 1-gram accuracy with a rapid 7-second cycle time at 130 RPM balancing speed. Cone sizes range from 1.73" to 5.31" (44mm to 135mm) to accommodate diverse wheel types, and the machine ships at 225 lbs ready for 110V or 220V / 1-phase operation.
What truly sets the PWB50 apart is its sophisticated software and operator-friendly features. The machine offers a huge combination of ALU weight placement programs, and the weight placement arm allows operators to choose the most convenient position for weights. After the spin cycle, the machine guides you back to that exact position, ensuring accurate dynamic adhesive weight application every time.
The Fast & Easy Split function (FES) makes hiding adhesive weights behind spokes effortless, while the Opposite Weight Function (OWF) lets you change weight application position from 12 o'clock to 6 o'clock for convenient access. The OPTIMATCH function enables optimization of tire and wheel unbalance (match mounting), making it easy to balance even the most difficult assemblies efficiently. Additional advanced features include self-diagnosis, self-calibration, special ALU-S program, automatic start and stop, pedal brake, static and dynamic balancing, and the innovative NWN system (no wheel need system) for enhanced convenience.
The PWB50 comes complete with a wheel guard, cones, and a quick clamping ring nut. A USB hub enables firmware updates through a PC or notebook, and the machine features both standard and metric display options. Optional truck adapter sets expand capabilities even further. The PWB50 delivers the speed, accuracy, and long service life you demand in a professional wheel balancer, making it the perfect match for the TC229 tire changer.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Warranty Information
To View Atlas® Automotive Equipment TC229 Warranty Click Here
PWB50 Warranty Information
