The Atlas® TCWB-COMBO4 is a professional-grade tire service package that combines two of Atlas's most advanced machines: the TC755EZ rim-clamp tilt-back tire changer with EZ Assist Arm and the WB49-2 PRO fully automatic 3D computer wheel balancer. This combination is engineered for commercial shops and high-volume car dealerships that demand speed, precision, and the ability to handle everything from standard passenger tires to custom, high-end wheels and stiff sidewall run-flat tires. Both machines operate on 110V power, are CE approved, and are backed by the Atlas® 1-year parts warranty.
This combo delivers the complete tire service solution: powerful bead breaking, easy mounting and demounting with the pneumatic assist arm, and accurate balancing with fully automatic data entry. Whether you're servicing daily commuter vehicles or luxury performance cars with custom wheels up to 32 inches, the TCWB-COMBO4 gives you the capability, durability, and efficiency to keep your shop running smoothly.

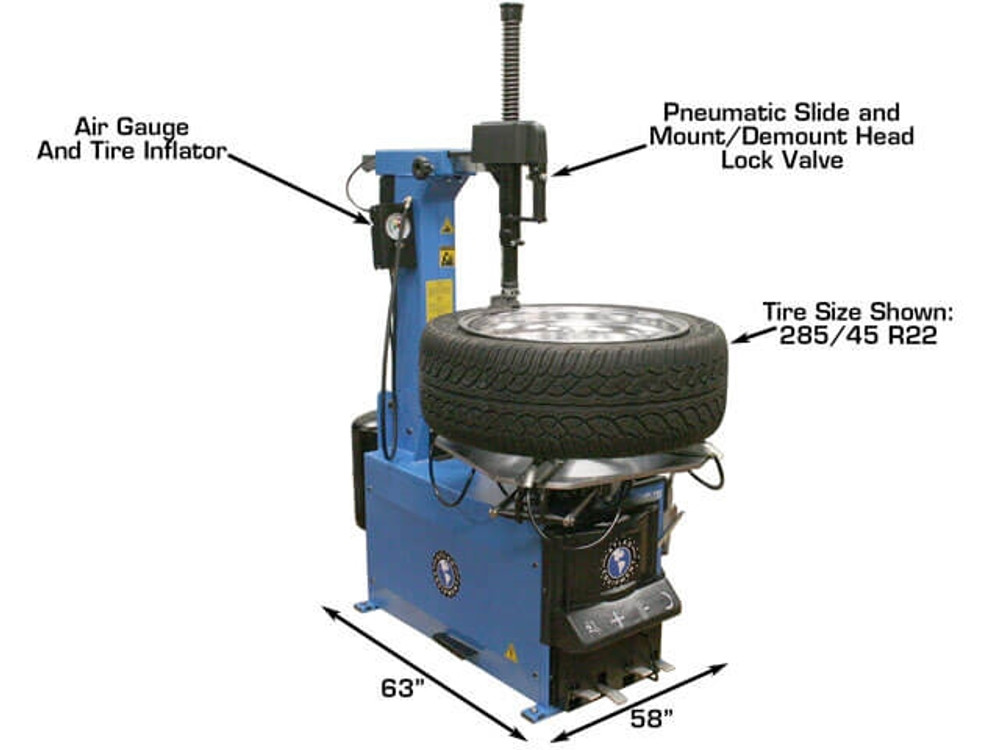

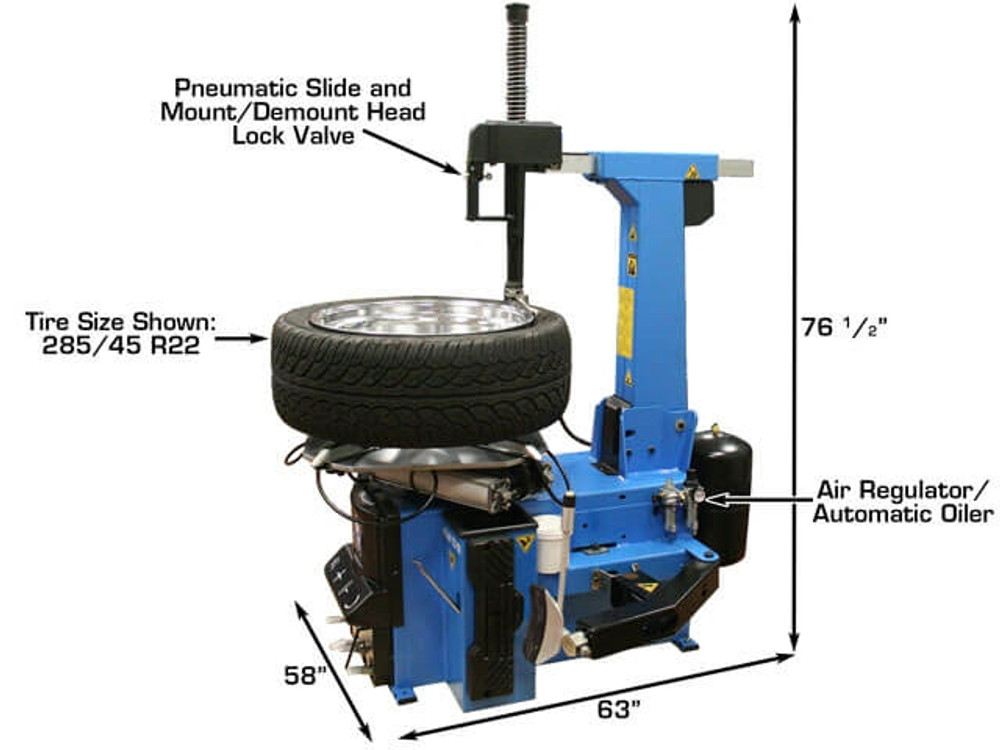

Atlas® TC755EZ Tilt-Back Electric/Pneumatic Tire Changer with Bead Blaster
The Atlas® TC755EZ is a professional-grade tilt-back wheel clamp tire changer designed for tire dealers and large-volume service centers. It features an extra-large turntable and exceptional clamping range that allows operators to securely clamp most 26-inch chrome rims without purchasing additional adapter sets. The adjustable turntable jaws can be covered with the included large plastic jaw covers, protecting even the most delicate custom wheel finishes from damage during clamping and service.
This machine handles stiff sidewall, low profile, and run-flat tires up to 47 inches in diameter. The external locking rim dimensions range from 11 7/8" to 27 7/8", while internal locking accommodates 13 7/8" to 29 7/8", giving you the flexibility to service virtually any passenger car or light truck wheel. The 4-jaw internal/external clamping system offers three mounting positions for enhanced versatility.
The pneumatic bead breaker delivers a powerful 5,500 lbs of force, making quick work of even the toughest tire beads. The button-controlled bead breaker is operated directly at the blade for precision and ease. Air-operated jaws and bead breaker require an external air supply at 90-110 PSI (must not exceed 140 PSI). The turntable is powered by a robust 1 HP electric motor generating 885 ft/lbs of rotating torque for smooth, controlled tire service.
A standout feature is the built-in Bead Blaster, which provides a powerful blast of air to seat stubborn tire beads quickly and safely. The column-mounted inflator box with gauge allows you to inflate and check tire pressure right at the machine. The changer also includes a Filter/Regulator/Lubricator (FRL) unit, a 20-inch tire tool, a lube bucket with brush, and a plastic cover for the bead breaker shovel. The metal mount/demount head features a metal roller or replaceable plastic inserts, and multiple replacement plastic inserts are included to extend the life of the head and protect wheels.
EZ Assist Arm: The pneumatic EZ Assist Arm is mounted on the right side of the machine and is essential for mounting and demounting the stiff sidewall tires found on modern vehicles. Each accessory can be moved out of the way when not in use, keeping your workspace clear and safe. For the EZ Assist Arm manual, click here to download.
TC755EZ Key Highlights:

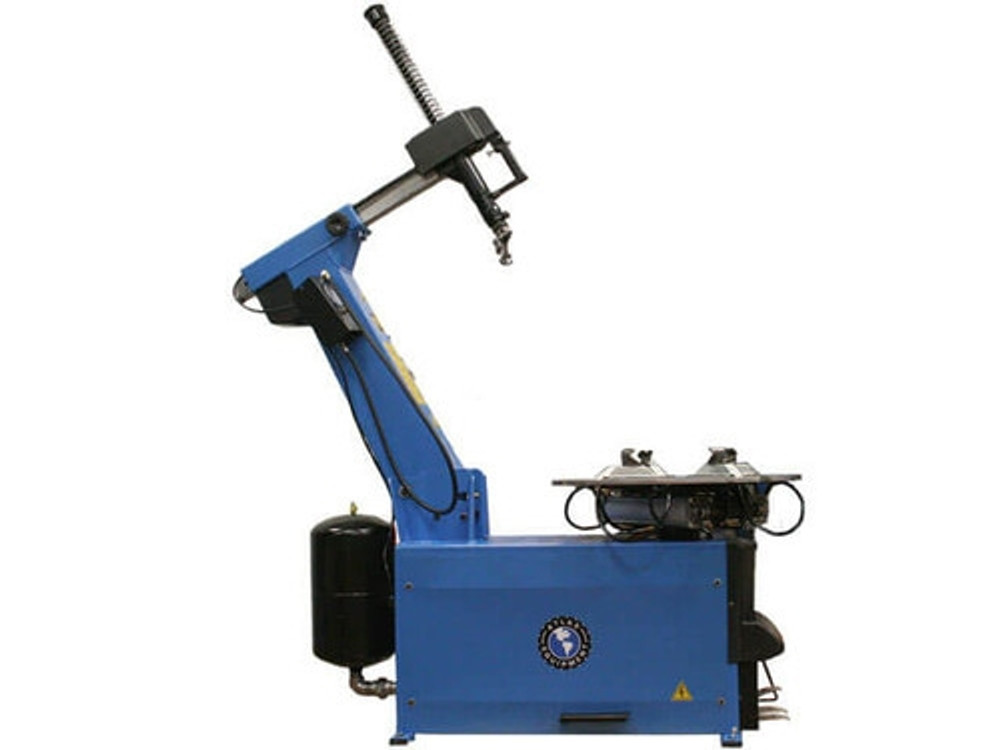

• Tilt-back column with rim-clamp design for easy access
• Handles tires up to 47" diameter and wheels up to 18" wide
• Built-in Bead Blaster for fast bead seating
• Powerful 5,500 lbs bead breaker force
• EZ Assist Arm included for stiff sidewall and run-flat tires
Atlas® WB49-2 PRO Premium Self-Calibrating 3D Computer Wheel Balancer
The Atlas® WB49-2 PRO is a state-of-the-art computerized wheel balancer that takes the guesswork out of wheel balancing with fully automatic 3D data entry. This machine automatically measures rim offset, diameter, and width using both an inner and outer measuring arm—no manual input required for most wheels. The WB49-2 PRO builds on the impressive performance of the WB49-2 and WB41 models, adding premium features like split-weight function (for discreetly locating weights behind the spokes) and an automatic LED light that illuminates the inside of the rim when it's time to apply weights.
This balancer handles wheels from 10" to 32" diameter (with manual input required for 23"-32"), rim widths from 1 ½" to 20", and wheel weights up to 150 lbs. The 40mm shaft and ¼ HP motor spin the wheel at 150 RPM for fast, precise measurement. The machine delivers 1 gram accuracy and 1.4° weight position resolution, ensuring your balancing is spot-on every time.
The WB49-2 PRO features a higher, easy-to-read display that shows measurements in standard or metric units (grams or ounces, mm or inches). It supports both static and dynamic balancing modes and includes rapid optimization (OPT) to help you choose the best weight placement. The machine offers self-diagnosis and self-calibration, maintaining exceptional stability in reading the unbalance between planes.
Operation is effortless: the balancer features an automatic and pedal-operated brake and automatic start/stop when the hood is lowered or raised. A large weight tray keeps your workspace organized, and no anchor-down installation is needed—just plug it in and you're ready to balance. The machine also offers automatic positioning to show you exactly where to apply weights, reducing errors and speeding up service.
WB49-2 PRO Key Highlights:
• Fully automatic 3D data entry with inner and outer measuring arms
• Handles wheels 10"-32" diameter, up to 150 lbs
• 1 gram accuracy and 1.4° weight position resolution
• Split-weight function and automatic LED light for weight placement
• Self-calibration and self-diagnosis for consistent, reliable results
Why Choose the TCWB-COMBO4?
The Atlas® TCWB-COMBO4 offers commercial tire shops and dealerships a complete, high-performance tire service solution in one package. You get a professional tire changer with pneumatic assist, powerful bead breaking, and the flexibility to handle custom wheels and stiff sidewall tires, paired with a premium wheel balancer that automates the entire measurement process and delivers precise results every time.
Both machines are designed for high-volume use, built with quality components, and backed by Atlas® warranty support. With 110V operation on both units, installation is straightforward, and the no anchor-down design of the balancer means you can set up your shop quickly. This combo is ideal for shops that service a wide range of vehicles—from economy cars to luxury SUVs with large-diameter wheels—and need equipment that can keep pace with daily demand while protecting valuable custom wheels.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
