The Atlas® TC289 wheel clamp tire changer is the perfect solution for general automotive service departments and medium-sized tire stores that demand professional performance and versatility. Combining electric turntable operation with pneumatic bead breaking and jaw clamping, this tire changer delivers the power and precision needed to handle everything from passenger cars to large SUVs and one-ton trucks with ease.

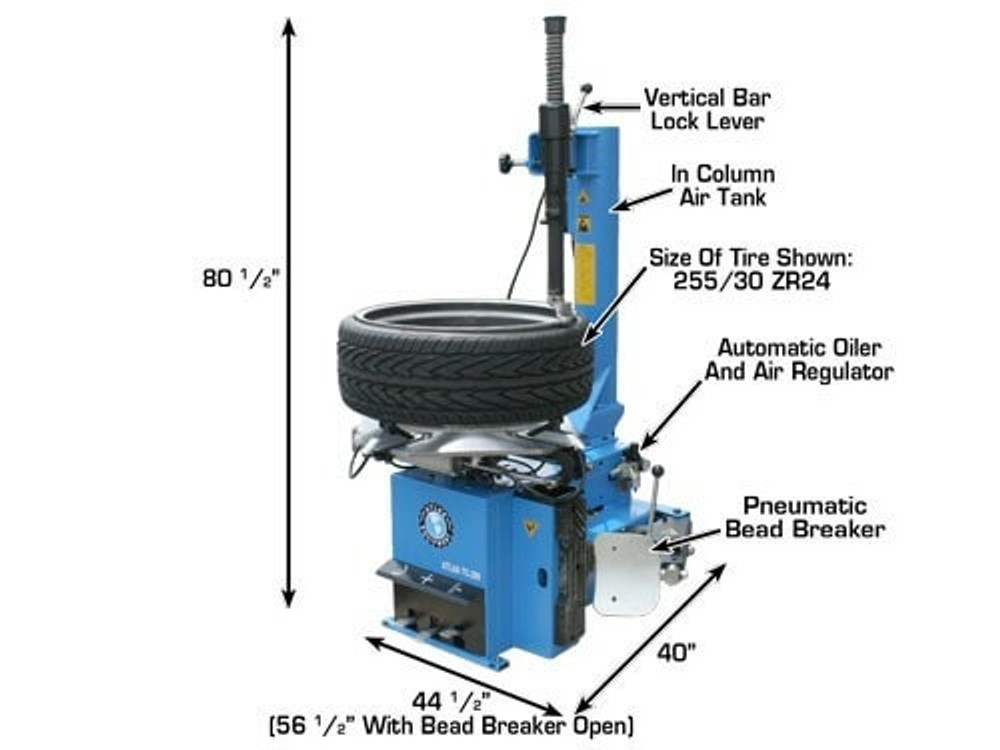

Engineered to service tires up to 47" in diameter, the TC289 is built for high-volume shops that need to tackle a wide range of wheel sizes and types. The extra-large turntable provides exceptional clearance and working room, while the 885 ft/lbs rotating torque ensures smooth, consistent operation even with heavy, stubborn tires. Whether you're working with high-end alloy wheels, steel rims, or specialty applications, this machine is designed to protect wheel finishes while delivering the muscle you need.
The Atlas® TC289 features a robust 4-jaw internal/external clamping system with three adjustable mounting positions, giving you maximum flexibility for different wheel sizes and configurations. The air-operated jaws lock wheels securely in place, and the included large plastic jaw covers protect even the most delicate finishes from scratches or marring. For ultimate versatility, the TC289 can be fitted with optional left-hand assist arms, right-hand assist arms, or the Atlas® DAA arm assembly to further expand your capabilities.

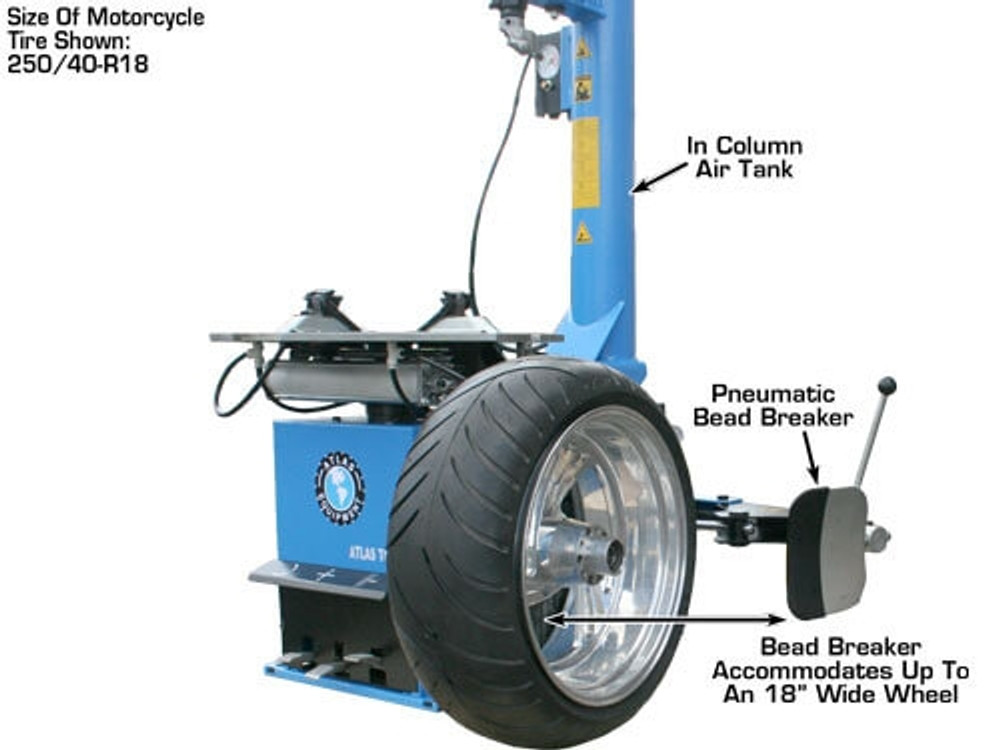

Breaking stubborn, rusted, or aged beads is no problem for the TC289's powerful pneumatic bead breaker. Delivering an impressive 5,500 lbs of breaking force, this adjustable bead breaker is mounted on the side of the machine and features an adjustable bead breaker plate that can be positioned to accommodate different wheel widths. Whether you're working with Position 1 wheels up to 14¾" wide or Position 2 wheels up to 18" wide, the bead breaker adapts to fit your needs.
The bead breaker shovel comes equipped with a plastic protective cover to prevent damage to wheel finishes during operation. This thoughtful design detail ensures you can apply maximum force to break the bead without worrying about scratching or denting expensive alloy or custom wheels. Even the most challenging beads—corroded, over-torqued, or aged—break cleanly and safely.

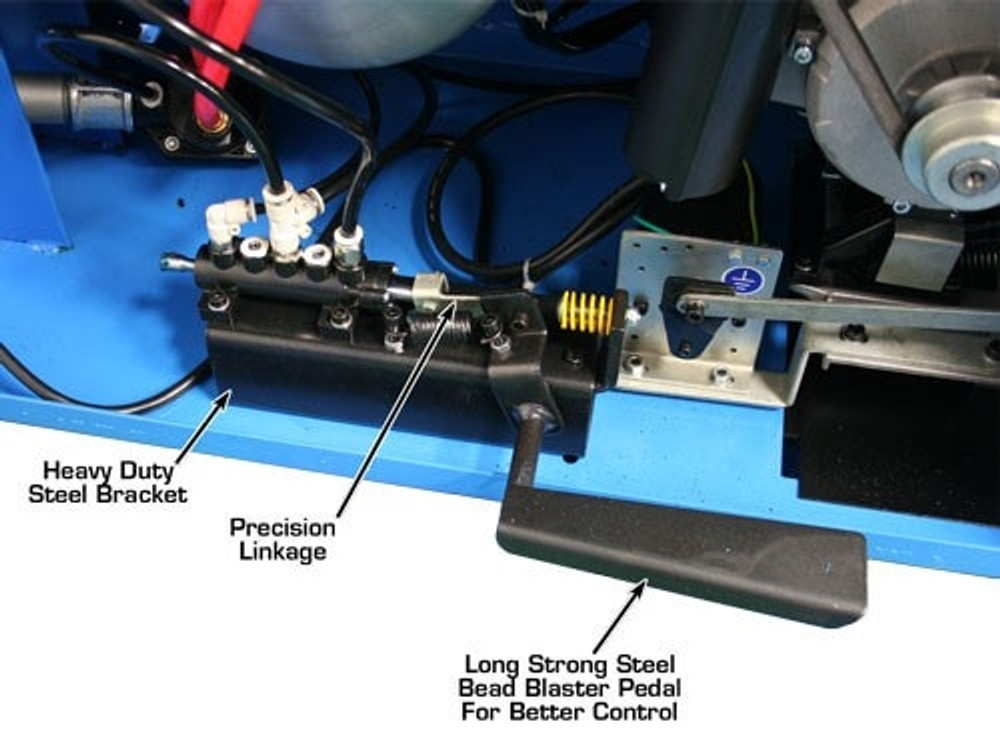

One of the standout features of the TC289 is the integrated bead blaster system. This powerful tool delivers a high-volume blast of air to instantly seat stubborn beads, eliminating the frustration of trying to inflate difficult tires. Whether you're working with stiff sidewalls, low-profile tires, or wheels that just won't seal, the bead blaster gets the job done quickly and safely.
The column-mounted inflator box with gauge is included as standard equipment, giving you precise control over tire inflation and allowing you to monitor pressure throughout the seating process. This integrated system streamlines your workflow and reduces the time spent on each tire change, boosting shop productivity.

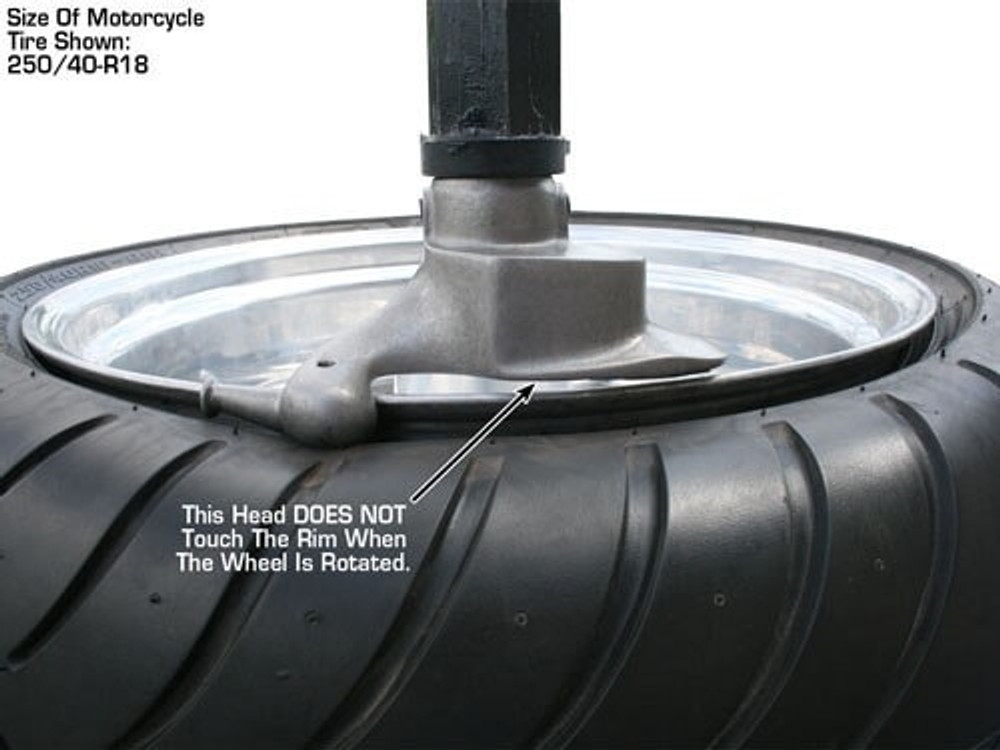

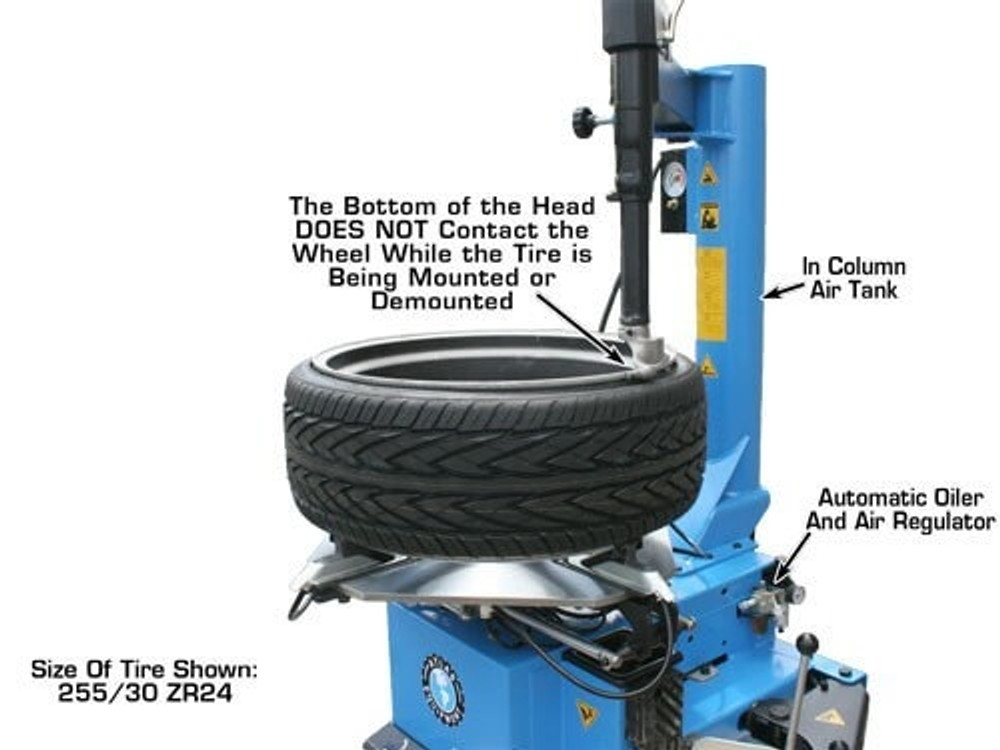

The TC289 is equipped with a premium metal mount/demount head featuring both a metal roller and replaceable plastic inserts. This dual-material design gives you the flexibility to choose the right tool for the job. For tough, stubborn tires, the metal roller provides durability and leverage. For delicate alloy wheels and custom finishes, the plastic inserts offer gentle, non-marring contact that protects your customers' investments.
Multiple replacement plastic inserts are included with the machine, ensuring you always have spares on hand. This attention to detail means you can maintain wheel-safe operation over the long term without needing to order parts or compromise on service quality.
The Atlas® TC289 offers exceptional versatility with its three-position jaw mounting system. By repositioning the jaws along the turntable slides, you can adapt the machine to handle a wide variety of wheel sizes and configurations:
This adjustability means the TC289 can handle standard passenger car wheels, large truck wheels, and even specialty applications like ATVs and motorcycles when equipped with the appropriate adapters. The 4 black plastic rim protectors included with the machine ensure that every wheel type is clamped securely and safely.
The Atlas® TC289 comes ready to work right out of the crate. Atlas includes a comprehensive set of professional accessories so you can start servicing tires immediately:
This complete package eliminates the need for additional purchases and ensures your shop has everything needed to deliver professional, wheel-safe tire service from day one.

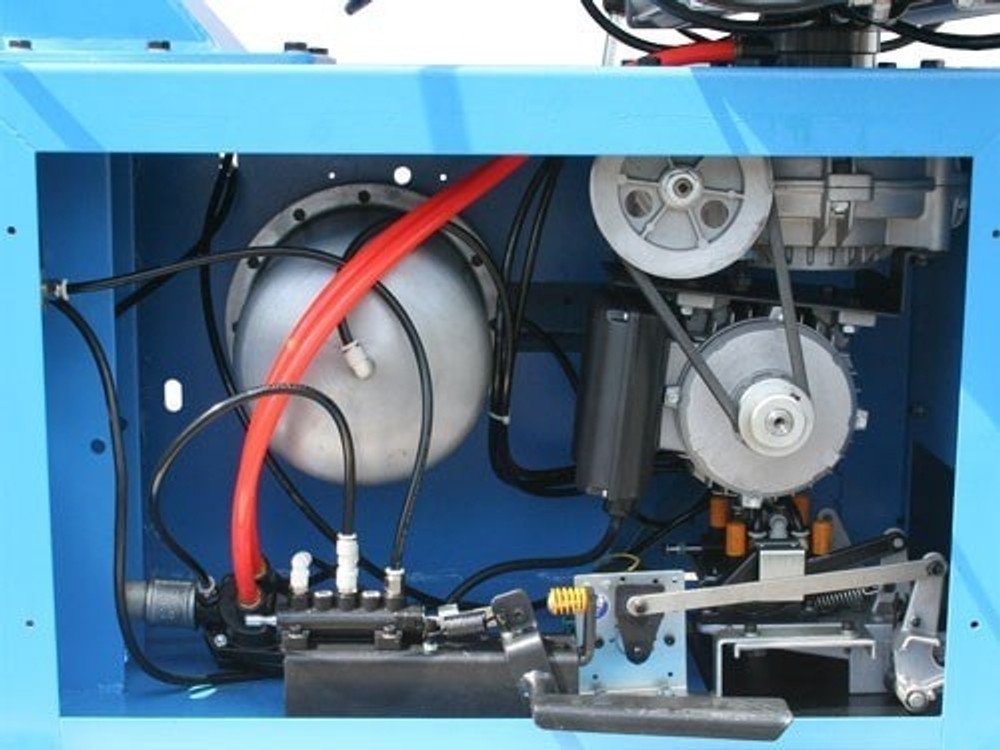

The TC289 combines the best of both worlds: 110V single-phase electric power for the turntable motor and pneumatic operation for the jaws and bead breaker. This hybrid design delivers reliable, consistent performance while keeping operating costs low. The electric turntable eliminates the need for high-volume air consumption during rotation, while the pneumatic systems provide the precise, powerful control needed for clamping and bead breaking.
The machine operates on 90-110 PSI air pressure, with a maximum inlet pressure rating of 140 PSI. The included oiler, filter, and regulator ensure clean, conditioned air reaches all pneumatic components, extending service life and maintaining optimal performance over years of heavy use.
