The Atlas® TC229DAA rim clamp, swing arm tire changer delivers professional-grade performance for homeowners, small commercial garages, and ATV/motorcycle dealers looking for a versatile, reliable tire changing solution. This machine is engineered to handle everything from standard passenger vehicles to challenging low-profile, stiff sidewall, and run-flat tires—all while protecting high-priced alloy wheels and rims from damage.

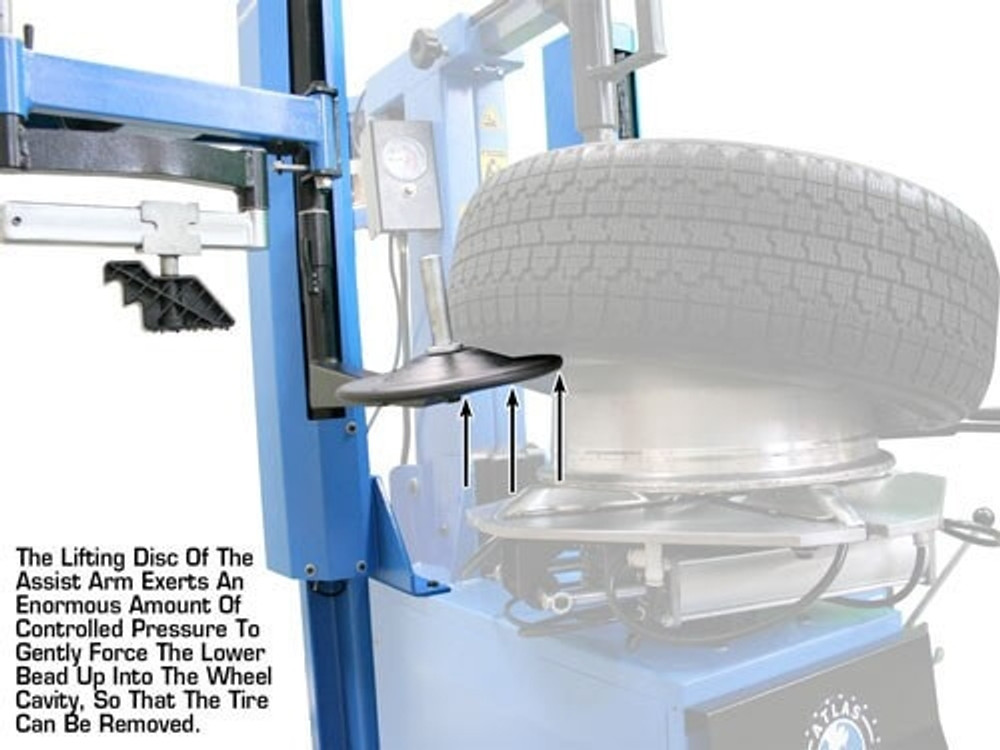

What sets the TC229DAA apart is the inclusion of the Atlas® DAA-SA Dual Assist Arm Package. This premium upgrade features a left-hand mounted arm with a pressing block and pressing/lifting disk, and a right-hand mounted arm with a pressing/lifting disk and bead roller. The dual assist arms function as an extra set of hands, dramatically reducing the time and effort required when working solo—especially with modern tires that feature stubborn, stiff sidewalls. If you regularly service run-flat or low-profile tires, the DAA system is an indispensable tool that saves your back and speeds up service times.
Additionally, the TC229DAA features a built-in "Beadblaster" system to help seat stubborn beads quickly and safely. This integrated feature assists with inflating stiff sidewall tires or other hard-to-inflate applications, ensuring a secure bead seal without the need for additional equipment.
Engineered to Protect High-Value Wheels
The Atlas® TC229DAA is designed to safely service both high-priced alloy wheels and standard steel wheels without causing damage to the rim or tire. The powerful pneumatic bead breaker (delivering 5,500 lbs of force) is strategically located on the side of the machine to break even the most stubborn and rusted beads cleanly, without marring the rim surface.
The 4-jaw turntable securely clamps wheels using internal or external clamping positions, and each jaw can be covered with the included plastic jaw covers for maximum rim protection. The jaws are adjustable across three mounting positions along the turntable slide, allowing you to expand or reduce the clamping range to accommodate the widest variety of wheel sizes—from compact passenger cars to larger pickup trucks and SUVs.
The metal mount/demount head features a metal roller with replaceable plastic inserts, giving you the flexibility to customize protection based on the wheels you're servicing. Multiple replacement inserts are included with the machine for long-term value.
Key Performance Highlights
Dual Assist Arms Included: DAA-SA package with left and right assist arms for effortless handling of low-profile and run-flat tires
Max Tire Diameter 39": Handles a wide range of passenger, light truck, ATV, and motorcycle tires
Powerful Turntable:885 ft/lbs of rotating torque for smooth, controlled operation
Extensive Rim Clamp Range: Adjustable jaws accommodate rims from 9 3/4" to 25 1/4" (external/internal), with flip adapters supporting ATV and motorcycle configurations
Complete Accessory Package: Includes column-mounted inflator box with gauge, filter/regulator/lubricator, 20" tire tool, lube bucket with brush, and multiple rim protectors
Built for Versatility and Reliability
The TC229DAA combines an electric turntable (110V 1Ph) with air-operated jaws and bead breaker for optimal performance and control. The machine requires an external air supply operating at 90-110 psi (maximum inlet pressure: 140 psi), ensuring powerful and consistent operation.

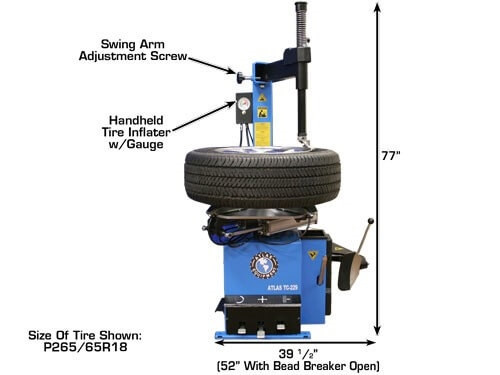

With a maximum wheel width capacity of 13" at the bead breaker, the TC229DAA is well-suited for servicing standard passenger vehicles, light trucks, SUVs, ATVs, and motorcycles. The adjustable jaw system and included flip adapters enable quick configuration changes, so you can switch between different vehicle types without hassle.
For shops that anticipate servicing larger pickup truck tires (1 ton and up), large SUVs, or agricultural tires on a regular basis, Atlas offers the TC289 tire changer as a heavy-duty alternative. However, for most small to mid-sized operations, the TC229DAA provides exceptional capacity and performance.
Complete Package Ready to Work
The Atlas® TC229DAA arrives with everything you need to start changing tires right away. Standard equipment includes:
Dual Assist Arm Package (DAA-SA): Left and right assist arms for low-profile and run-flat tire service
Column-Mounted Inflator Box: Integrated gauge for accurate tire inflation
Filter/Regulator/Lubricator (FRL) Unit: Ensures clean, regulated air supply and proper lubrication
20" Tire Tool: Heavy-duty lever for stubborn tire beads
Lube Bucket with Brush: For applying tire mounting lubricant
Set of Large Plastic Jaw Covers: Protect alloy and custom wheels during clamping
Plastic Cover for Bead Breaker Shovel: Extra protection for wheel surfaces
Multiple Replacement Plastic Inserts for M/D Head: Long-term serviceability and rim protection
Soap Reservoir: Built-in storage for tire lubricant
Please note: The Atlas® TC229DAA requires some assembly after purchase. Installation and setup instructions are included in the manual.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
