This premium combination package delivers everything high-volume tire shops need to handle the most challenging wheel and tire assemblies with speed, precision, and confidence. The Atlas® Platinum AP-TCWB-COMBO2 pairs the innovative PTC500 center post tire changer with the advanced PWB90XL 3D video wheel balancer—two Italian-engineered machines that compete head-to-head with the biggest names in the industry, but with the factory-direct value that Atlas® Platinum is known for worldwide.
Both machines operate on 110V power for convenient installation in any shop, carry CE approval for quality and safety, and are backed by the Atlas® Platinum 2-year parts warranty. This combo is the ideal choice for shops servicing high-end wheels, run-flat tires, low-profile performance rubber, and everything in between—designed to reduce operator effort, speed up service times, and eliminate the risk of wheel damage.

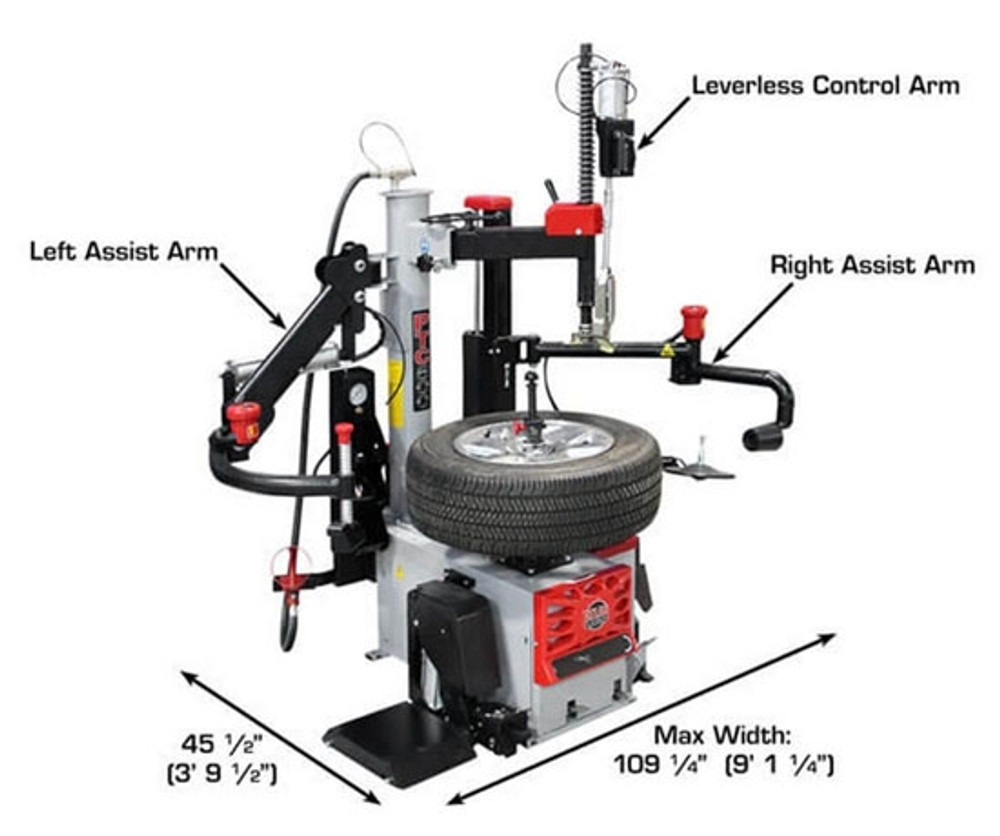

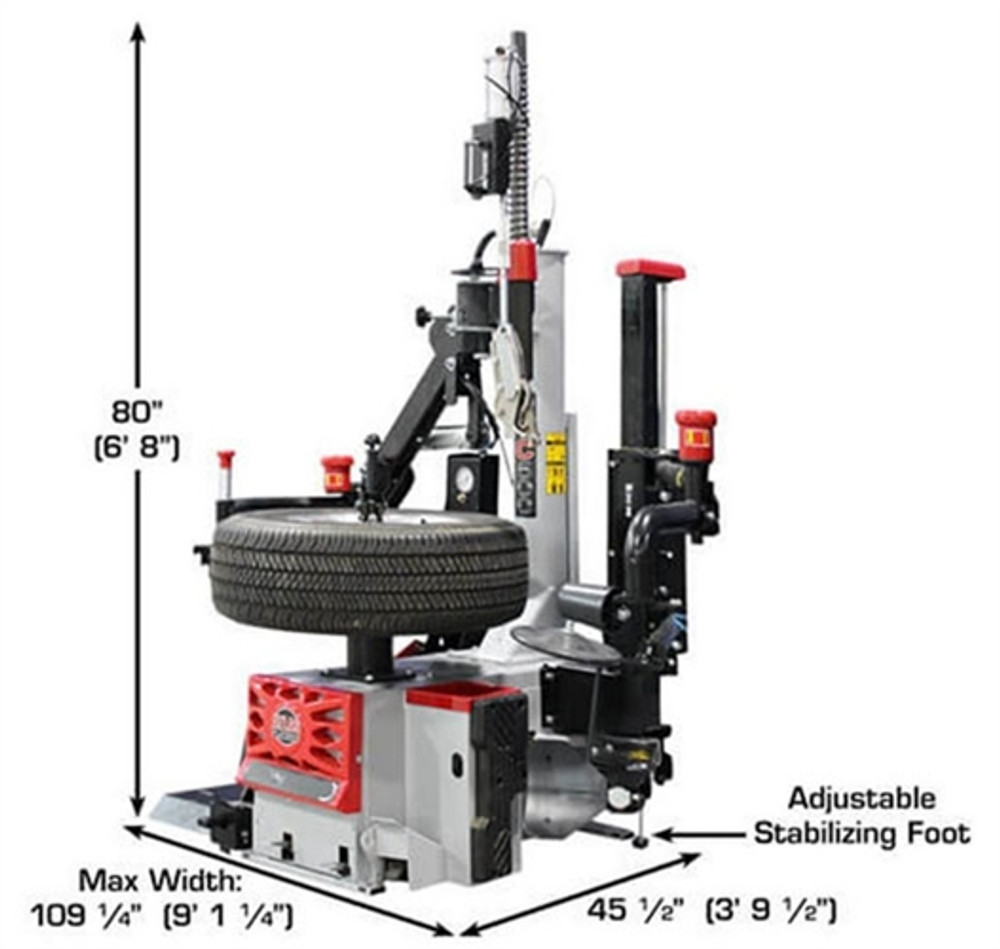

The Atlas® Platinum PTC500 is a center post tire changer engineered specifically for high-volume shops that routinely handle the most challenging wheel and tire combinations on the market. Whether you're mounting low-profile performance tires, run-flats, or oversized truck wheels, the PTC500 delivers the tools, features, and muscle you need to get the job done fast—without risking damage to expensive rims.

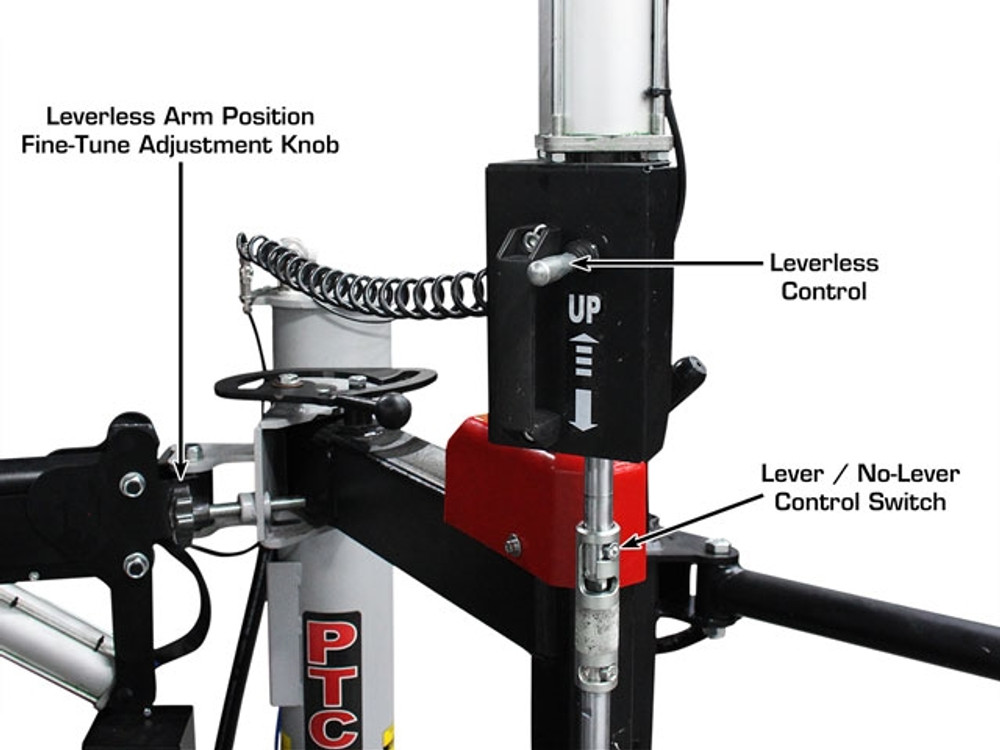

This machine incorporates multiple patented innovations that set it apart from the competition. The Lever/No-Lever System gives operators the flexibility to use a standard tire tool or work in a fully leverless mode with no manual tools required—ideal for delicate alloy and chrome wheels. The Smart-Lock Locking System is a game-changer: simply mount the tire and flip the lever to lock it instantly in position. No more threading center cones or maintaining complicated pneumatic locking mechanisms. It's fast, foolproof, and incredibly efficient.

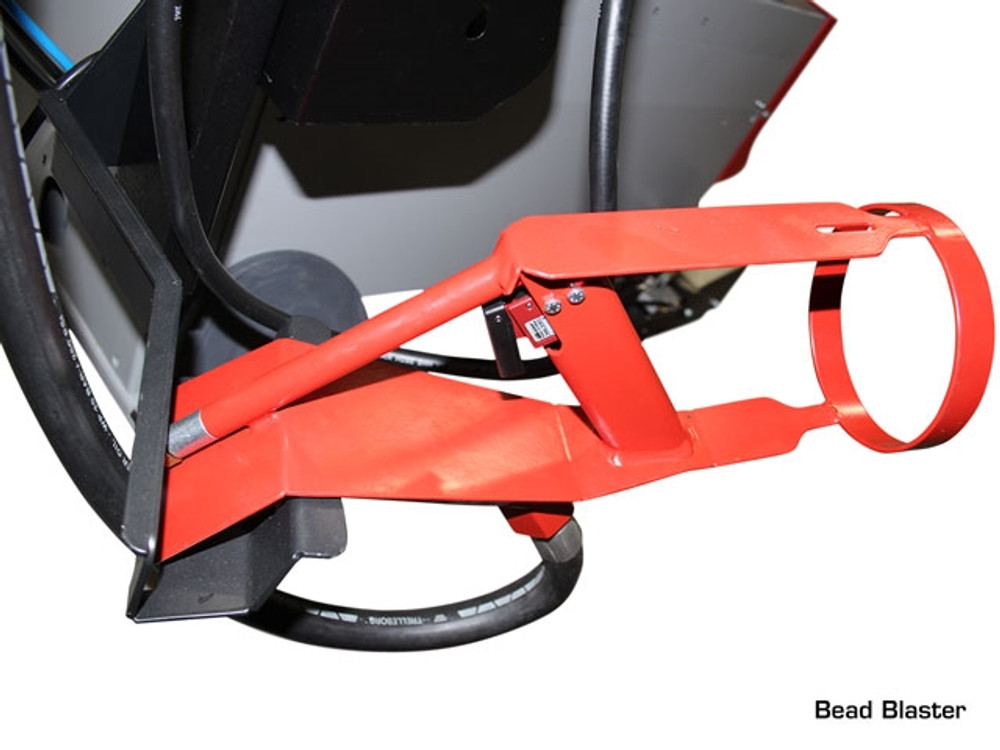

The PTC500 features an air-operated bead breaker (external air supply required) delivering 6,924 lbf.in of force at 145 PSI, making even the most stubborn beads break with ease. The external flexible bead-blasting system simplifies inflation and seating, even on challenging tire and wheel combinations. With a rim clamping range of 12" to 30", max tire diameter of 47", and max tire width of 15", this machine handles everything from compact car wheels to light truck and SUV assemblies.
The included integrated wheel lift reduces the risk of employee lifting injuries and protects expensive wheels from scratches and dings during handling. Dual assist arms provide extra leverage for mounting and demounting stubborn tires, and the metal mount/demount head with replaceable plastic inserts ensures long tool life while protecting wheel finishes. Operating pressure is 120-145 PSI, rotating speed is 7 RPM, and the machine is designed for use on steel, aluminum, and alloy rims.
PTC500 Includes:
Dual Assist Arms • Integrated Wheel Lift • Filter/Regulator/Lubricator • Multiple Plastic Protectors • Tire Tool • Lube Bucket with Brush

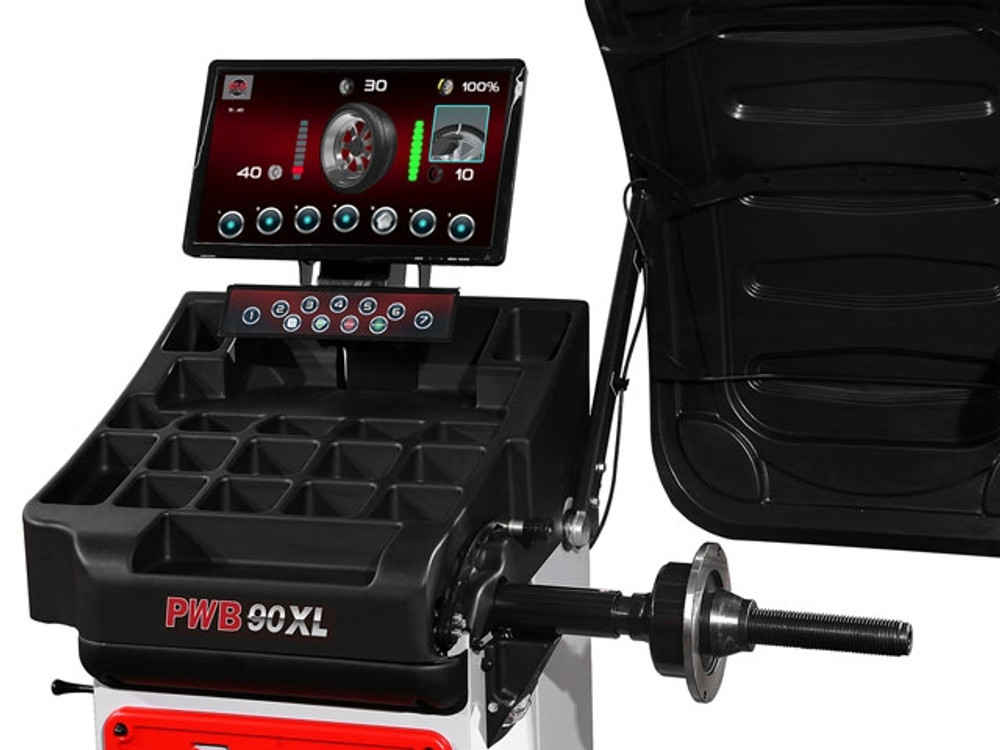

The PWB90XL is a high-performance, top-of-the-line wheel balancer featuring a stunning high-resolution monitor display that not only makes operation extremely intuitive but also impresses customers watching from your service area. This machine competes directly with the biggest names in premium wheel balancing equipment—but delivers Italian engineering and components at a fraction of the cost.

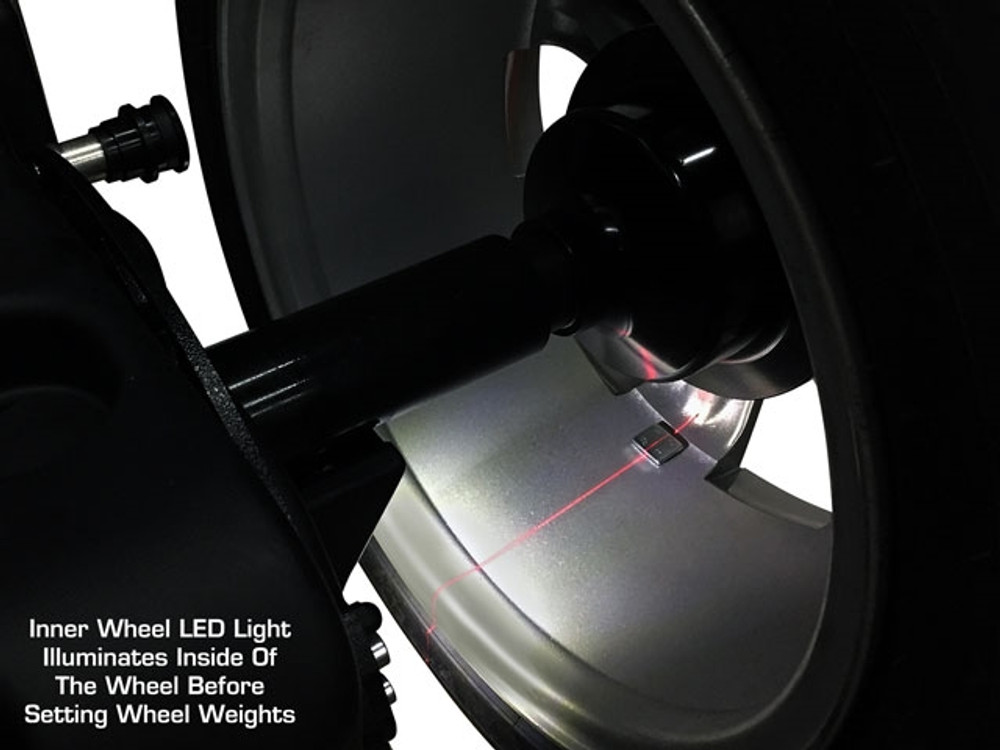

With Super Automatic 3D Data Entry, the PWB90XL uses a single data entry gauge for offset and diameter, plus touchless sonar for rim width measurement—no old-fashioned measuring arm to slow you down or introduce operator error. The machine's laser line guidance system allows the operator to choose the most convenient weight placement location, then guides them back to the exact spot after the spin cycle. This eliminates guesswork and ensures first-time zero/zero balance results every time.
The Fast & Easy Split function (FES) makes it simple to hide adhesive weights behind spokes for a clean, professional appearance. The Opposite Weight Function (OWF) lets operators change weight application position from 12 o'clock to 6 o'clock for convenient access when applying adhesive weights. The OPTIMATCH function optimizes tire and wheel unbalance through match mounting, making even the most difficult assemblies easy and efficient to balance.

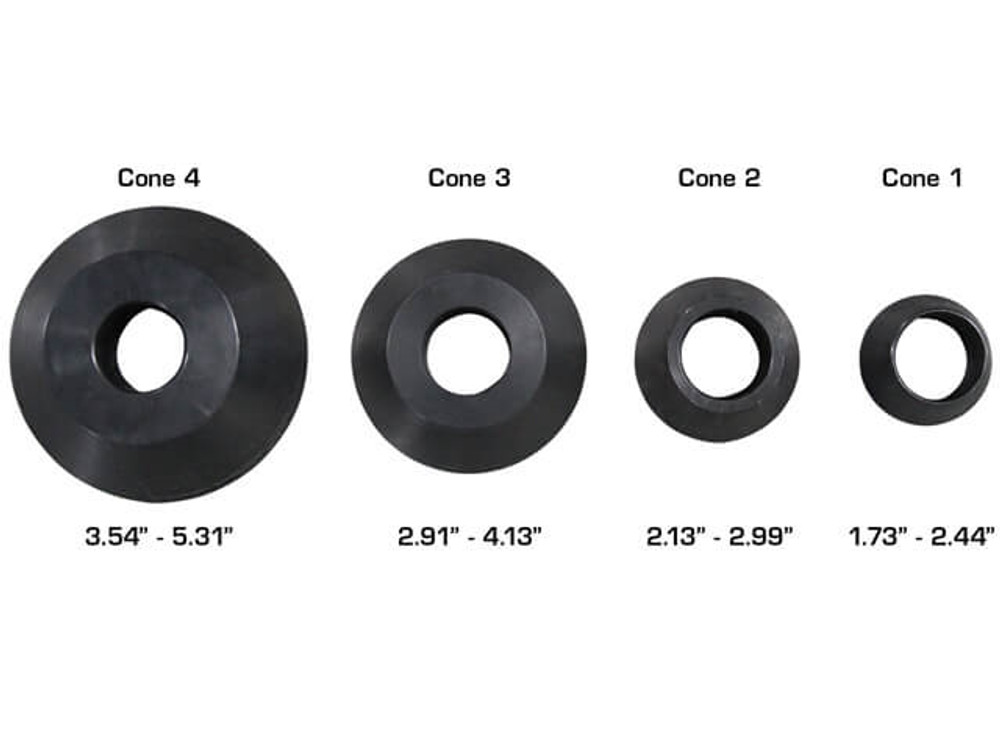

With a 40mm shaft size, the PWB90XL accommodates rim diameters from 10" to 30", rim widths from 1½" to 20", and a maximum tire diameter of 43" (1100 mm). Maximum wheel weight capacity is 165 lbs, and the machine delivers 1-gram accuracy with a 7-second cycle time and 130 RPM balancing speed. Cone sizes range from 1.73" to 5.31" (44mm to 135mm), ensuring compatibility with virtually any wheel assembly.
Make no mistake: the PWB90XL is a true premium wheel balancer that guarantees speed, accuracy, and a long service life. It combines the best of Italian engineering with the factory-direct value that Atlas® Platinum is trusted for around the world.
Watch our Italian expert demonstrate how to change a normal tire, a run-flat tire, and a low-profile tire with the PTC500. These videos showcase the machine's versatility, ease of use, and innovative features in real-world service scenarios.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
