You haven't experienced state-of-the-art portable lifting convenience until you've used the BendPak LR-60P. This 6,000-lb. capacity lift delivers the perfect combination of power, portability, and precision. Equipped with an electric/hydraulic power system, multi-position safety locks, rubber lifting blocks, a dropped crossbar for added clearance, and a heavy-duty steel channel frame, the LR-60P is engineered to elevate both your vehicles and your service capabilities to new heights.
When you need to add versatility and productivity to your shop or garage, your first stop should always be BendPak. Simple, safe, and rugged—this rubber-topped low-rise lift can handle a mighty 6,000-lb. load without consuming precious floor space and fits comfortably into narrower bays. The LR-60P is the ideal solution for quick service on today's passenger cars and light trucks.
Unmatched Portable Versatility
With wide rubber pads, wheel service and auto-body repair can now be performed on a surprisingly large variety of vehicles. And when you're done? Just wheel it over to the next bay. The integrated tow handle makes moving the lift from bay to bay effortless, maximizing your shop's flexibility and workflow efficiency.
The included solid rubber lift blocks can be positioned in a variety of pick-up points on unibody and frame-contact undercarriages, giving you the adaptability to service everything from compact cars to light trucks. The LR-60P delivers 23 inches of maximum lifting height, expandable up to 26 inches with optional 3-inch blocks, and reaches full rise in just 35 seconds.
Just make sure to compare your vehicle specifications—including ground clearance and overall height—with the specification tables in the tabs above before you buy to ensure the perfect fit for your needs.
Why Choose BendPak?
Always bet on BendPak for increased durability, safety, and productivity. You aren't going to find comparable quality or value anywhere else—BendPak always bests the rest. The LR-60P represents decades of engineering excellence combined with real-world shop experience, resulting in a portable low-rise lift that delivers professional performance every time.
Love the compact lifting power of the LR-60P but would prefer a non-portable version? Check out the LR-60 standard model for a permanent installation option.
Key Highlights
6,000-lb. lifting capacity – handles most passenger cars and light trucks with confidence
Portable design with tow handle – easily move from bay to bay for maximum shop flexibility
Low 4-inch collapsed height – accommodates low-profile and sports cars
35-second rise time – fast operation keeps your workflow moving
Multi-position safety locks – secure your vehicle at multiple working heights
Engineered Features That Set the LR-60P Apart
Low-Profile Design
A low 4-inch collapsed height accommodates most vehicles, including many low-clearance sports cars and performance vehicles. This makes the LR-60P one of the most versatile portable lifts on the market.
Single-Point Safety Release
The single-point safety release and dead-man style operation controls make the LR-60P easy to operate and safe to use. Even inexperienced technicians can confidently operate this lift with minimal training.
Dropped Crossbar
A specially formed crossbar is dropped in the center, providing added clearance for vehicle drive-over. This thoughtful design detail ensures smooth loading and unloading without scraping undercarriages.
Rugged Steel Channel Frame
If you're going to do heavy lifting, you need a solid base. The heavy-duty steel channel frame construction ensures long-lasting durability even under the most demanding shop conditions.

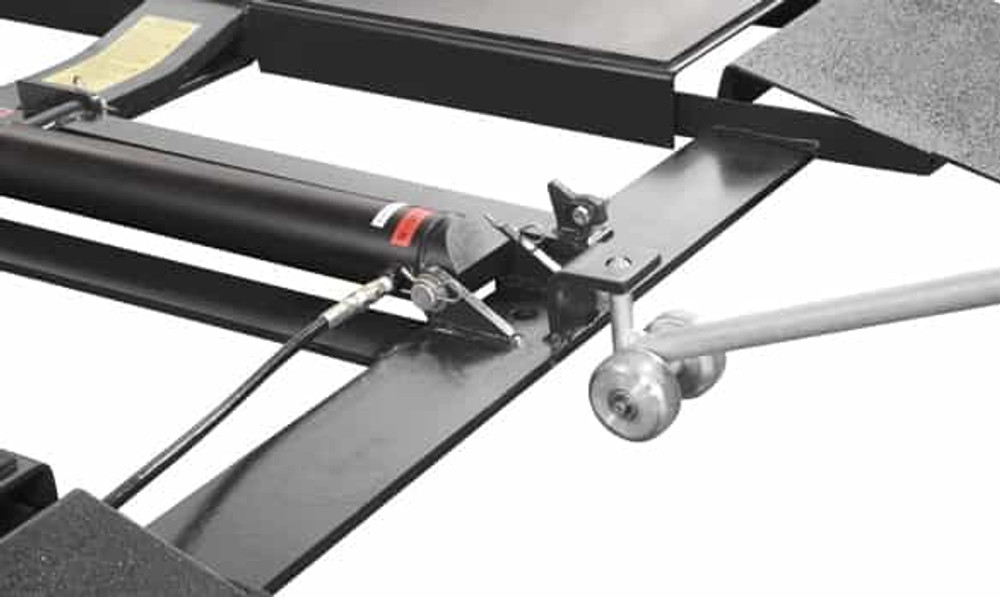

Industrial-Grade Hydraulic Cylinder
Integrated into the single hydraulic cylinder is a one-piece, pilot-fitted, machined steel piston wrapped with specially designed, pressure-loaded U-cup piston seals, backups, and wear bands that virtually eliminate any fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically to ensure superior cylinder operation and life.
The superior-design high-durometer, mechanically-loaded rod seals make rod leakage a thing of the past, while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth, and last a very long time.
Durable Powder-Coat Finish
All BendPak low-rise lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable surface which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, BendPak takes pride in its meticulous 10-step process.
First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25 feet long. Once cleaned, they're immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and will likely cause chips in the powder.
After the parts are washed and outgassed, any surfaces and/or threaded holes that need to be masked or plugged are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun—the powder "sticks" to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into the curing oven and baked at 400°F for 45 minutes.
Solid Rubber Lift Blocks Included
Others charge extra for these necessary adapters, but they're standard with every LR-60P lift. These rubber blocks protect vehicle undercarriages while providing secure contact points for unibody and frame vehicles alike.
Detailed Instructions and Safety Materials
Included with every lift are detailed installation and maintenance instructions, graphic safety decals, maintenance decals, a vehicle lifting point guide, and a safety instruction placard to train personnel on proper safety procedures and maintenance guidelines. BendPak ensures you have everything you need for safe, long-term operation right out of the box.
Power and Performance

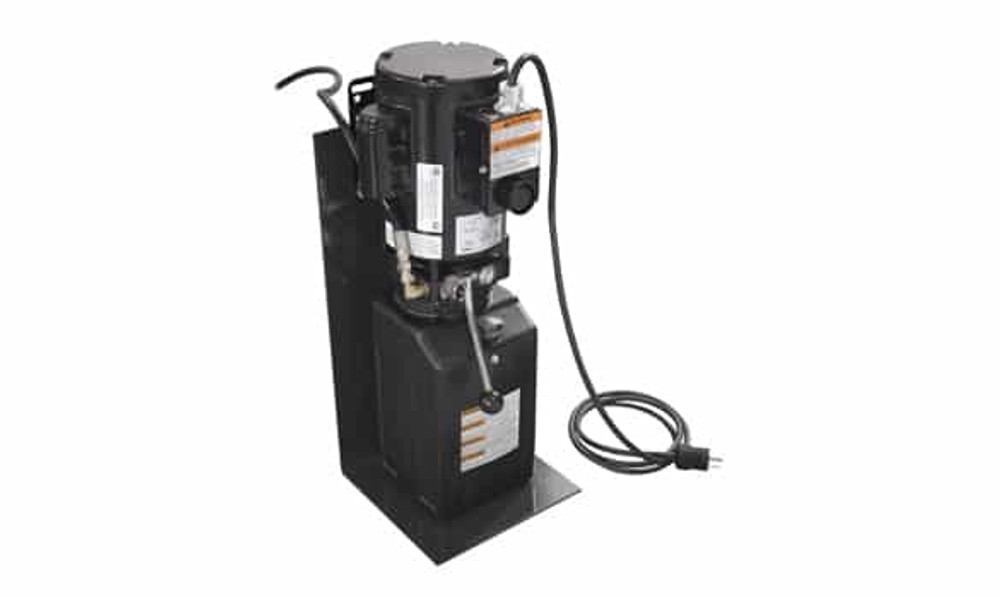

The LR-60P is powered by a reliable 110 VAC / 50-60 Hz / 1 Ph motor, making it compatible with standard shop electrical systems without requiring special wiring or power upgrades. The electric/hydraulic power system delivers smooth, controlled lifting with the push of a button.
With an overall pad length of 53 inches, overall width of 70.5 inches, and overall length of 82 inches, the LR-60P offers a large lifting platform while remaining compact enough to fit in most garage and shop bays. The 18" x 52" lift pad dimensions provide excellent surface contact for stable, secure vehicle support.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Duration: From the date of purchase by the original Purchaser or 12-24 months from the date of shipment by BendPak or whichever comes first.
Two Years (24-Months) Warranty on the lift structure
One Year (12-Months) Warranty on the hydraulic cylinder(s) and power unit
One Year (12-Months) Warranty on operating components
One Year (12-Months) Labor Warranty on site or at factory
One Year (12-Months) Free-Shipping* on ground-freight charges related to warranty performance
Limited Warranty
1. Who gives this warranty (Warrantor): BendPak Inc., 1645 Lemonwood Dr., Santa Paula, CA 93060
2. Who receives this warranty (Purchaser): The original Purchaser (other than for purpose of resale)
3. What products are covered by this warranty: Any BendPak Full-Rise Scissor Lift**
4. What is covered under this warranty: manufacturer defects due to material and/or workmanship with the exceptions noted below.
5. What is not covered under this warranty:
a. Any failure that results from Purchaser’s abuse, neglect or failure to operate, maintain or service product in accordance with instructions provided in the owner’s manual(s) supplied b. Any damage caused by overloading lift beyond rated capacity c. Items or service normally required to maintain the product, i.e. lubricants, oil, etc. d. Items considered general wear parts such as rubber pads, pad adapters, etc. unless wear or failure is a direct result of manufacturer defect due to material and/or workmanship e. Any component damaged in shipment or any failure caused by installing or operating lift under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings f. Motor or pump failure caused by rain, excessive humidity, corrosive environments or other contaminants g. Rusted components due to improper maintenance or corrosive environments h. Cosmetic defects that do not interfere with product functionality i. Damage due to incorrect voltage or improper wiring j. Any incidental, indirect, or consequential loss, damage, or expense that may result from any defect, failure, or malfunction of BendPak Inc. product k. All electrical components are guaranteed for one year against defects in workmanship and/or materials when the lift is installed and used according to specifications.
6. Responsibilities of Warrantor under this warranty: Repair or replace, at Warrantor’s option, component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period. BendPak Inc. will pay reasonable labor costs for the first 12 months only
7. Responsibilities of Purchaser under this warranty: a. Provide dated proof of purchase and maintenance records b. In some cases, components may be required to be shipped to the nearest BendPak Authorized Service Center. Freight costs, after 12-months, must be borne by the Purchaser. c. Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
8. When Warrantor will perform repair or replacement under this warranty: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.
*Free-shipping applies to direct shipping points within the 48 continental United States. Rural area shipping surcharge may apply for remote
addresses.
**For all BendPak brand Low-Rise and Mid-Rise Surface Mounted Vehicle Service Lifts (excluding specialty lifts, high rise, commercial
parking, material handling, or models for particular purpose) manufactured on or following 7/27/2012.
Limitation of Liability
BendPak/Ranger shall have no obligation pursuant to this Warranty with respect to products which in our sole judgment have been altered
damaged, misused, abused, badly worn, lost or improperly maintained. This Warranty is null and void if the customer or any other person other
than an authorized representative of BendPak/Ranger has made any attempt to service or modify the tool prior to its return to BendPak/Ranger
under this Warranty. In no event will either party be liable for any damage caused by the other party's failure to fulfill its responsibilities under
these terms and conditions. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic
consequential damages. All expressed and implied warranties, including the implied warranties of merchantability and fitness for a particular
purpose, are limited in duration to the coverage period. No warranties, expressed or implied, will apply after this period. BendPak may modify
these terms and conditions at any time by either providing the customer with written notice or posting such revised terms on
www.bendpak.com. Such revised terms shall be effective thirty days from the date of such written notice or posting.
