The Atlas PSP-6000 Portable Single Post Lift delivers professional-grade lifting capability with the ultimate flexibility—move it where you need it, roll it away when you don't. With a 6,000 lb capacity and 110V electric operation, this portable lift is the perfect solution for commercial service shops and dedicated home garages that demand full undercar access without sacrificing valuable bay space to a permanently mounted lift.

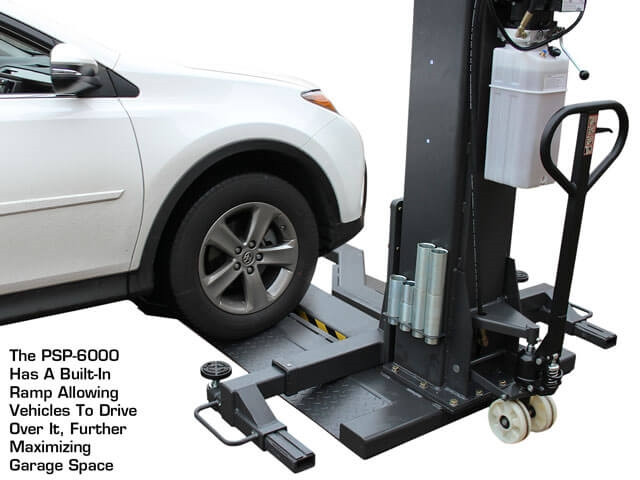

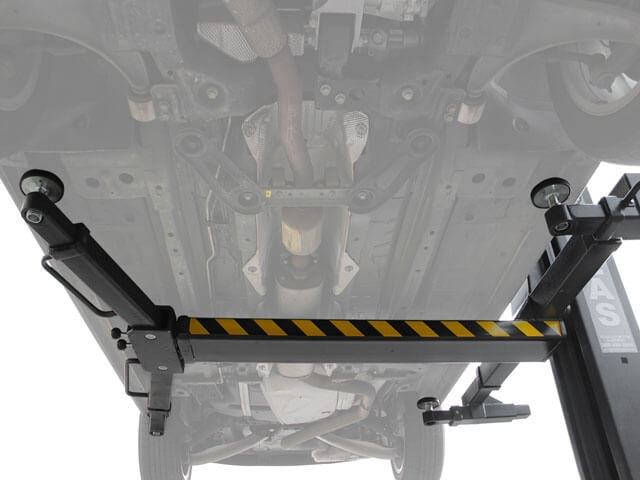

Unlike traditional two-post or four-post lifts, the PSP-6000 gives you complete freedom of movement around the vehicle. Walk underneath for exhaust work, suspension repairs, or detailed undercarriage inspections. Perform wheel service with ease. The low profile design with built-in drive-over ramps means vehicles can literally drive over the lift when not in use, maximizing every square foot of your garage. When your work is done, simply roll the PSP-6000 into a corner or storage area—no bay space wasted.

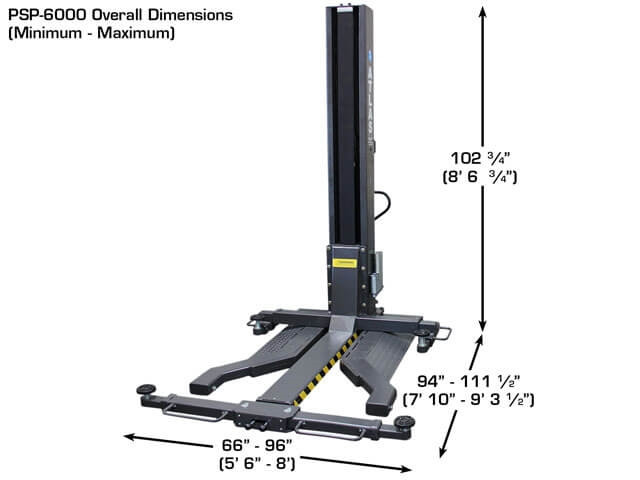

This portable single post lift rolls easily on level concrete surfaces and works equally well inside or outside your garage. The column is designed to fit under a 9-foot (108 inch) ceiling, with an overall height of 102 3/4 inches, and raises most vehicles high enough to access critical components that would be unreachable with a mid-rise lift. The maximum lifting height of 71 2/3 inches (without truck adapters) provides ample clearance for comprehensive service work.
Safety is engineered into every detail. The Atlas PSP-6000 column is equipped with an automatic chain break mechanism that locks the carriage into place in the unlikely event of a chain failure, giving you peace of mind during every lift operation. The single point lock release and locking arm restraints ensure secure, stable lifting every time.

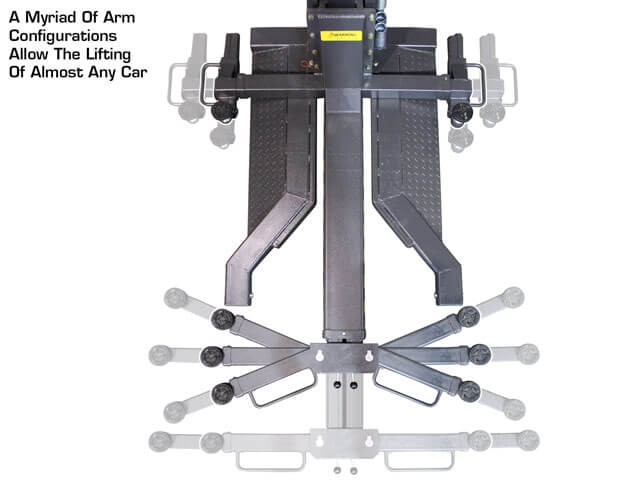

The PSP-6000 features two-stage telescoping swing arms that adjust to accommodate a wide variety of vehicle types and sizes. The distance between lifting pads adjusts from 39 1/2" to 81" (column side to offside), 53" to 73" (column side to column side), and 54 1/3" to 91 1/2" (offside to offside), giving you the flexibility to lift everything from compact cars to full-size trucks.
Each Atlas PSP-6000 includes a free 8-piece truck adapter set with double screw-up adapters, allowing you to safely lift trucks and vehicles with higher ground clearance right out of the box. The minimum height of just 5 inches ensures compatibility with low-profile vehicles, while the maximum clearance of 68 inches provides plenty of working room for larger jobs.
The lift's 10 1/2" x 12 1/2" column is built from heavy-duty materials with a rigid base construction that ensures rock-solid stability during operation. At 1,900 lbs, the lift is substantial enough to provide a stable lifting platform while still being mobile enough to reposition when needed.
Important: Oil is NOT included. This lift requires 3-5 gallons of AW32 or AW46 hydraulic oil for operation. A 30 amp breaker is required for the 110V motor.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
Warranty Information
To View Atlas® Automotive Equipment LR-06 Warranty Click Here
