The Atlas® LR-06P portable 6,000 lb. low rise lift is the perfect addition to any garage that needs a quick, sure fire method to raise a car to perform wheel service. Whether you're running a professional shop or maintaining your own fleet, this portable scissor lift delivers the versatility and convenience you need to work efficiently and safely.
Engineered for durability and ease of use, the LR-06P features a rubber top lifting surface and comes complete with four high density rubber blocks that help protect the lifting points of most vehicles. The 110V power unit means you can operate this lift anywhere you have standard household power—no need for complicated electrical installations or dedicated circuits.
With a minimum height of just 4 inches, this low profile design accommodates most low frame vehicles, including sports cars and lowered vehicles that can't access traditional lifts. Raise vehicles up to 25 ½ inches with the included blocks (24 inches without), giving you comfortable working height for tire rotations, brake jobs, suspension work, and undercarriage inspections.
Operating the Atlas® LR-06P couldn't be easier. Simply drive the car over the lift and position the rubber blocks (if needed) under the correct lifting points of the vehicle. Press the button on the unit and lift the vehicle to the desired work height. When you're ready to lower, depress the "dump valve lever" on the power unit and the lift lowers slightly to the next lower mechanical lock position.
Multiple lock positions and a unique self-actuating lock bar allow the operator to perform wheel service at a comfortable working height. The lift features three locking positions (without rubber blocks) at heights of 12 ¼", 18 ½", and 22 ¼"—giving you flexibility to work at the height that's best for each specific job.

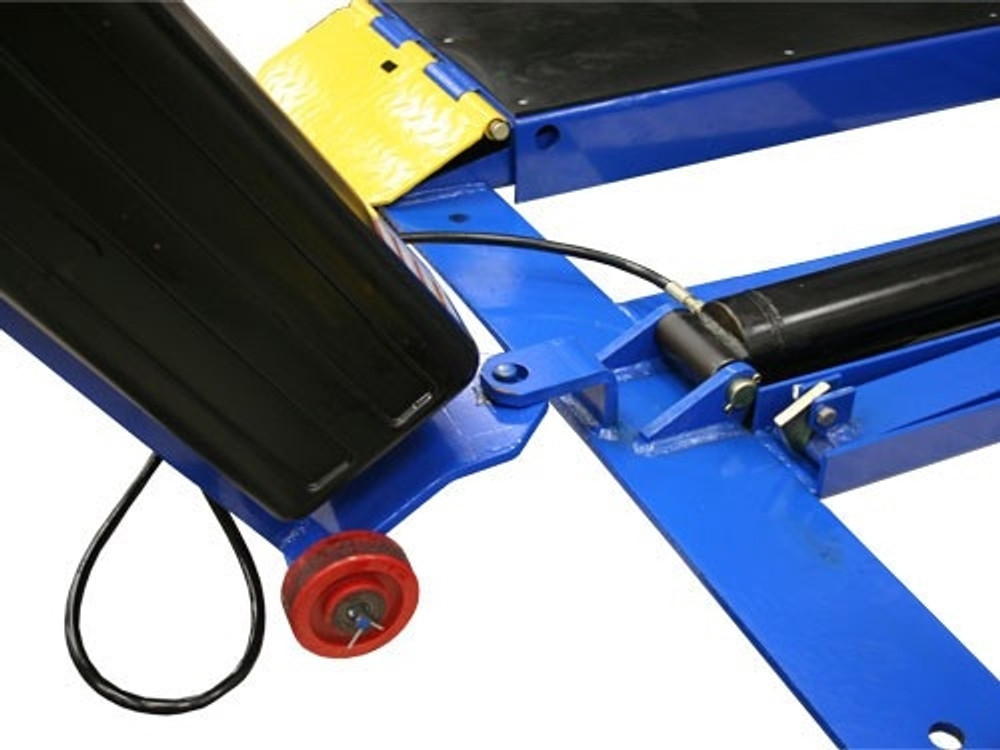

This durable lift is built on a heavy steel frame that provides rock solid support for the lifting base. Despite its robust 965 lb. construction, the LR-06P can be easily moved inside the garage or to an outside concrete apron in front of a bay. The standard wheel kit and the power unit stand work together to allow the operator to roll the Atlas® LR-06P portable low-rise lift across any concrete surface with ease.

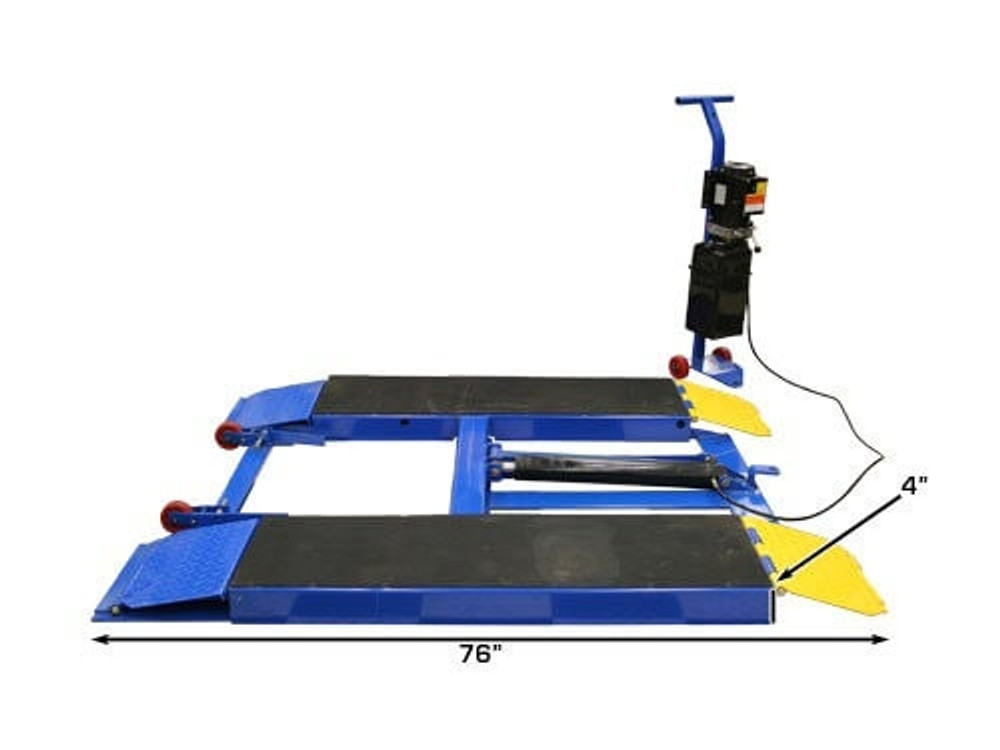

With an overall width of 70 inches and overall length of 76 inches, the lift fits comfortably in most bays while providing a generous 53 ¼" overall pad length to accommodate a wide range of wheelbases. The compact footprint and portability mean you can store it when not in use or reposition it to maximize your workspace.
Important: Understanding Horizontal Cylinder Scissor Lifts
The best way to position any vehicle on a scissor lift with horizontal cylinders is to allow some space (2-6 inches) between the lifting surface of the lift and the vehicle's lifting points. This ensures optimal lifting geometry and full rated capacity. Click here to read more about why this matters.

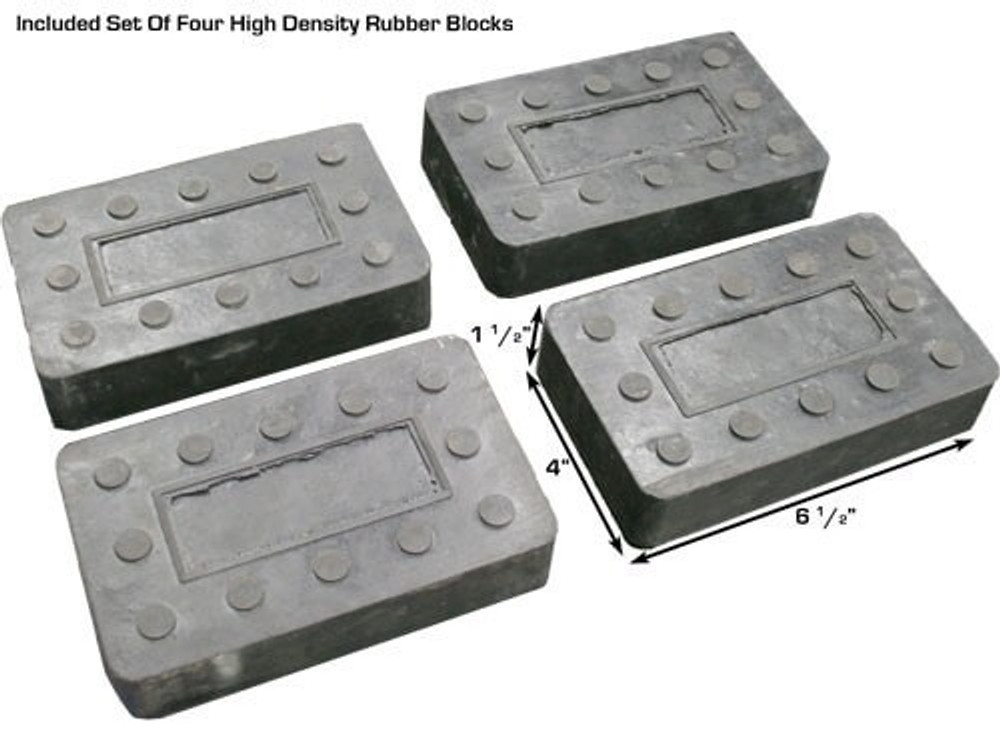

Every Atlas® LR-06P comes complete with four heavy-duty rubber blocks designed to safely interface with your vehicle's lifting points. These high-density blocks add an extra 1 ½ inches of lift height while protecting undercarriage components from damage.
Four high-density rubber blocks included with every LR-06P
The LR-06P is powered by a 1.5HP 110V 1Phase 60Hz motor and requires 1.5 gallons of AW32/AW46 hydraulic oil. The robust construction and quality hydraulic components ensure smooth, reliable operation for years of service.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
