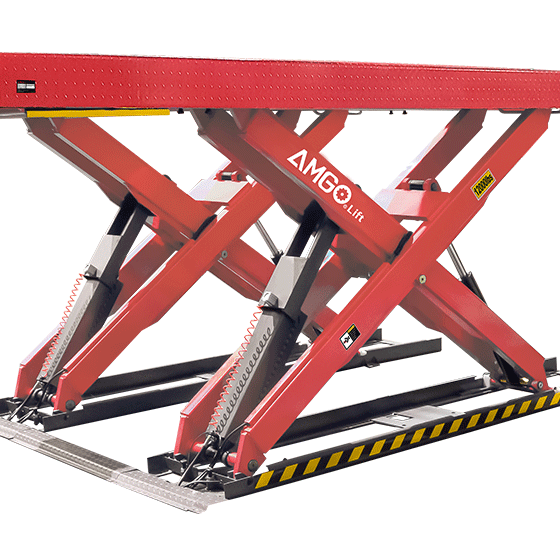

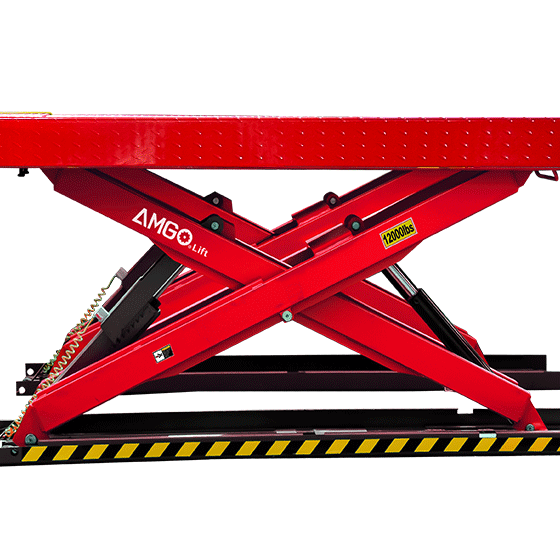

The AMGO® Hydraulics AX-12 scissor lift is a premium heavy-duty vehicle lifting solution engineered to deliver exceptional strength, safety, and performance in demanding professional environments. With a robust 12,000 lb lifting capacity and a full-rise design that reaches up to 72 13/16", this scissor lift provides comfortable, accessible workspace underneath virtually any vehicle. Whether you're servicing passenger cars, light trucks, or SUVs, the AX-12 offers the versatility and reliability your shop demands.
Built around a reinforced Robot X scissors heavy-duty structure, the AX-12 delivers superior performance and durability that stands up to continuous daily use. This advanced design integrates two groups of four hydraulic cylinders working in perfect synchronization to ensure equalized lifting and maximum safety across both platforms. The result is smooth, stable operation and unwavering confidence when working beneath raised vehicles.
Safety is paramount in any shop, and the AX-12 sets the standard with its dual safety system featuring both hydraulic locks and self-locking mechanical locks with air lock release. This redundant safety architecture makes the AX-12 one of the safest lifts in its class. An automatic safety stop device comes standard, providing additional peace of mind during every lift cycle. The electric-hydraulic power system with control power unit delivers smooth, consistent lifting performance with a 75-second lifting time, powered by a reliable 2.0 HP motor.
The AX-12 is designed with usability and efficiency in mind. Non-slip long and wide platforms accommodate various vehicle types and sizes, while the generous 40 15/16" width between runways provides excellent clearance for undercarriage work. The 197 9/16" runway length ensures compatibility with a wide range of wheelbases, and the 267 1/16" overall length (including ramps) allows for easy vehicle drive-on access. At just 12" minimum height, the lift accommodates low-profile vehicles without difficulty.
The AMGO AX-12 is engineered to be the workhorse your shop can depend on day after day. The full-rise design offers a comfortable experience working underneath vehicles, eliminating the cramped workspace common with shorter-travel lifts. The max lock height of 71 1/16" provides secure, stable positioning at full extension, while the electric-hydraulic power system with control power unit ensures smooth, controlled lifting and lowering.
With a gross weight of 4,872 lbs, the AX-12 is a substantial, solidly-built piece of equipment that stays firmly planted during operation. The 90 3/16" overall width provides a stable footprint, while the thoughtfully designed 40 15/16" width between runways gives technicians excellent access to wheels, brakes, suspension, and exhaust systems. The non-skid platforms ensure vehicles remain securely in place throughout the entire service process.

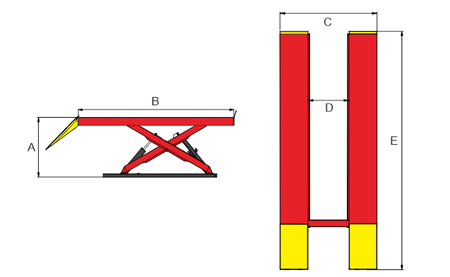

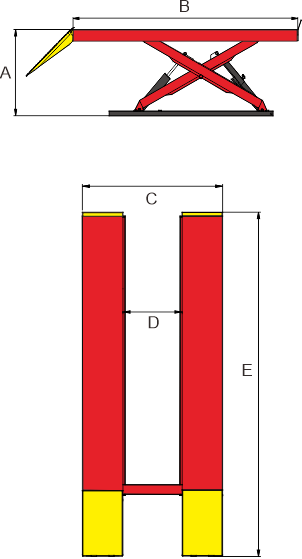

AMGO AX-12 specifications and dimensions diagram
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to www.P65Warnings.ca.gov
Warranty Information
To View AMGO® Hydraulics Warranty Click Here
