Air Impact Wrenches - 3/8"

Common Applications for 3/8" Air Impact Wrenches

Understanding Air Impact Wrench Configurations

Pistol Grip Design: The most common configuration, offering excellent control and visibility of the work area. Pistol-style wrenches typically provide the best power-to-weight ratio and are ideal for general-purpose use.

In-Line (Palm Grip) Design: Features a straight body design where the motor sits directly above the drive. This configuration excels in tight spaces where a pistol grip won't fit, such as between engine components or in transmission housings. The compact profile makes in-line models particularly valuable for specialized tasks.

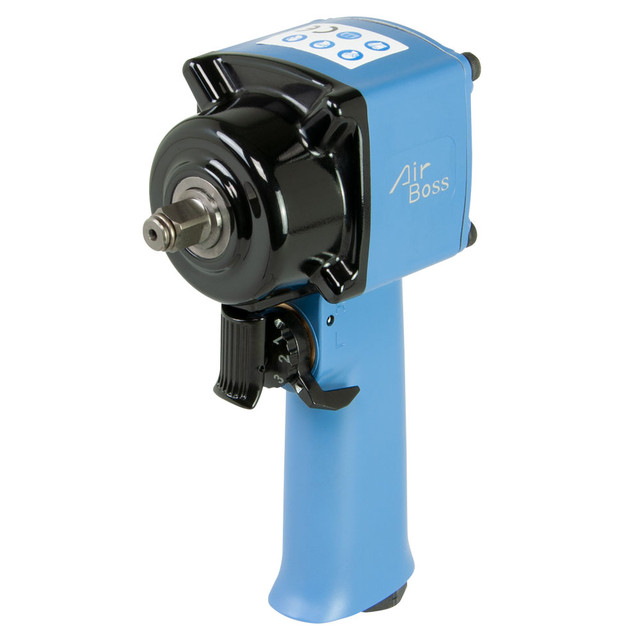

Stubby/Micro Impact Wrenches: Ultra-compact versions, often measuring just 3-5 inches in length, designed specifically for extremely restricted access areas. Despite their small size, many stubby models can still deliver impressive torque output, though generally less than full-size counterparts.

Key Specifications to Consider

Torque Output: Air impact wrenches typically distinguish between working torque (the controlled, adjustable torque used for tightening) and maximum loosening torque (the peak power available for breaking free stubborn fasteners). Working torque for 3/8" models generally ranges from 5 to 225 ft-lbs, while maximum torque can exceed 400 ft-lbs on some models.

Air Consumption: Measured in cubic feet per minute (CFM), this specification determines the air compressor capacity you'll need. Most 3/8" air impact wrenches consume between 2 and 11 CFM at load, making them compatible with most shop compressor systems. Consider your compressor's output when selecting a model.

Operating Pressure: Most air impact wrenches operate optimally at 90 PSI, though many function across a range of pressures. Built-in regulators on some models allow you to adjust torque output by controlling air pressure.

RPM and BPM: Free speed is typically measured in revolutions per minute (RPM), while impact force is measured in blows per minute (BPM). Higher RPMs contribute to faster operation, while BPM affects the tool's ability to break fasteners loose. Specifications vary widely by model.

Impact Mechanism Types

Twin Hammer: Uses two hammers striking simultaneously, providing balanced power delivery and reduced vibration. This design is known for durability and consistent performance.

Jumbo Hammer: Features a larger, single-hammer mechanism that generates substantial impact force, making it particularly effective for breaking loose seized or over-torqued fasteners. Often found in heavy-duty applications.

Rocking Dog Clutch: A durable clutch system with oil lubrication that provides smooth operation and extended tool life. This mechanism is valued for reliability in professional environments.

Material Construction Considerations

Air impact wrenches are typically constructed from aluminum, composite materials, titanium, or steel—each offering distinct advantages. Aluminum housings provide durability with moderate weight. Composite (polymer) construction delivers the lightest weight for reduced operator fatigue during extended use, though it may sacrifice some durability in extreme conditions. Titanium offers an excellent strength-to-weight ratio but at a premium price point. Steel components, particularly in clutch housings and internal mechanisms, provide maximum durability for high-abuse environments.

Ergonomic and Usability Features

Forward/Reverse Control: Modern designs include various control mechanisms—from traditional side-mounted levers to innovative butterfly throttles that allow one-handed directional changes and speed control. Some models offer ambidextrous controls that can be configured for left or right-handed operation.

Torque Control: Built-in power regulators allow you to dial in precise torque settings, helping prevent over-tightening and fastener damage. Recessed regulator dials protect settings from accidental adjustment.

Exhaust Systems: Quiet exhaust technology significantly reduces noise levels—some models operate at 79-84 dBA compared to older designs that can exceed 100 dBA. Consider noise levels if working in noise-sensitive environments or for extended periods.

Socket Retention: Ring-style socket retainers provide secure socket attachment while allowing quick changes. Some models include push-button socket releases for even faster operation.

Air Supply Requirements

For optimal performance, ensure your air compressor and distribution system meet your impact wrench's requirements. Most 3/8" air impact wrenches require a minimum 3/8" air hose, though some high-flow models may benefit from 1/2" hose for reduced pressure drop. Air inlet sizes are typically 1/4" NPT(F). Consider installing a filter-regulator-lubricator (FRL) unit near your work area to ensure clean, lubricated air at consistent pressure, which extends tool life and maintains performance. Moisture in air lines can damage internal components and reduce efficiency.

Maintenance and Tool Life

Air impact wrenches require regular maintenance to perform reliably. Daily lubrication with pneumatic tool oil through the air inlet is essential—just a few drops before each use or after several hours of operation. Periodically inspect air hoses, fittings, and quick-couplers for leaks or damage. Clean air filters regularly and drain moisture from the air compressor tank. Store tools in a clean, dry environment. Many professional-grade models include pressure-feed lubrication systems that automatically distribute oil to critical components during operation, reducing maintenance requirements.
