K&L K1700 Powertrain/EV Battery Split Hydraulic Table Lift

Name: K&L K1700 Powertrain/EV Battery Split Hydraulic Table Lift
Brand: K & L
SKU: KLK1700
Price: 7431.44 USD
Availability: InStock

0 review Write a Review

$7,431.44

(You save: $1,567.56 )

Product Code: KLK1700

Quantity:

Hurry up! Current stock:

Options

Optional Mounting Adapters:

Product Details
Warranty Information
Product Features
Product Specs

Product Details

K&L K1700 Powertrain/EV Battery Split Hydraulic Table Lift

📄 Download Installation Manual

Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

The K&L K1700 Powertrain/EV Battery Split Hydraulic Table Lift is engineered to meet the evolving demands of modern automotive service — from traditional powertrain work to cutting-edge electric vehicle battery service. With a robust 2,000 lbs capacity and an innovative sliding split tabletop design, this professional-grade lift makes complex component service faster, safer, and more efficient.

Whether you're separating engine and transmission assemblies, removing hybrid generator modules, servicing electric vehicle battery packs, or working with fuel tanks and suspension systems, the K1700 provides the versatility and precision your shop demands. The electric over hydraulic system delivers fast, smooth action with remote control operation for maximum convenience and safety during heavy component handling.

Innovative Split Table Design for Maximum Versatility

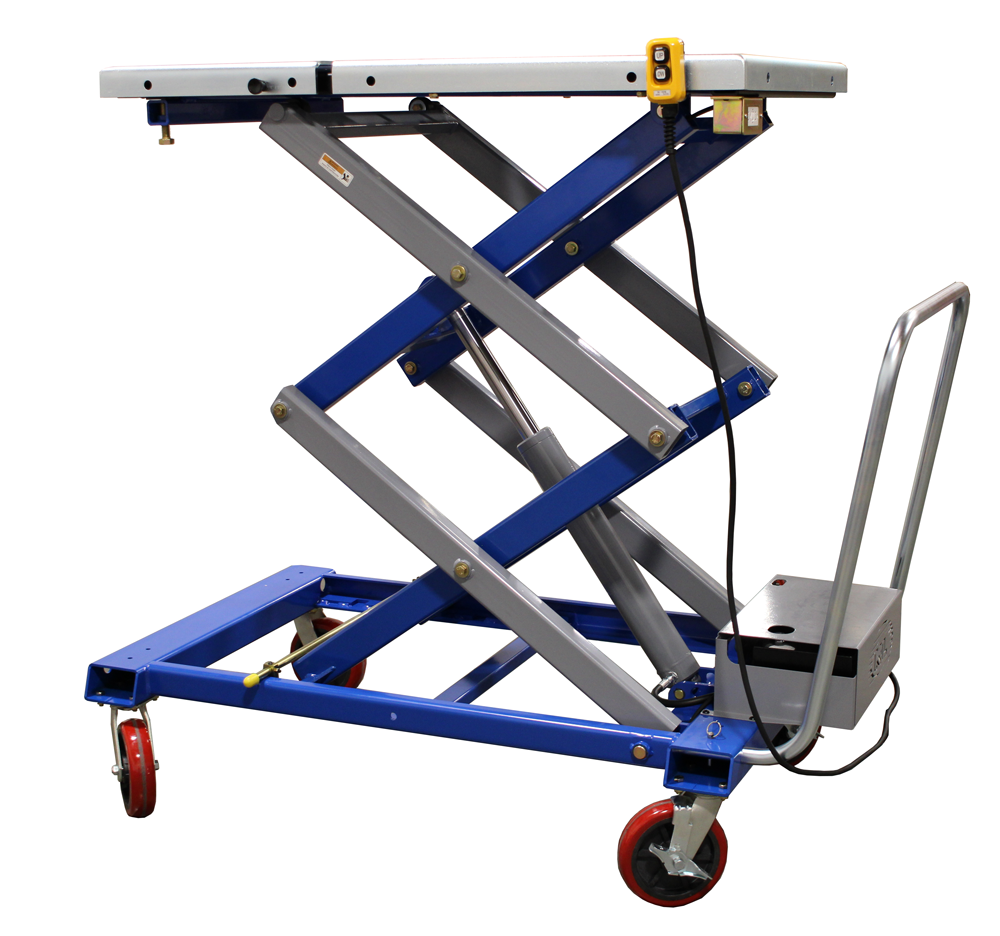

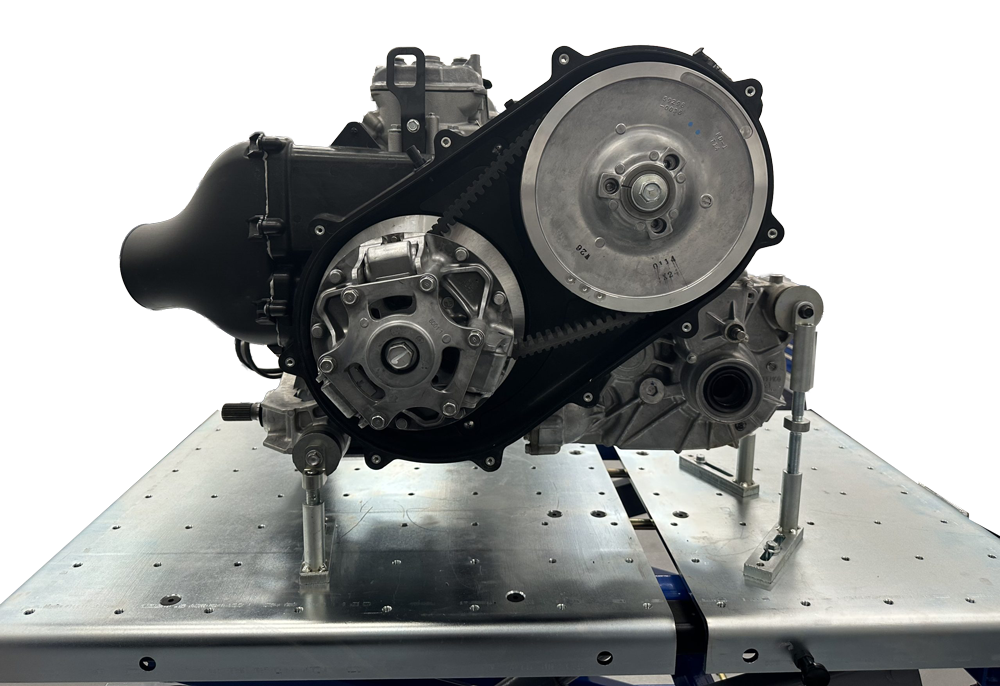

The sliding split tabletop design of this power-train lift allows for easy separation of the engine/transmission assembly or hybrid engine/generator module, making service work dramatically easier and reducing technician strain. The unique split configuration also excels at handling the removal and installation of electric vehicle batteries, fuel tanks, suspension systems, and other complex power-train assemblies that require precise positioning and component separation.

With adjustable table length from 42" to 50" and a 36" table width, the K1700 accommodates a wide range of component sizes. The table extends from a minimum height of 21.5" all the way up to 78" maximum height, providing exceptional range for various service scenarios. The low collapsed height aids in servicing large components while still on the lift, while generous ground clearance allows for floor crane access when needed.

This exceptional height range means you can position the lift low enough to work comfortably on components removed from the vehicle, then raise it to an ergonomic working height that reduces back strain and improves technician productivity. The split table action is smooth and controlled, allowing you to gradually separate components without sudden movements that could compromise safety or damage expensive assemblies.

Electric Over Hydraulic Power for Precision Control

The electric over hydraulic power system combines the best of both technologies: the consistent, smooth lifting action of hydraulics with the convenience and control of electric operation. Unlike purely mechanical lifts that require constant manual effort, the K1700 lifts and lowers with the push of a button on the included remote control.

This remote control operation is a game-changer for heavy component work. Technicians can position themselves safely away from the lift during operation, observe the component from multiple angles during raising and lowering, and maintain full control without being tethered to a hand crank or foot pedal. The system provides fast, smooth action that speeds up service times while maintaining the precision needed for delicate alignment work.

Precision Alignment & Safety Features

The tilt table feature helps properly align components to the vehicle during installation, reducing the trial-and-error of component positioning and speeding up service time. This tilting capability is especially valuable when working with powertrains that need to be angled to clear chassis components or align with mounting points. What might take multiple attempts with a standard lift can often be accomplished in one smooth motion with the K1700's tilt function.

Threaded holes in the tabletop accommodate future adapters and power-trains, making this lift a long-term investment that grows with your shop's capabilities. The included fixture jigs provide secure component mounting options right out of the box, while the threaded mounting system ensures you can add specialized adapters as your service needs expand.

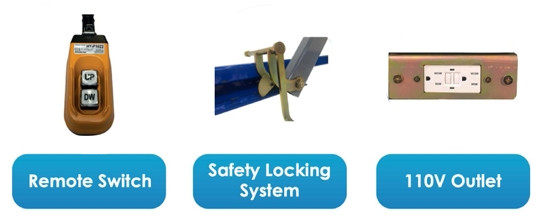

Safety is paramount when handling heavy powertrain components. The K1700 includes safety locks to secure the table at working height, preventing unexpected lowering during service work. Locking casters ensure stable positioning once the lift is in place, while an adjustable handle provides ergonomic maneuvering when moving the lift around the shop. The integrated 110v power strip keeps power tools within reach during service, eliminating the need for extension cords and reducing trip hazards in the work area.

Built for Modern Automotive Service Demands

As electric vehicles become increasingly common in service bays, shops need equipment that can handle both traditional powertrain work and emerging EV service requirements. The K1700 bridges this gap perfectly. Its 2,000 lbs capacity is more than adequate for most EV battery packs, while the split table design makes it easy to separate and service these large, heavy components safely.

The lift's versatility extends beyond batteries and powertrains. Suspension systems, fuel tanks, transfer cases, and differential assemblies can all be serviced efficiently with the K1700. The combination of height adjustment, tilt capability, and split table function means you have the right tool for virtually any heavy component service job that comes through your bay.

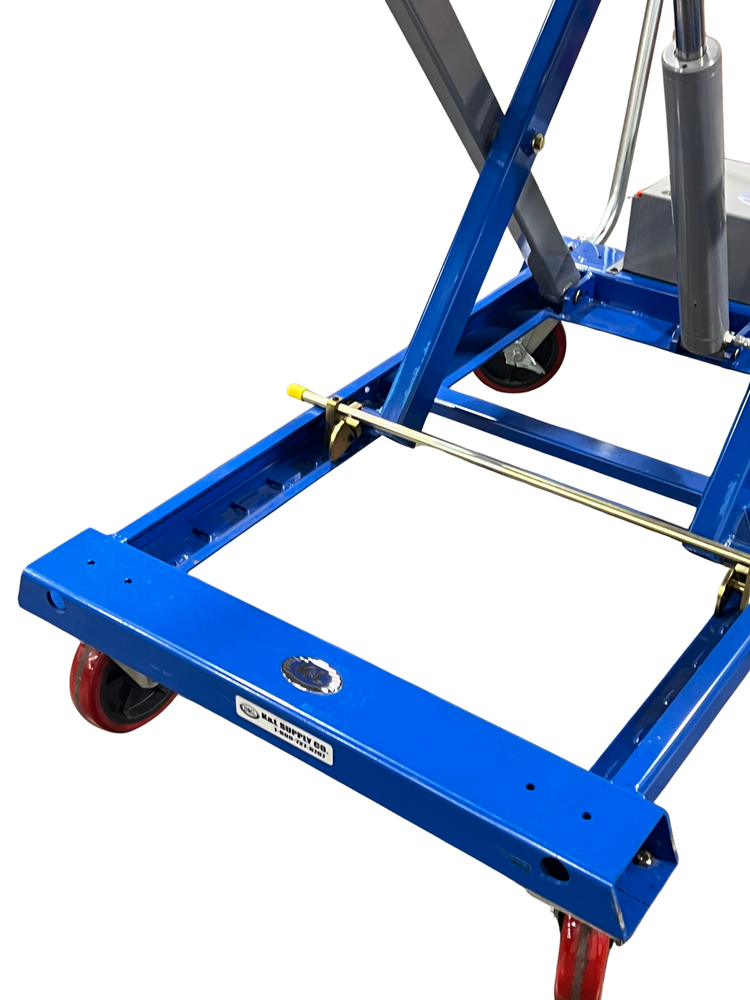

The adjustable handle makes it easy to maneuver the lift into position, even in crowded service bays. The locking casters provide excellent mobility when moving the lift and rock-solid stability when working. This combination of portability and stability means you can position the lift exactly where you need it, then lock it down for safe operation.

Key Advantages

2,000 lbs capacity handles heavy powertrain assemblies, EV batteries, and large components with confidence
Electric over hydraulic system with remote control operation for fast, smooth, hands-free lifting action
Sliding split table design allows easy separation of engine/transmission or hybrid modules — ideal for modern EV battery service
Tilt table function ensures precise component alignment during installation, reducing installation time and frustration
Adjustable 42" - 50" table length and 78" maximum height provide exceptional range and versatility for diverse service applications

Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.

Expand Your Capabilities

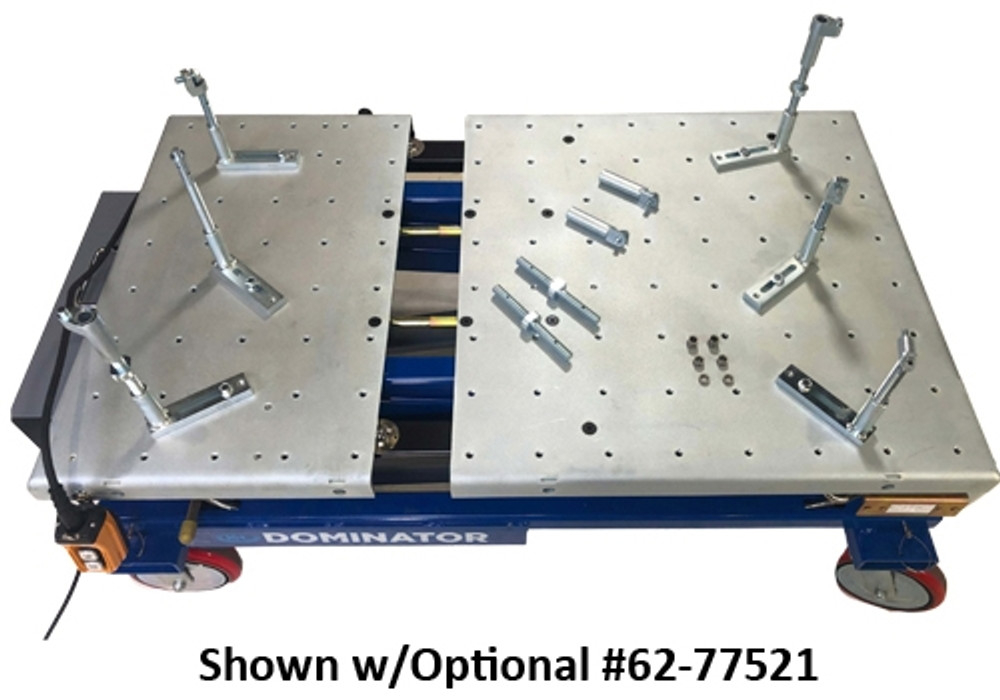

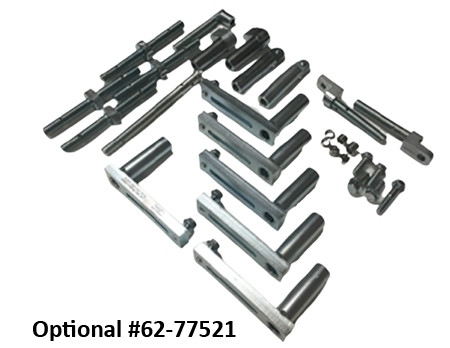

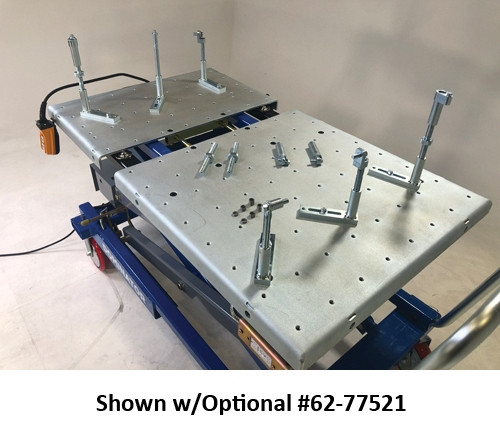

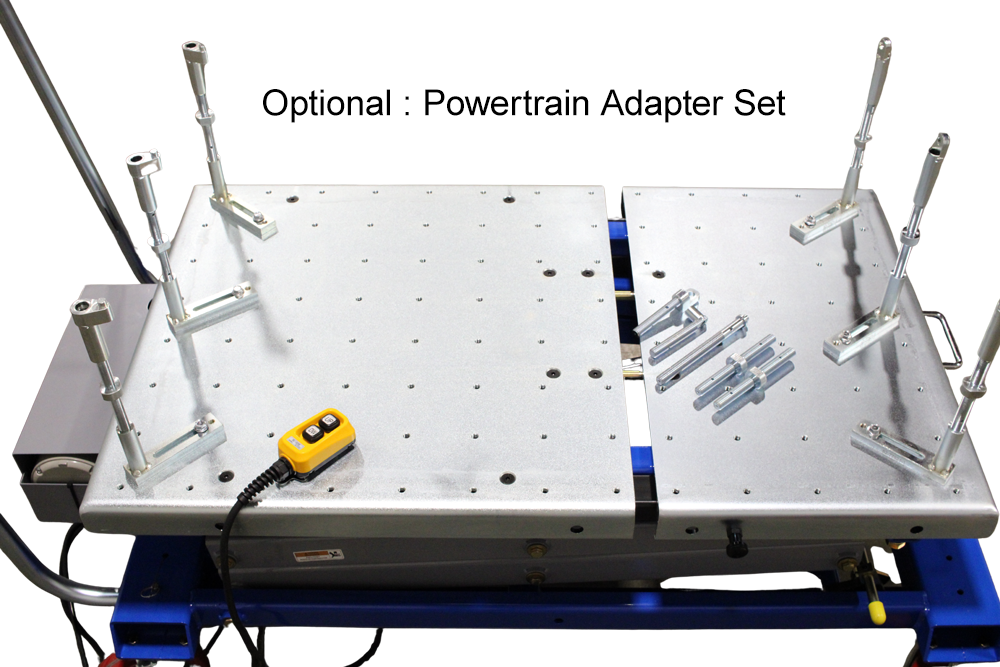

Enhance the K1700's versatility with the optional #62-77521 Power-Train Adjustable Mounting Adapters, designed to accommodate an even wider range of powertrain configurations and service applications. The threaded tabletop mounting holes ensure secure adapter installation and future expandability as your service needs evolve. This optional accessory system means your investment in the K1700 can grow with your business, handling new vehicle platforms and service procedures as they emerge in the market.

Whether you're running an independent repair shop, a dealership service department, or a specialty performance facility, the K&L K1700 Powertrain/EV Battery Split Hydraulic Table Lift delivers the professional-grade capability, safety features, and versatility that modern automotive service demands. Its combination of heavy-duty construction, innovative design, and thoughtful features makes it an essential tool for any shop handling powertrain, suspension, or electric vehicle battery service work.

Warranty Information

Warranty

1 Year Warranty

Warranty does not cover natural wear and tear, consumable parts or breakage due to misuse. Unit should only be operated by trained technicians. Warranty is voided if unit is worked on by noncertified technicians, or if the unit is sold or given away.
