The iDeal PSB-PMR1088-AK Paint Mixing Room delivers a professional-grade, controlled environment specifically engineered for safe paint mixing applications. Designed to provide superior lighting with a clean and controlled ventilated work area, this paint mixing room combines functionality, safety, and convenience in one complete system. With 1,429 CFM airflow, UL & ETL listed Class 1, Division 2 lighting fixtures, and a heavy-duty 18-gauge panel construction, this mixing room meets and exceeds all applicable OSHA & NFPA 33 regulations. Perfect for body shops, refinishing facilities, and collision repair centers, the PSB-PMR1088-AK is always in stock and typically ships within 48 hours—no long manufacturing wait times.
Intelligent Airflow Design for Safe Paint Mixing
The iDeal Paint Mixing Room features a unique airflow design that prioritizes both operator safety and work quality. Air flows through premium AFC ceiling intake filters and moves downward toward one end of the room, where it passes through the filtered exhaust plenum and is discharged upward through a 12-inch tube axial exhaust fan and ducting system. This design provides efficient ventilation while keeping fumes and airborne contaminants away from the operator, ensuring a clean and safe mixing environment.
The fan and plenum chamber are purposely located outside of the mixing room to reduce noise levels while working inside, creating a quieter, more comfortable workspace. The Nema Rated 1/2 HP motor is available in both 3 Phase 208-230/460VAC and optional Single Phase 230VAC configurations, providing flexibility for different facility electrical setups.
Superior Lighting for Accurate Color Matching
Proper lighting is critical for paint mixing, and the PSB-PMR1088-AK excels in this area. The room comes equipped with two 48-inch 32W T8 four-light fixtures that are UL & ETL Listed Class 1, Division 2 (Groups A, B, C & D), ensuring safe operation in hazardous environments. Each fixture uses eight T8 fluorescent lamps rated at 32W, 5000K color temperature, and 2900 lumens, delivering true daylight color for accurate color matching and mixing.
The 5000K daylight color temperature minimizes color distortion and provides the clarity needed for precision paint work, ensuring consistent results every time.
Flexible Installation & Configuration Options

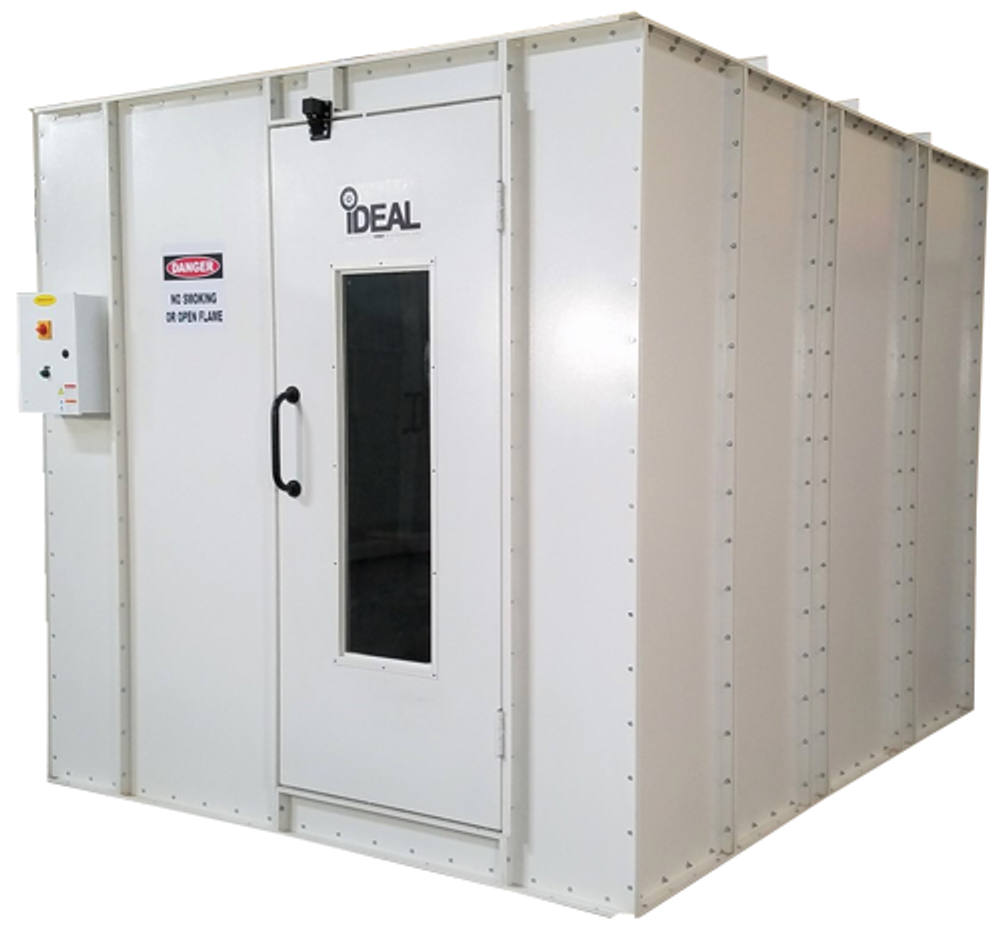

One of the standout features of the iDeal PSB-PMR1088-AK is its installation flexibility. The unique design allows the pre-hung personnel door with viewing window to be placed in either the front or side of the mixing room, accommodating different shop layouts and workflow requirements. This optional door replacement capability makes it easy to integrate the mixing room into your existing facility without major modifications.
The room offers 10' L x 8' W x 8' H interior dimensions with an overall footprint of 12'-6" L x 8'-4" W x 9'-4" H or 8'-4" L x 12'-6" W x 9'-4" H, giving you plenty of space for mixing operations. Assembly is straightforward with the included 5/16-inch bolts and serrated lock nuts, plus all necessary assembly hardware, manometer, and sealant.
Premium Construction & Finish
Built to last, the iDeal Paint Mixing Room features heavy-duty precision-punched 18-gauge panel construction with a durable bright white powder coat finish that reflects light and maintains a clean, professional appearance over time. The white interior maximizes light reflection, enhancing visibility and color accuracy during mixing operations.

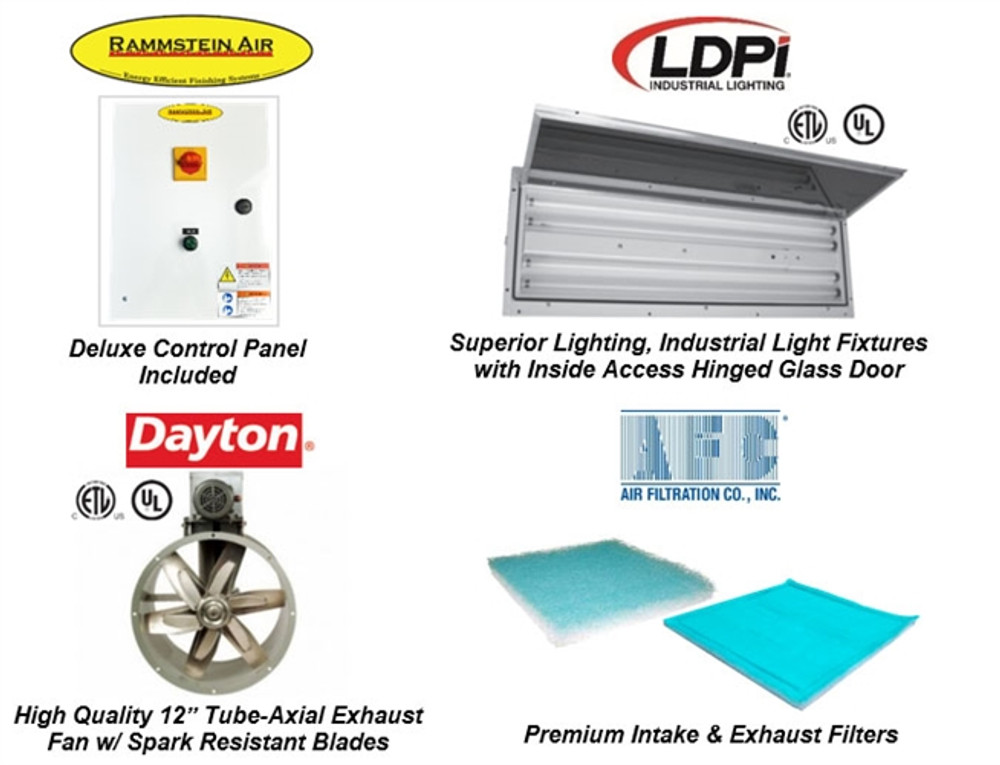

The included deluxe control panel provides convenient operation of lighting and ventilation systems, while the non-spark UL Listed fan and motor ensure safe operation in environments where flammable materials are present.
Key Highlights
Always in Stock – Typically ships within 48 hours with no manufacturing wait time
1,429 CFM airflow at .5 static pressure provides effective ventilation for safe paint mixing
Superior lighting system with two 48" industrial fixtures featuring 5000K daylight color temperature for accurate color matching
Flexible door placement – Personnel door can be installed on the front or side to match your shop layout
Meets and exceeds all applicable OSHA & NFPA 33 regulations for paint mixing rooms
Item in Stock – No Mfg Wait Time – Ready to Ship
This paint mixing room is available for immediate shipment. No long lead times or backorders—get your shop up and running quickly.
Optional Accessories
Enhance your paint mixing room setup with the optional PSB-13DUCTKIT-8 exhaust duct kit, designed for 8-foot ducting installations. This kit simplifies exhaust routing and ensures optimal ventilation performance.
Product Features & Construction
The iDeal PSB-PMR1088-AK combines heavy-duty construction, easy installation, and simple operation and maintenance to deliver a complete paint mixing solution that's built to last. From the precision-punched panels to the premium filters and high-quality tube axial exhaust fan, every component is designed for reliability and performance.
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.
Availability & Compliance Note
The iDeal PSB-PMR1088-AK Paint Mixing Room is available in all states. However, if you are located in New York, we recommend checking local codes first, as NY has very strict compliance requirements for paint mixing and spray booth equipment. Our team is available to assist with any compliance questions you may have.
