Auto Lift

Auto Lift AL-1000M w/ Side Extensions

0 review Write a Review
$1,408.00
(You save: $356.00 )
Product Code: AL-1000MSides
Hurry up! Current stock:
Options

Auto Lift AL-1000M w/ Side Extensions

📄 Download Installation Manual

Need help with installation? Our AI assistant has read this installation manual and can help you find the right page and walk you through each step.

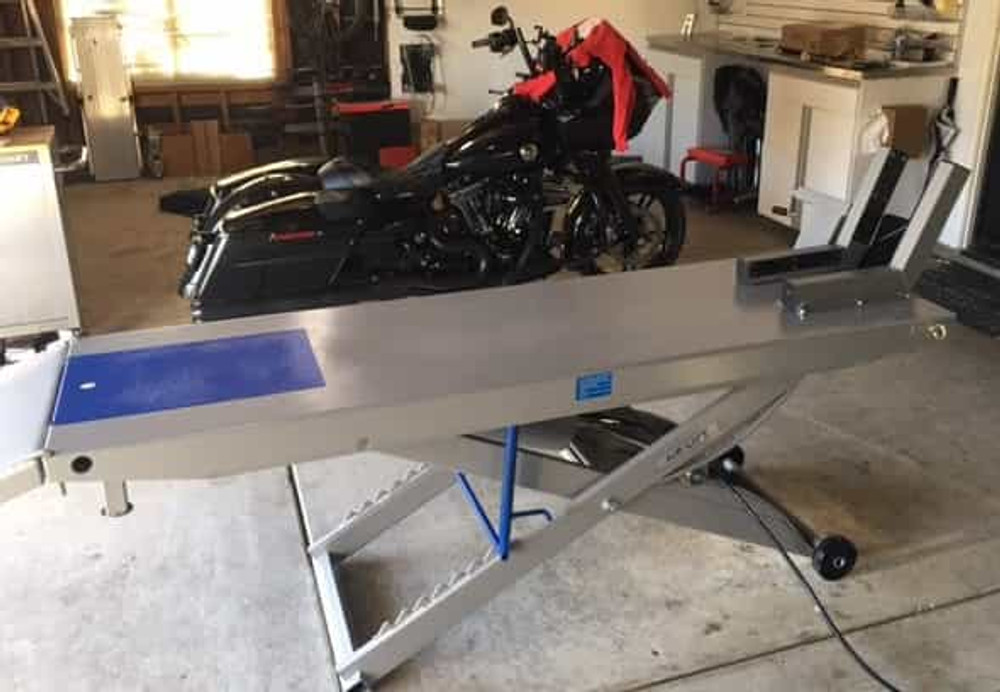

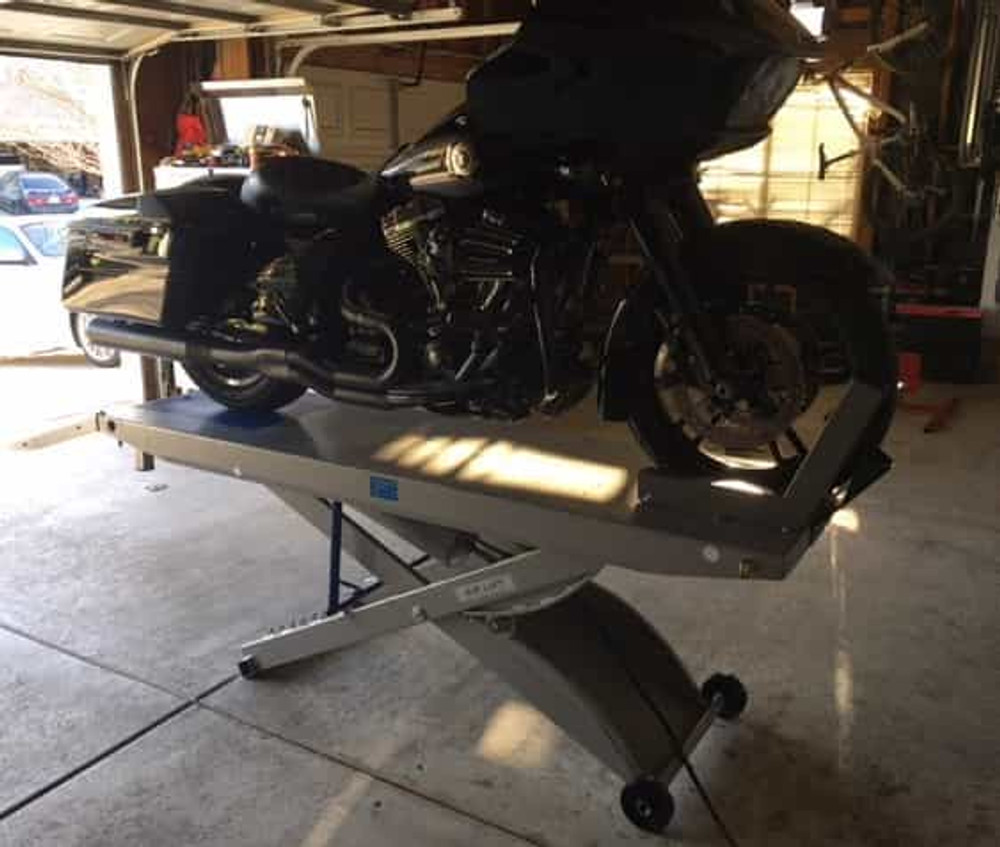

The Auto Lift AL-1000M with Side Extensions is the ultimate air-powered motorcycle lift table designed for professional shops and serious enthusiasts. With a robust 1,000 lb lifting capacity and an extra-large platform that expands to 84" x 48" with the included side extensions, this lift brings motorcycles, ATVs, snowmobiles, jet skis, and other powersports equipment to a comfortable 30-inch working height. Whether you're performing routine maintenance, engine repairs, or detailed customization work, the AL-1000M delivers the stability, space, and versatility you need to work efficiently and safely.


Complete Package – Ready for Your Shop

This complete package includes everything you need to handle a wide variety of powersports equipment. The 12" side extensions (set of 2) are included, expanding the table width from 24 inches to 48 inches—ideal for four-wheelers, wide motorcycles, or simply providing extra work space around your vehicle. Approach ramp extensions are also included to accommodate the wider platform configuration.

Additionally, this package comes with a cycle vise to securely lock your bike upright during service, ensuring maximum stability and safety while you work. The included built-in drop-out panel provides convenient access to the underside of your vehicle for oil changes, exhaust work, and other maintenance tasks.

Note: We are currently transitioning the drop-out panel color from red to blue. Until all red stock is depleted, you may receive either a red or blue drop plate with your lift. Both function identically.


Air-Powered Performance for Professional Results

The AL-1000M is powered by compressed air (90-100 PSI), delivering smooth, reliable lifting action without the need for hydraulics or electricity. This air-powered design ensures consistent performance, minimal maintenance, and safe operation in any shop environment. The lift raises your equipment from a minimum height of just 7 inches to a full 30 inches, providing excellent ground clearance and comfortable working access.

With an overall length of 108 inches including the ramp, and a core platform size of 84" x 24" (expandable to 84" x 48" with side extensions), this lift accommodates a wide range of vehicles. From sport bikes and cruisers to ATVs, UTVs, snowmobiles, and personal watercraft, the Auto Lift AL-1000M handles them all with ease.


Key Highlights

  • 1,000 lb lifting capacity – handles motorcycles, ATVs, snowmobiles, jet skis, and more
  • Expandable platform: 84" x 24" standard, 84" x 48" with included side extensions
  • 30-inch working height with 7-inch minimum collapsed height
  • Air-powered operation (90-100 PSI) – smooth, reliable, low-maintenance lifting
  • Includes cycle vise and built-in drop-out panel for enhanced versatility and access

See It in Action

Product reviewed by Rob Green from Road-Quest.com


Customizable for Your Shop

The Auto Lift M-1000C platform is designed to work with a range of optional accessories, allowing you to customize the lift to fit your specific shop needs. Whether you need additional tie-down points, wheel chocks, or specialty adapters, this lift serves as a versatile foundation for all your powersports service requirements.

Weighing 565 lbs with the vise and extensions included (395 lbs for the lift alone), the AL-1000M is solidly constructed for long-term durability and daily shop use. The robust steel construction and precision engineering ensure years of reliable performance.

Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs above for complete specs, dimensions, and detailed feature breakdowns.


The Auto Lift AL-1000M with Side Extensions is the ideal solution for shops and enthusiasts who demand professional-grade equipment that delivers on capacity, versatility, and value. Bring your work to the perfect height and experience the difference a quality lift table makes.

Limited One Year Warranty


Auto Lift Distributors LLC warrants to the original purchaser of a Auto Lift Lift that it will replace without any charge any part of a Auto Lift Lift found under normal use, in the United states or Canada, to be defective in materials or workmanship, for a period of one year after purchase. These parts are all steel components including:


Columns, Arms, Uprights, Swivel pins,


Pulleys, Carriages, Overhead beam, Floor plate, Tracks, Cross rails, Ramps, Top rail beam, Ramp pin, Legs


Exclusions


This warranty will not apply to any lift:


1. Which has not been operated or maintained according to specifications


2. Which has been abused, misused altered or improperly maintained


Other limitations


This warranty does not cover:


1. Parts needed for normal maintenance


2. Wear parts, which include but are not limited to, cables, hoses, slider blocks, chains and rubber pads


3. On-site labor


4. Upon delivery of goods, the Customer has sole responsibility to notify Auto Lift Distributors of missing parts or concealed damage within 72 hours of receipt. If no notification of missing parts or of concealed damage is made, all parts will be purchased after 72 hours has passed.


5. The Customer must notate on the freight receipt any visible damages to packing and/or equipment. The Customer has the right to refuse any shipment that appears to have been damaged or mis-handled in shipping. If the customer signs “clear” on visible damage, the freight company will reject the claim, thus making the Customer liable for any charges to replace equipment and/or parts.


6. The customer must make arrangements to unload the equipment from the ABF trailer, no labor or equipment rental will be paid by Auto Lift Distributors.


Auto Lift Distributors LLC will replace any defective part under warranty at no charge as soon as said parts become available from the parts manufacturer. However, the purchaser is responsible for shipping charges involved; and no warrantee or guarantee is given as to the immediate availability of the replacement part.


Auto Lift Distributors LLC reserves the right to make improvements and/or design changes to its lifts without any obligation to previously sold, assembled or fabricated equipment.


There is no other express warranty on the Auto Lift Distributors lifts and this warranty is exclusive of and in lieu of all other warranties, expressed or implied, including all warranties of merchantability and fitness for a particular purpose.


To the fullest extent allowed by law, Auto Lift Distributors, LLC shall not be liable for loss of use, cost of cover, lost profits, inconvenience, lost time, commercial loss or other incidental or consequential damages.


This Warrantee is granted to the original purchaser only, and is not transferable or assignable in any manner whatsoever.


Some States do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so that the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from State to State.
