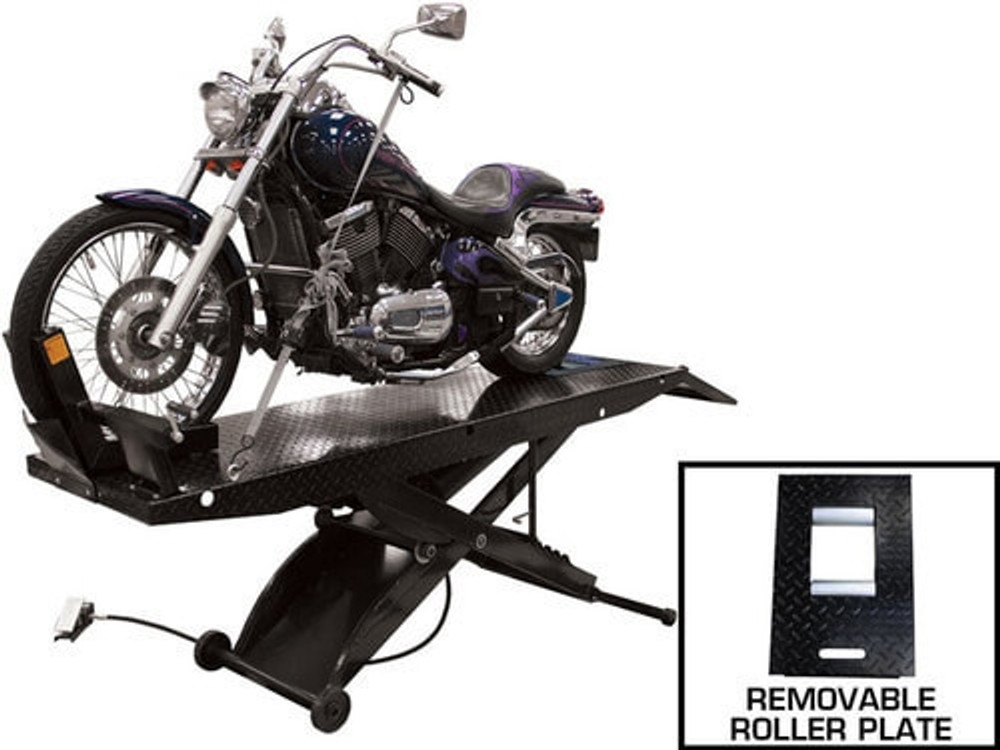

The Atlas® HT-ACL Cycle Lift is a professional-grade air-operated motorcycle lift engineered for both commercial service departments and serious enthusiasts. With a 1,000 lbs capacity, 85 ½" diamond plate platform, and 31 ¼" full rise height, this cycle lift delivers the versatility and stability needed for confident motorcycle maintenance and repair. Built with heavy-duty 10-gauge steel and featuring a removable drop-in roller plate with grooved rollers, the HT-ACL makes wheel service effortless while providing a rock-solid work surface for everything from oil changes to complete teardowns.
Professional Features for Every Rider

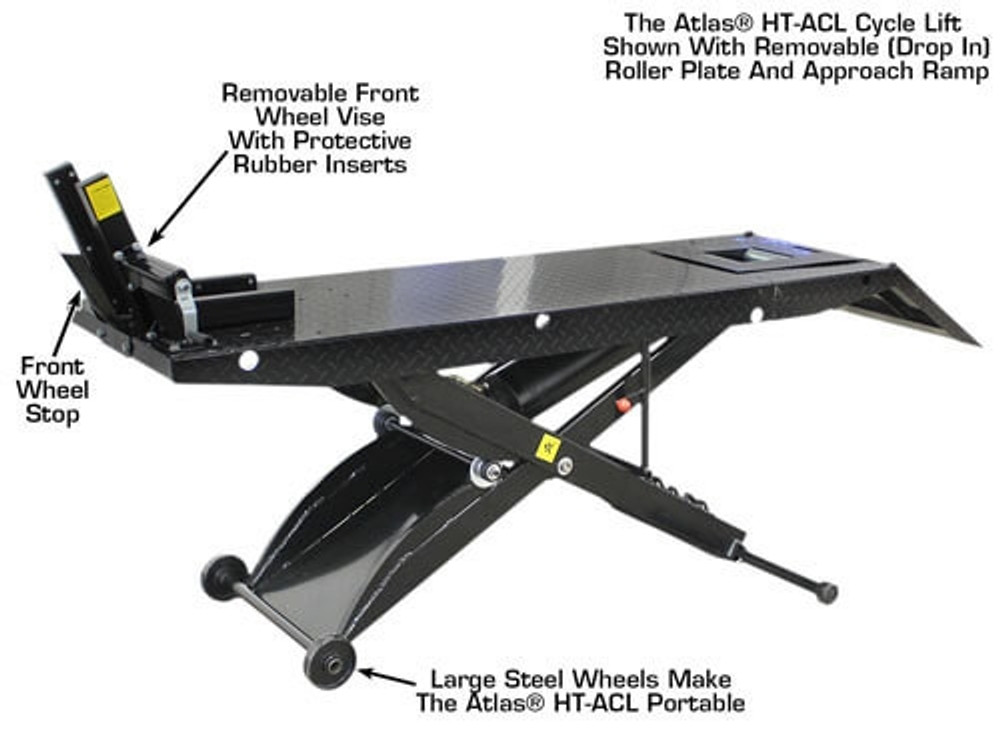

The Atlas® HT-ACL Cycle Lift is designed with the professional technician and DIY enthusiast in mind. The generous 85 ½" table length accommodates most motorcycles comfortably, while the removable 24" W x 22 ½" L low-profile approach ramp provides smooth, easy loading from a 7" minimum height. Once your bike is in position, the adjustable padded front wheel vise with protective rubber inserts securely holds the front wheel without marring finishes or rims.

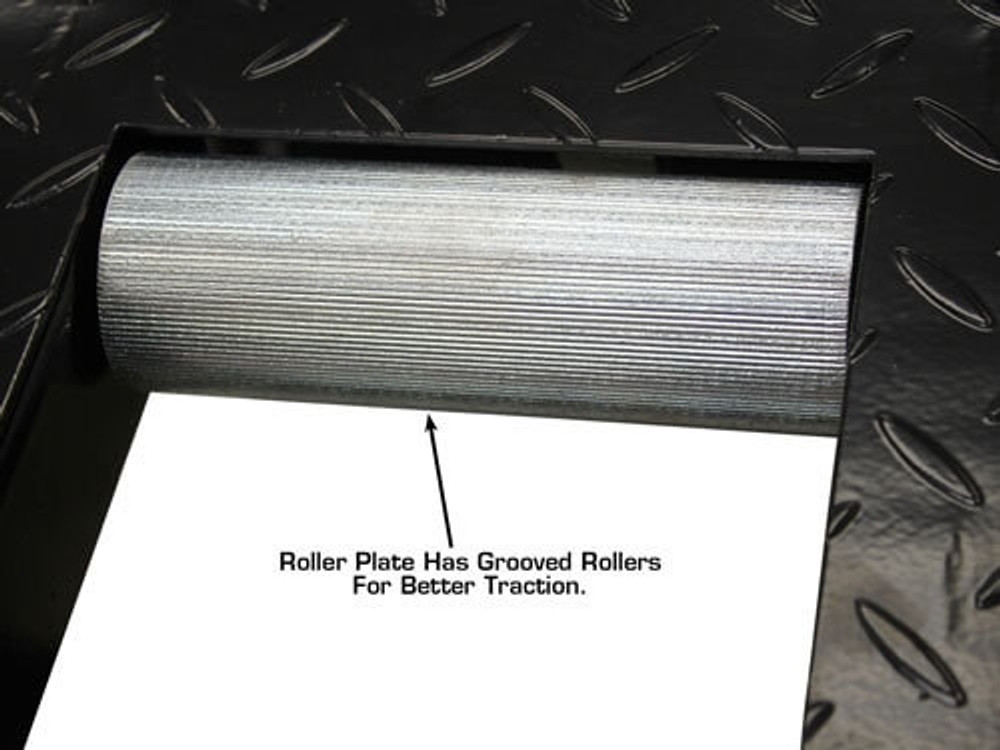

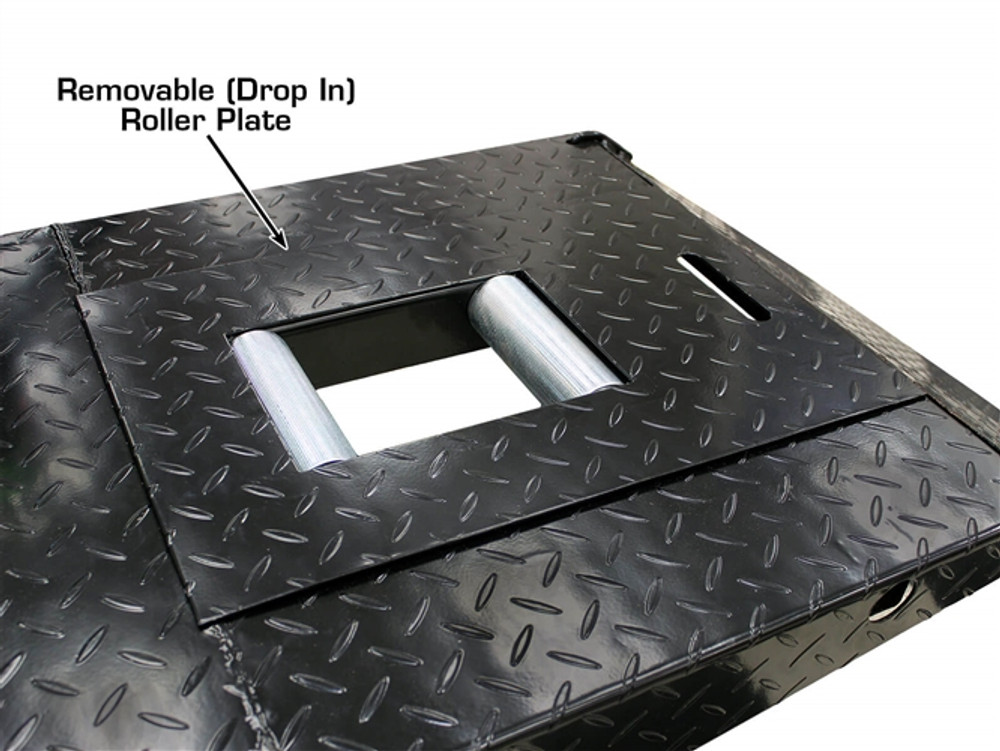

What sets the HT-ACL apart is the removable 11 ¼" W x 20" L roller plate that drops directly into the platform. Featuring grooved rollers for enhanced traction, this roller plate simplifies rear wheel removal and tire changes—no struggling to maneuver heavy wheels on and off the lift. The entire surface is covered in durable diamond plate to prevent slipping and withstand years of heavy use in demanding shop environments.

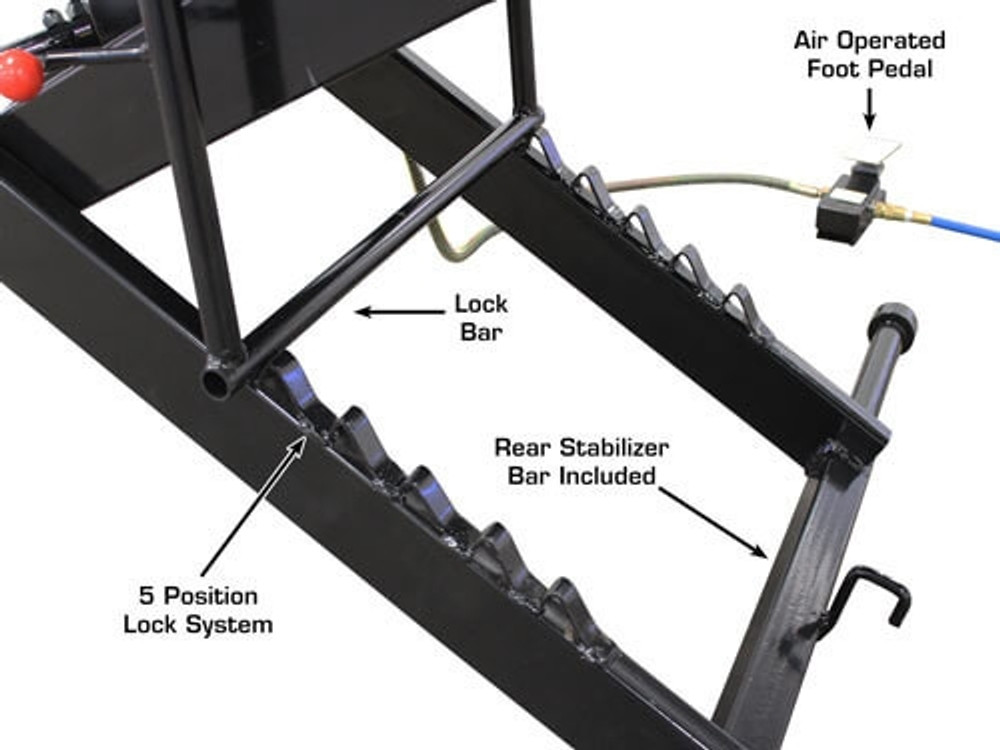

The Atlas® HT-ACL Cycle Lift is air-operated with a heavy-duty foot pedal included, requiring 90-100 PSI with 5 CFM delivery. The 7" cylinder (6" internal size) provides smooth, reliable lifting action with five locking positions at 21 ½", 25", 27 ¼", 29 ½", and 31 ¼" for precise height adjustment. Each lift also includes a rear stabilizer bar that dramatically increases platform stability—a critical safety feature that many competitors charge extra for.
Perfect for Shops and Home Garages
Whether you operate a busy motorcycle dealership service bay or you're a passionate rider who prefers to wrench in your own garage, the HT-ACL delivers the performance you need. Its 1,000 lb capacity handles everything from lightweight sport bikes to large touring motorcycles, and the 31 ¼" lifting height provides comfortable working clearance without requiring a step stool or uncomfortable stooping.
The Atlas® HT-ACL Cycle Lift is also expandable to meet growing needs. Add the optional Atlas® Chopper Extension to increase the platform length by 13", bringing the total table length to 98" for longer custom choppers and extended wheelbase bikes. Or upgrade with the Atlas® XLT Kit, which dramatically increases the platform work area to safely accommodate ATVs and larger vehicles beyond traditional motorcycles.
Key Highlights
1,000 lbs weight capacity with 31 ¼" maximum lifting height and five locking positions for precise adjustment
Removable drop-in roller plate (11 ¼" W x 20" L) with grooved rollers for improved traction during wheel service
85 ½" heavy-duty diamond plate platform constructed from 10-gauge steel for long-lasting durability
Adjustable padded front wheel vise with protective rubber inserts and removable approach ramp (24" W x 22 ½" L) included
Air-operated system with foot pedal included – requires 90-100 PSI and 5 CFM delivery for smooth, reliable operation
Rear stabilizer bar included – enhances platform stability at no extra cost
Expandable design: compatible with Atlas® Chopper Extension (adds 13" length) and Atlas® XLT Kit (accommodates ATVs and larger vehicles)
See the HT-ACL in Action
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
