The Atlas® HI-RISE 1500 is one of the most popular motorcycle and ATV lifts on the market today, and for good reason. With a 1,500 lb. weight capacity, 43-inch maximum lifting height, and a professional-grade air/hydraulic power unit, this portable lift delivers the performance, stability, and versatility that serious mechanics and enthusiasts demand. Whether you're servicing street bikes, cruisers, sport bikes, ATVs, or custom choppers, the HI-RISE 1500 provides the robust lifting platform and ergonomic working height you need to get the job done safely and efficiently.
Built for Serious Work – Premium Construction and Power
The Atlas® HI-RISE 1500 features heavy-duty 11-gauge steel construction, providing exceptional strength and durability for years of reliable service. The lift is powered by a high-quality Atlas® air/hydraulic power unit featuring an extra-large hydraulic fluid reservoir that ensures smooth and steady lift travel to the highest locking position without surging or hesitation. The system operates on 90-100 PSI air pressure with 5 CFM delivery, making it compatible with most shop air compressor systems.

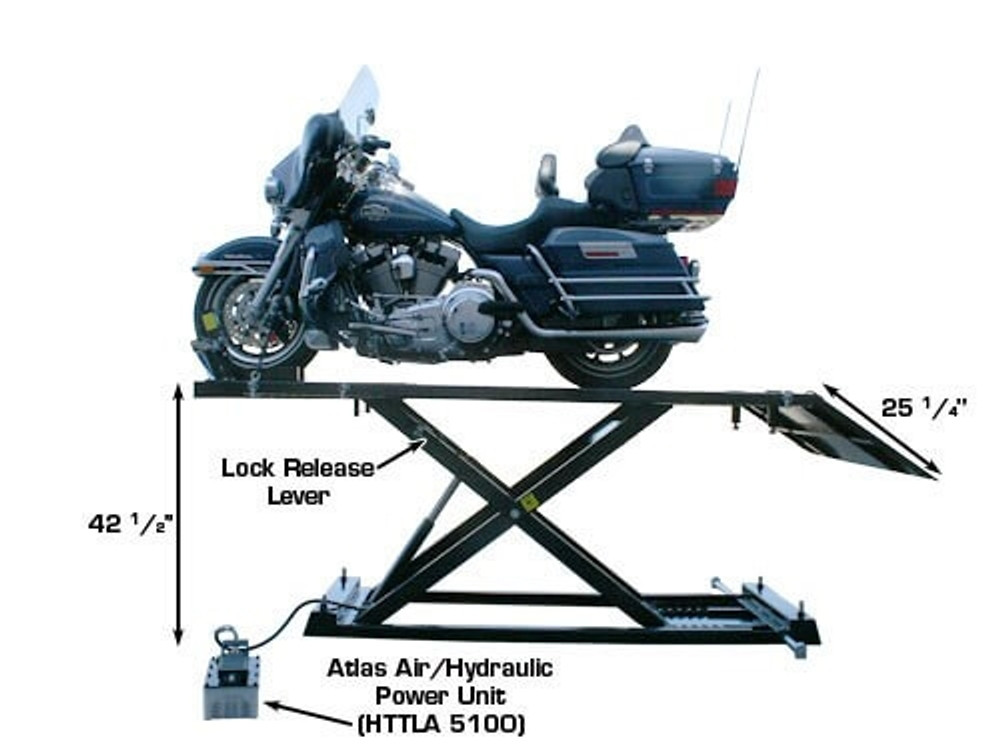

The lifting platform travels from a minimum height of just 8 1/8 inches to a maximum lifting height of 42 1/2 inches, giving you exceptional ground clearance for low-riding sport bikes and comfortable stand-up working height for detailed maintenance and repair. The lift features six mechanical locking positions at 23", 27 1/2", 31 1/4", 34 3/4", 37 1/2", and 40 inches, providing multiple secure height options to match your specific task and working preference.
Versatility and Portability for Any Powersports Vehicle
The HI-RISE 1500 is engineered for maximum versatility. The table length without the approach ramp is 99 3/4 inches, and with the included removable approach ramp attached, the overall length extends to 125 inches (10 feet 5 inches). The included chopper extension adds an additional 20 3/4 inches of length, increasing the diamond-plated center section to over 100 inches for long-wheelbase choppers and touring bikes.

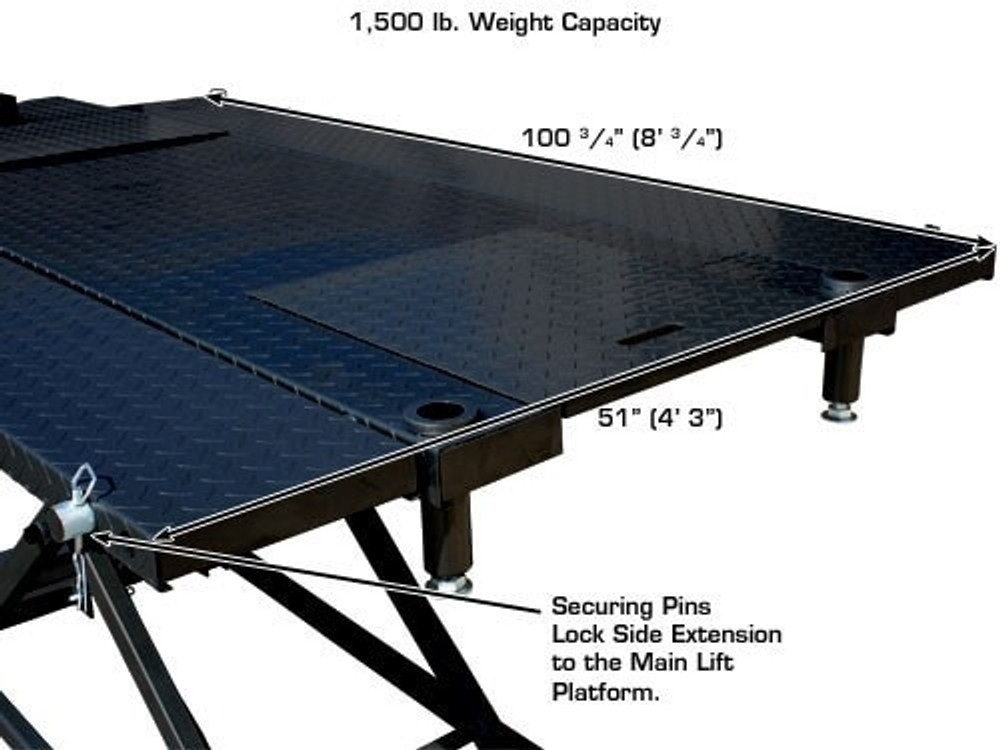

The lift platform is 51 1/8 inches wide with the removable side extensions installed, providing a stable, spacious surface for wide ATVs and touring motorcycles. When working on narrower bikes, simply remove the side extensions to reduce the width to 29 1/2 inches. The removable side extensions measure 88 1/2 inches in length, offering excellent tire support for a wide range of wheelbases.
A removable drop-out rear section (17" W x 20" L) is included as standard equipment, making rear wheel removal and tire changes fast and hassle-free. The lift base measures 87 1/2" L x 29 1/2" W x 4 1/4" H, providing a low-profile, stable foundation while remaining fully portable for moving around your shop or garage.
Complete Kit – Everything You Need to Get Started
The HT1005-KIT includes a comprehensive set of accessories to maximize the utility of your new lift right out of the box:
Removable side extensions for adjustable width and vehicle compatibility
Removable drop-out section for easy rear wheel service
Removable approach ramp for smooth, safe loading
Chopper extension for extended wheelbase vehicles

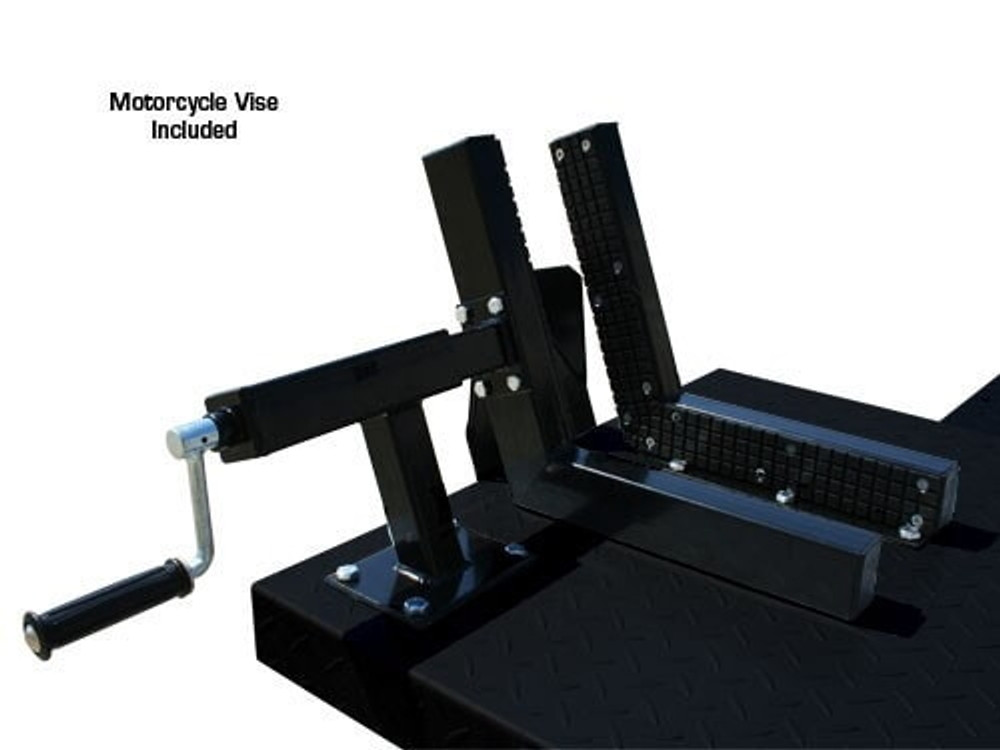

Heavy-duty front wheel vise for secure vehicle anchoring
This is a true professional-grade lift system with all the accessories and features you need to tackle any job, from routine oil changes to major engine work and custom builds.
Key Highlights
1,500 lb. weight capacity – handles virtually any motorcycle or ATV with ease
42 1/2-inch maximum lifting height – stand comfortably while you work
Heavy-duty 11-gauge steel construction – built to last for decades
Atlas® air/hydraulic power unit with extra-large reservoir – smooth, reliable operation
Complete accessory kit included – side extensions, ramp, chopper extension, vise, and more
Looking for full specifications and features?
Check out the Product Specifications and Product Features tabs
above for complete specs, dimensions, and detailed feature breakdowns.
